NZXT N9 Z890 ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Intel® LGA 1851 Socket: Ready for the latest Intel® Core™ Ultra processors (Series 2)

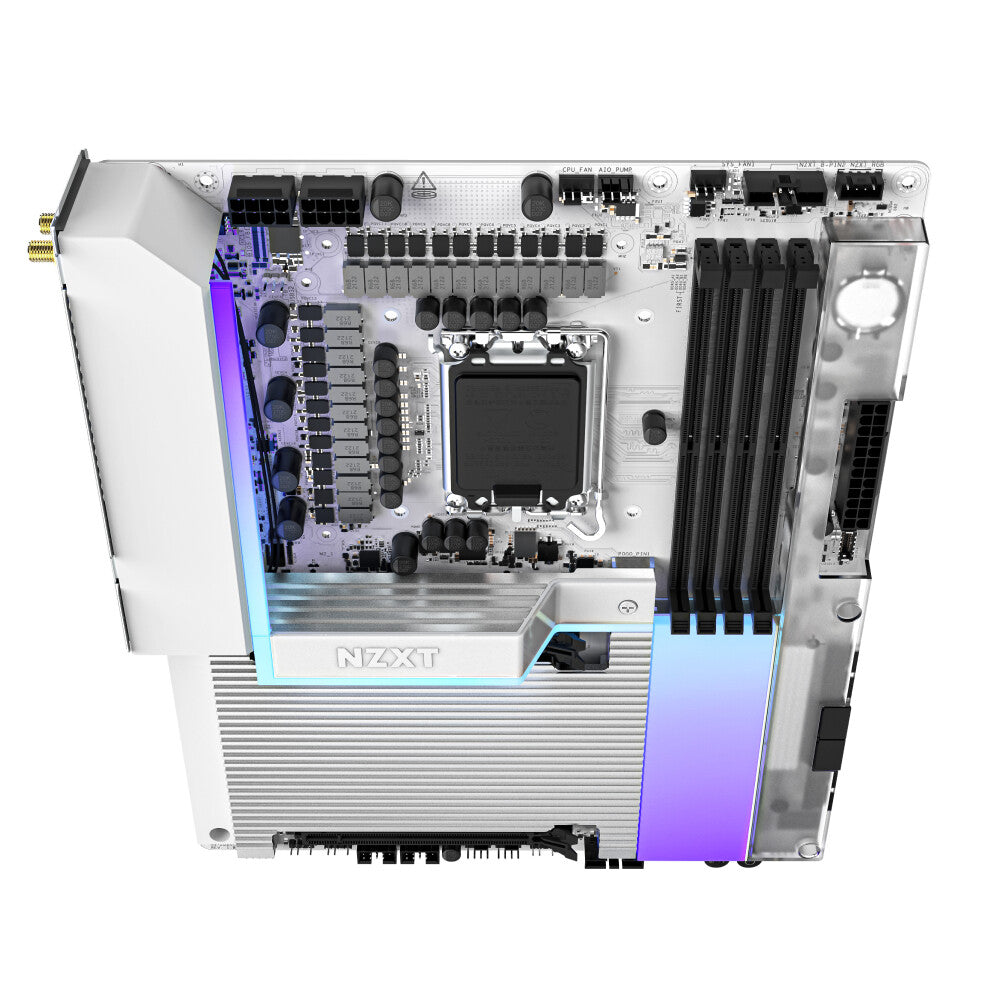

- Advanced Power Delivery: A robust 20+1+1 power stage design (110A SPS) and an 8-layer, low-loss 2oz copper PCB ensure exceptional stability and overclocking potential

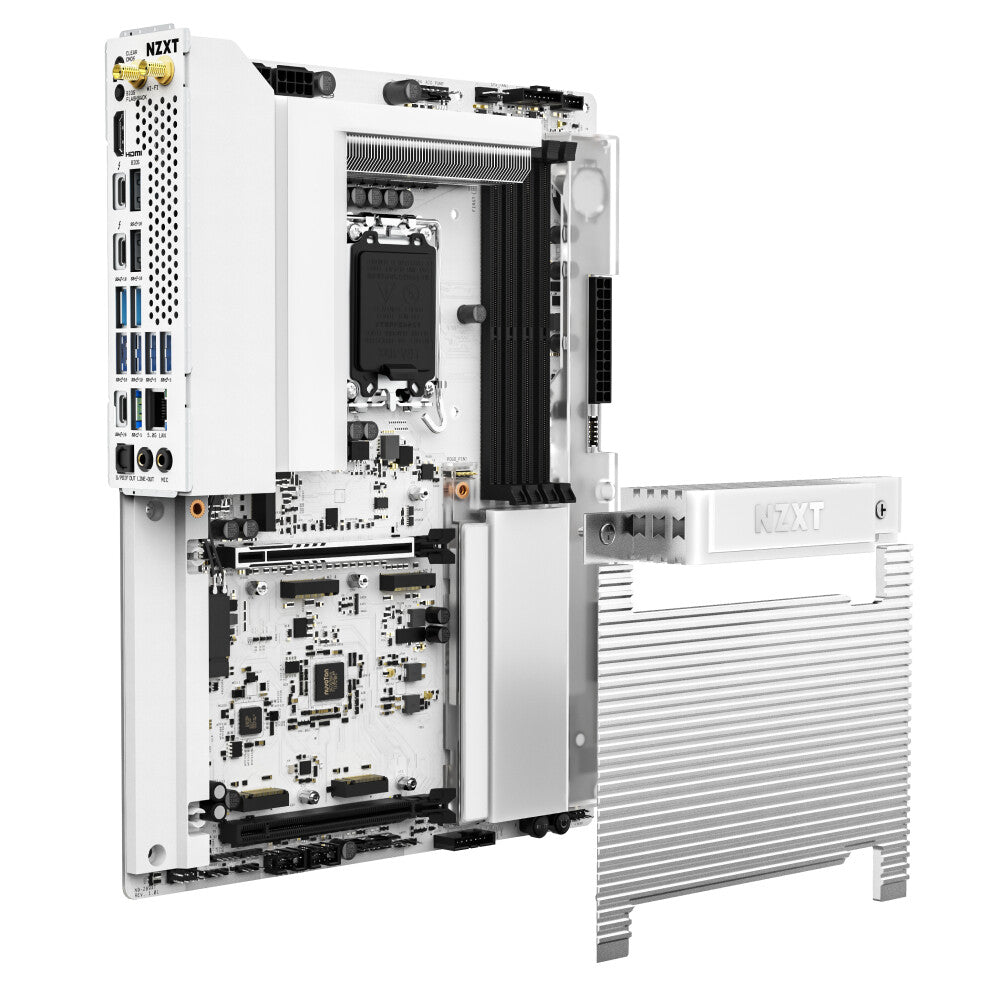

- Optimized Thermal Design: Stay cool under pressure thanks to a high-performance VRM heatsink array (fin stack, heat pipe, thermal pads, dual PWM fans) and dedicated heatsinks for all M.2 slots
- PCIe® 5.0 M.2 Slot: Access PCIe® 5.0 storage speeds with the top M.2 slot, plus four additional PCIe® 4.0 M.2 slots
- DDR5 Performance: Four dual-channel DDR5 RAM slots accelerate load times, enhance multitasking, and support speeds up to 8000+ MHz through overclocking
- High-Speed Connectivity: Two Thunderbolt™ 4 ports deliver 40 Gbps data transfer speeds, video output, and device charging through a single, versatile connection
- Next-Gen Networking: Enjoy ultra-fast speeds with Wi-Fi 7 (320 MHz) and 5G LAN, ensuring a flawless, lag-free connection for both wireless and wired setups
- Seamless Style: Achieve a sleek and sophisticated aesthetic with a full-metal cover that conceals the majority of the PCB
- Integrated RGB Lighting: Personalize your build with vibrant onboard RGB lighting, controlled through NZXT CAM software
- Single-Frame Fans: Effortlessly connect and control NZXT RGB single-frame fans with the convenient 8-pin combo fan headers (4-pin RGB + 4-pin PWM)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the NZXT N9 Z890?
Does the NZXT N9 Z890 support overclocking?
What type of memory does the NZXT N9 Z890 support?
NZXT N9 Z890 ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 7
Description

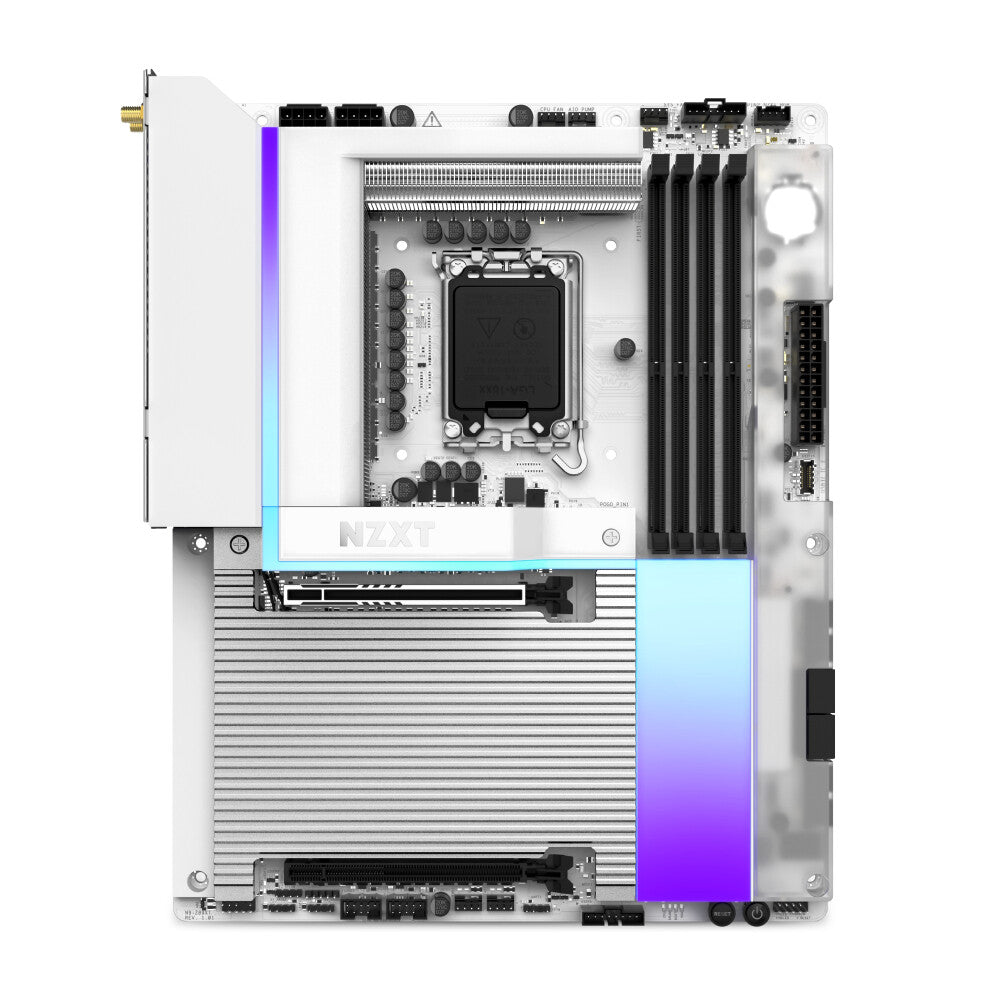

The NZXT N9 Z890 stands out in the Z890 chipset lineup with its distinctive white design and comprehensive gaming feature set. Built around Intel's flagship Z890 chipset, this ATX motherboard supports the latest Intel Core Ultra Series 2 processors through its LGA1851 socket. The board targets gamers and enthusiasts who want premium features without the complexity, combining high-end connectivity with NZXT's signature clean aesthetics.
Memory performance gets serious attention with four DDR5 DIMM slots ready for high-speed kits, while dual PCIe x16 slots provide flexibility for multi-GPU setups or expansion cards - one slot runs at PCIe 5.0 speeds for the latest graphics cards, with a second PCIe 4.0 slot for additional components. The inclusion of Wi-Fi 7 brings cutting-edge wireless connectivity, and USB 3.2 Gen 2x2 ensures fast data transfers for external storage. RGB lighting adds visual flair through integrated LED headers, letting you sync lighting effects across compatible components.
NZXT includes practical extras like mounting screws and a Wi-Fi antenna in the box, plus dedicated connectors for both CPU cooling fans and water pump setups to accommodate different cooling preferences. The full-cover design gives the board a premium appearance while protecting components. XMP memory profile support makes it straightforward to achieve rated speeds with compatible DDR5 kits, and the user guide walks through setup and configuration options for both new builders and experienced users.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of water pump connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

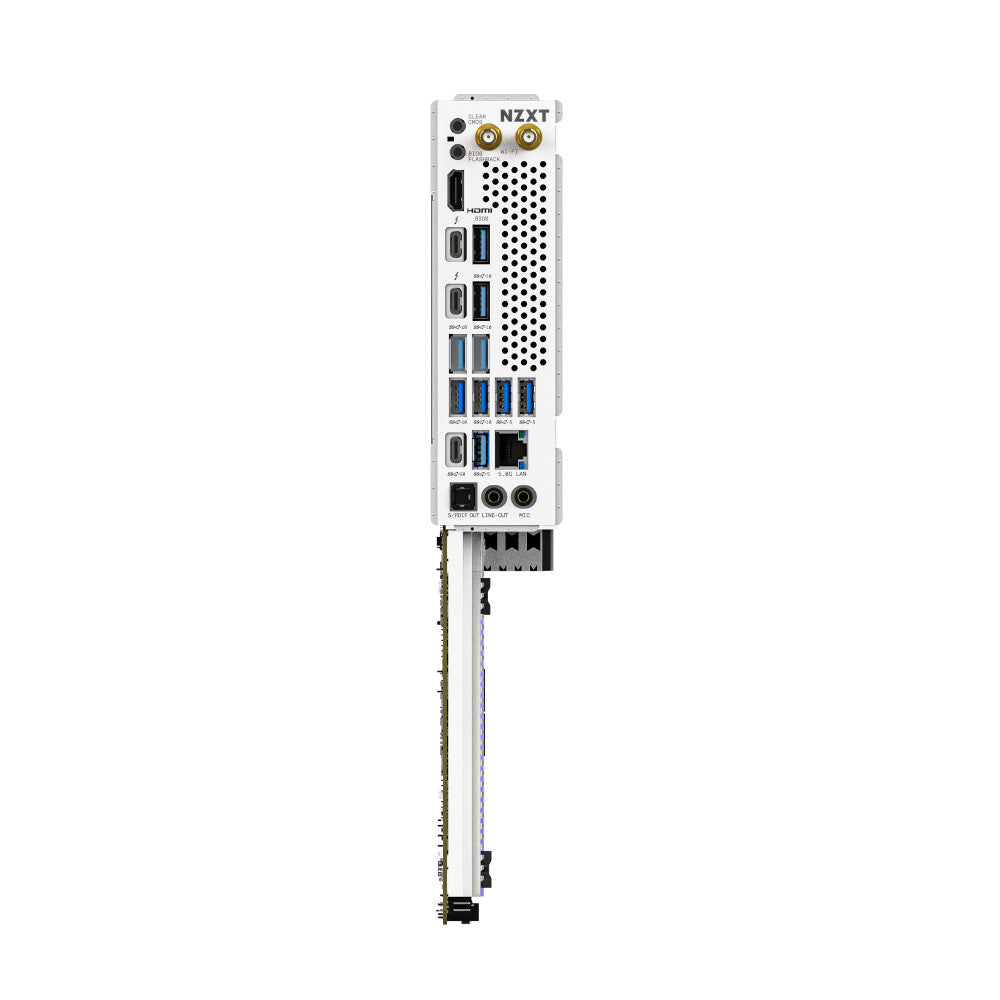

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 2x2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC4082 |
| Product colour | White |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
