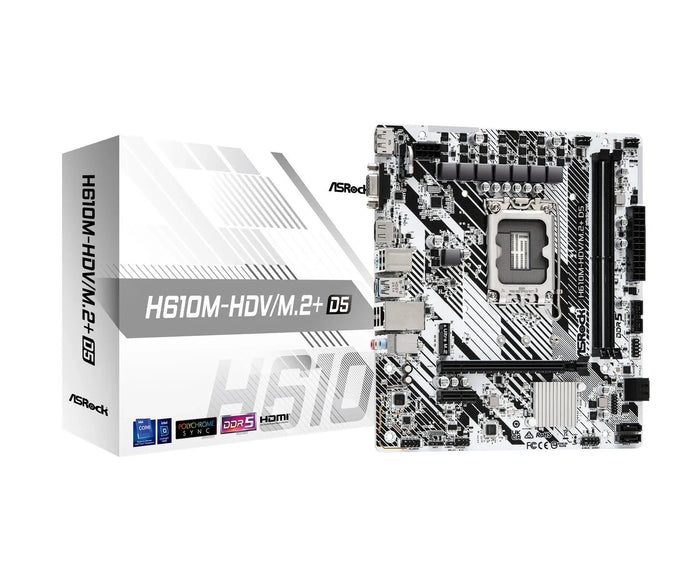

Asrock H610M-HDV/M.2+ D5 mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Power Phase
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What type of processors are compatible with the Asrock H610M-HDV/M.2+ D5?
How much RAM can I install on this motherboard?
Does this motherboard support RGB lighting?
Asrock H610M-HDV/M.2+ D5 mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The Asrock H610M-HDV/M.2+ D5 delivers Intel 12th and 13th generation CPU support in a compact mATX package built around the entry-level H610 chipset. This board suits budget-conscious builders who need modern DDR5 memory support without premium features. The LGA1700 socket accommodates everything from Core i3 processors up to flagship Core i9 models, though the H610 chipset limits overclocking to Intel's locked processors only.
Memory support extends to 96GB across two DDR5 DIMM slots, giving you room for substantial capacity even on this affordable platform. The single PCIe 4.0 x16 slot handles modern graphics cards effectively, while one PCIe 3.0 x1 slot provides expansion flexibility. Storage connectivity includes four SATA III ports for traditional drives, plus the M.2 slot referenced in the model name supports NVMe SSDs. Network connectivity comes via integrated Gigabit Ethernet.
Setup benefits from UEFI AMI firmware that simplifies installation and configuration. The board includes standard accessories like an I/O shield and user documentation to get your system running. DDR5 memory profiles ensure your RAM operates at optimal speeds without manual tuning. This combination of modern socket support, DDR5 compatibility, and essential connectivity makes the H610M-HDV/M.2+ D5 a practical foundation for mainstream builds where budget matters more than enthusiast features.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 96 GB |
| Unbuffered memory | No |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA III |
| Number of storage drives supported | 5 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 193 mm |
Frequently Asked Questions
What type of processors are compatible with the Asrock H610M-HDV/M.2+ D5?
How much RAM can I install on this motherboard?
Does this motherboard support RGB lighting?
What are the data transfer speeds of the Ultra M.2 interface?
