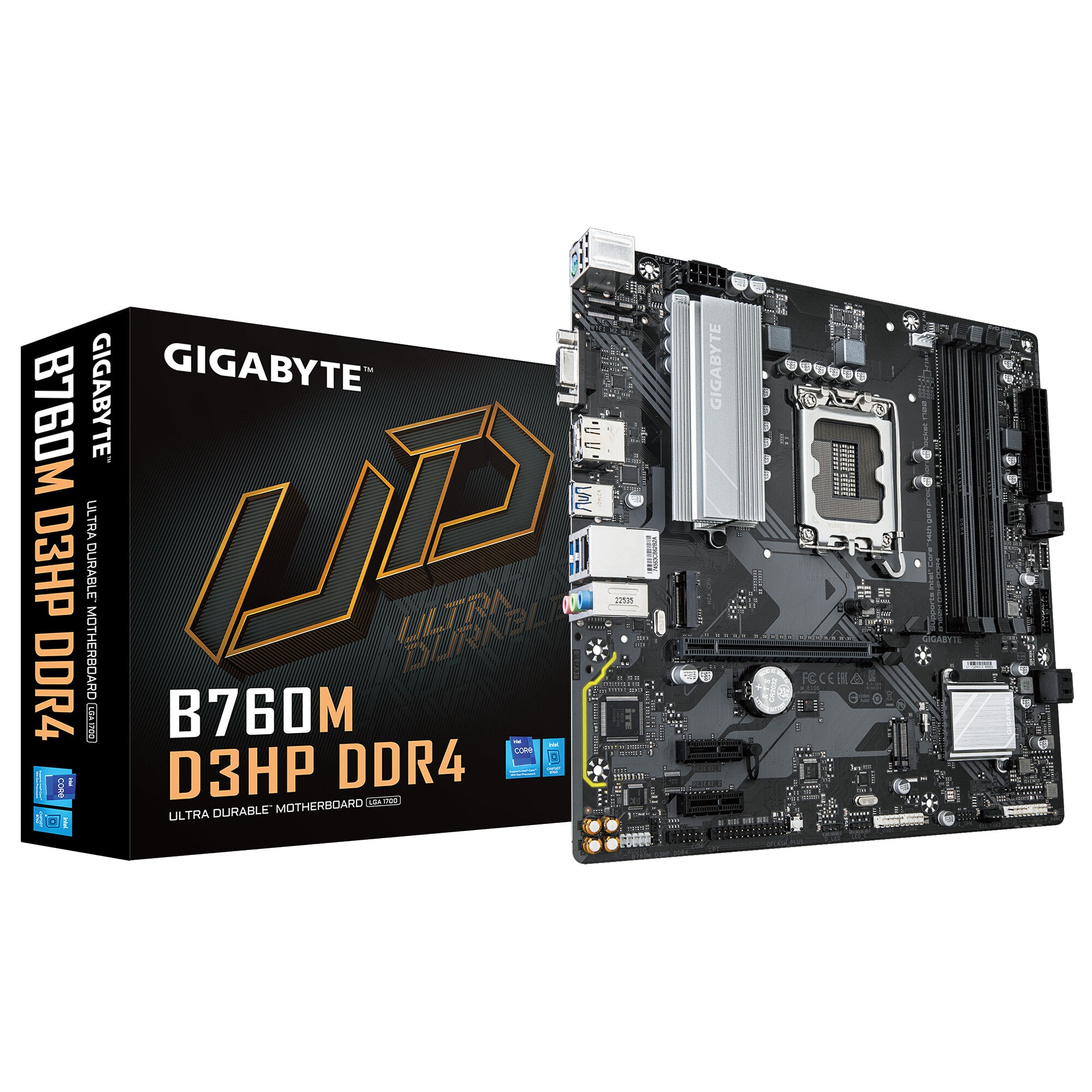

Gigabyte B760M D3HP DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN
- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte B760M D3HP?
How many memory slots does this motherboard have?
What is the maximum supported memory speed?
Gigabyte B760M D3HP DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots
Description

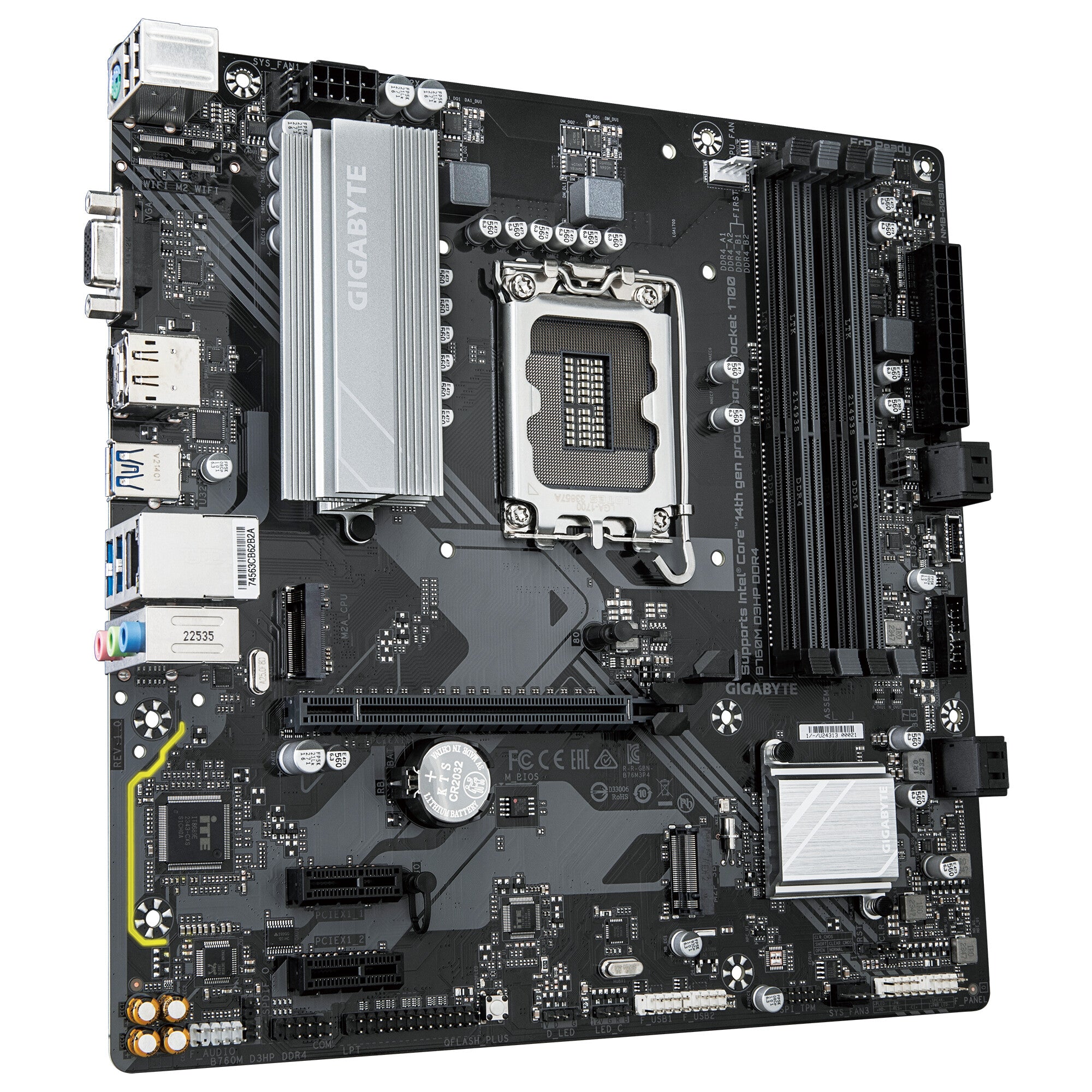

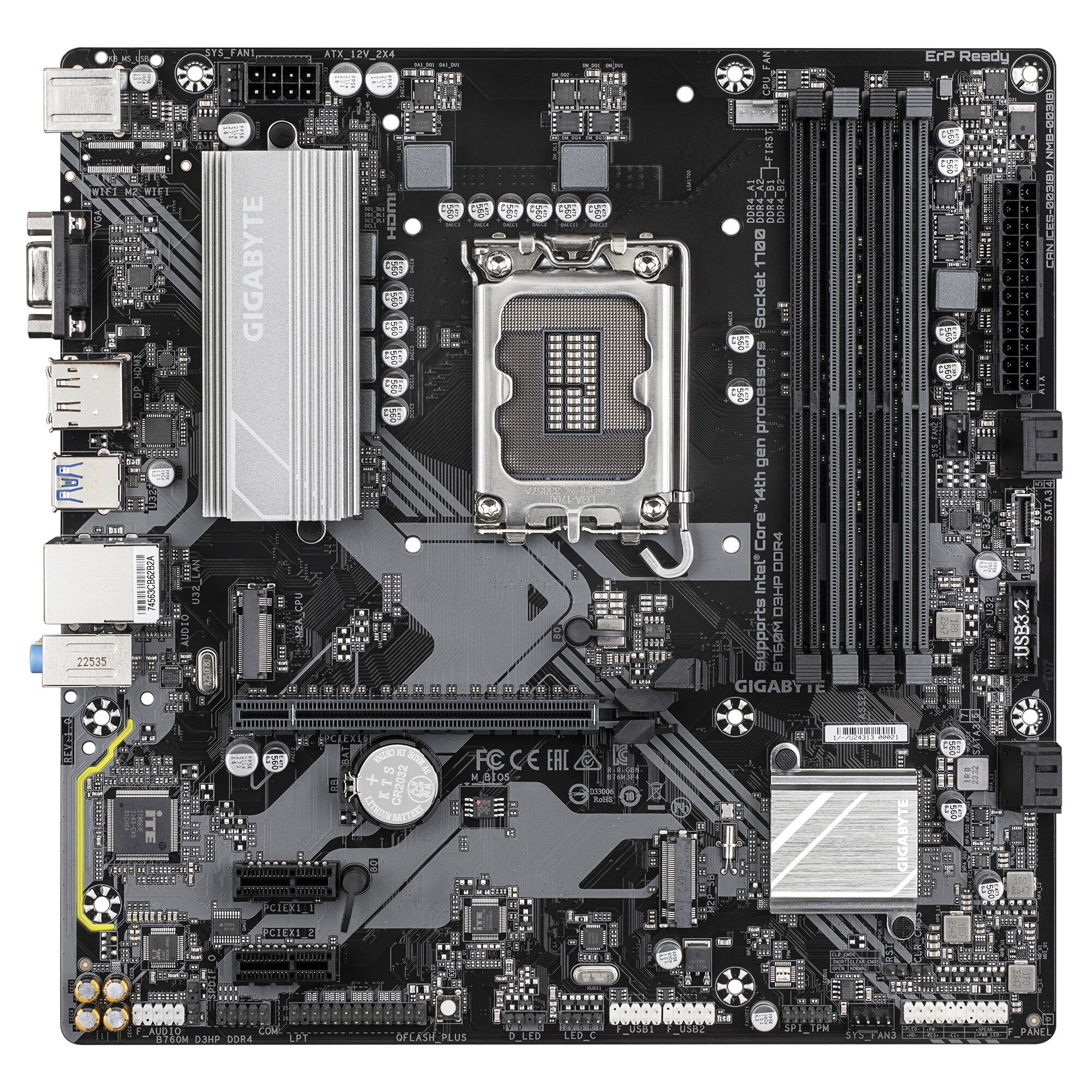

The Gigabyte B760M D3HP DDR4 is a micro ATX motherboard built around Intel's B760 chipset, designed for builders who want a capable foundation for 12th, 13th, and 14th generation Intel Core processors in compact systems. With its LGA1700 socket, this board supports everything from budget Celeron chips to high-performance Core i9 processors, making it adaptable to a wide range of builds. The 4+1+1 phase digital VRM design provides stable power delivery for mainstream processors, while the compact micro ATX form factor fits into smaller cases without sacrificing essential features.
Memory support centres around DDR4 technology, with four DIMM slots capable of handling up to 128GB total capacity. The board supports memory speeds from standard DDR4-2133 all the way up to DDR4-5333 when overclocked, with XMP profiles making it simple to achieve higher speeds with compatible kits. Expansion includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional cards. Two PCIe 4.0 M.2 slots provide fast storage options for modern SSDs, while Gigabit Ethernet and USB 3.2 Gen1 ports handle connectivity needs.
Setup is straightforward with the included I/O shield and comprehensive user guide walking you through the installation process. The board includes a pre-installed CR2032 battery for BIOS settings retention and comes with Gigabyte's three-year warranty for peace of mind. ECC and non-ECC memory compatibility adds flexibility for users who need error-correcting memory support, while the RGB LED pin header allows for custom lighting integration in compatible builds.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Parallel connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

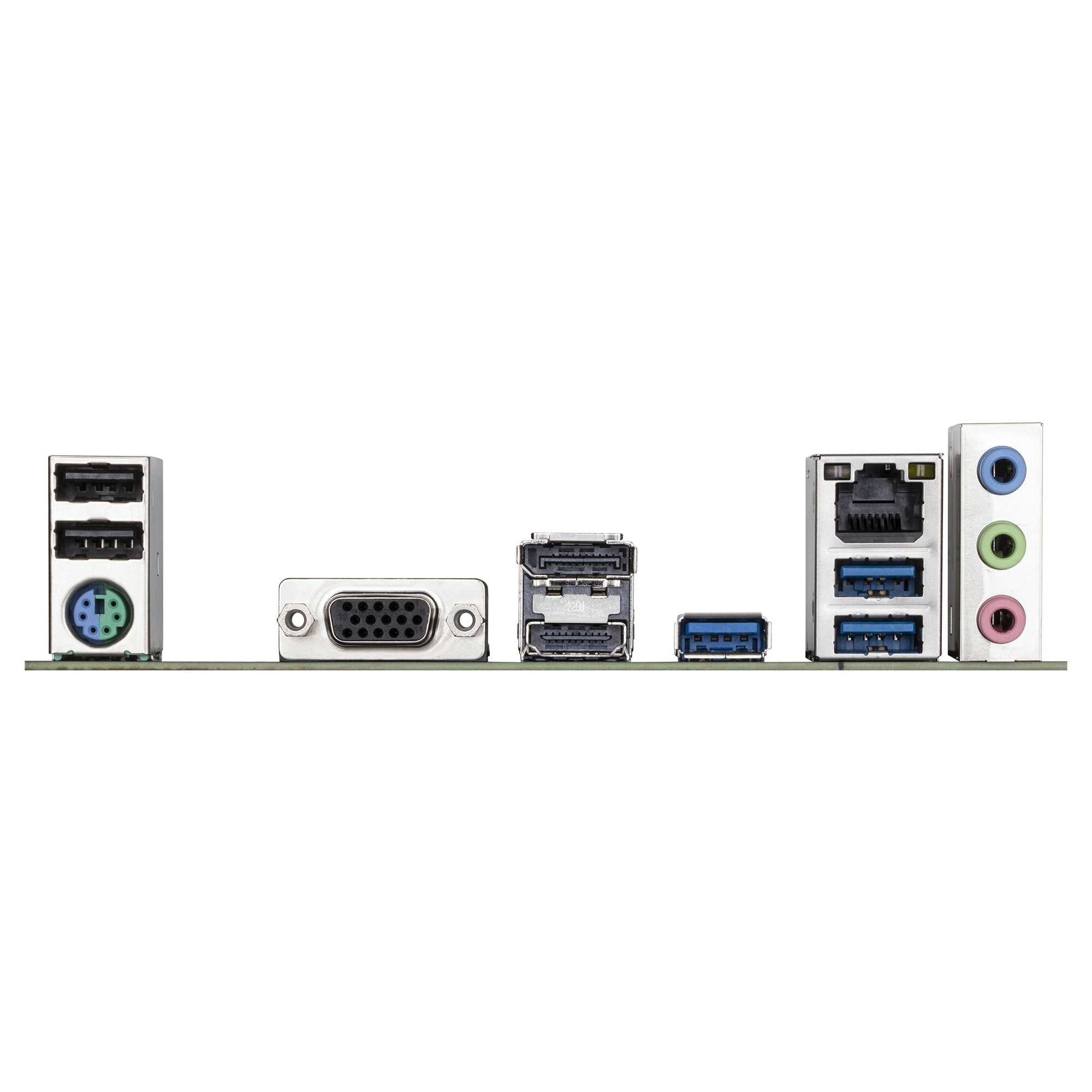

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Digital audio optical out | 3 |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Bundled software | Norton Internet Security |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
