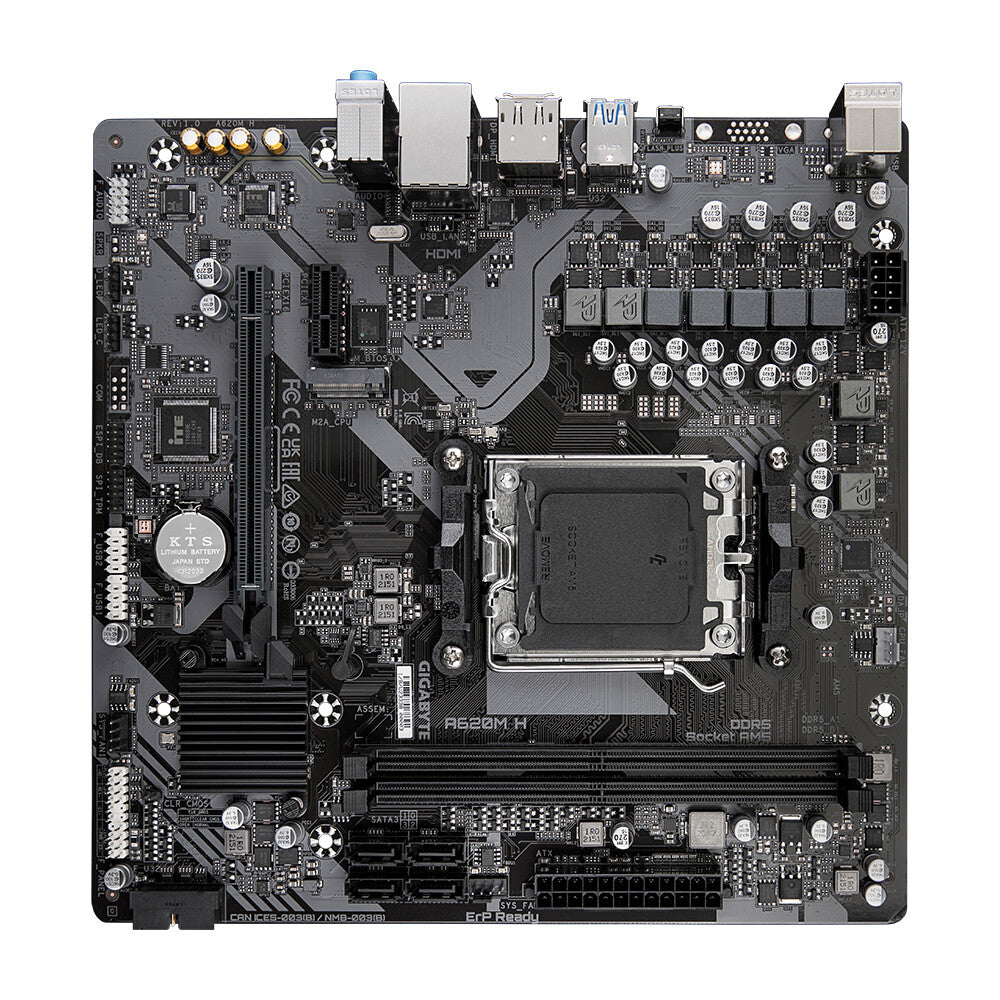

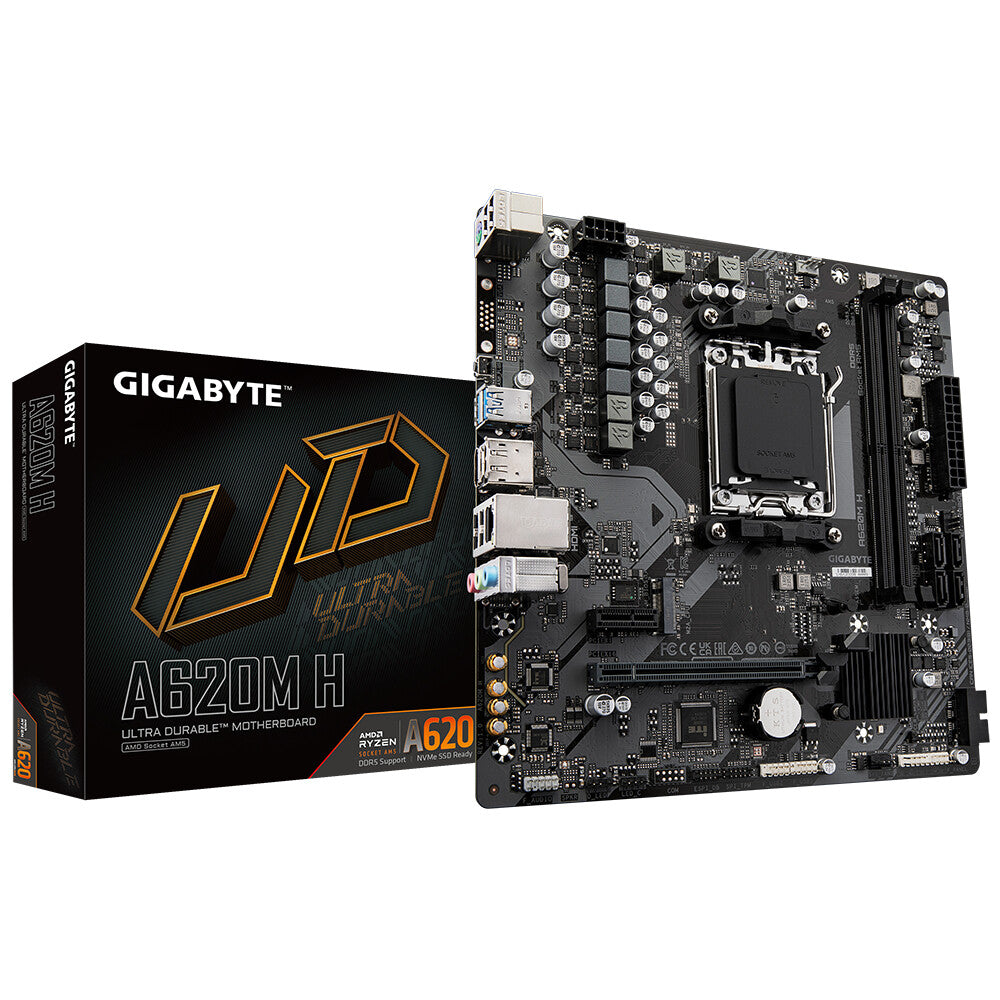

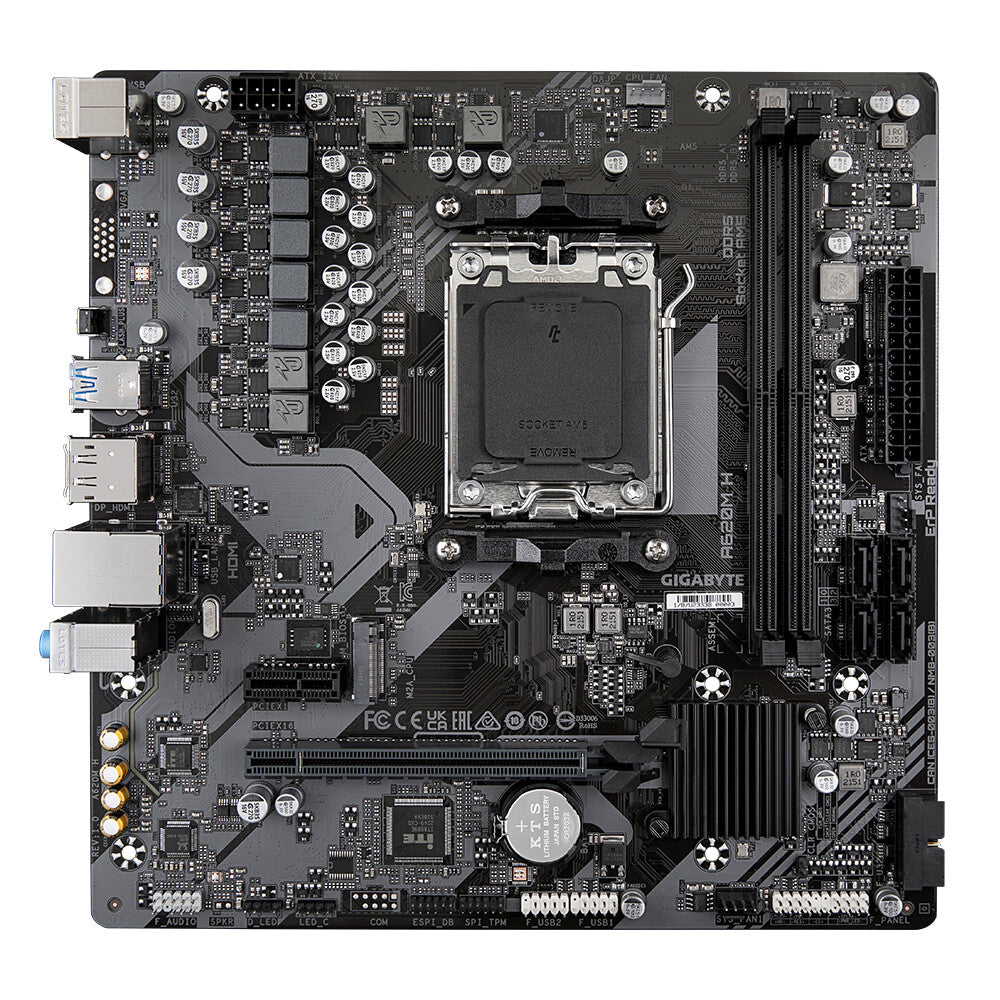

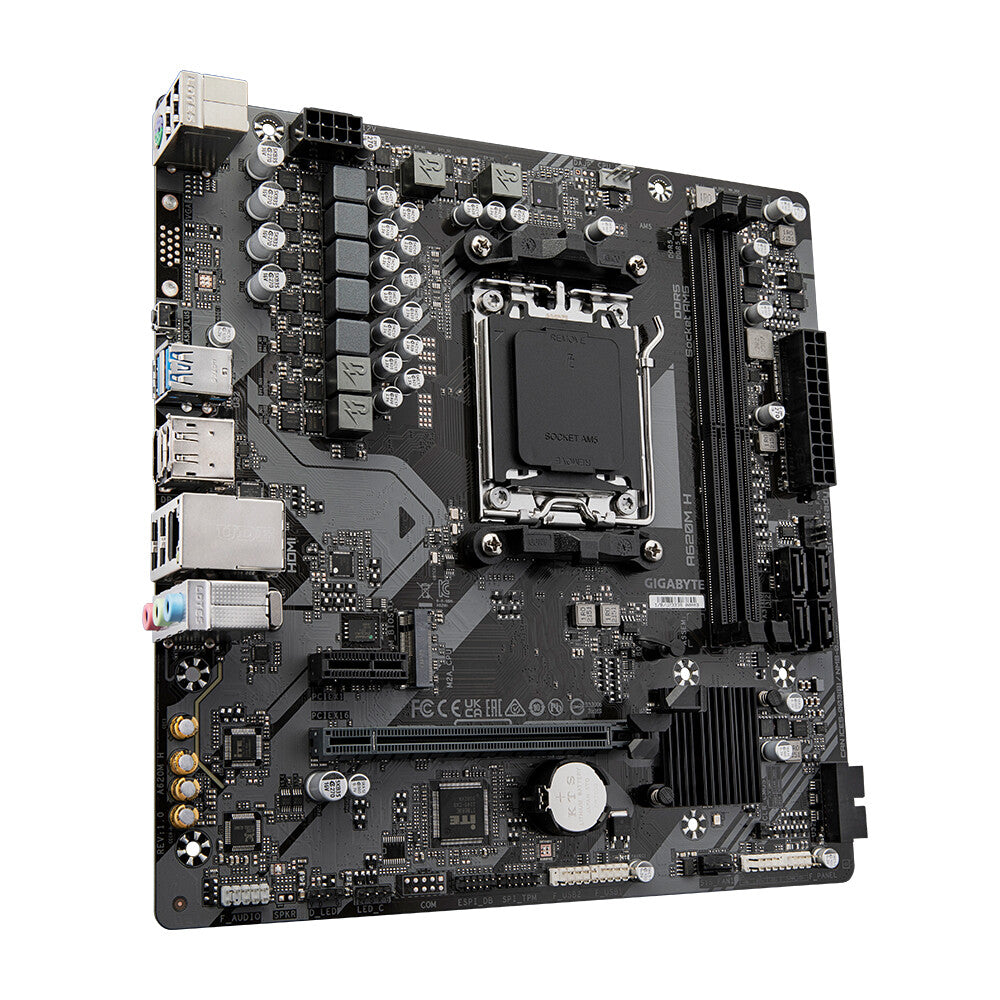

Gigabyte A620M H (rev. 1.0) micro ATX AMD Motherboard | AM5 Socket - 2 x DDR5 Memory Slots
KEY FEATURES
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte A620M H?
How much memory can the Gigabyte A620M H support?
Does this motherboard support overclocking?
Gigabyte A620M H (rev. 1.0) micro ATX AMD Motherboard | AM5 Socket - 2 x DDR5 Memory Slots
Description
The Gigabyte A620M H (rev. 1.0) micro ATX AMD Motherboard is engineered to elevate your computing experience. Designed with the latest technology, this motherboard supports AMD's Ryzen 7000 Series processors, ensuring that you can harness the full potential of your system. With its compact micro ATX form factor, it fits seamlessly into a variety of cases, making it an ideal choice for gamers and PC builders alike.
Key Benefits
- 5+2+2 Phases Digital VRM Solution: Provides precise power delivery to critical components, enhancing overall system performance and scalability.
- PCIe 4.0 Compatibility: Experience double the bandwidth of PCIe 3.0, ensuring high-speed data transfer and improved signal integrity for your devices.
- DDR5 Overclocking Support: Achieve memory speeds of up to 6400 MHz and beyond with AMD EXPO and Intel XMP capabilities, allowing for a significant boost in performance.
- SMART FAN 6 Technology: Keep your system cool and quiet with multiple fan headers and customisable fan curves based on temperature sensors.
- GbE LAN with Bandwidth Management: Enjoy reduced latency and improved responsiveness in crowded environments, perfect for gaming and streaming.
- High-End Audio Capacitors: Deliver rich, high-fidelity audio for an immersive gaming experience, thanks to superior audio components.
Addtional Features
The Gigabyte A620M H motherboard is packed with features that cater to both casual users and hardcore gamers. It supports up to 96 GB of DDR5-SDRAM across two DIMM slots, allowing for ample memory capacity for multitasking and demanding applications. The motherboard is equipped with M.2 and SATA III interfaces for versatile storage options, supporting both HDDs and SSDs with RAID configurations for enhanced data security and performance.
Additionally, the PCIe EZ-Latch simplifies the process of removing graphics cards, making upgrades and maintenance hassle-free. The Q-Flash Plus feature allows for easy BIOS updates without the need for a CPU, memory, or graphics card, streamlining the setup process.
Why Buy
Investing in the Gigabyte A620M H (rev. 1.0) micro ATX AMD Motherboard means choosing a reliable and high-performance foundation for your PC. Its advanced features and robust design ensure that you can build a system that meets your needs today and is ready for future upgrades. With Gigabyte's commitment to quality and innovation, you can trust that this motherboard will deliver exceptional performance for years to come.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 96 GB |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 96 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6800,7200 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| Microphone in | Yes |
| Headphone outputs | 3 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 897 g |
| Package height | 54 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 225 mm |
| Width | 230 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet SecurityLAN bandwidth management software |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
