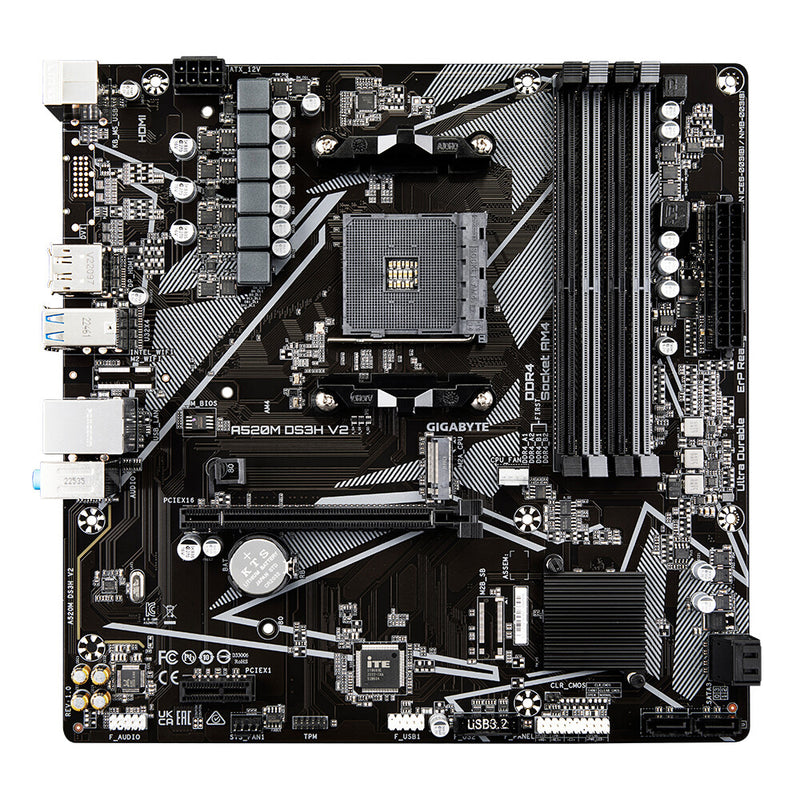

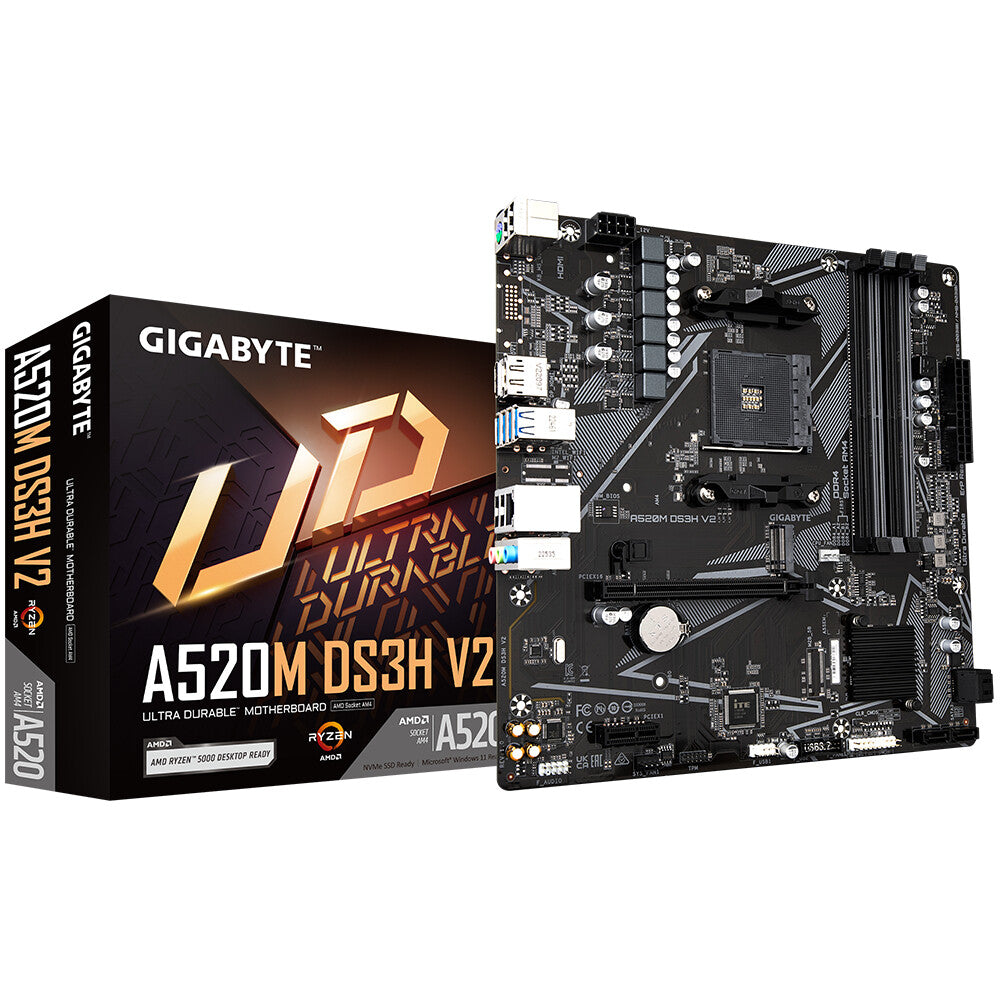

Gigabyte A520M DS3H V2 (rev. 1.0) micro ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable™ PCIe 3.0 x16 Slot
- NVMe PCIe 3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- GbE LAN with Bandwidth Management
- Rear DisplayPort and HDMI for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much RAM can I install on this motherboard?
Does it support M.2 SSDs?
What type of cooling options does it support?
Gigabyte A520M DS3H V2 (rev. 1.0) micro ATX AMD Motherboard | AM4 Socket - 4 x DDR4 Memory Slots
Description
The Gigabyte A520M DS3H V2 (rev. 1.0) is designed for those who demand reliability and performance in their computing experience. Built with the latest technology, this micro ATX motherboard supports AMD's 3rd Generation Ryzen CPUs, ensuring that your system runs smoothly and efficiently. Whether you're a gamer, a content creator, or simply looking to upgrade your home office, this motherboard offers the features and stability you need to get the job done.
Key Benefits
- Enhanced Power Delivery: Utilising pure digital PWM and Low RDS(on) MOSFETs, this motherboard delivers precise power to your CPU and components, enhancing overall system performance.
- Future-Proof Storage Solutions: With an NVMe PCIe Gen3 x4 M.2 connector, you can enjoy lightning-fast data transfer speeds, making it perfect for high-performance SSDs.
- Optimised Networking: The built-in GbE LAN with bandwidth management ensures low latency and improved responsiveness, especially in crowded network environments, giving you a competitive edge in online gaming.
- Immersive Visual Experience: Featuring HDMI 2.1 support, the motherboard allows for 4K video output at 60Hz, providing stunning visuals for movies and gaming alike.
- Robust Protection Features: With advanced surge protection and humidity-resistant Glass Fabric PCB technology, this motherboard is built to withstand the test of time, protecting your investment from environmental factors.
- Custom Cooling Options: The Smart Fan 5 technology allows for complete control over your cooling setup, ensuring your system remains quiet and efficient under load.
Addtional Features
The Gigabyte A520M DS3H V2 is packed with features that cater to both casual users and tech enthusiasts. It supports up to 128GB of DDR4 memory across four DIMM slots, allowing for extensive multitasking capabilities. The motherboard also includes solid pin power connectors for stable power delivery during CPU overloading, ensuring that your system runs reliably even under the most demanding conditions.
For audio enthusiasts, the high-end audio capacitors and audio noise guard provide a superior sound experience, isolating sensitive components from potential interference. The refreshed BIOS offers an intuitive interface for easy setup and optimal performance tuning, making it accessible for users of all levels.
Why Buy
Choosing the Gigabyte A520M DS3H V2 (rev. 1.0) means investing in a motherboard that prioritises performance, stability, and longevity. With its robust feature set, this motherboard is ideal for building a powerful and reliable PC tailored to your needs. Whether you're gaming, streaming, or working, this motherboard ensures that your system is equipped to handle it all with ease.
Embrace the future of computing with the Gigabyte A520M DS3H V2, where performance meets durability in a compact design.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| Discrete graphics support | Yes |
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| Number of EATX power connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| Digital audio optical out | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 2.0 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Cooling type | Active |
| Power source type | ATX |
| PC health monitoring | CPU, LED, Power supply, Temperature, Voltage |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC887 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 810 g |
| Package height | 54 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Drivers included | Yes |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
