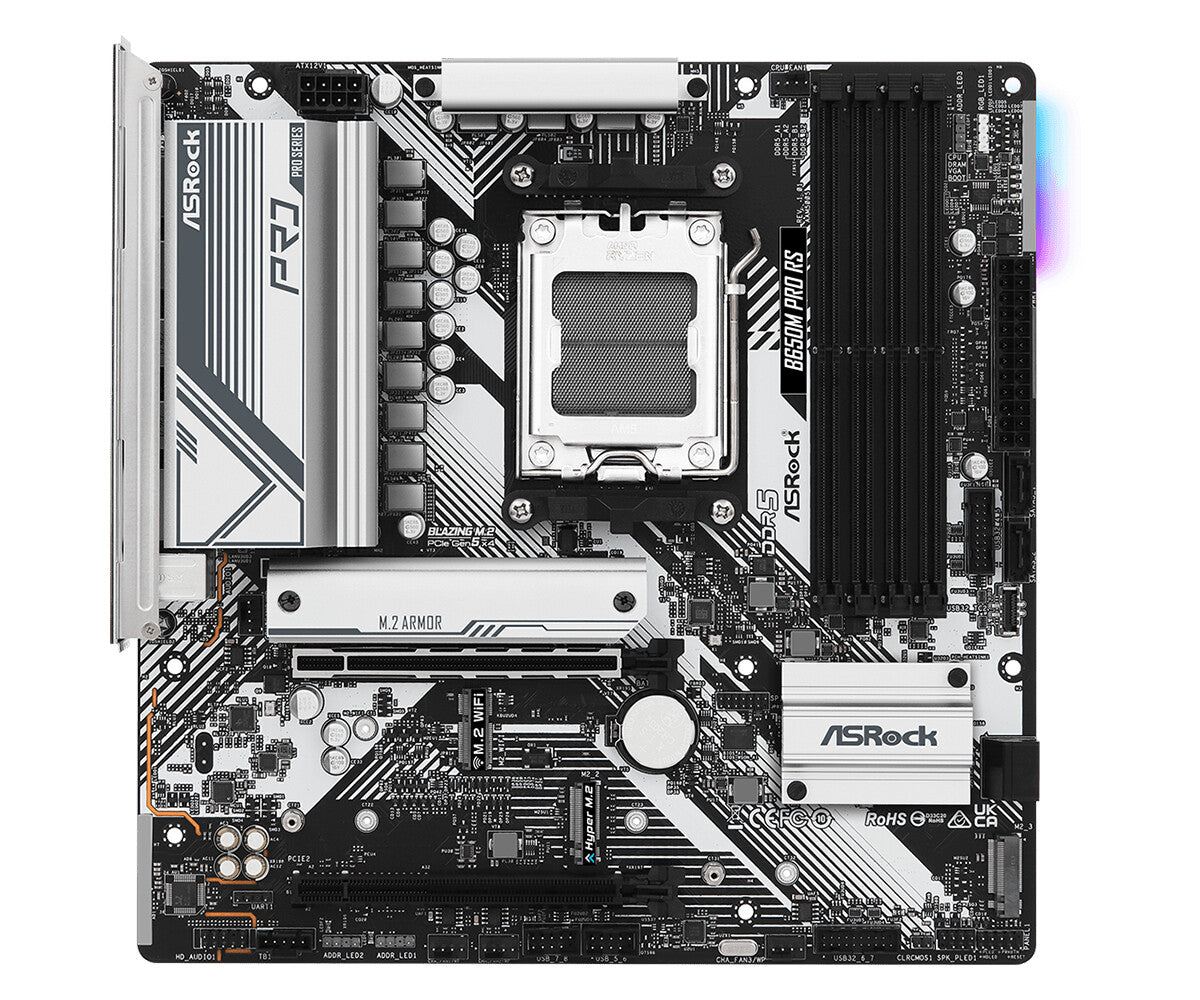

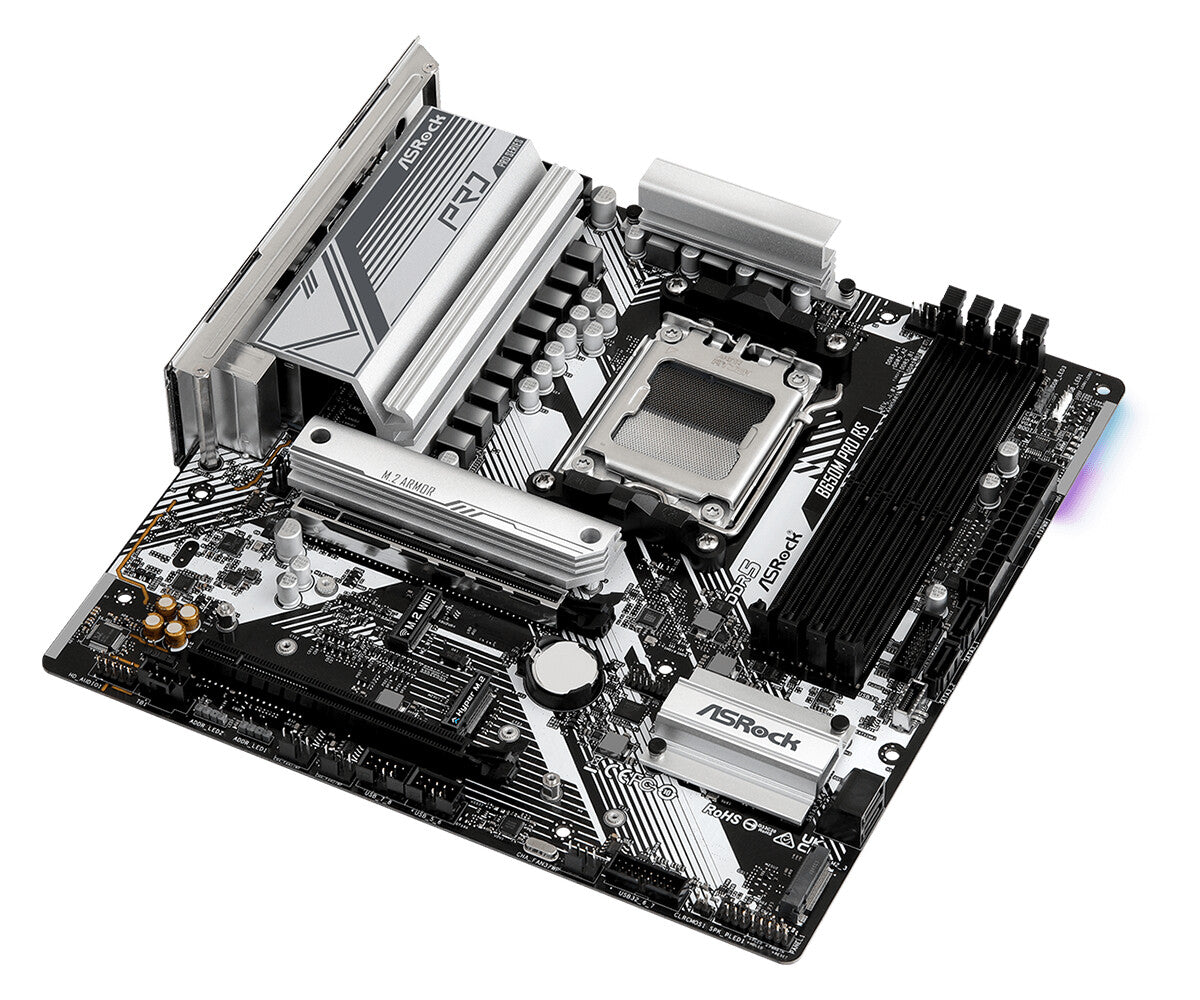

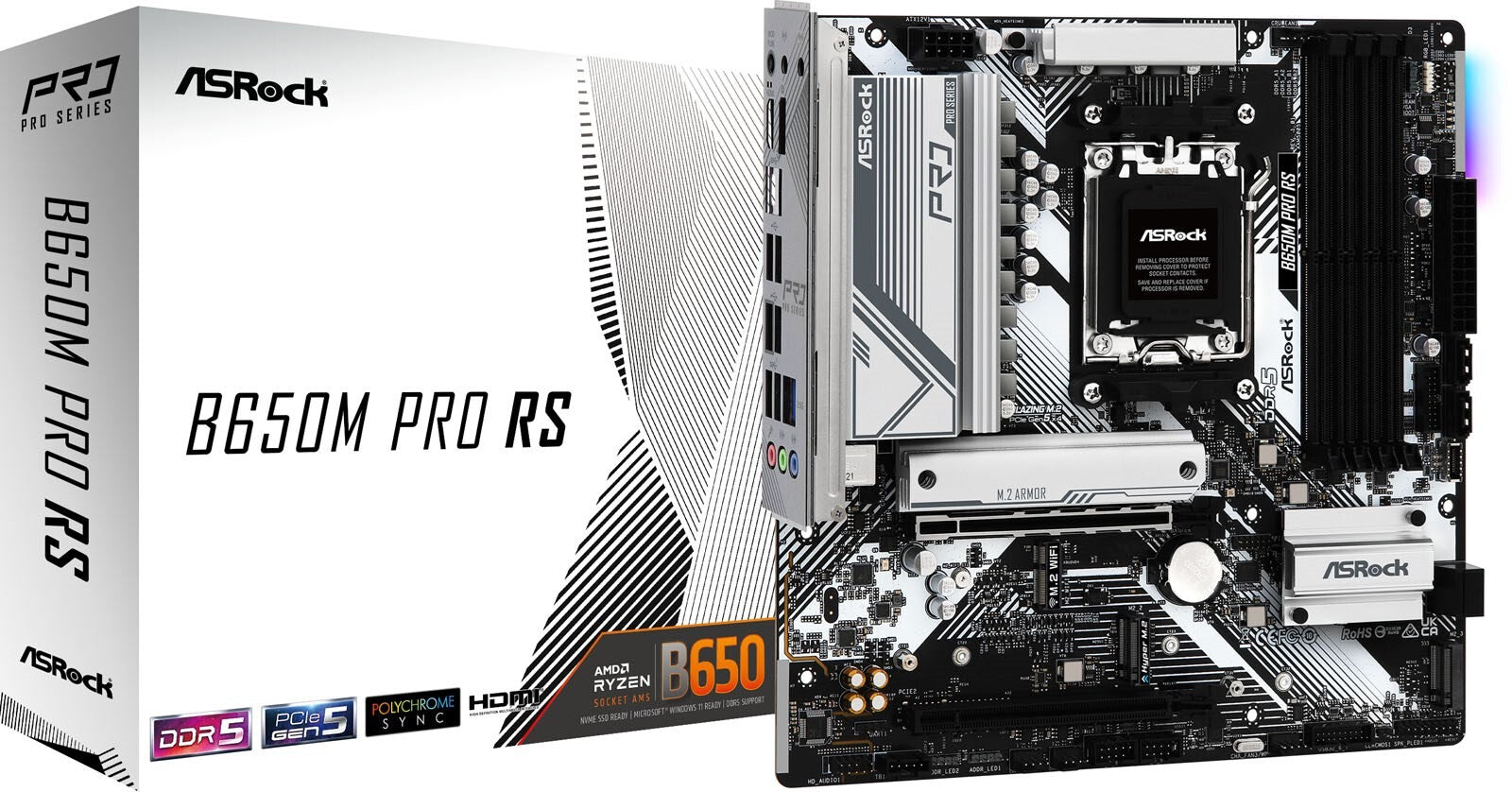

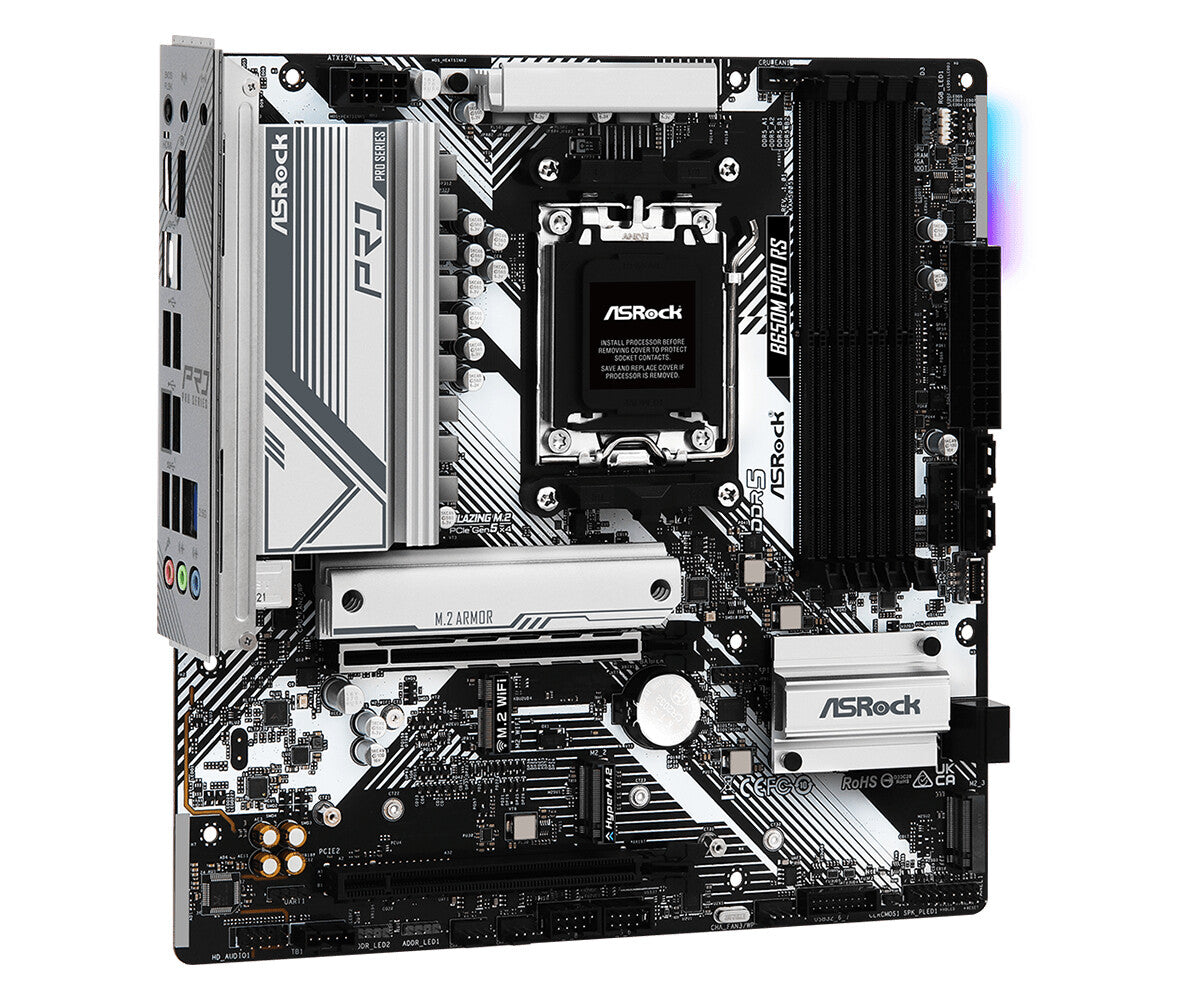

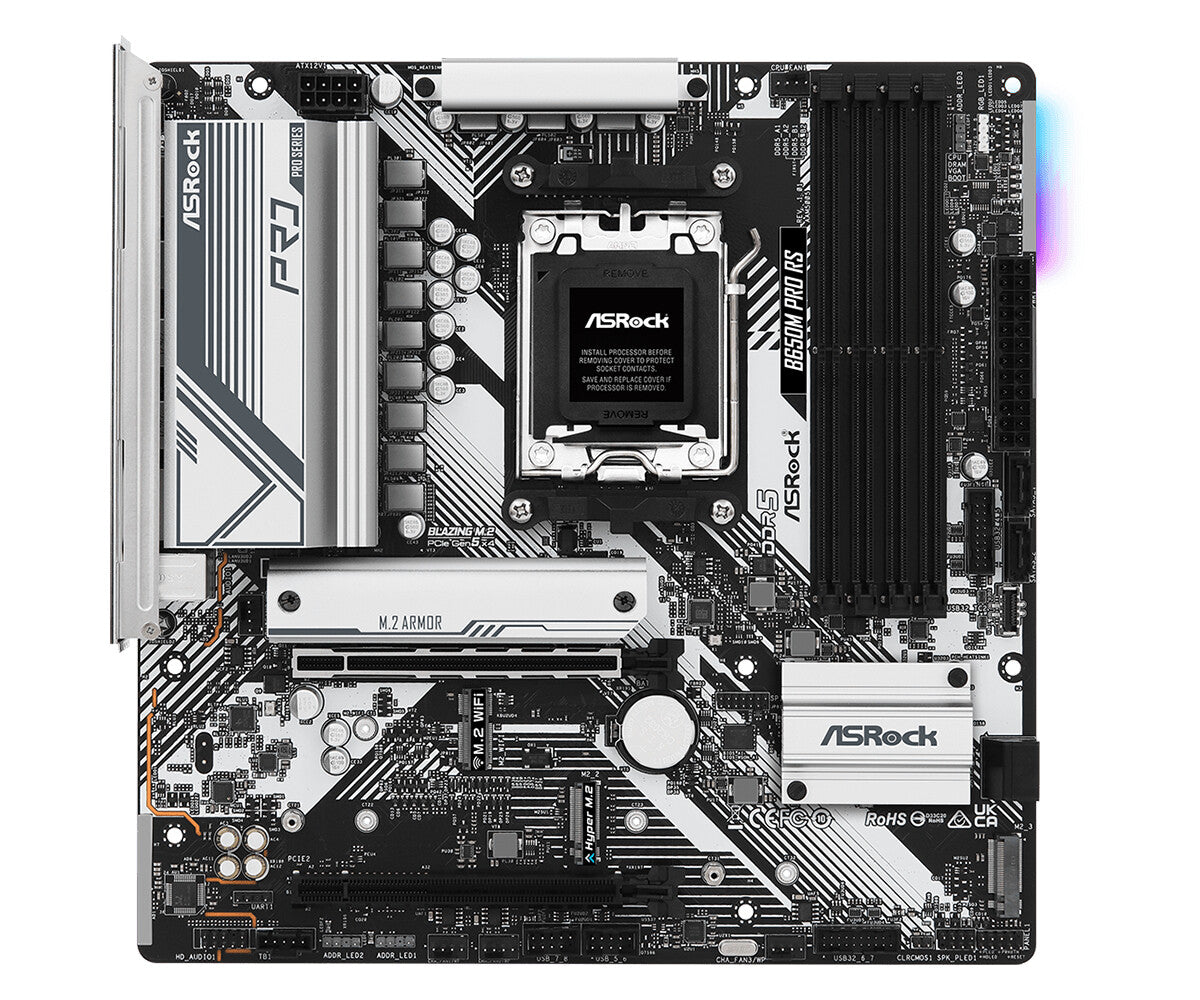

Asrock B650M Pro RS micro ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6000+ MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 M.2 (PCIe Gen4 x2)
- 1 USB 3.2 Gen2 Type A+C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- Dragon 2.5G LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock B650M Pro RS?
How much memory can the Asrock B650M Pro RS support?
What is the benefit of the Blazing OC Tuner?
Asrock B650M Pro RS micro ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
Description
The Asrock B650M Pro RS micro ATX AMD Motherboard is designed for those who seek a blend of performance and reliability in their PC builds. With its modern aesthetics and robust specifications, this motherboard is an evolution of the popular PRO series, tailored for mainstream DIY enthusiasts. Whether you're diving into light gaming or tackling productivity tasks, the B650M Pro RS is your versatile companion, offering a seamless computing experience without the need for costly upgrades.
Key Benefits
- DDR5 EXPO & XMP Support: Enjoy the benefits of overclocking with DDR5 memory performance reaching up to 6000MHz, ensuring your system runs smoothly and efficiently.
- Blazing OC Tuner: Easily switch between overclocking modes without entering the BIOS, allowing for real-time adjustments to maximise your CPU's performance.
- Advanced Cooling Solutions: The optimized aluminium heatsink design ensures effective heat dissipation, maintaining system stability during intensive workloads.
- Fan-Tastic Tuning: Customise your cooling setup with a user-friendly interface that allows for easy fan curve adjustments, balancing performance and noise levels.
- Dr. MOS Power Stage: Experience superior performance with integrated power stages that deliver higher current and improved thermal results compared to traditional solutions.
- 2.5 Gb/s LAN: Benefit from faster networking capabilities, enhancing your online gaming and streaming experience with up to 2.5X the bandwidth of standard Ethernet connections.
Addtional Features
The Asrock B650M Pro RS is built with a 6-layer PCB design, ensuring stable signal traces and power efficiency. With support for up to 128GB of DDR5 memory across four DIMM slots, this motherboard is ready for future-proofing your system. The 8+2+1 power phase design guarantees smooth power delivery, enhancing performance during demanding tasks. Additionally, the motherboard features a front USB 3.2 Gen1 Type-C header for rapid data transfer rates, making it convenient for modern peripherals.
Why Buy
Choosing the Asrock B650M Pro RS micro ATX AMD Motherboard means investing in a reliable, high-performance foundation for your PC. Its blend of advanced features, user-friendly tuning options, and robust cooling solutions ensures that you can tackle any task with confidence. Whether you're a gamer, content creator, or simply looking to upgrade your home office, this motherboard provides the versatility and performance you need to excel.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Compatible processor series | AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

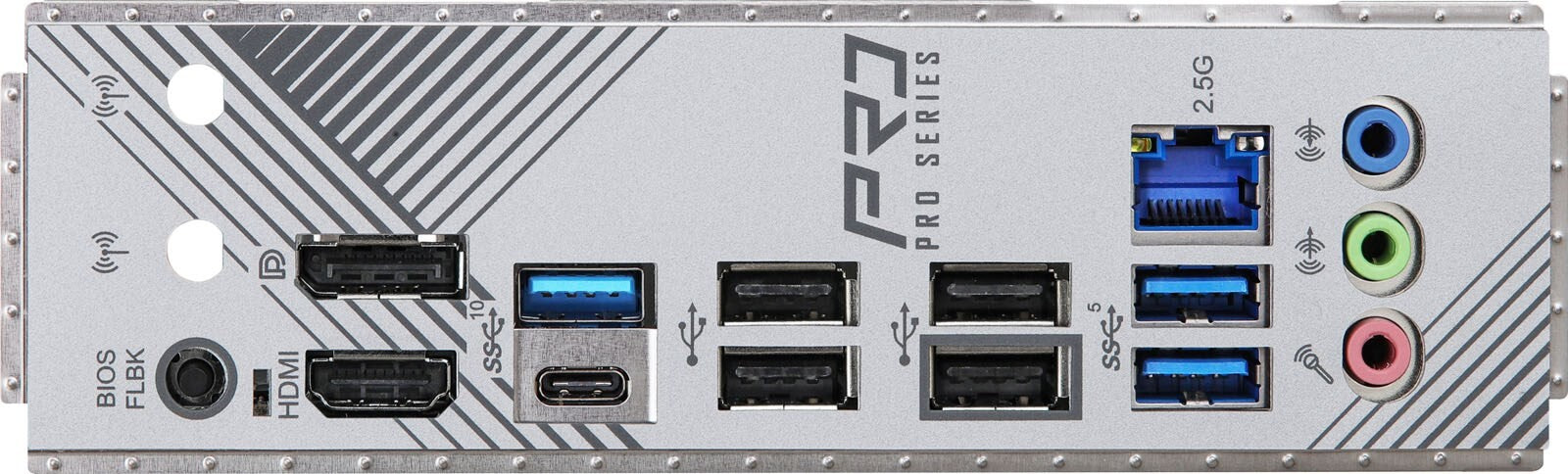

| Rear panel I/O ports | |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
