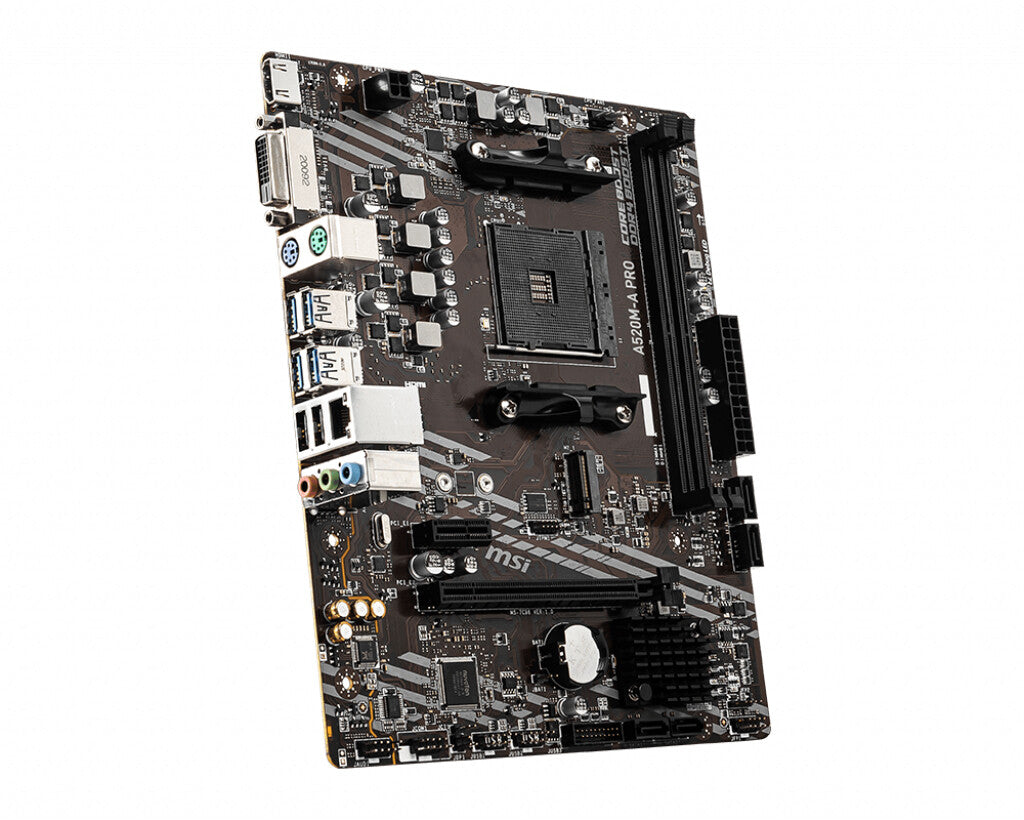

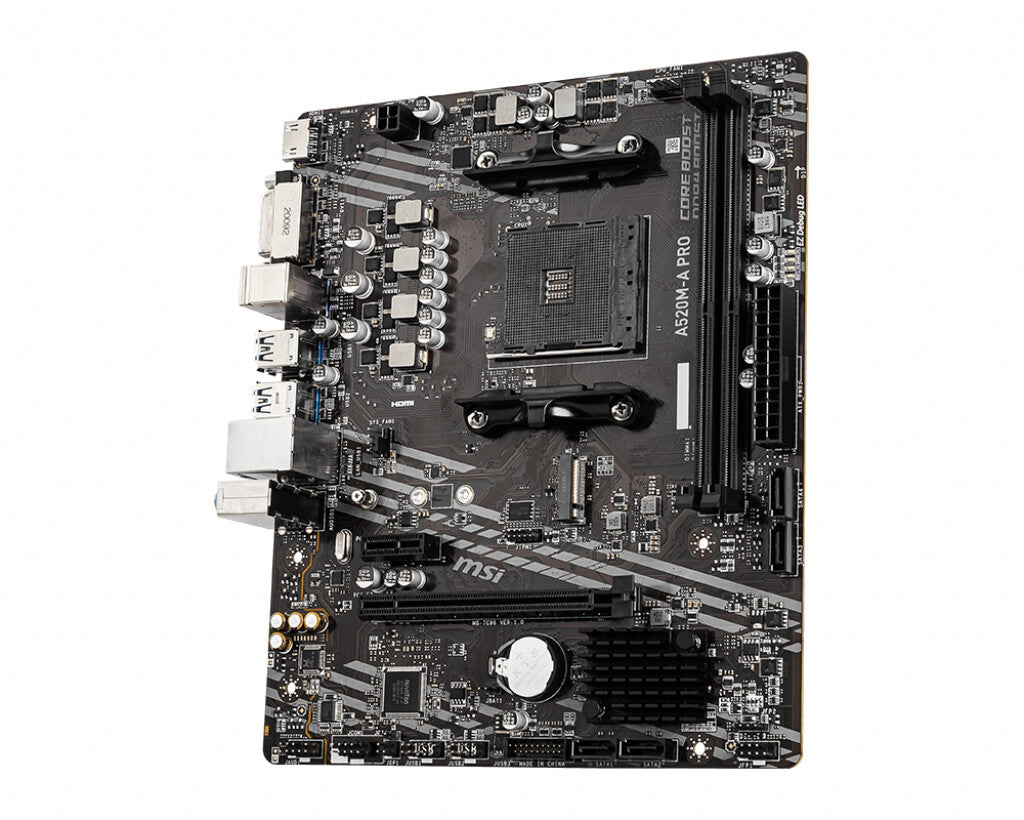

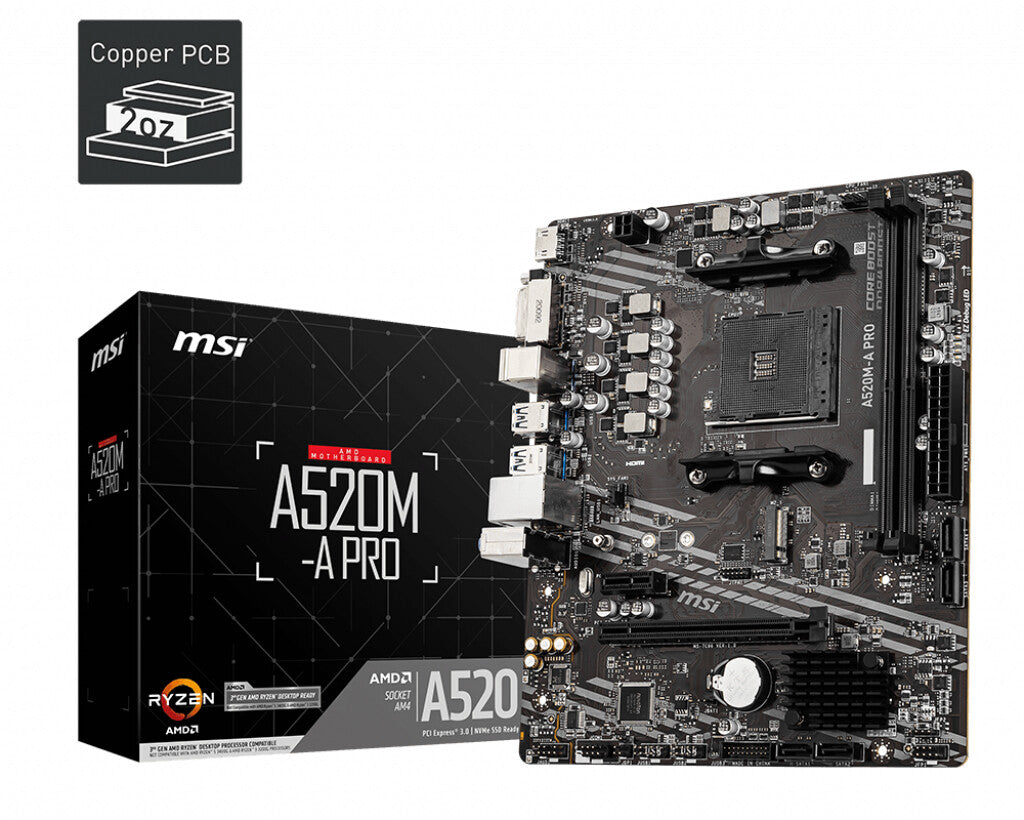

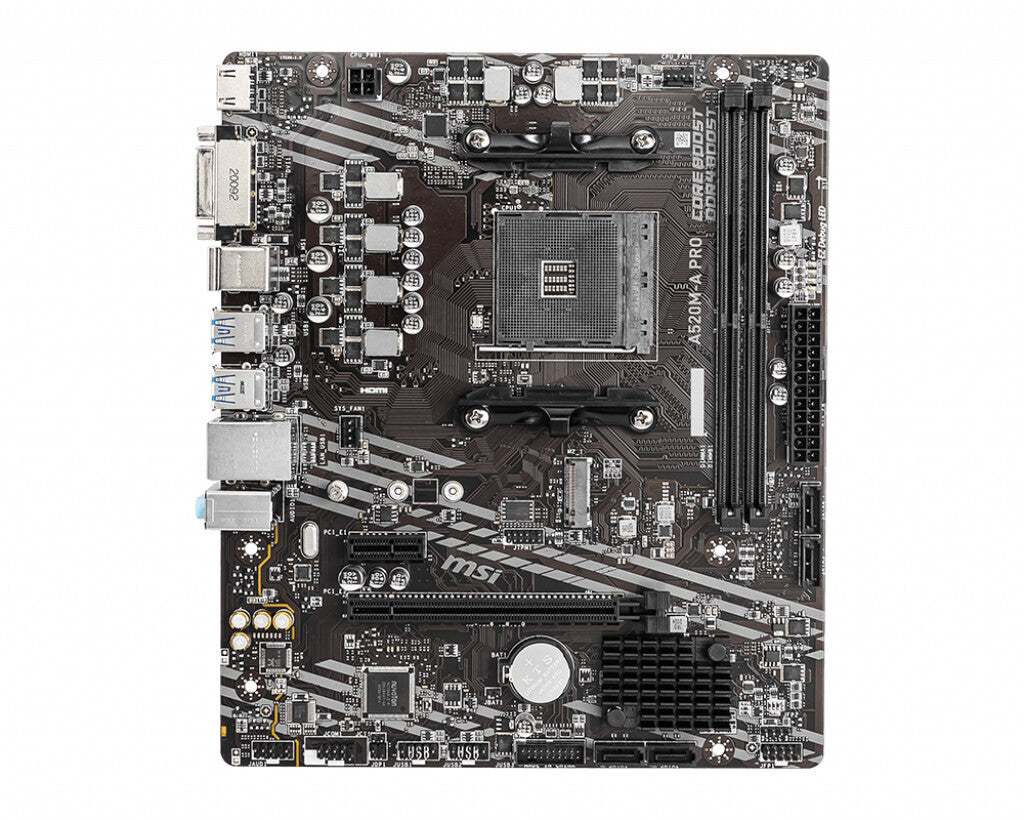

MSI A520M-A PRO mATX Motherboard | AM4 | 2x DDR4 Slots
KEY FEATURES
- Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How many memory slots does this motherboard have?
What is the maximum internal memory supported?
Does this motherboard support overclocking?
MSI A520M-A PRO mATX Motherboard | AM4 | 2x DDR4 Slots
Description
The MSI A520M-A PRO brings essential AMD Ryzen 3000 series support to a compact micro ATX form factor. Built around the entry-level A520 chipset, this board delivers the core features needed for budget-conscious builds without unnecessary extras. The dual DDR4 memory slots support up to 64GB with speeds reaching 4600MHz when overclocked, giving you room to grow while keeping initial costs down.
Connectivity covers the basics with integrated VGA, DVI-D, and HDMI outputs for displays, plus SATA III ports for storage and a single M.2 slot for faster SSD performance. The board includes one PCIe x1 expansion slot alongside standard USB 3.2 ports and gigabit Ethernet. Memory compatibility extends to both ECC and standard non-ECC modules, making this suitable for basic workstation tasks as well as general computing.
At 244x220mm, this micro ATX board fits most standard cases while leaving space for expansion cards and proper airflow. The A520 chipset handles memory overclocking profiles, so you can take advantage of faster DDR4 kits to boost system performance. MSI includes the essential installation hardware and documentation to get your build running, focusing on reliable operation rather than premium features.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 3.0, SATA |
| Number of HDDs supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 2 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |

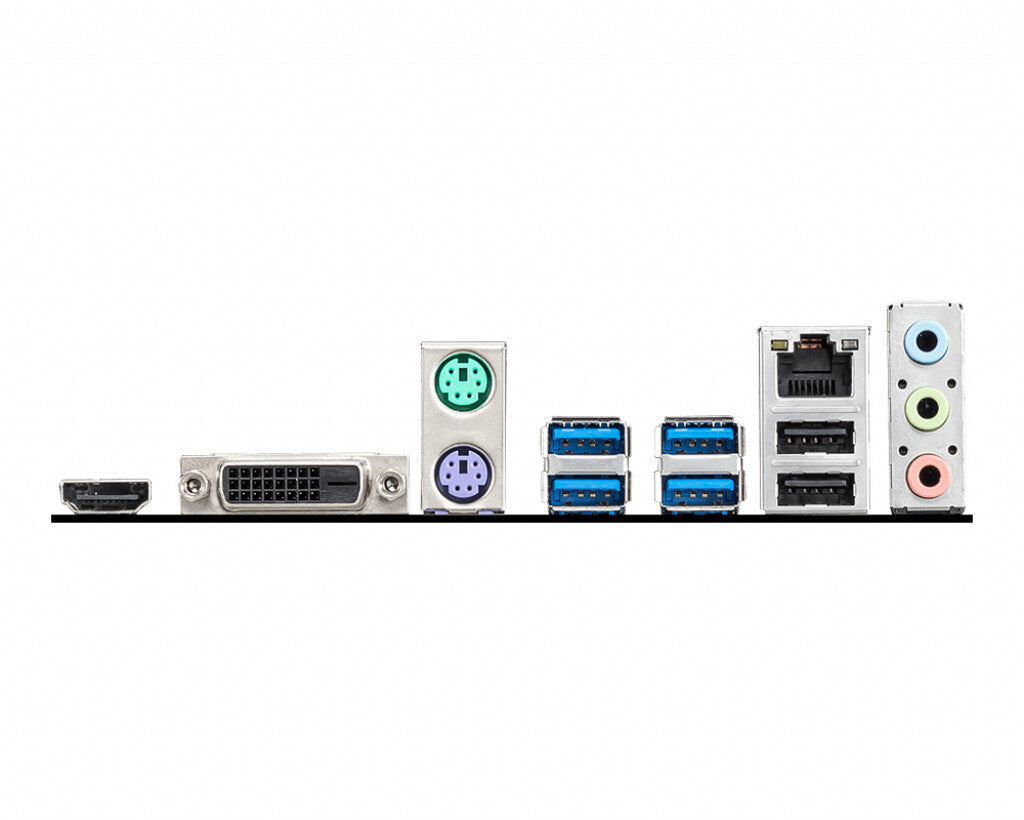

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Number of mounting holes | 8 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Weight & dimensions | |
|---|---|
| Width | 236 mm |
| Depth | 200 mm |
| Height | 60 mm |
| Other features | |
|---|---|
| Weight | 698 g |
