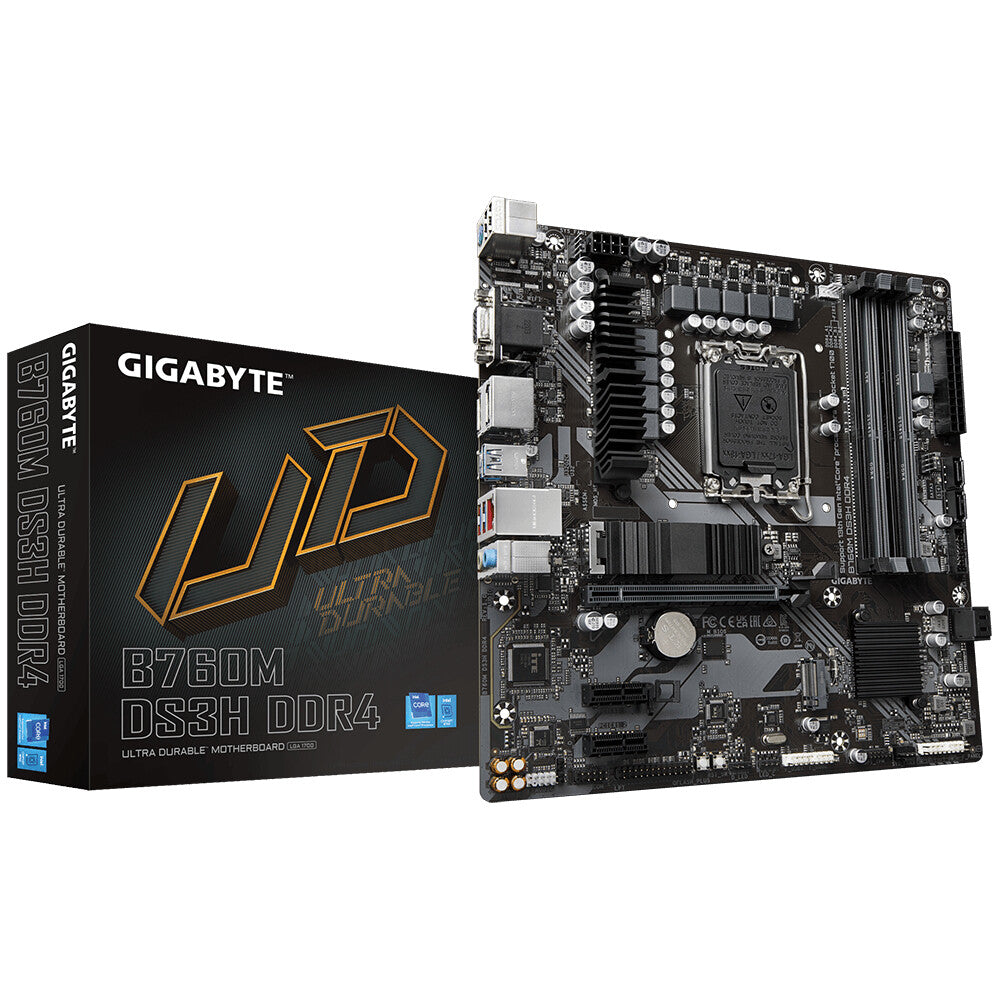

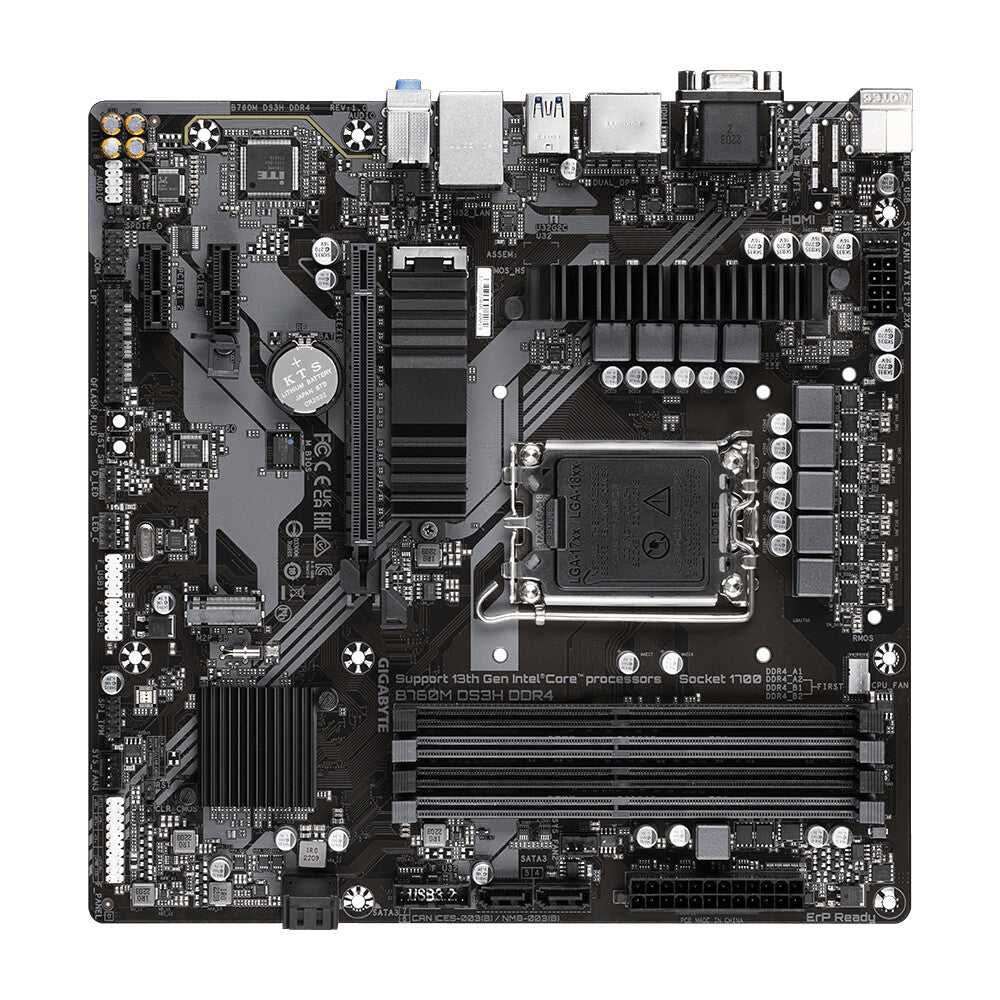

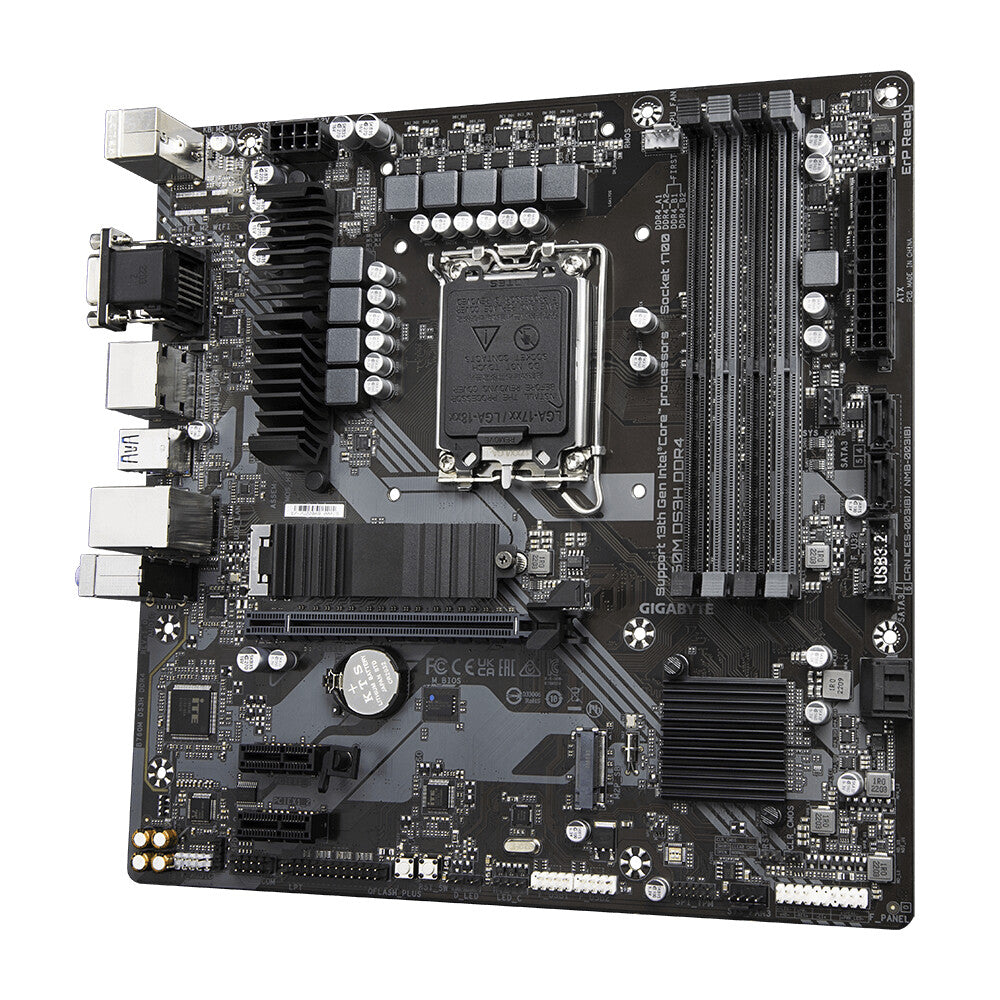

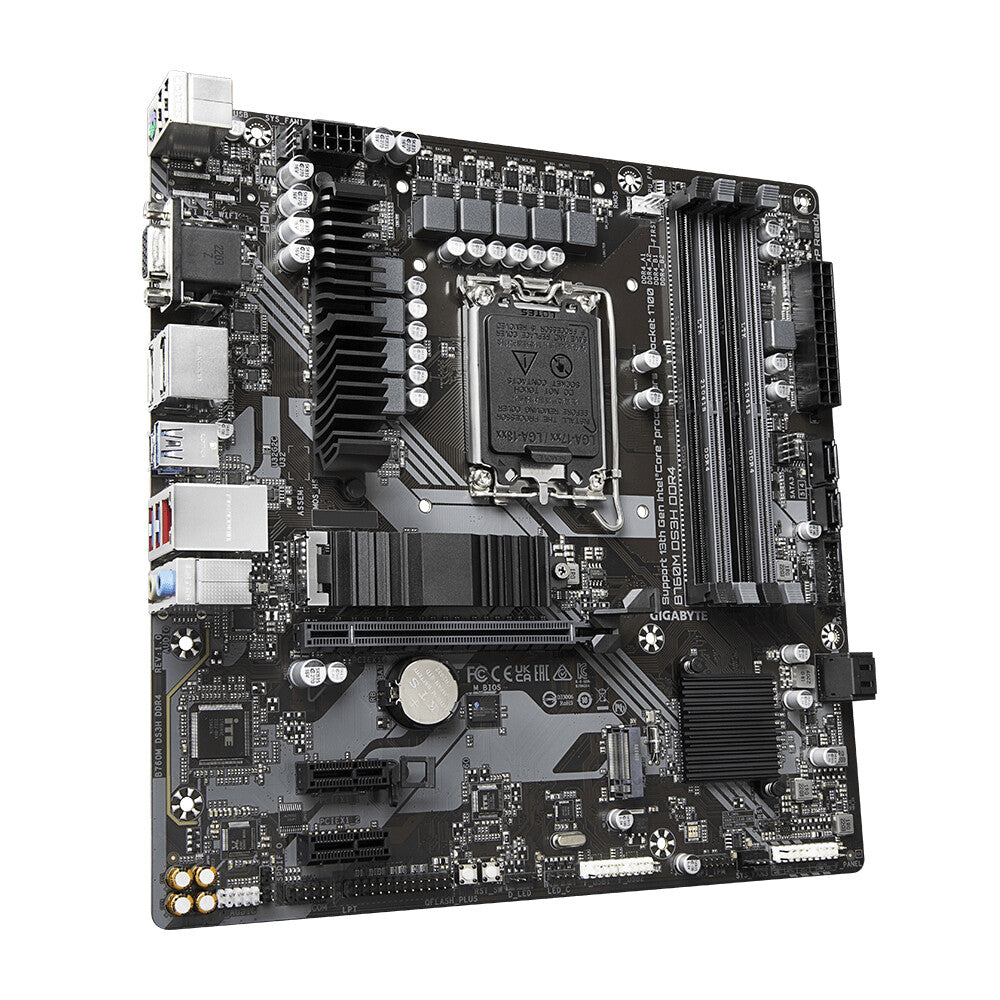

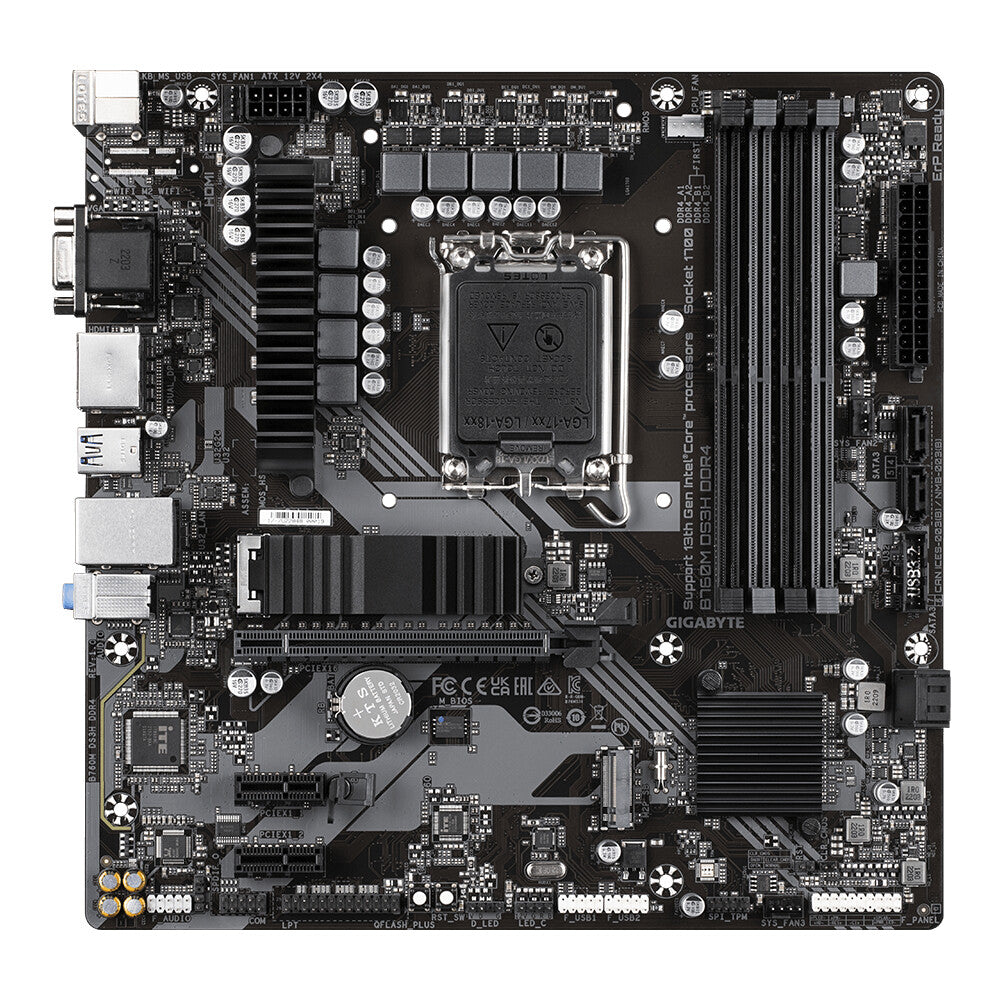

Gigabyte B760M DS3H DDR4 micro ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
What is the benefit of the M.2 Thermal Guard?
Can I customise the lighting effects on this motherboard?
Gigabyte B760M DS3H DDR4 micro ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
Description
The Gigabyte B760M DS3H DDR4 micro ATX Intel Motherboard is designed to elevate your PC experience, whether you're a casual user or a dedicated gamer. Featuring the latest LGA 1700 socket, this motherboard supports a wide range of Intel processors, ensuring compatibility and performance. With its robust design and advanced features, it's the perfect foundation for your next build.
Key Benefits
- 6+2+1 Phases Hybrid Digital VRM Design: This advanced power delivery system ensures stable performance, allowing you to push your system to its limits without worrying about overheating or instability.
- GIGABYTE Ultra-Efficient M.2 Thermal Guard: Protect your high-speed M.2 SSDs from throttling with this innovative thermal solution, which dissipates heat effectively to maintain optimal performance.
- SMART FAN 6 Technology: Keep your system cool and quiet with multiple fan headers and customizable fan curves, allowing you to tailor cooling to your specific needs.
- Personalisation Options: Customise your motherboard with intuitive software that allows for lighting effects and other aesthetic adjustments, making your build truly your own.
- Ultra Durable Design: Built with high-quality components, this motherboard is designed for longevity, ensuring that your investment stands the test of time.
- Q-Flash Plus: Easily update your BIOS without the need for additional components, simplifying the process and saving you time.
Additional Features
The Gigabyte B760M DS3H DDR4 motherboard is not just about performance; it also offers a multitude of features that enhance your overall experience. With four DDR4 memory slots, you can expand your system's memory up to 128 GB, making it ideal for multitasking and demanding applications. The Intel B760 Express chipset ensures seamless integration with a variety of Intel processors, including the latest Core i9 series.
In addition, the motherboard supports both M.2 and SATA III storage interfaces, providing flexibility for your storage needs, whether you prefer SSDs for speed or traditional HDDs for capacity. The integrated 2.5 Gigabit Ethernet interface guarantees fast and reliable network connectivity, essential for online gaming and streaming.
Why Buy
Choosing the Gigabyte B760M DS3H DDR4 micro ATX Intel Motherboard means investing in a product that prioritises performance, durability, and user experience. With its advanced cooling solutions, robust power delivery, and customisation options, this motherboard is built to meet the demands of modern computing. Whether you're building a gaming rig or a powerful workstation, this motherboard provides the reliability and performance you need to succeed.
Elevate your PC build with the Gigabyte B760M DS3H and enjoy a seamless computing experience that adapts to your needs.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Number of displays supported | 4 |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| Parallel connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Total number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

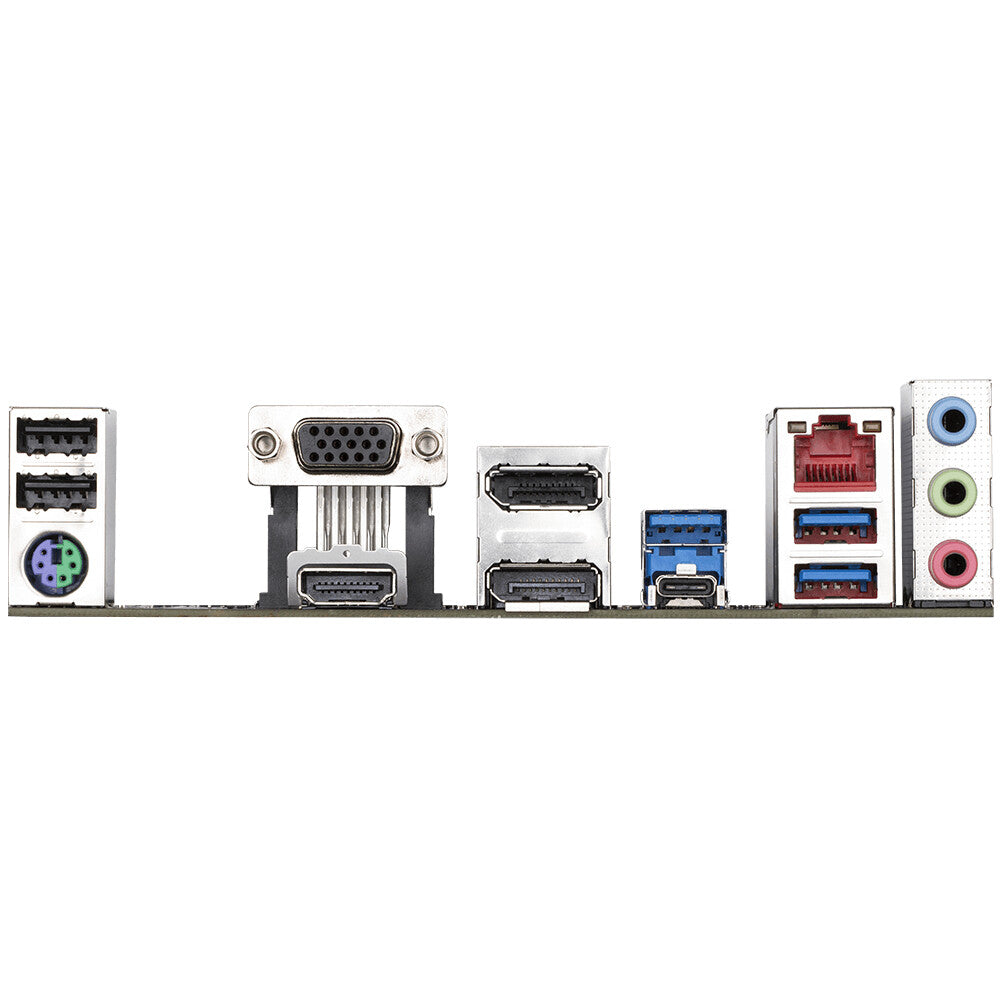

| Rear panel I/O ports | |
|---|---|
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 990 g |
| Package height | 54 mm |
| Package depth | 265 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
