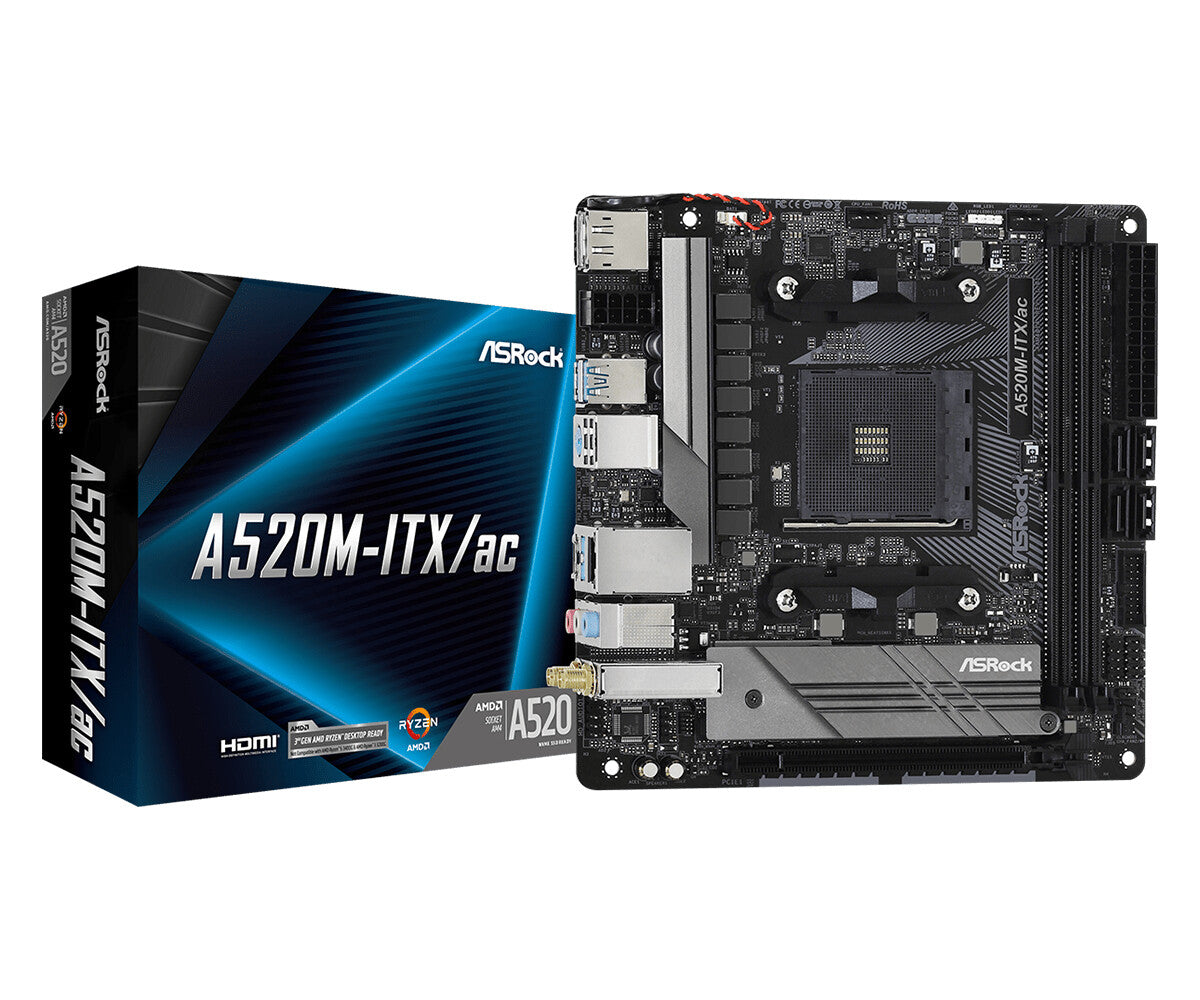

Asrock A520M-ITX/ac Mini-ITX Motherboard | AM4 | 2x DDR4 Slots | Wi-Fi 5
KEY FEATURES
- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16
- Graphics Output: DisplayPort, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
- Realtek Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processor is compatible with the Asrock A520M-ITX/ac?
How many memory slots does this motherboard have?
Does it support RGB lighting?
Asrock A520M-ITX/ac Mini-ITX Motherboard | AM4 | 2x DDR4 Slots | Wi-Fi 5
Description

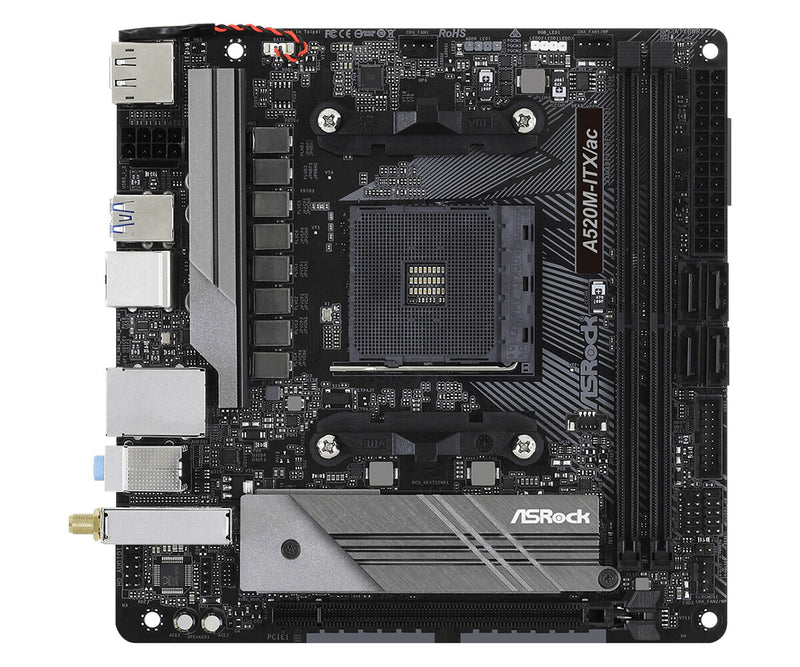

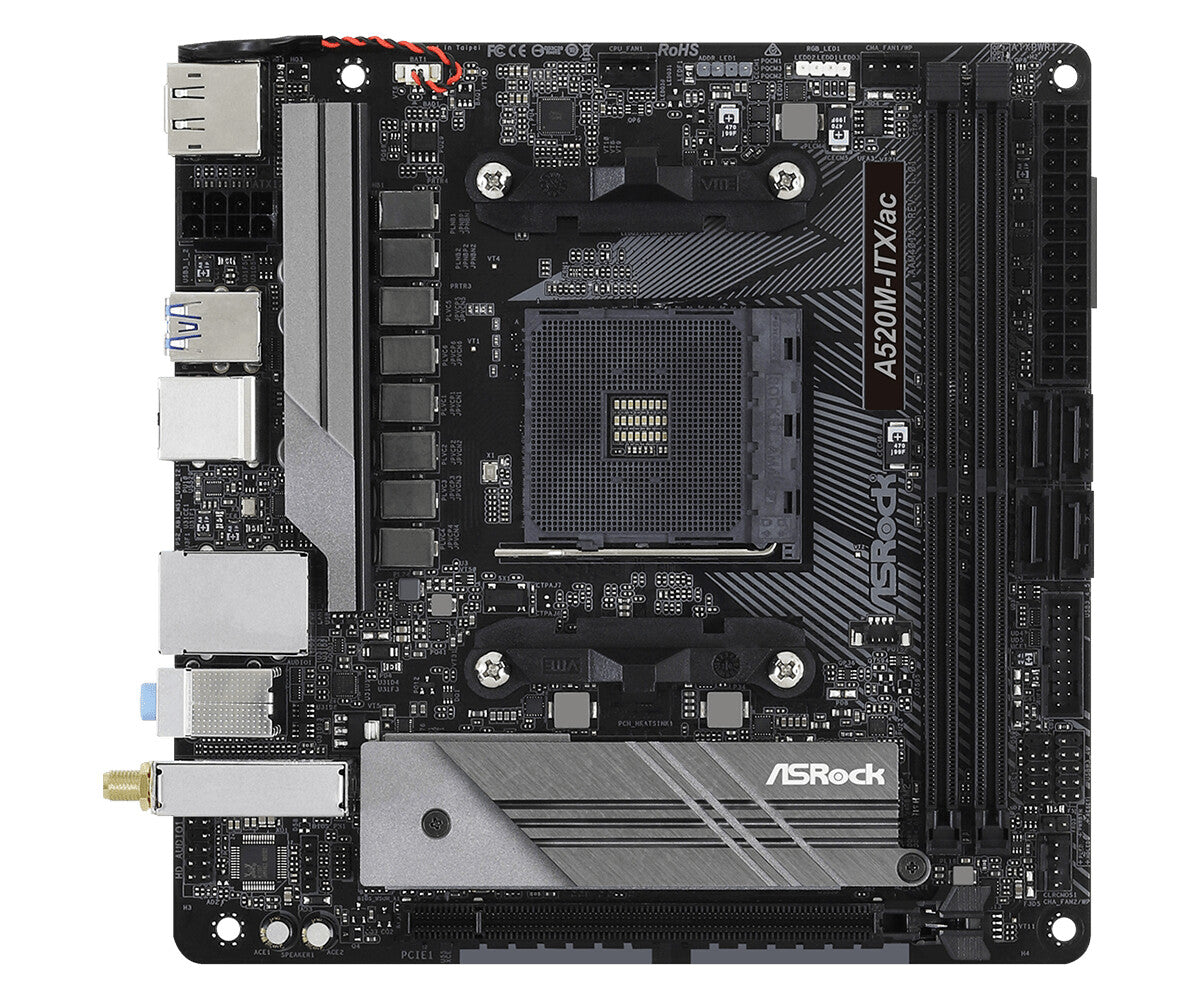

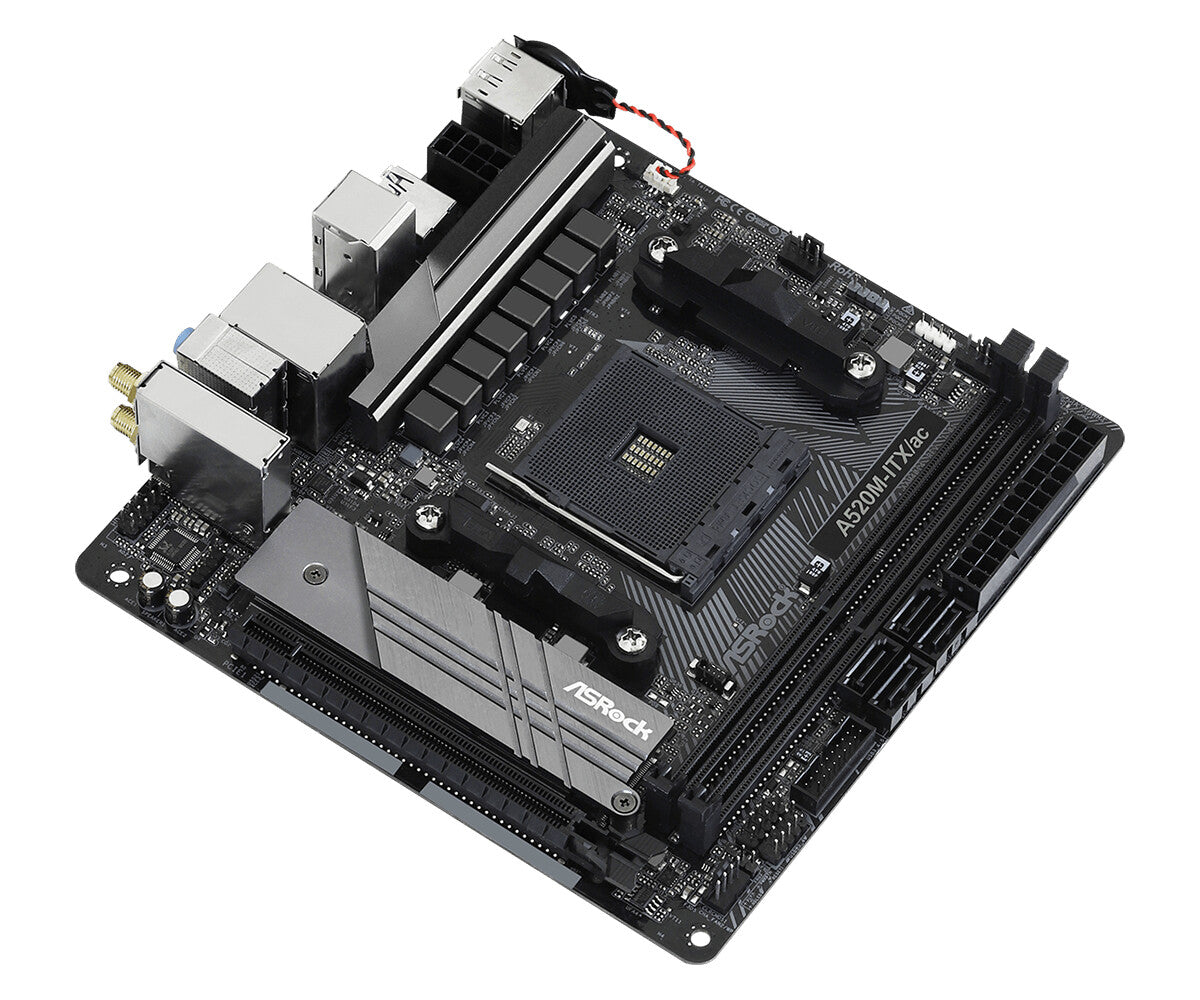

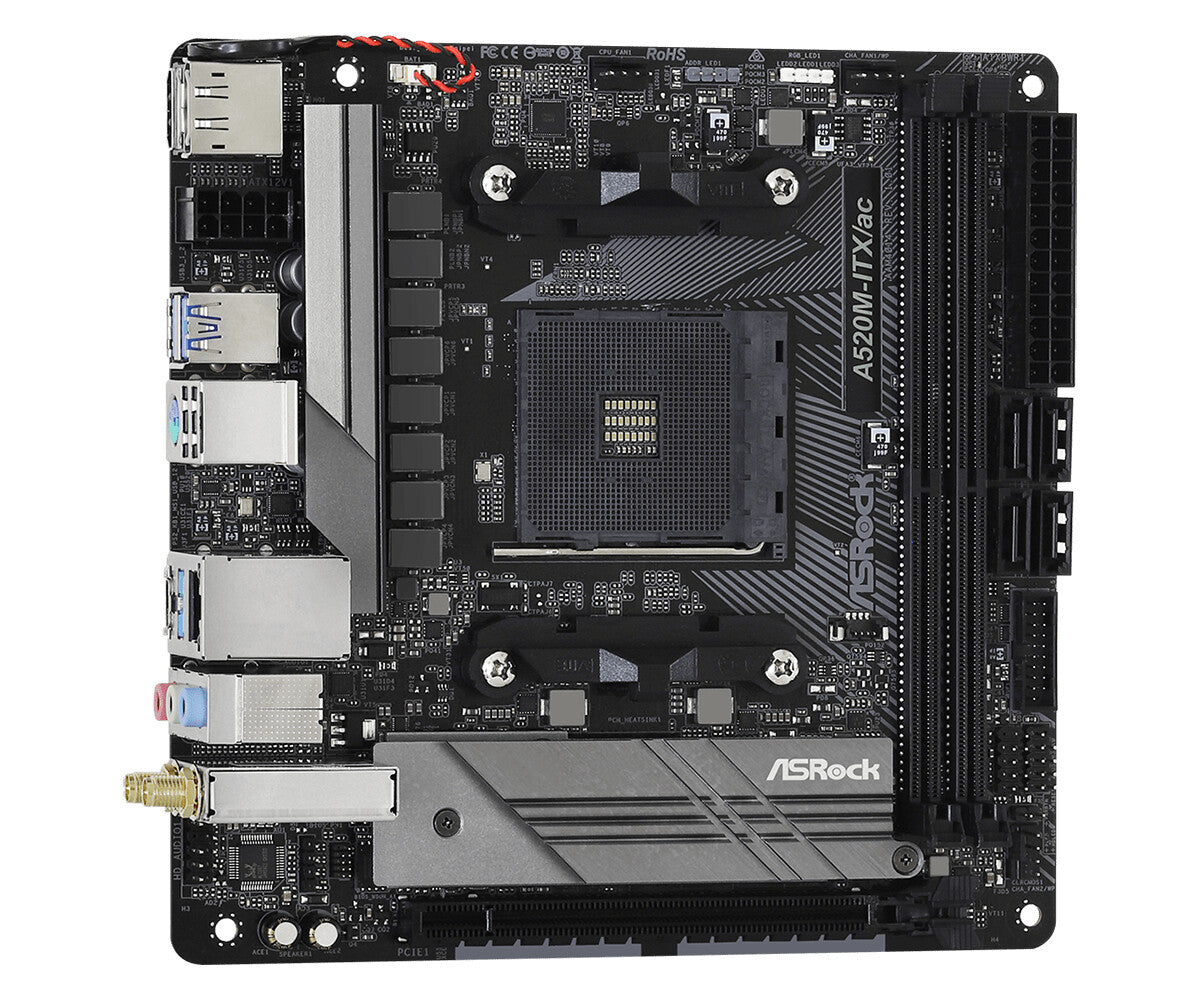

The ASRock A520M-ITX/ac is a Mini-ITX motherboard built around the AMD A520 chipset, delivering essential features for compact AM4 builds. Despite its small form factor, this board supports up to 64GB of DDR4 memory across two DIMM slots, with official speeds reaching DDR4-3200 and overclocked support extending to DDR4-4600. The A520 chipset positions this as a budget-friendly option ideal for everyday computing, home theatre PCs, or compact workstations where space is at a premium.
Connectivity options are comprehensive for a Mini-ITX board, including built-in Intel 802.11ac Wi-Fi and Bluetooth 4.2 for wireless networking. Display outputs cover both HDMI and DisplayPort, making it suitable for integrated graphics setups or APU builds. Storage flexibility comes from four SATA3 ports plus one Ultra M.2 slot for NVMe SSDs. The board includes Realtek 7.1 channel HD audio and Gigabit Ethernet, ensuring solid multimedia and network performance.
Setup is straightforward with the included AMI UEFI BIOS supporting both ECC and non-ECC memory configurations. The board arrives with standard accessories including an I/O shield and user documentation. USB connectivity spans both legacy USB 2.0 and modern USB 3.2 Gen1 ports, with a PS/2 port maintaining compatibility with older peripherals. An RGB LED pin header allows for basic lighting customisation in compatible cases.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | SATA III, Ultra M.2 |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

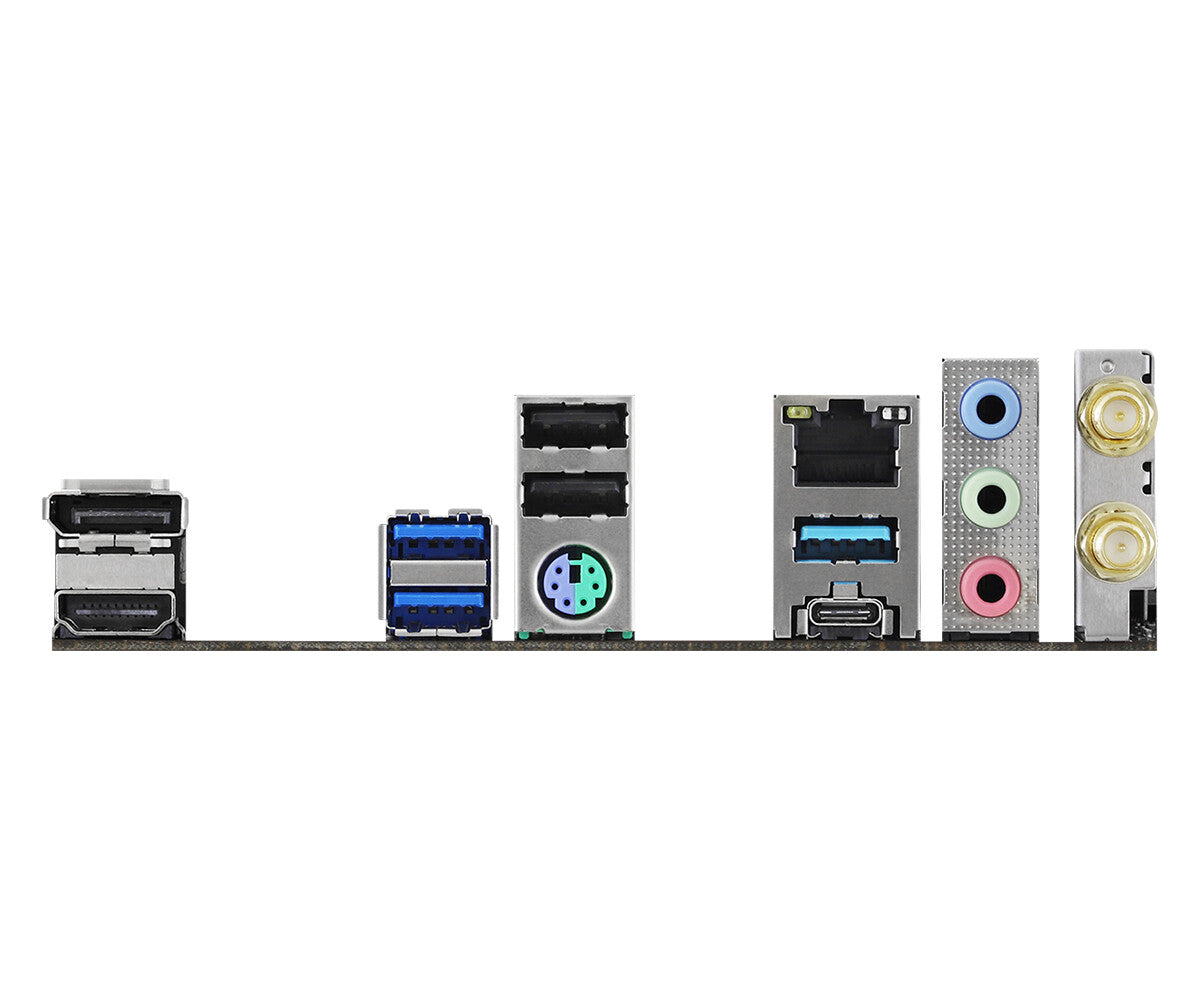

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64 |
| Harmonized System (HS) code | 84733020 |
| Certification | FCC, CEErP/EuP ready |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Bundled software | ASRock Motherboard Utility (A-Tuning)ASRock Polychrome SYNCASRock XFast LAN |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
