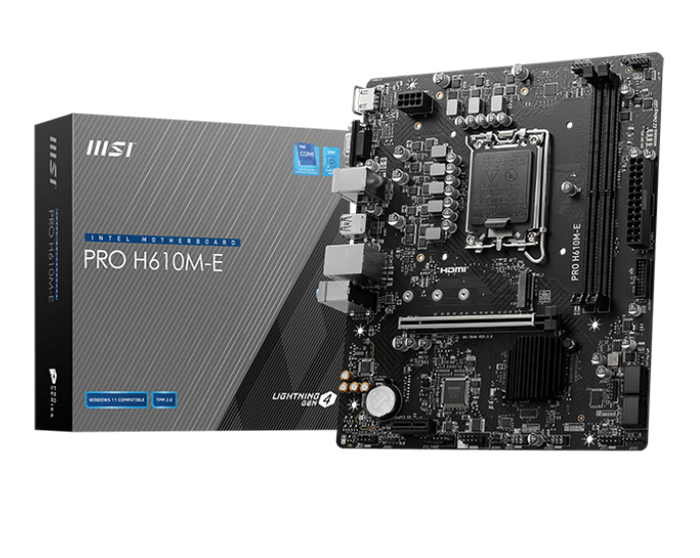

MSI PRO H610M-E mATX Motherboard | LGA1700 | 4x DDR5 Slots
KEY FEATURES
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the MSI PRO H610M-E?
How much RAM can the motherboard support?
What type of PCIe slots does this motherboard have?
MSI PRO H610M-E mATX Motherboard | LGA1700 | 4x DDR5 Slots
Description
The MSI PRO H610M-E delivers essential functionality for budget-conscious builds using Intel's 12th and 13th generation processors. This micro ATX motherboard pairs the H610 chipset with LGA1700 socket support, accommodating everything from entry-level Celeron and Pentium processors through to high-end Core i9 CPUs. Its compact mATX form factor makes it suitable for smaller cases while still providing room for future upgrades.
DDR5 memory support brings modern performance capabilities, with four DIMM slots accepting up to 96GB total capacity at speeds reaching 5600MHz. The single PCIe 4.0 x16 slot handles dedicated graphics cards, while two additional PCIe 3.0 x1 slots offer expansion room for sound cards, Wi-Fi adapters, or other accessories. Integrated graphics output comes via both HDMI and VGA connections, giving flexibility for display setups whether using onboard graphics or a discrete GPU.
Setup remains straightforward with standard motherboard essentials included in the box. The H610 chipset keeps costs down by focusing on core functionality rather than enthusiast features, making this board a practical foundation for office systems, basic gaming rigs, or home computers where reliability and value matter more than cutting-edge capabilities. XMP memory profiles ensure DDR5 modules run at their rated speeds with minimal configuration.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 96 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 2 |
| Number of COM connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Active |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Weight & dimensions | |
|---|---|
| Width | 200 mm |
| Depth | 236.2 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
