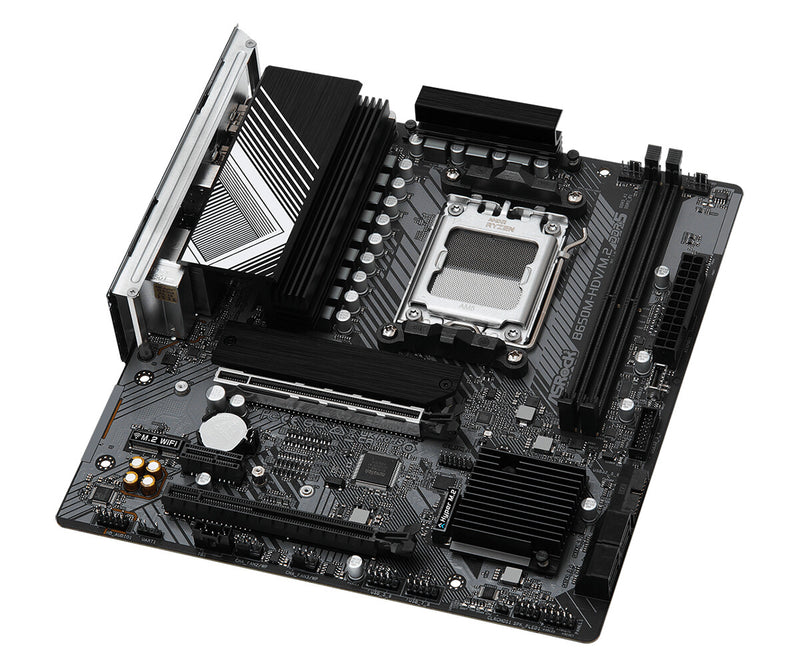

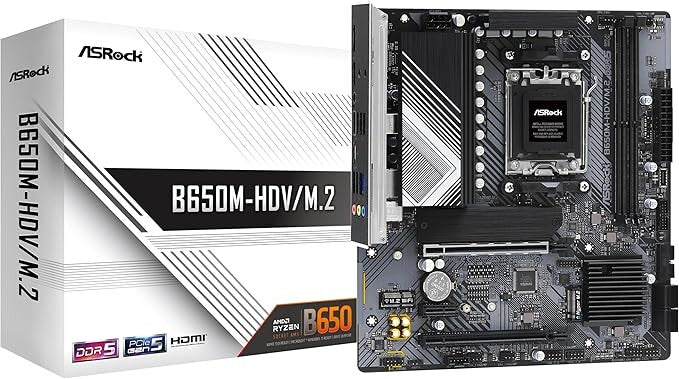

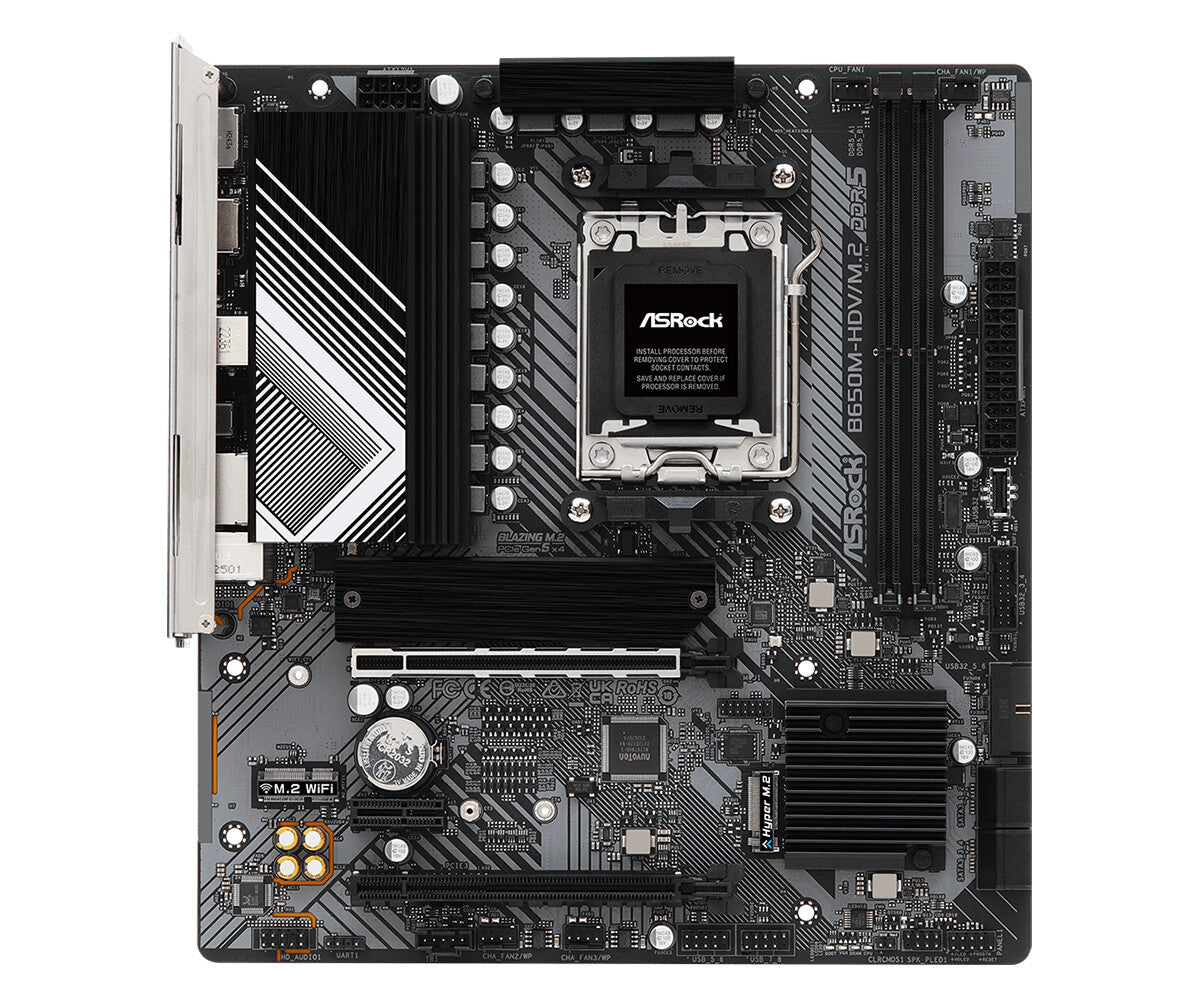

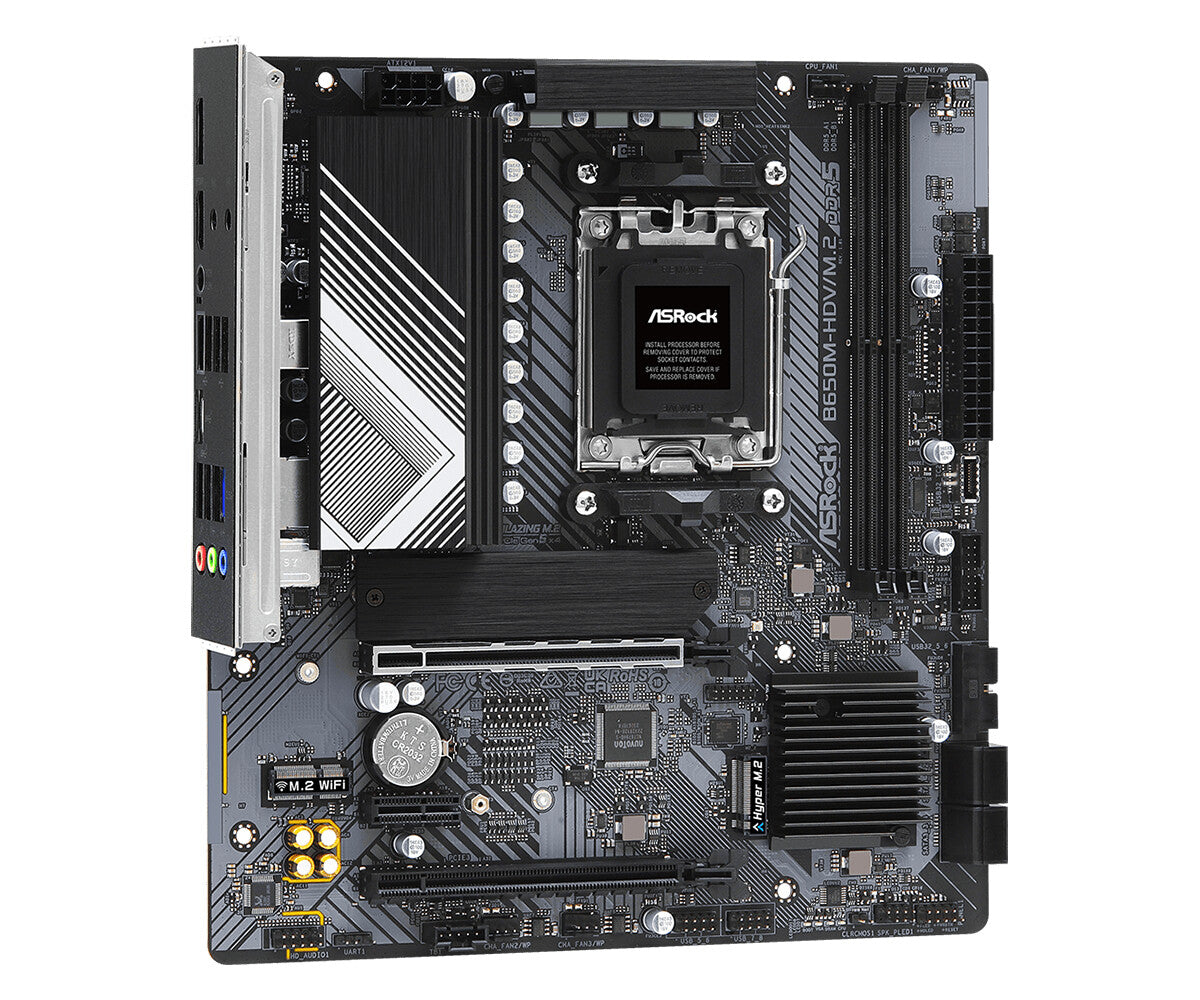

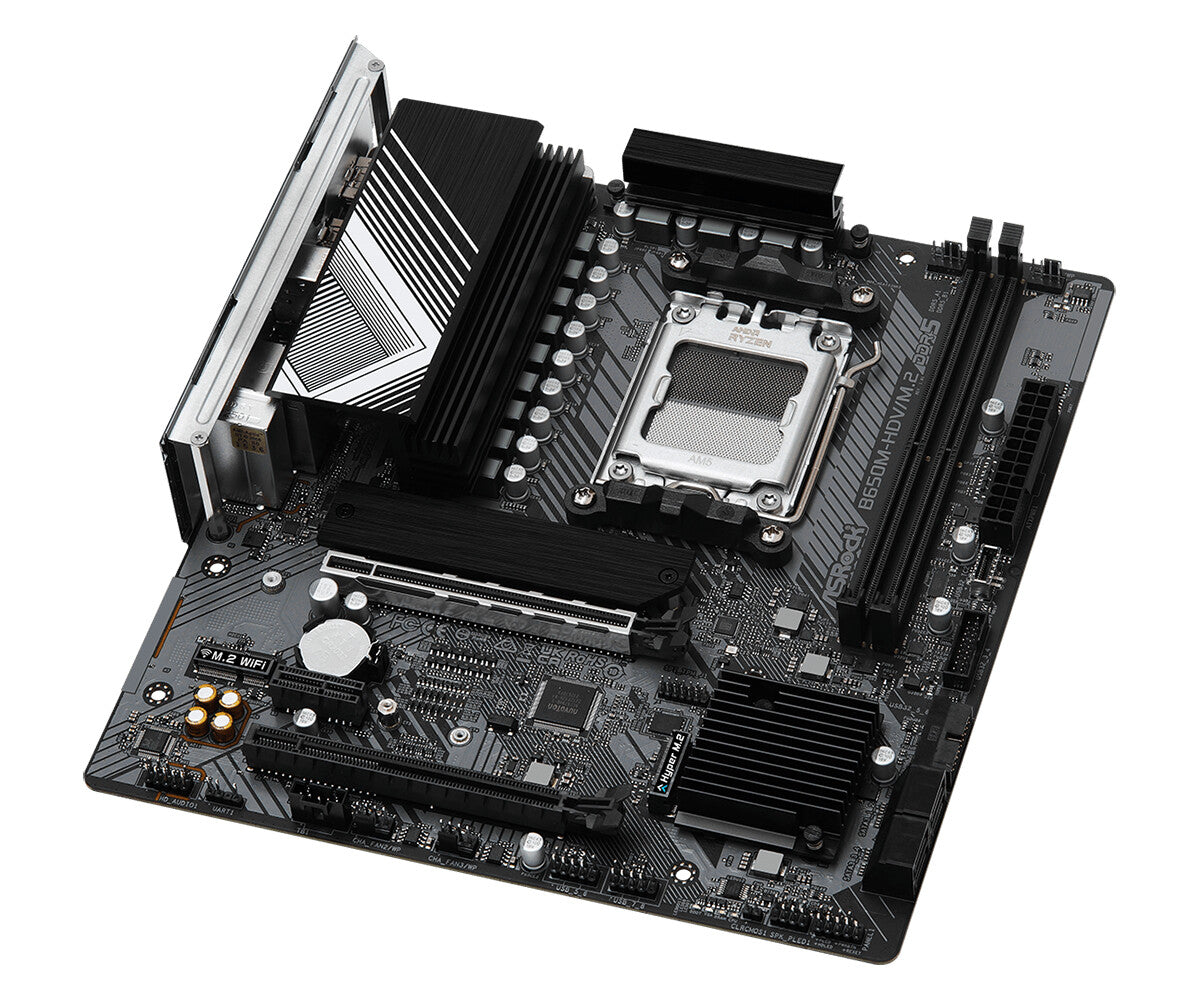

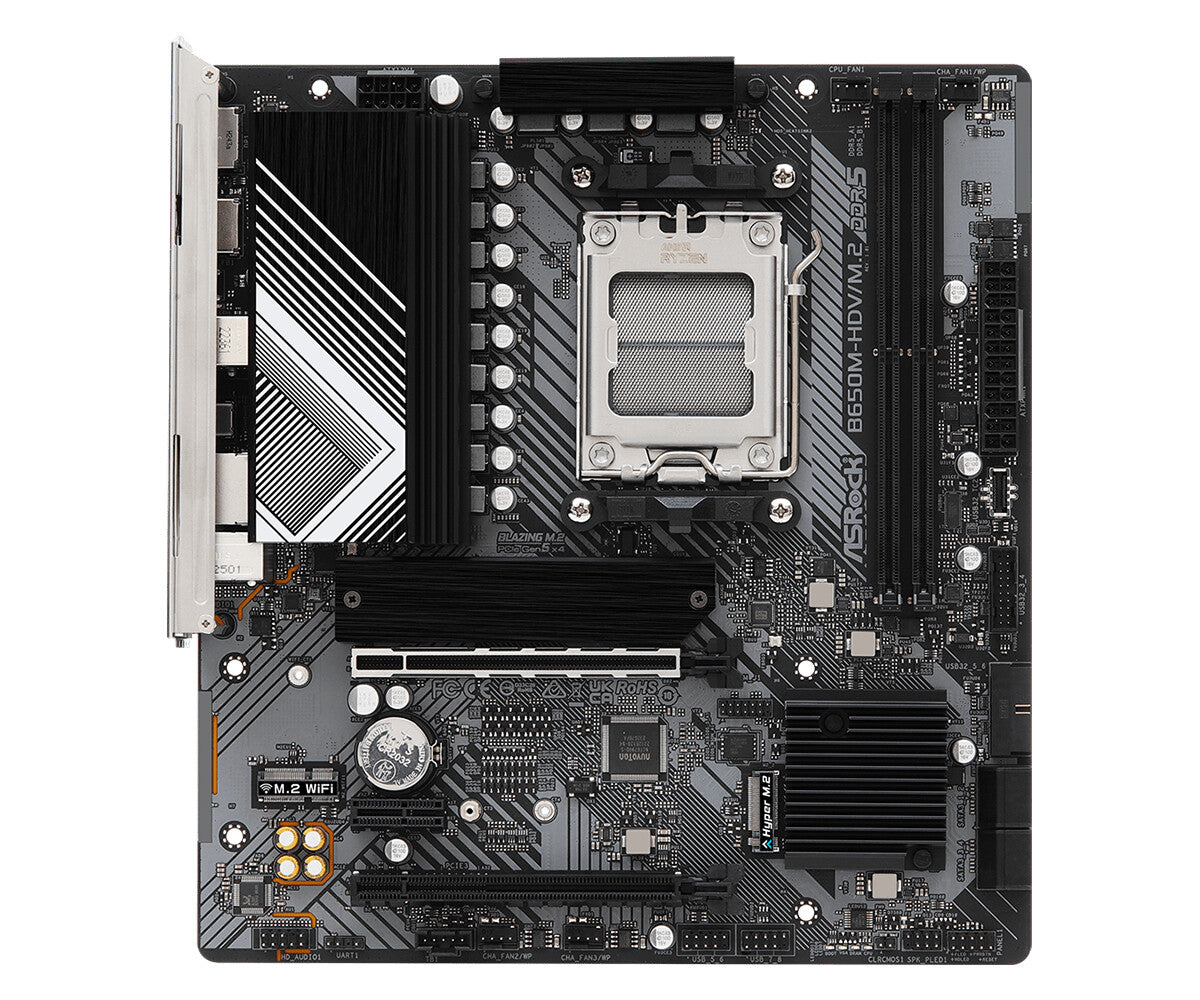

Asrock B650M-HDV/M.2 mATX Motherboard | AM5 | 2x DDR5 Slots
KEY FEATURES
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6400+ MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2 Front Type-C
- 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock B650M-HDV/M.2 motherboard?
How much memory can I install on this motherboard?
Does this motherboard support overclocking?
Asrock B650M-HDV/M.2 mATX Motherboard | AM5 | 2x DDR5 Slots
Description
The Asrock B650M-HDV/M.2 delivers solid AMD Ryzen 7000 series support in a compact micro ATX package. This budget-friendly board uses the AMD B650 chipset and AM5 socket, making it an excellent choice for mainstream builds where space is at a premium without sacrificing essential features. The micro ATX form factor fits perfectly in smaller cases while still providing room for a full-size graphics card and necessary expansion.
Memory support centres on DDR5 with two DIMM slots supporting up to 64GB total capacity. The board includes one PCIe 4.0 x16 slot for your graphics card plus an additional PCIe 4.0 x1 slot for expansion cards. Integrated Realtek RTL8125BG Ethernet handles network connectivity, while the 7.1-channel HD audio delivers quality sound output. The 256MB AMI UEFI provides a straightforward setup experience with modern features.
Setup remains straightforward thanks to the comprehensive UEFI interface and standard motherboard package. The board supports DDR5 memory profiles for easy performance optimization, letting you take advantage of faster memory speeds without manual tweaking. For builders seeking AMD's latest platform benefits in a compact, affordable package, this micro ATX board covers the essentials without unnecessary complexity.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |

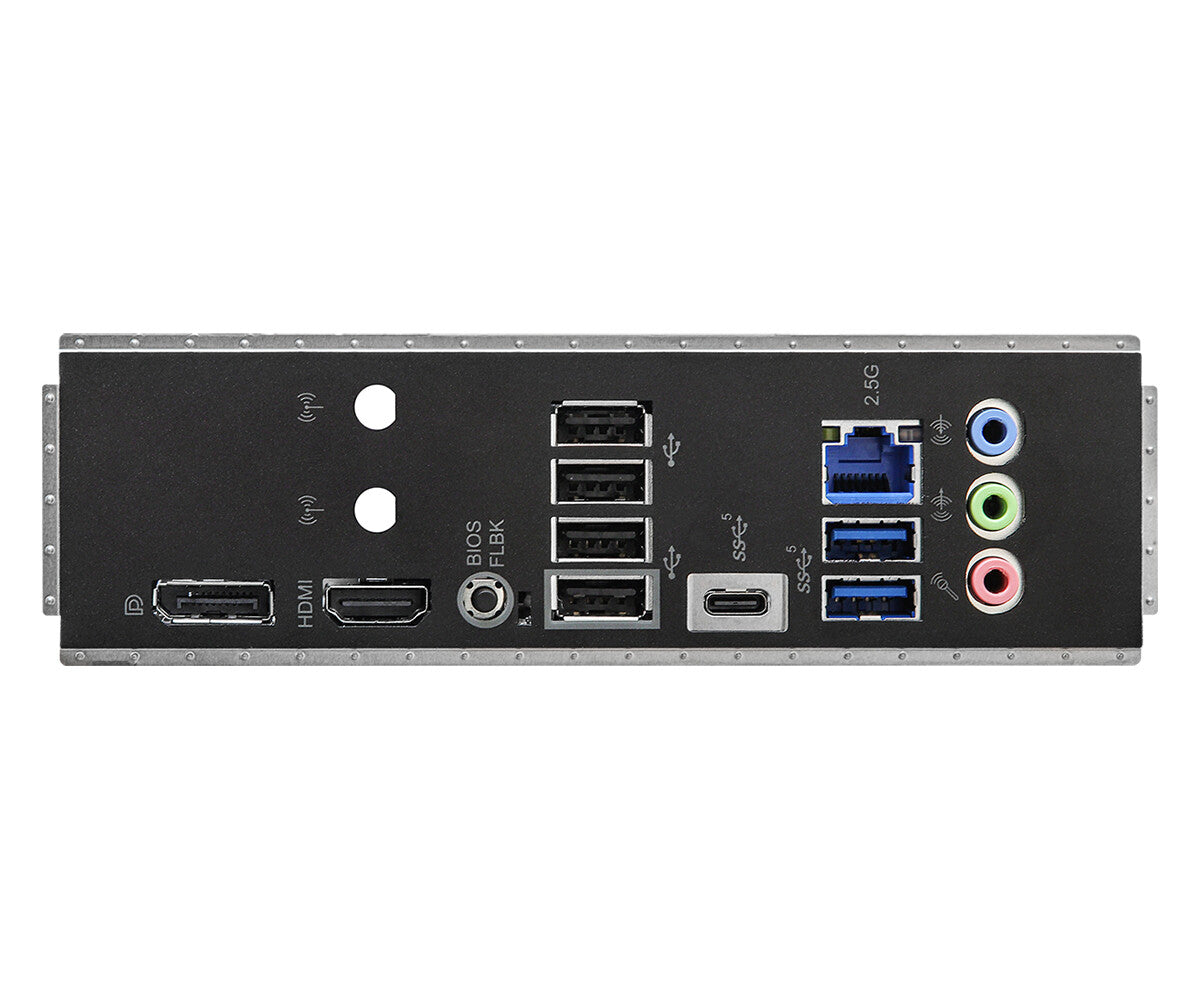

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 226 mm |
