Gigabyte H610M S2H V2 mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte H610M S2H V2?
How many memory slots does this motherboard have?
What type of cooling technology is included?
Gigabyte H610M S2H V2 mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description

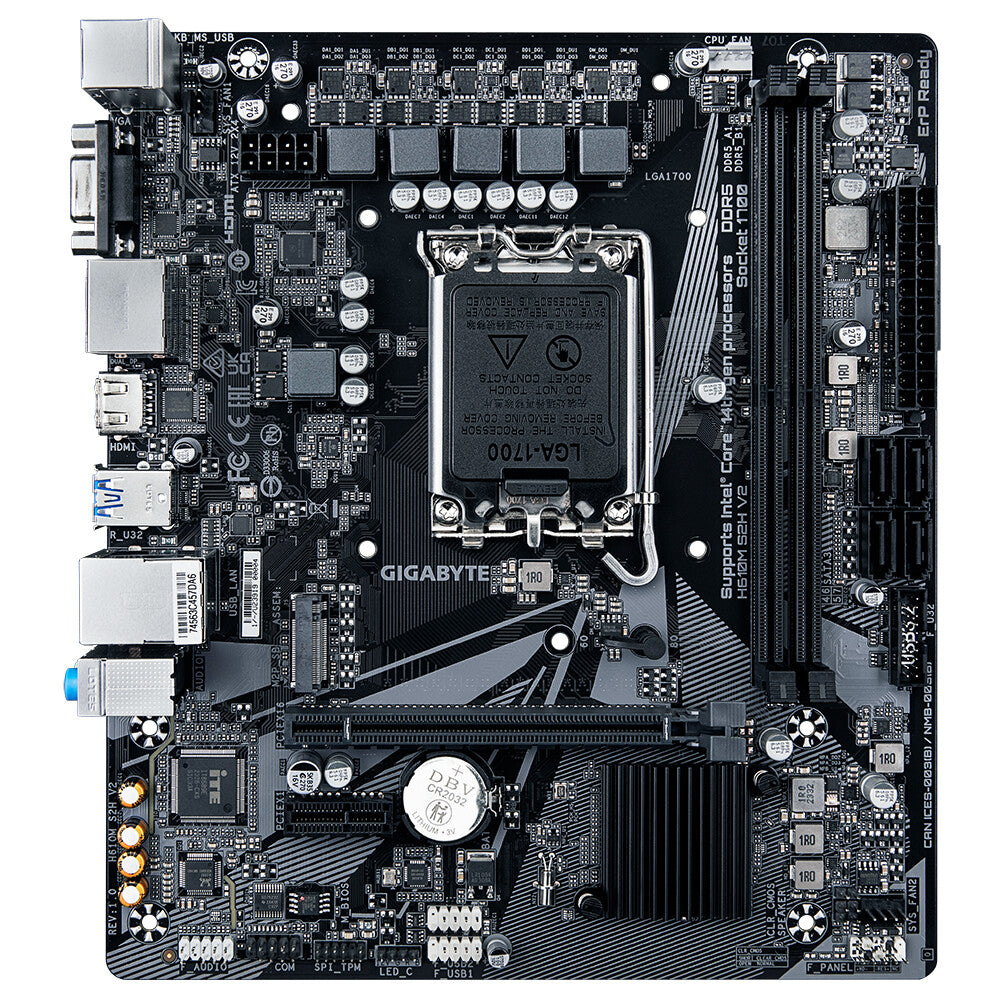

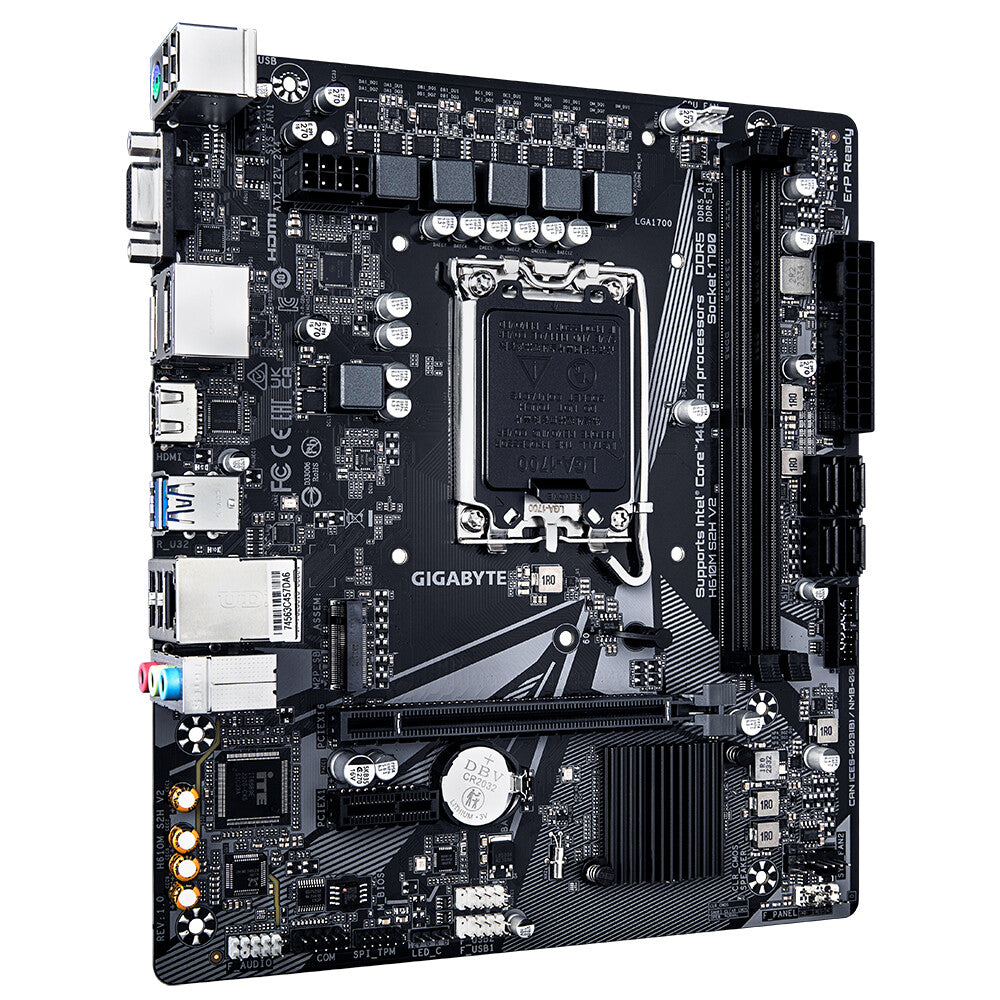

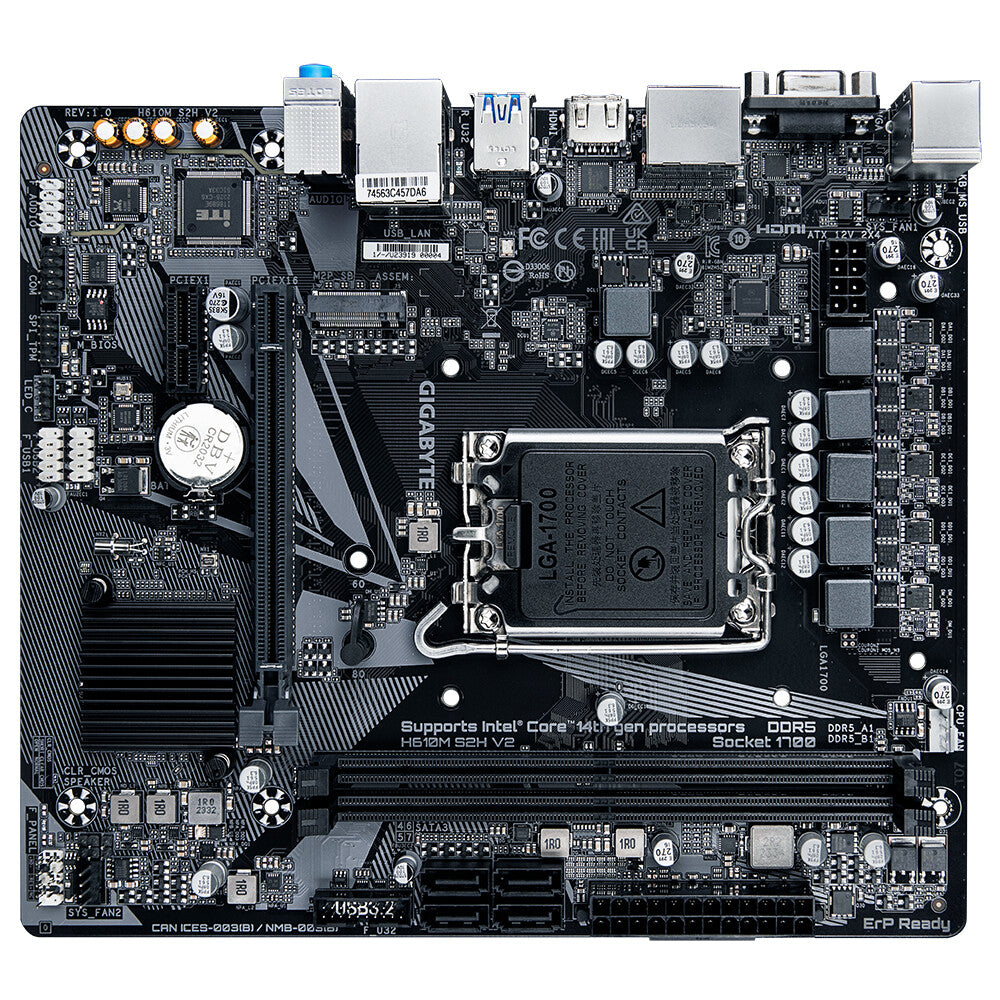

The Gigabyte H610M S2H V2 is a micro ATX budget motherboard built around Intel's H610 Express chipset for LGA1700 processors. This board supports 12th and 13th gen Intel Core, Pentium Gold, and Celeron processors, making it an excellent foundation for entry-level and office builds. The H610 chipset strikes the right balance for users who need solid performance without premium features they won't use.
Memory support covers DDR5 speeds up to 5600 MHz across two DIMM slots, with a maximum capacity of 96GB. The board includes one PCIe 4.0 x16 slot for graphics cards and features multiple display outputs with dual DisplayPort, HDMI, and D-Sub connections - perfect for multi-monitor office setups or basic gaming configurations. Gigabyte's 4+1+1 Hybrid Phases Digital VRM design ensures stable power delivery even under moderate loads.
Smart Fan 6 technology provides intelligent cooling control, while the RGB LED pin header lets you add lighting accents to your build. The board supports both ECC and non-ECC memory modules, giving you flexibility in memory choices. Anti-sulfur resistors improve long-term reliability, and the included CR2032 CMOS battery ensures your BIOS settings stay intact. Gigabyte backs this motherboard with a three-year warranty for peace of mind.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 96 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 1 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| On-board graphics card model | Intel® HD Graphics |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, LED, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 690 g |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Cables included | SATA |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Supported DIMM module capacities | 8GB, 16GB |
