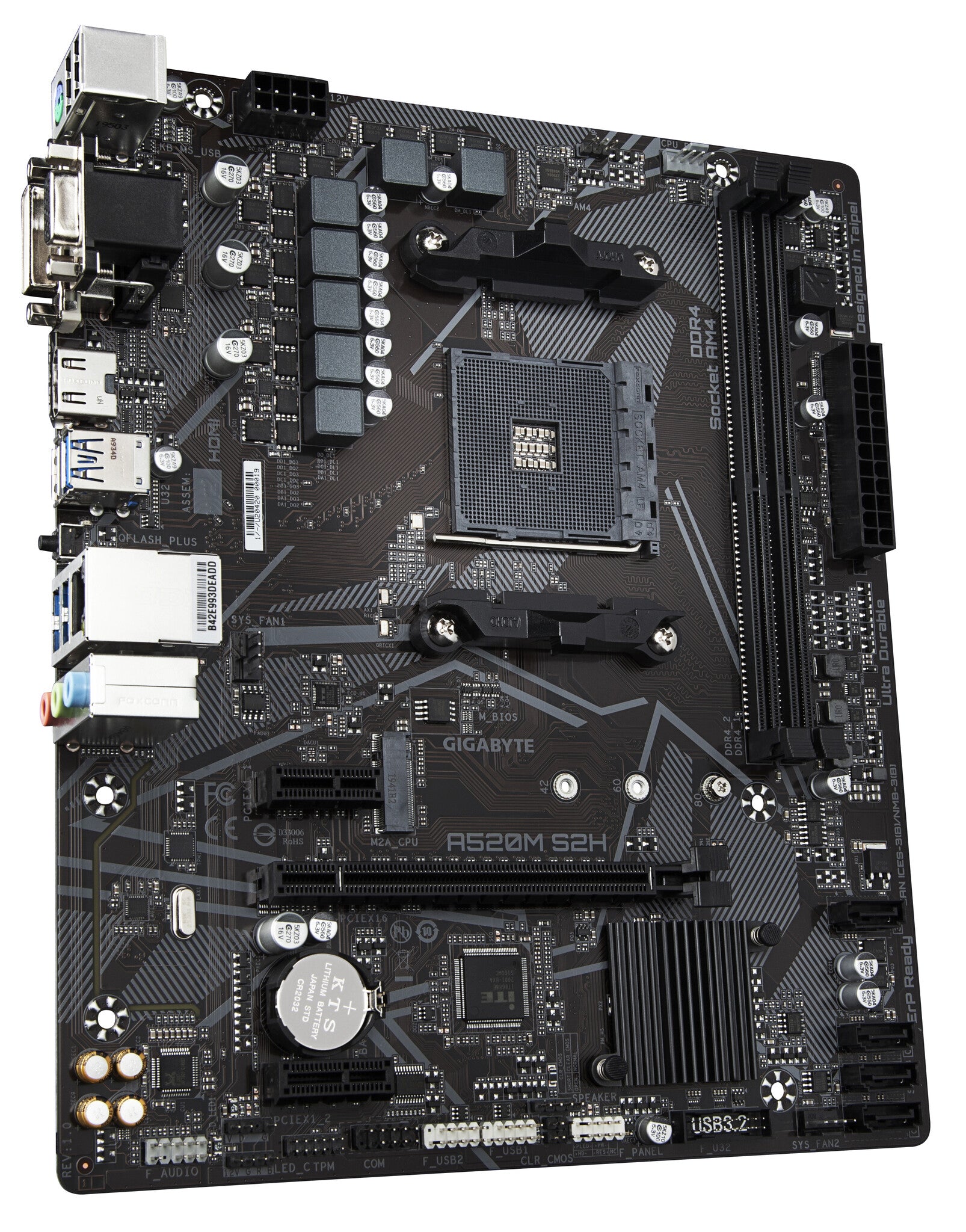

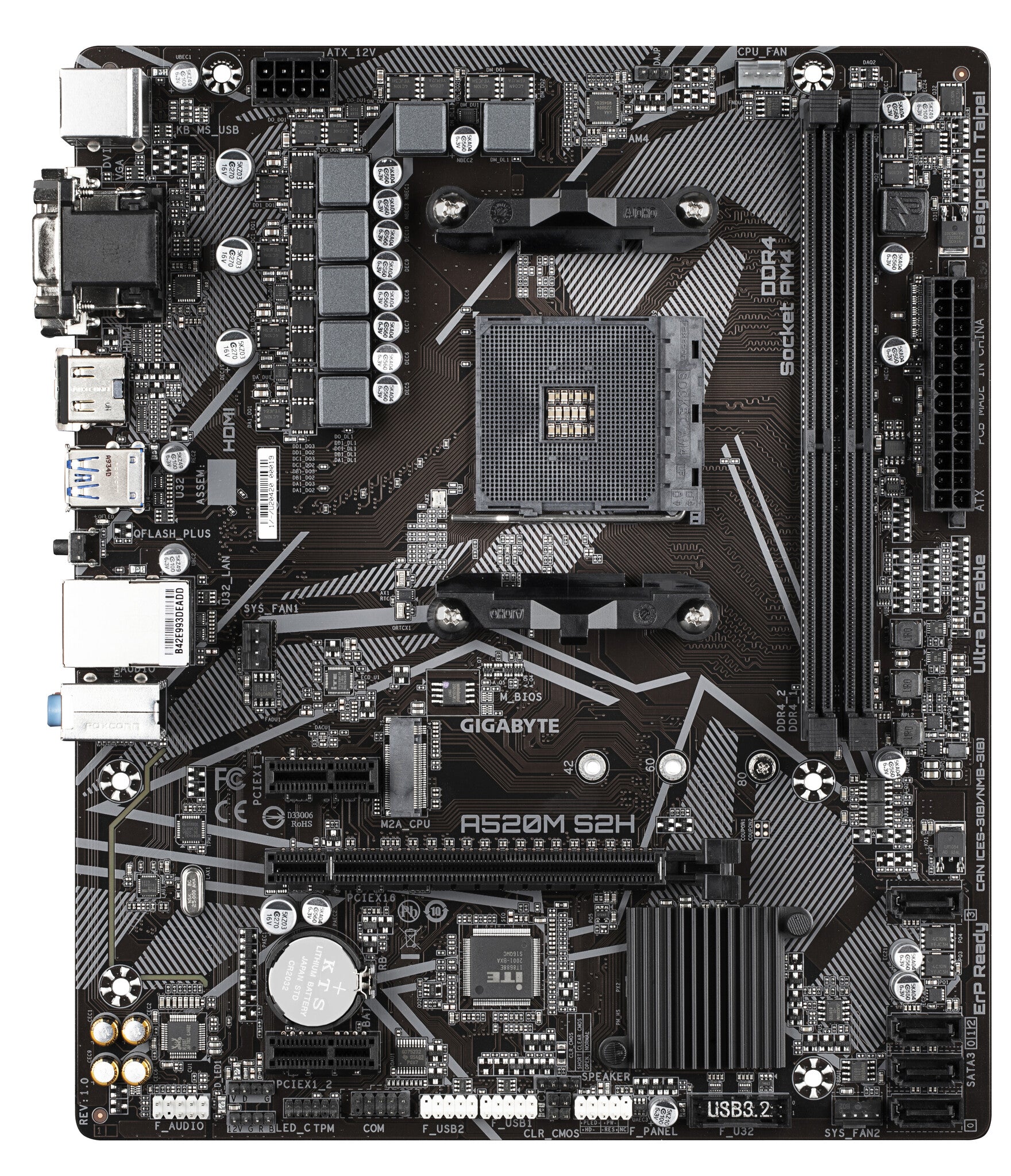

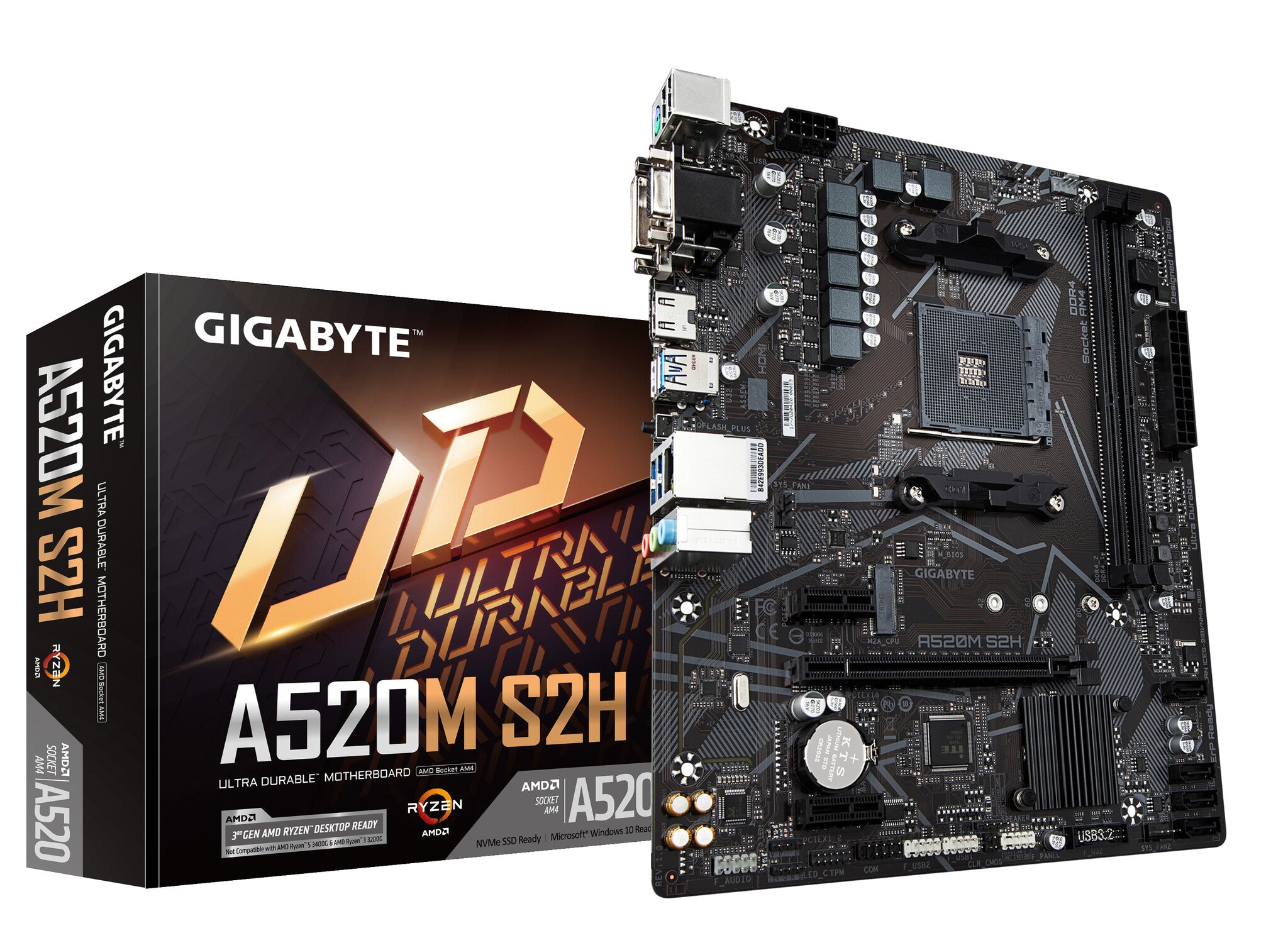

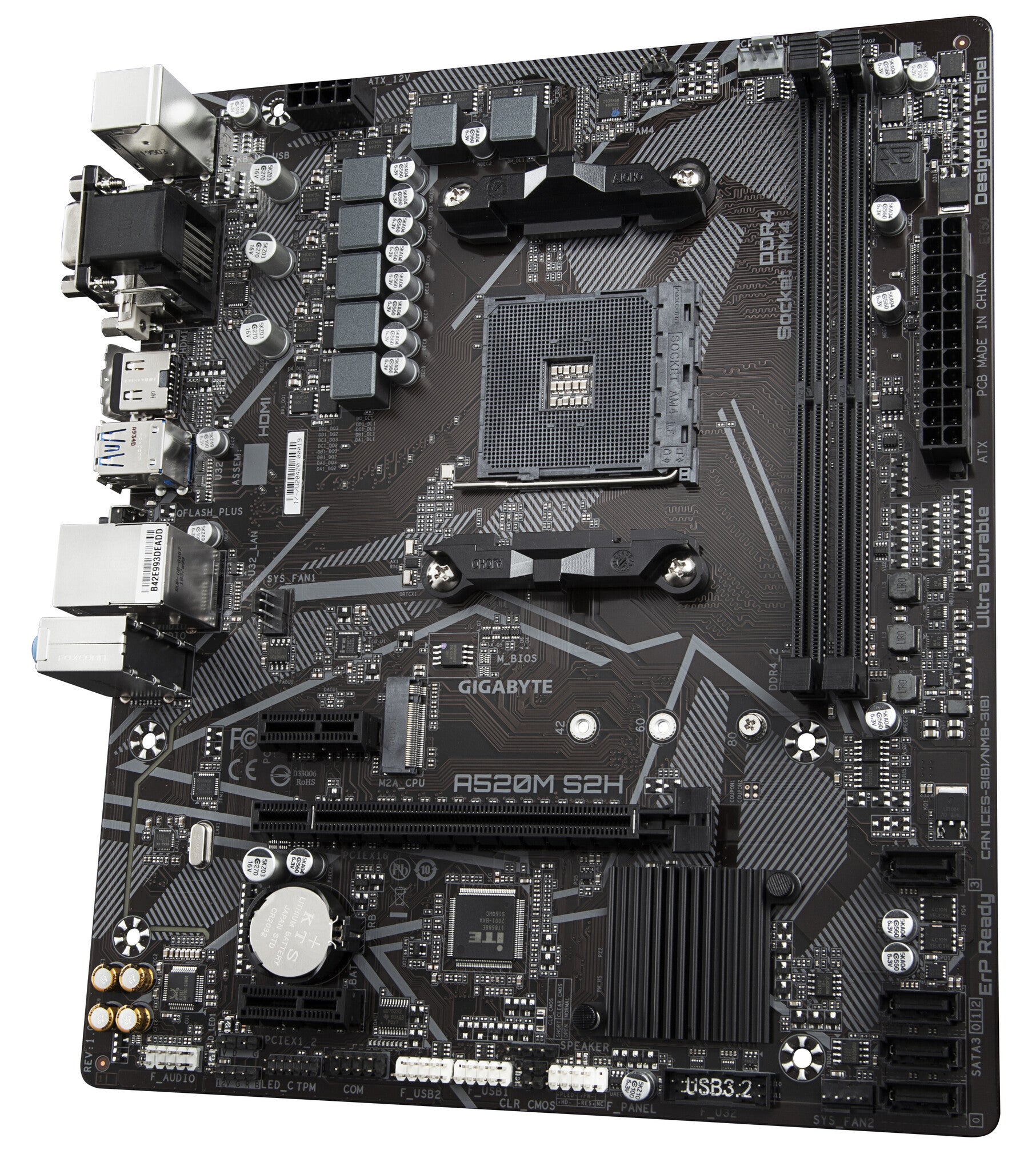

GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
KEY FEATURES
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
100% Guarantee Safe Checkout
Reviews
Frequently Asked Questions
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1
Description
GIGABYTE A520M S2H Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 4+3 Phases Pure Digital VRM, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, RAID levels: 0, 1, 10. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD. BIOS type: UEFI AMI, BIOS memory size: 128 Mbit
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
3 years
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 64 GB |
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| Graphics | |
|---|---|
| HDCP | Yes |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Power fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |

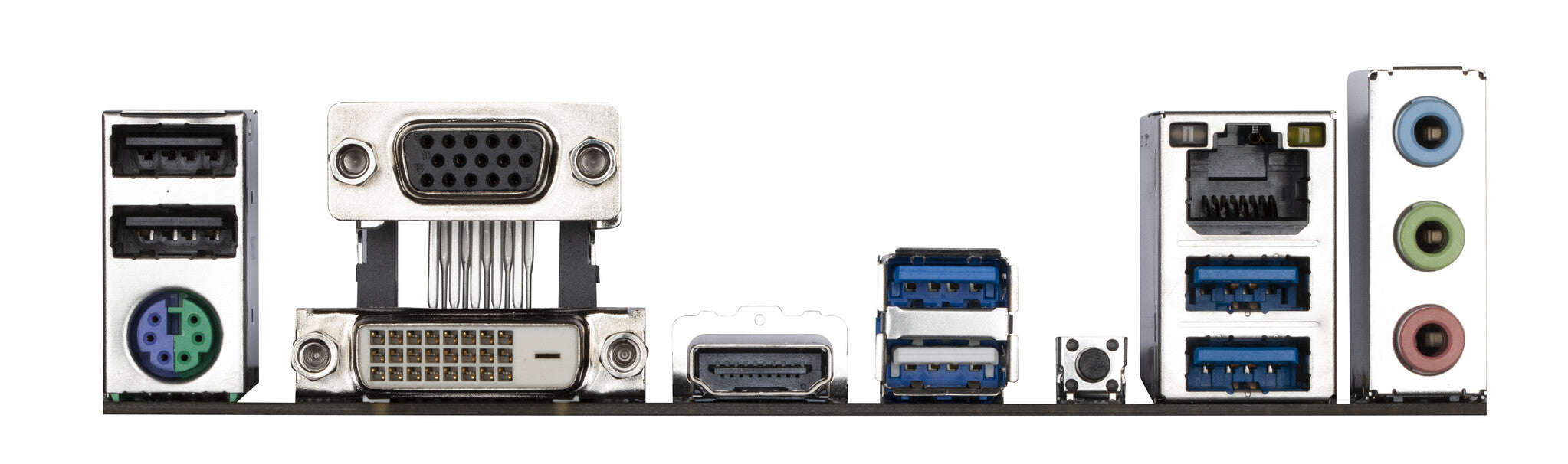

| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 740 g |
| Package height | 52 mm |
| Package depth | 235 mm |
| Package width | 265 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 205 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
