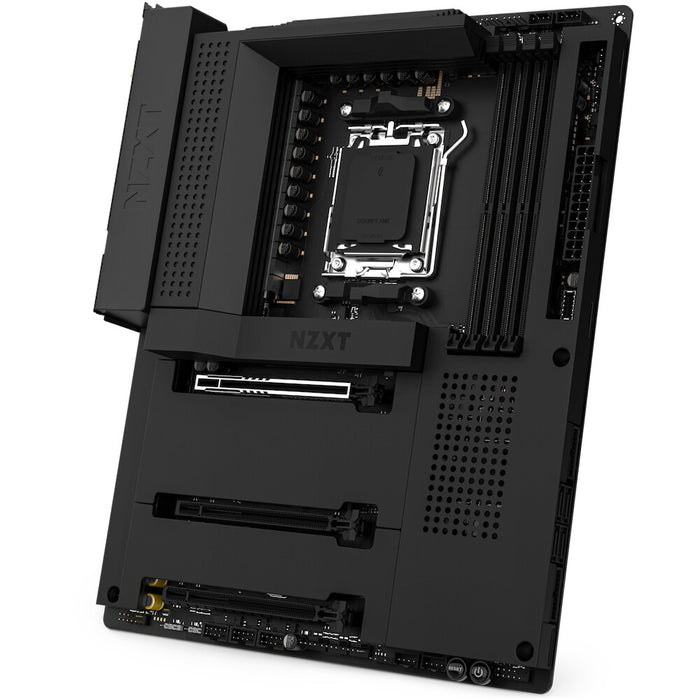

NZXT N7 B650E ATX Motherboard | AM5 | 4x DDR5 Slots
KEY FEATURES

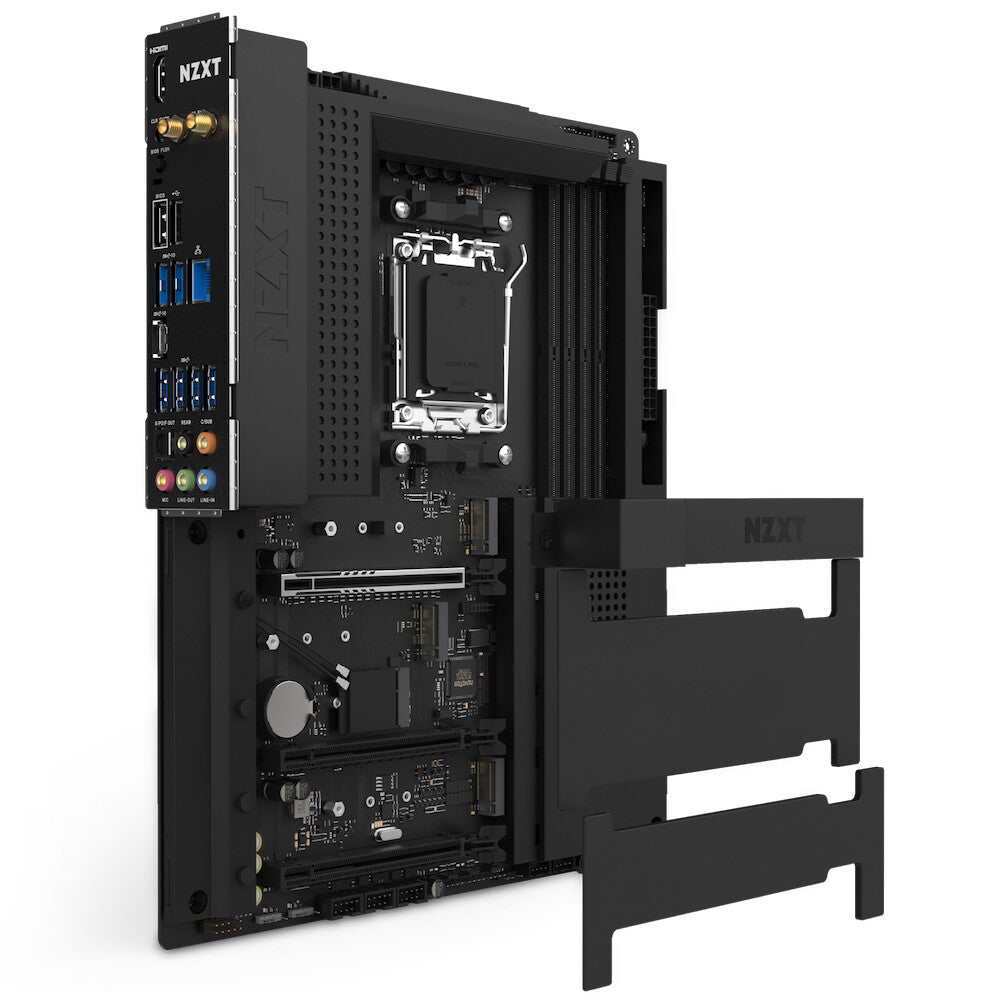

- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels

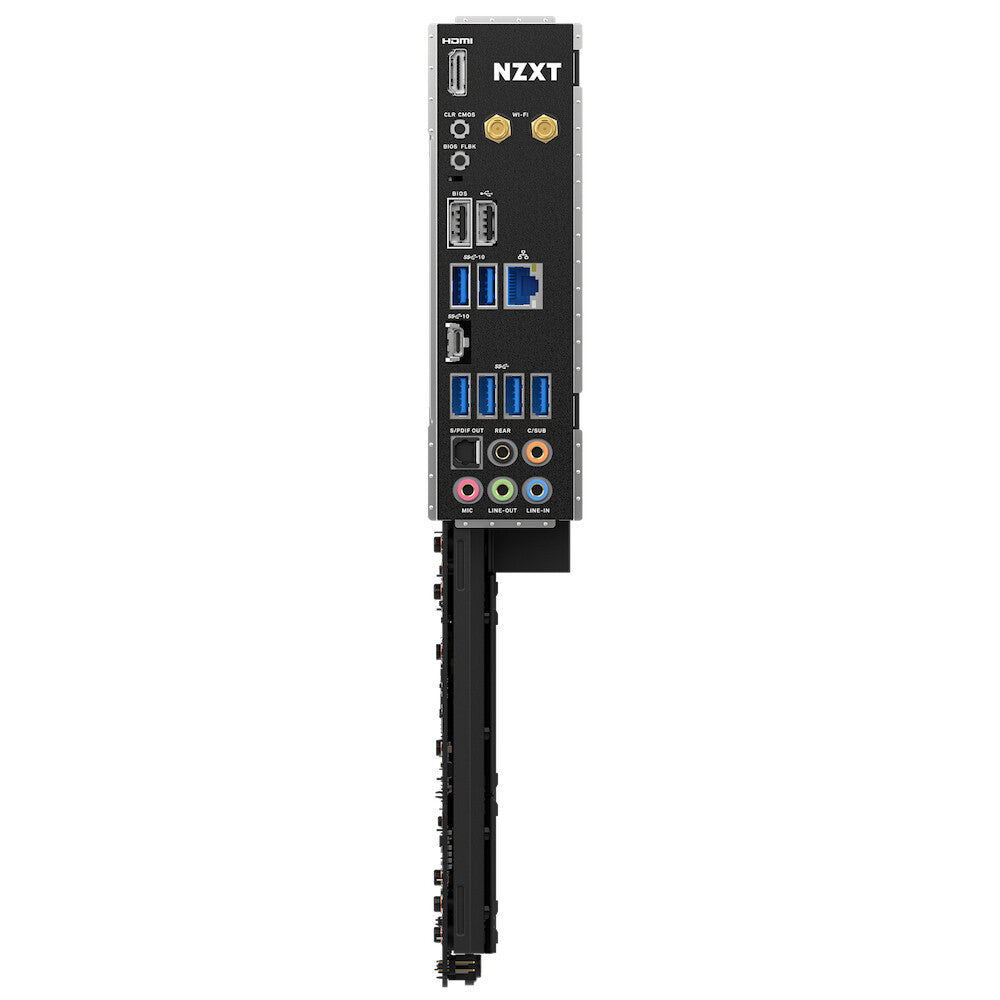

- Integrated rear I/O shield and efficient layout
- 16+2+1 Power phase design with 90A Smart Power Stage(SPS
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the NZXT N7 B650E support?
Does the NZXT N7 B650E support Wi-Fi?
What is the form factor of the NZXT N7 B650E?
NZXT N7 B650E ATX Motherboard | AM5 | 4x DDR5 Slots
Description
The NZXT N7 B650E brings the company's signature clean aesthetic to AMD's B650 chipset, creating an ATX motherboard that prioritizes both visual appeal and solid performance. With its Socket AM5 design, it works with AMD Ryzen 7000 series processors and delivers the essentials for mainstream gaming and productivity builds. The monochrome color scheme and integrated RGB LED header support help create cohesive system builds that align with NZXT's design philosophy.
Memory support covers DDR5 across four DIMM slots with a maximum capacity of 128GB, giving plenty of room for high-speed kits and future upgrades. Two PCIe x16 slots provide flexibility for single or dual GPU configurations, while the pair of PCIe x1 slots handles additional expansion cards. Connectivity includes 2.5-Gigabit Ethernet for fast wired networking, plus built-in Wi-Fi and Bluetooth 5.2 for wireless devices. The board also features HDMI and DisplayPort outputs for systems using integrated graphics.
Setup benefits from the B650E chipset's native DDR5 support, which handles memory overclocking profiles to reach higher speeds than standard JEDEC specifications. The board includes essential accessories in the box such as the I/O shield and user documentation to get systems running smoothly. NZXT's focus on clean cable management and component layout helps builders achieve the tidy, professional appearance the brand is known for, making this a practical choice for anyone wanting both performance and visual consistency in their AMD build.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX, CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
| Number of displays supported | 1 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 5.0 channels |
| Power source type | ATX |
| Certification | FCC, CE, WHQL, ErP/EuP Ready |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 2 |
| Packaging content | |
|---|---|
| Cables included | SATA |
