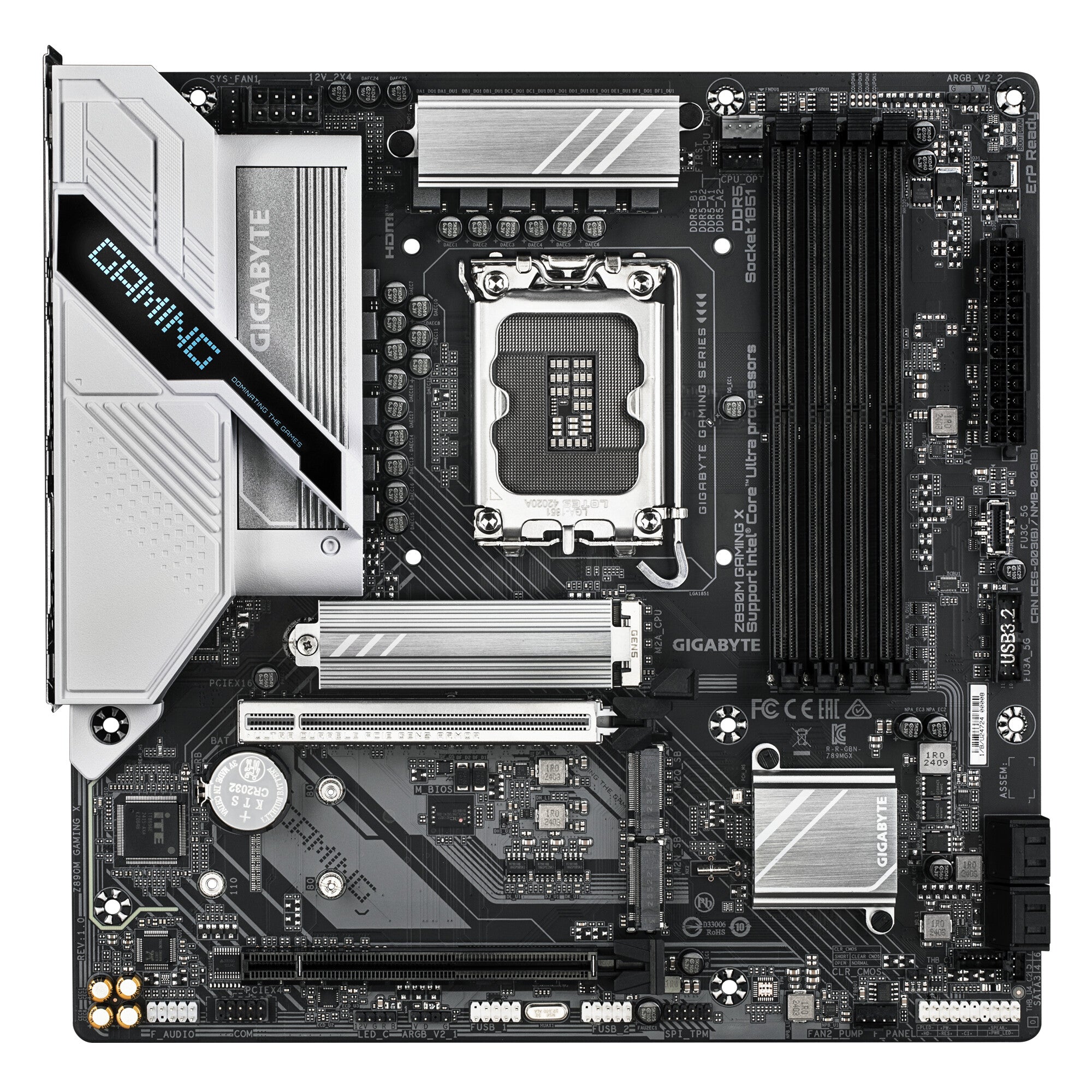

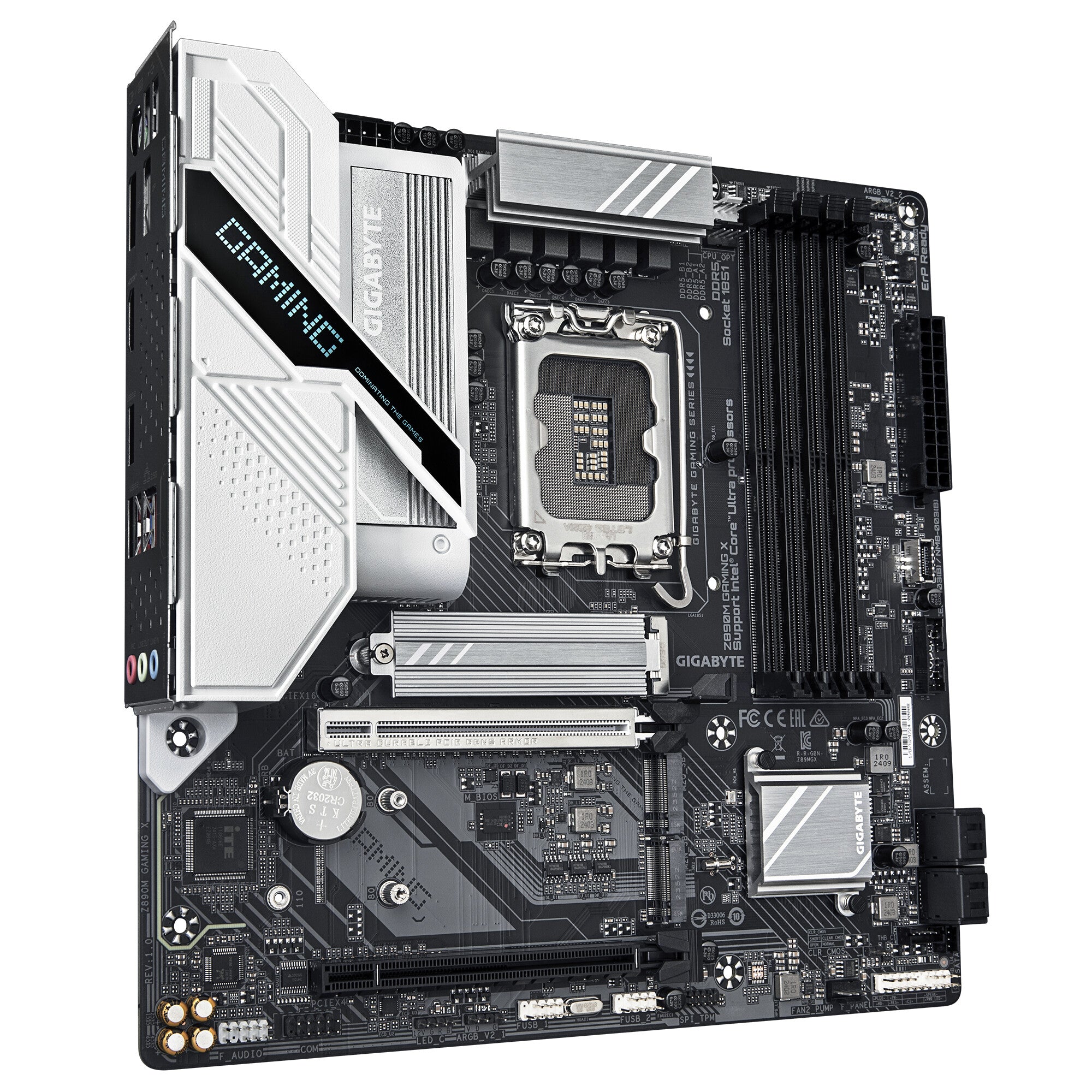

Gigabyte Z890M GAMING X mATX Motherboard | LGA1851 | 4x DDR5 Slots
KEY FEATURES
- Digital 8+1+2+1 Phases 50A PowerPak VRM with Solid Capacitor
- Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
- PCIe M.2 design (Up to 2580) with Thermal Guard
- Fully Covered MOSFET Heatsinks
- 2.5GbE LAN, USB 3.2 Gen1 Type-C®
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte Z890M GAMING X?
How many memory slots does the motherboard have?
What is the form factor of the Gigabyte Z890M GAMING X?
Gigabyte Z890M GAMING X mATX Motherboard | LGA1851 | 4x DDR5 Slots
Description
The Gigabyte Z890M GAMING X brings Intel's Z890 chipset to the micro ATX form factor, making it an excellent choice for compact gaming builds that need flagship features without compromise. This board supports Intel's latest Core Ultra Series 2 processors through the LGA1851 socket, while its 8+1+2 phase VRM design ensures stable power delivery for demanding workloads and gaming sessions. Despite its smaller footprint, it doesn't skimp on capability - you get the full feature set of Intel's top-tier chipset in a board that fits easily into smaller cases.
Memory performance stands out with support for up to 256GB of DDR5 across four DIMM slots, with speeds reaching an impressive 8800MHz when overclocked. The single PCIe 5.0 x16 slot handles the latest graphics cards with full bandwidth, while additional PCIe 4.0 slots provide expansion options for storage and other components. Connectivity includes 2.5 Gigabit Ethernet for fast wired networking and USB 3.2 Gen 1 ports for peripherals, ensuring your compact build stays well-connected.

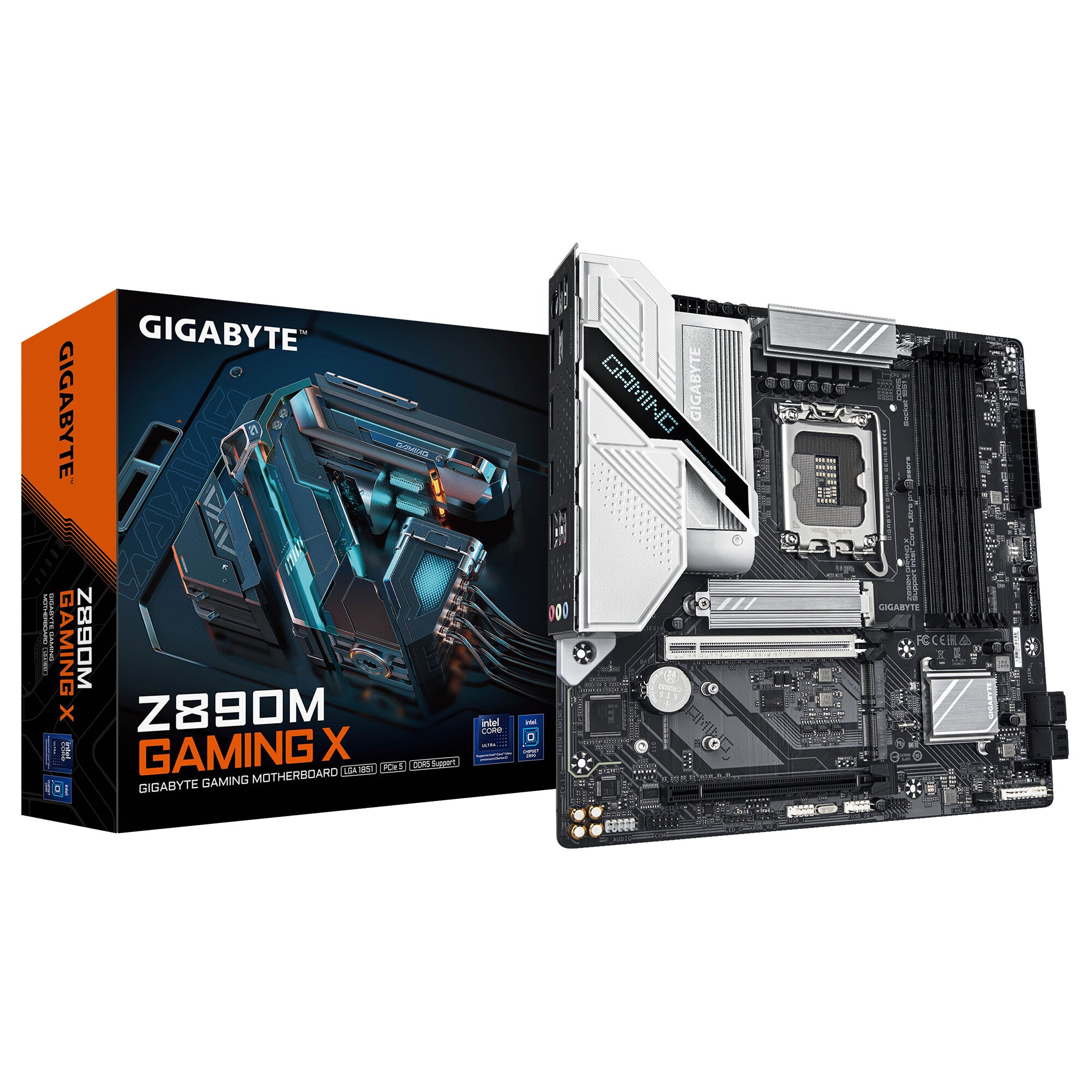

Setup is straightforward with included essentials like the I/O shield and user documentation, plus the board supports XMP memory profiles for easy DDR5 optimization. The RGB LED header lets you add some visual flair to your build, while the three-year warranty provides peace of mind. This motherboard strikes an ideal balance for builders who want Z890's advanced features in a space-efficient package, whether for a powerful gaming rig or a compact workstation.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Maximum internal memory supported by processor | 256 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz |
| Supported memory clock speed (max) | 8800 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory | 256 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Number of HDDs supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

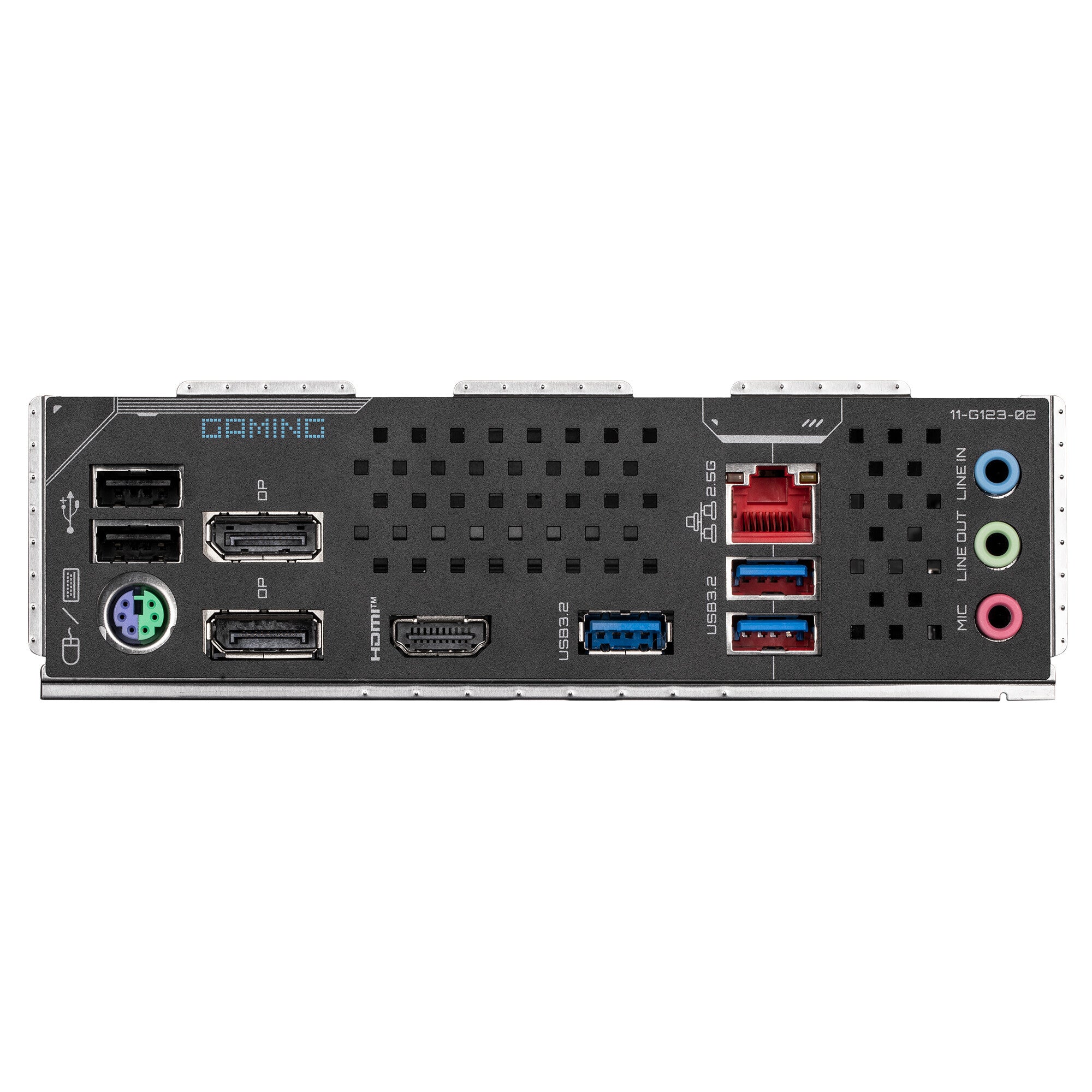

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.22 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.1 kg |
