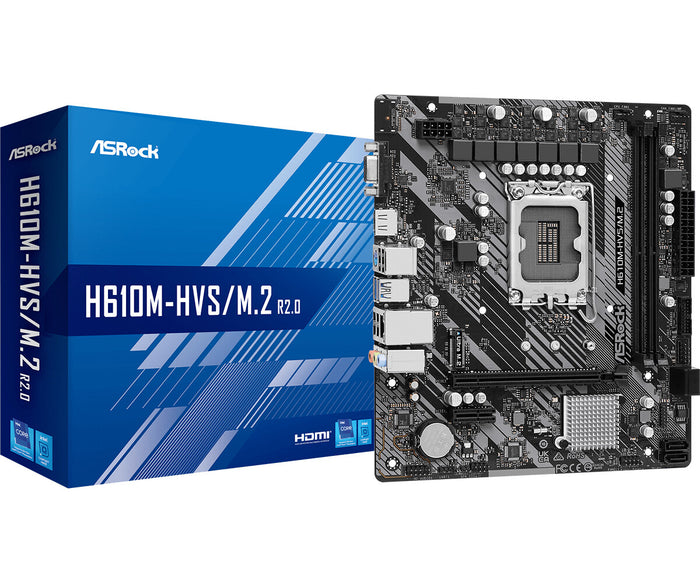

Asrock H610M-HVS/M.2 R2.0 mATX Motherboard | LGA1700 | 2x DDR4 Slots
KEY FEATURES
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
What is the maximum data transfer speed for the M.2 interface?
Does this motherboard offer any protection against power surges?
Asrock H610M-HVS/M.2 R2.0 mATX Motherboard | LGA1700 | 2x DDR4 Slots
Description
The Asrock H610M-HVS/M.2 R2.0 is a micro ATX motherboard built around Intel's H610 chipset for LGA1700 processors, including 12th and 13th generation Core i3, i5, and i7 CPUs. This budget-oriented board delivers the essentials for compact PC builds without unnecessary extras, making it an ideal choice for home office systems, media centres, or straightforward productivity builds where space efficiency matters more than extensive expansion options.
Memory support centres on DDR4 with two DIMM slots accommodating up to 64GB total capacity at speeds up to DDR4-3200. The single PCIe 4.0 x16 slot provides full bandwidth for a graphics card, while an additional PCIe 3.0 x1 slot offers room for a Wi-Fi card or other expansion. The board includes 7.1-channel HD audio for multi-speaker setups and delivers the core connectivity you need for most builds.
Setup remains straightforward with Intel's mature platform, and the board supports memory profiles for easy DDR4 tuning. The micro ATX form factor fits smaller cases while retaining compatibility with standard ATX cases for builders who want extra internal space. At this price point, the H610M-HVS/M.2 R2.0 focuses on reliability and the features that matter most rather than premium additions, making it a sensible foundation for cost-conscious builds that don't compromise on Intel's latest processor compatibility.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 Education x64, Windows 11 x64 |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight & dimensions | |
|---|---|
| Width | 223 mm |
| Depth | 188 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
