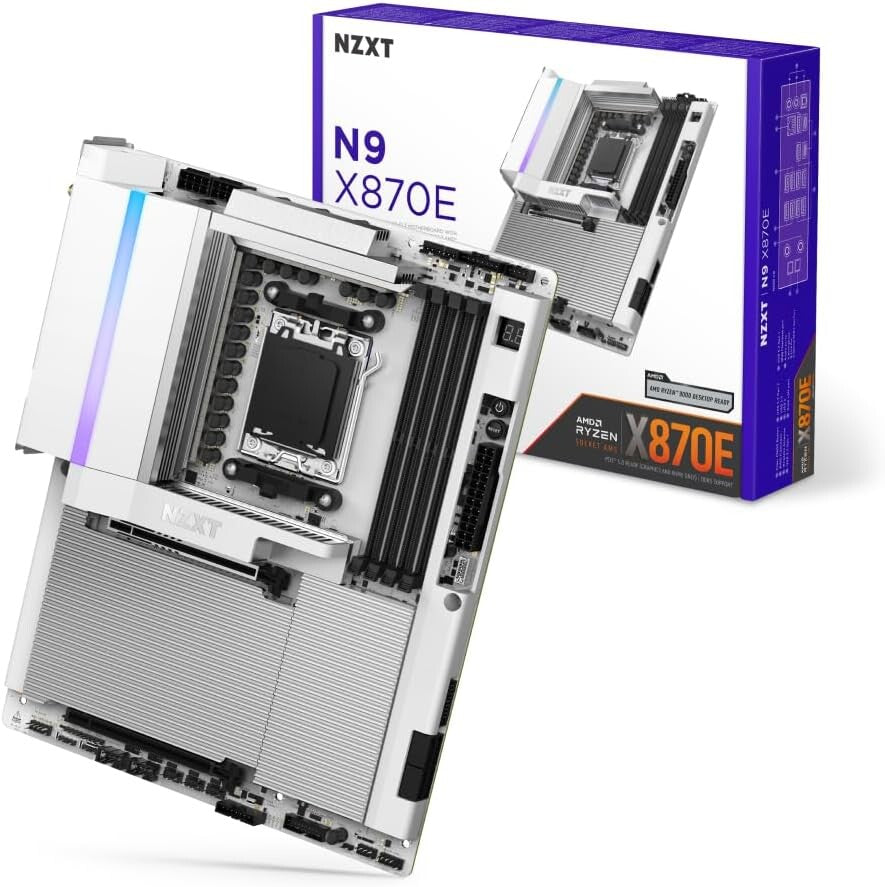

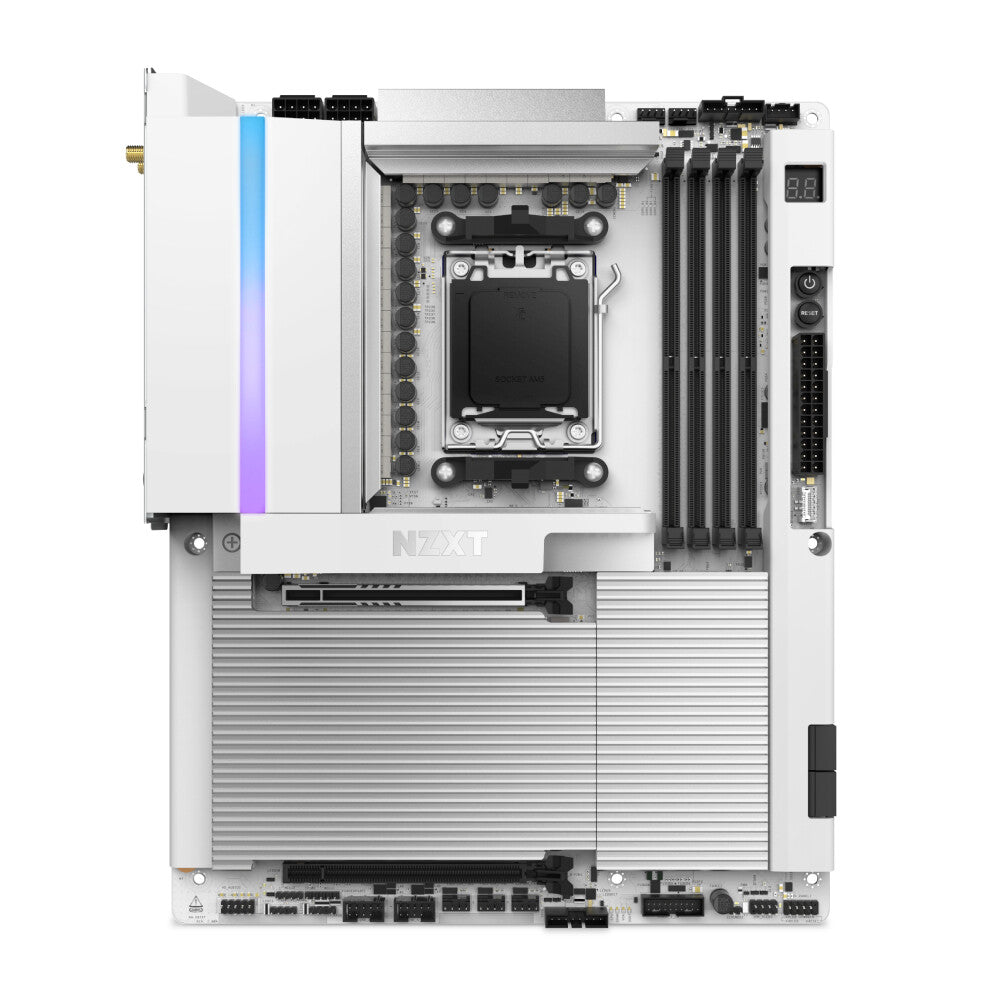

NZXT N9 X870E ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors
- Advanced Power Solution: A robust 20+2+1 power stage design (110A SPS) and 8-layer, low-loss 2oz copper PCB ensure exceptional stability and overclocking potential
- Optimized Thermal Design: Stay cool under pressure with a high-performance VRM heatsink array with thermal pads, dual PWM fans, and fins, plus dedicated heatsinks for all M.2 slots
- PCIe® 5.0 M.2 Slot: Access PCIe® 5.0 storage speeds with the top M.2 slot, plus three additional PCIe® 4.0 M.2 slots
- DDR5 Performance: Four dual-channel DDR5 RAM slots accelerate load times, enhance multitasking, and support speeds up to 8000+ MHz through overclocking
- USB 4 Connectivity: Two USB 4 ports provide up to 40 Gbps data transfer speeds, video output, and device charging through a single, versatile connection
- Next-Gen Networking: Enjoy ultra-fast speeds with Wi-Fi 7 and 5G LAN, ensuring a flawless, lag-free connection for both wireless and wired setups

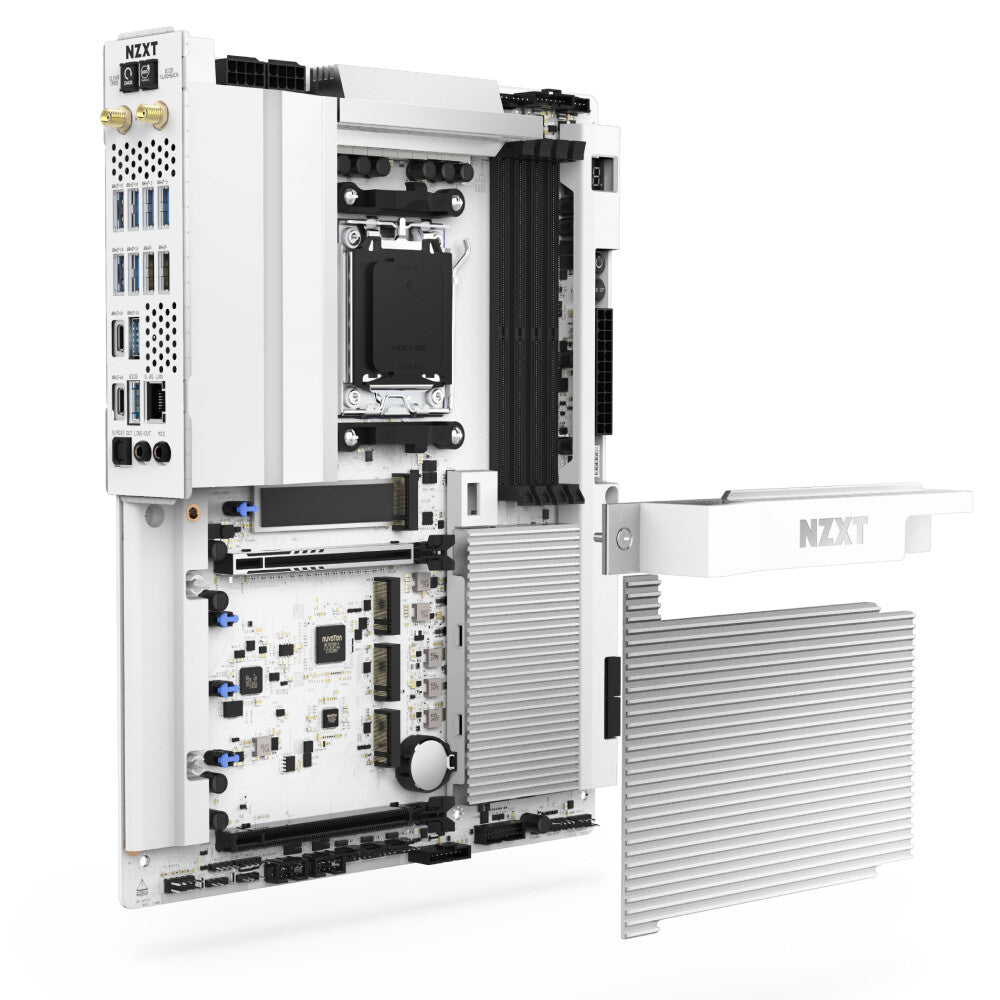

- Seamless Style: Achieve a sleek and sophisticated aesthetic with a full-metal cover that conceals the majority of the PCB
- Integrated RGB Lighting: Personalize your build with vibrant onboard RGB lighting, controlled through NZXT CAM software
- Single-Frame Fans: Effortlessly connect and control NZXT RGB single-frame fans with the convenient 8-pin combo fan headers (4-pin RGB + 4-pin PWM)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
NZXT N9 X870E ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The NZXT N9 X870E is a premium ATX motherboard built around AMD's flagship X870E chipset, designed for enthusiasts building high-performance AM5 systems. This board supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, making it an excellent foundation for cutting-edge gaming and content creation builds. The distinctive white PCB sets it apart from typical black motherboards, offering a clean aesthetic that works particularly well in modern builds with tempered glass panels.
DDR5 memory support across four DIMM slots ensures compatibility with the fastest available memory kits, while the single PCIe 5.0 x16 slot provides maximum bandwidth for the latest graphics cards. Connectivity is comprehensive with USB 3.2 Gen 2x2 support delivering up to 20Gb/s transfer speeds for high-speed external storage. The integrated Wi-Fi 7 capability eliminates the need for separate wireless cards, providing the latest wireless standard for reduced latency and improved performance in demanding networking scenarios.
RGB lighting integration comes standard with dedicated LED pin headers, allowing seamless coordination with other RGB components in your system. The motherboard includes both CPU fan and water pump connectors, accommodating various cooling solutions from air coolers to custom liquid cooling setups. An antenna is included in the box for the Wi-Fi functionality, along with the essential installation accessories needed to get your system running.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of water pump connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

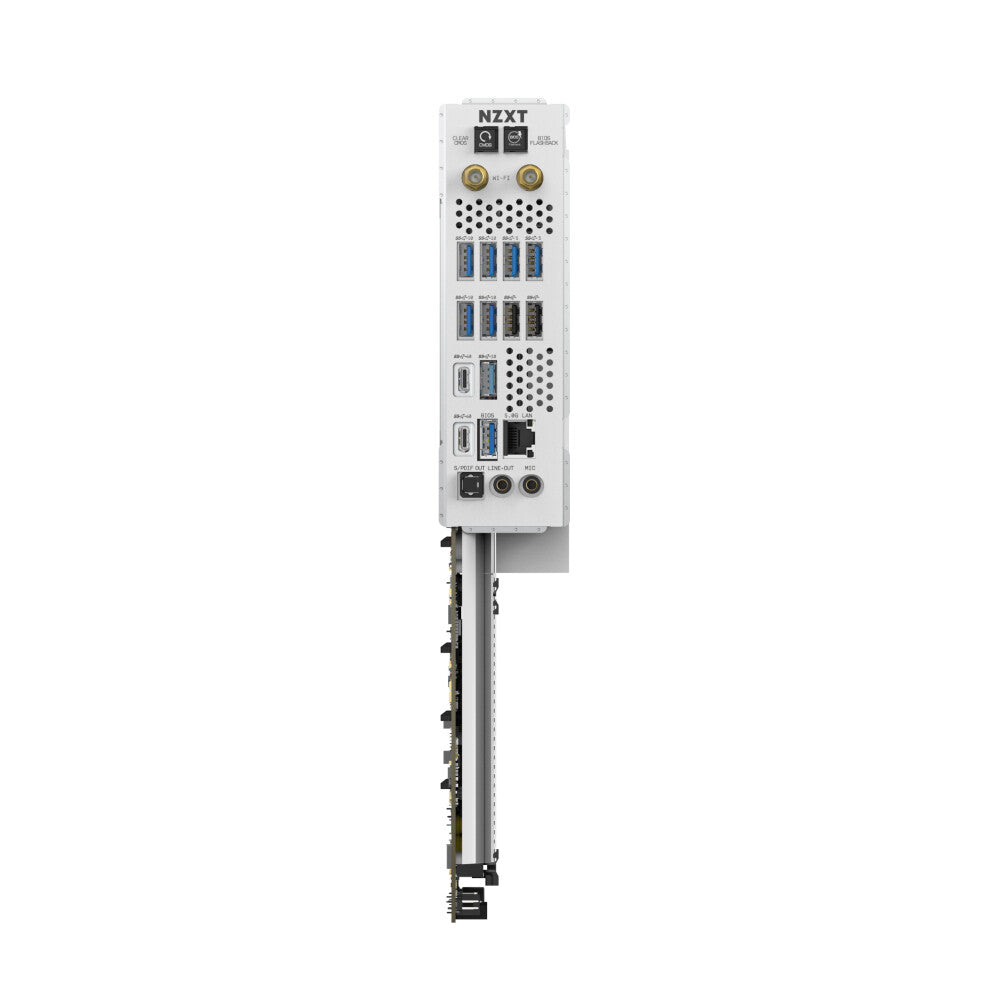

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 5 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Product colour | White |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Cables included | SATA |
