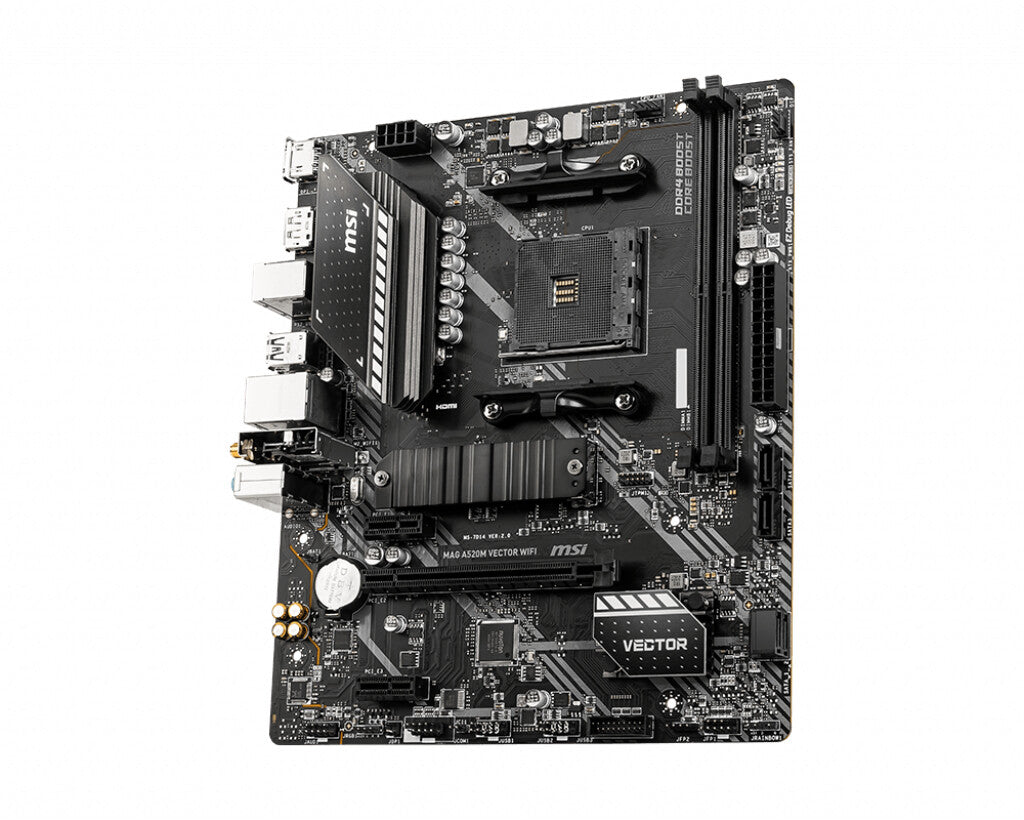

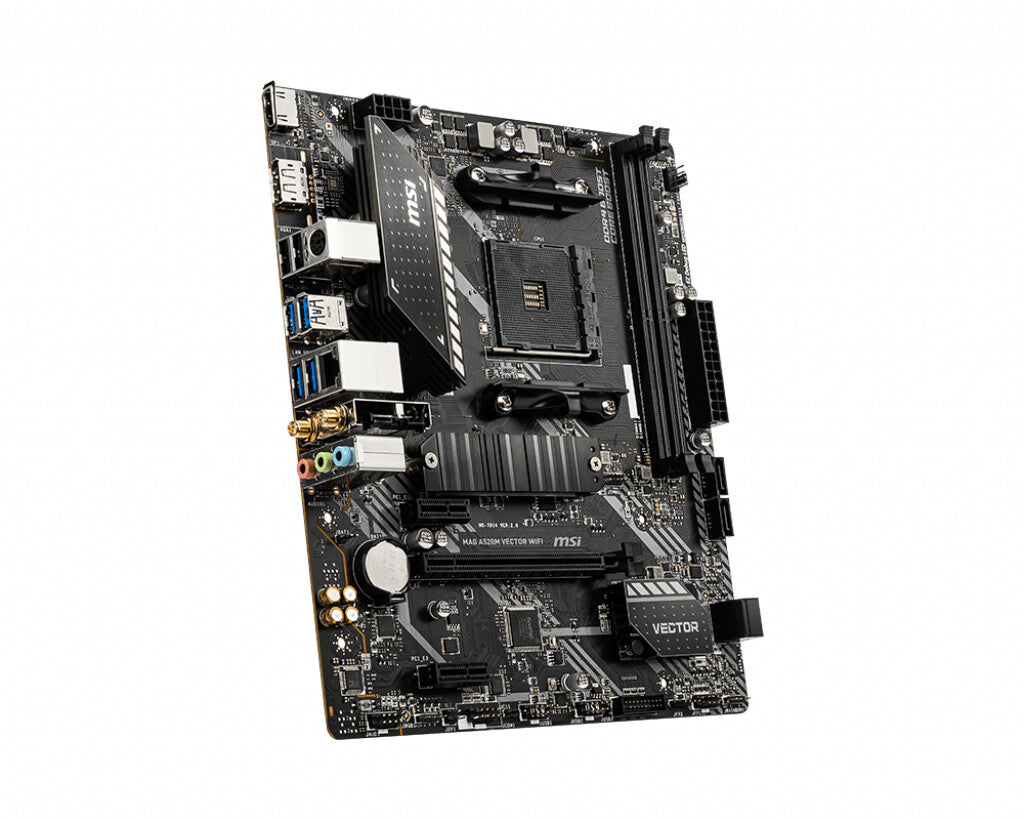

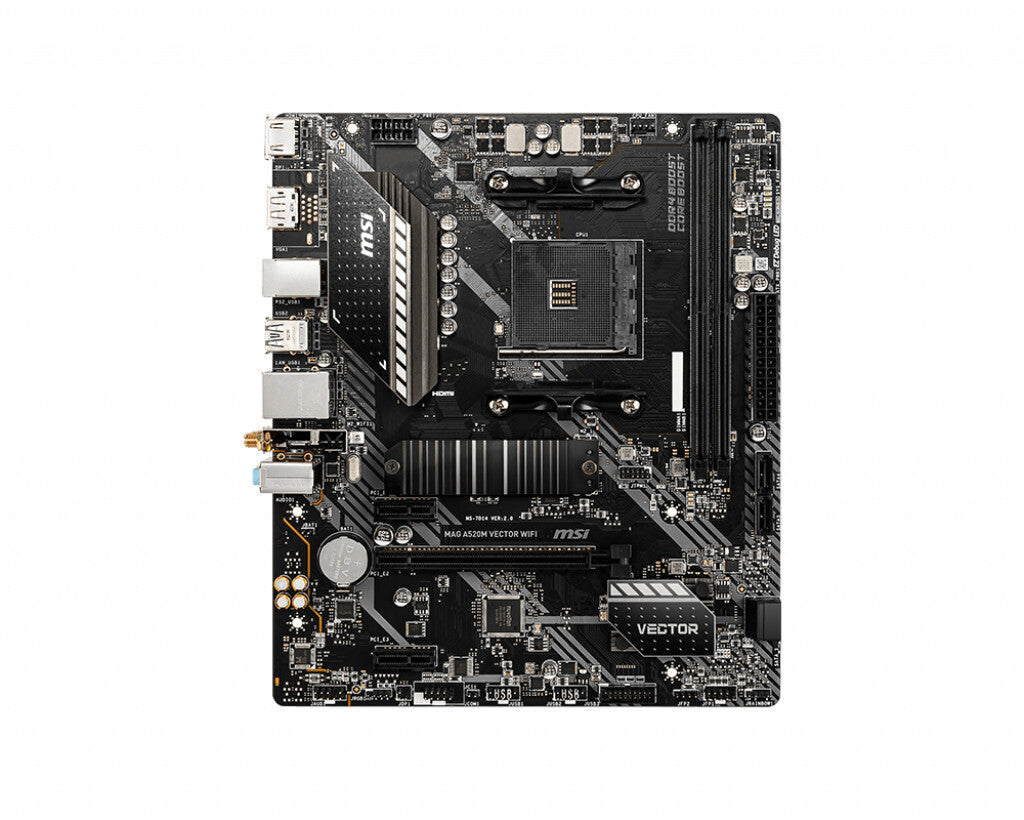

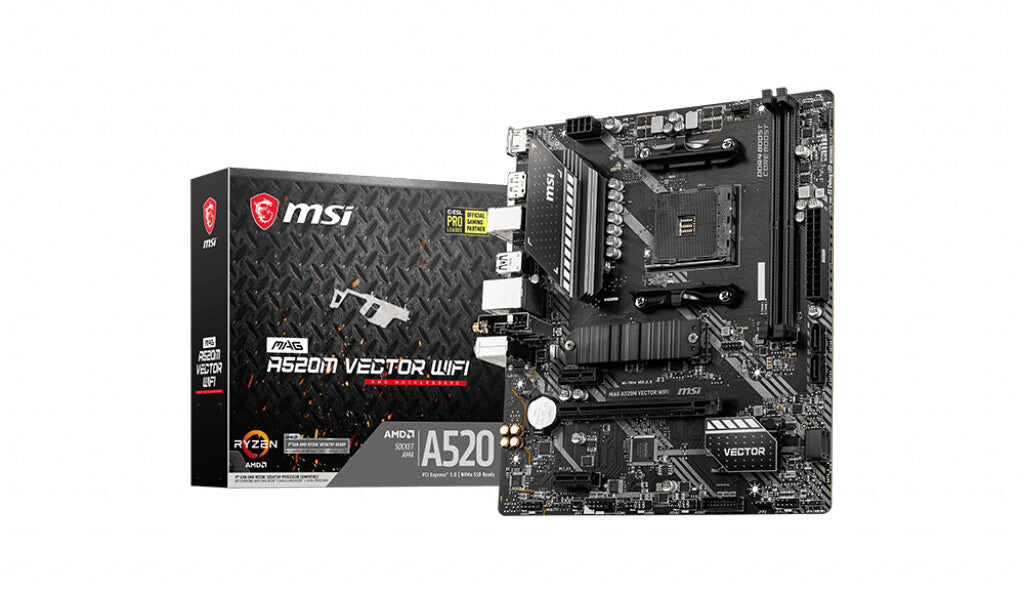

MSI MAG A520M VECTOR WIFI mATX Motherboard | AM4 | 2x DDR4 Slots
KEY FEATURES
- Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
MSI MAG A520M VECTOR WIFI mATX Motherboard | AM4 | 2x DDR4 Slots
Description
The MSI MAG A520M VECTOR WIFI is a micro ATX motherboard built around AMD's entry-level A520 chipset for Socket AM4 processors. This budget-friendly board supports AMD Ryzen 3000 series CPUs and offers essential connectivity with Wi-Fi included, making it a practical choice for compact builds where wireless networking is important. The micro ATX form factor fits well in smaller cases while still providing room for core components.
Memory support covers DDR4 with speeds up to 4600MHz across two DIMM slots, supporting up to 64GB total capacity. The board includes both ECC and non-ECC memory compatibility for flexibility. For expansion, there's a single PCIe x1 Gen 3 slot alongside the main PCIe x16 slot for graphics cards. Display outputs include both HDMI and DisplayPort for integrated graphics users, while USB 3.2 ports handle modern peripherals.
Storage connectivity covers both traditional SATA III drives and modern M.2 SSDs, with gigabit Ethernet and built-in Wi-Fi handling network needs. The board includes an RGB LED pin header for custom lighting setups. In the box, you'll find the standard I/O shield, user documentation, and necessary installation hardware. The A520 chipset keeps costs down while delivering the core features needed for a functional AMD build.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Maximum resolution | 4096 x 2160 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

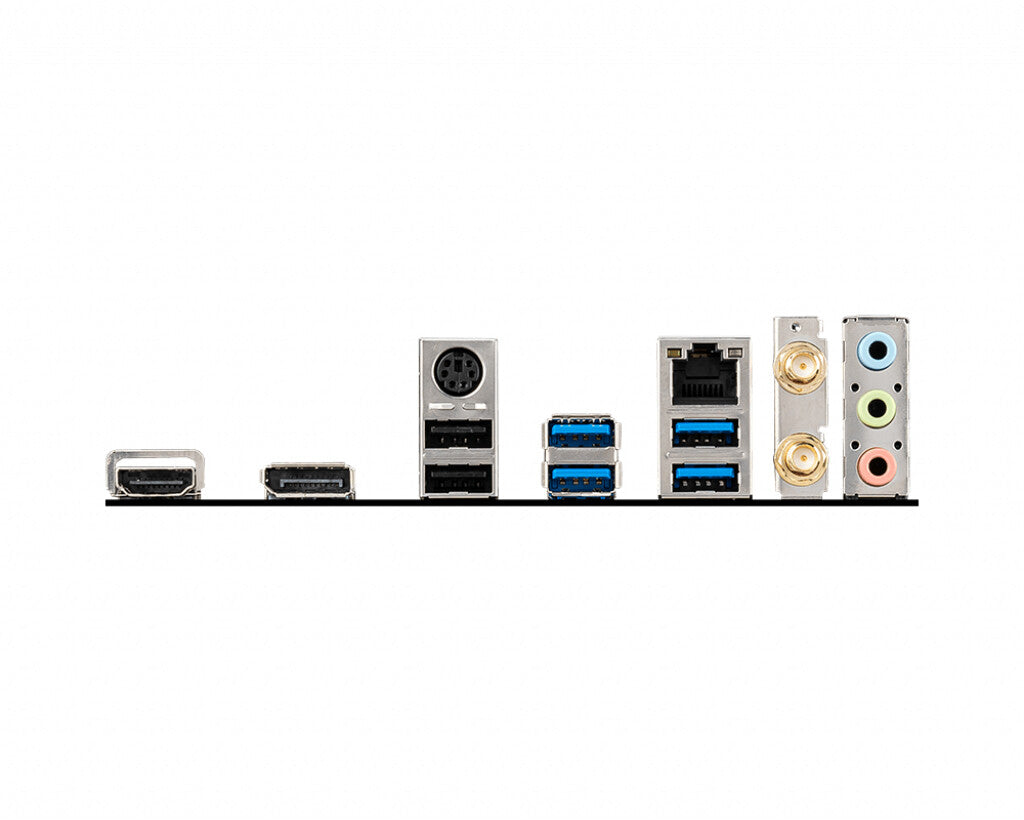

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| Clear CMOS jumper | Yes |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 210 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
