Gigabyte X870E AORUS MASTER ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
KEY FEATURES
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with 110A Smart Power Stage
- Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- M.2 Gen5 with EZ-Latch Plus
- Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
- Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
- Fast Networking: 5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What CPUs are compatible with the Gigabyte X870E AORUS MASTER?
How many memory slots does this motherboard have?
Does it support Wi-Fi connectivity?
Gigabyte X870E AORUS MASTER ATX AMD Motherboard | AM5 Socket - 4 x DDR5 Memory Slots
Description
Elevate your computing experience with the Gigabyte X870E AORUS MASTER ATX AMD Motherboard. Designed for enthusiasts and professionals alike, this motherboard is built to support the latest AMD Ryzen 9000 CPUs, ensuring that you have the power and performance needed for gaming, content creation, and demanding applications. With its robust features and advanced technology, the X870E AORUS MASTER is your gateway to a superior computing experience.
Key Benefits
- Support for AMD Ryzen 9000 CPUs: Unlock the full potential of your system with compatibility for the latest processors, providing exceptional performance and multitasking capabilities.
- 4 x DDR5 Memory Slots: Experience lightning-fast data transfer speeds with support for up to 8600MHz DDR5 memory (OC), allowing for smoother gameplay and quicker load times.
- Advanced VRM Design: The 16+2+2 Phases Digital VRM ensures stable power delivery, enhancing system reliability and performance even under heavy loads.
- Multiple PCIe Slots: With 3x PCIe 5.0 and 1x PCIe 4.0 slots, expand your system with the latest graphics cards and storage solutions for unparalleled performance.
- Wi-Fi 7 and 5GbE LAN: Enjoy ultra-fast wireless connectivity and high-speed wired networking, perfect for online gaming and streaming.
- RGB LED Pin Headers: Customise your build with vibrant RGB lighting, adding a personal touch to your setup.
Additional Features
The Gigabyte X870E AORUS MASTER is not just about performance; it's also packed with features that enhance usability and functionality. The motherboard is built on the ATX form factor, making it compatible with a wide range of cases. It includes a USB 3.2 Gen 2x2 connector for rapid data transfer, and multiple fan and pump connectors for effective cooling solutions. The motherboard also supports both ECC and non-ECC memory, providing flexibility for various use cases.
With a sleek black design, it not only performs well but also looks great in any build. The inclusion of screws and an antenna ensures that you have everything you need to get started right away.
Why Buy
Choosing the Gigabyte X870E AORUS MASTER ATX AMD Motherboard means investing in a product that combines cutting-edge technology with reliability. Whether you're a gamer seeking the best performance or a professional needing a dependable workstation, this motherboard delivers on all fronts. With its impressive specifications and user-friendly features, it stands out as a top choice for anyone looking to build or upgrade their PC. Experience the difference that a high-quality motherboard can make in your computing journey.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 256 GB |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| Supported memory clock speed (max) | 8600 MHz |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 5 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

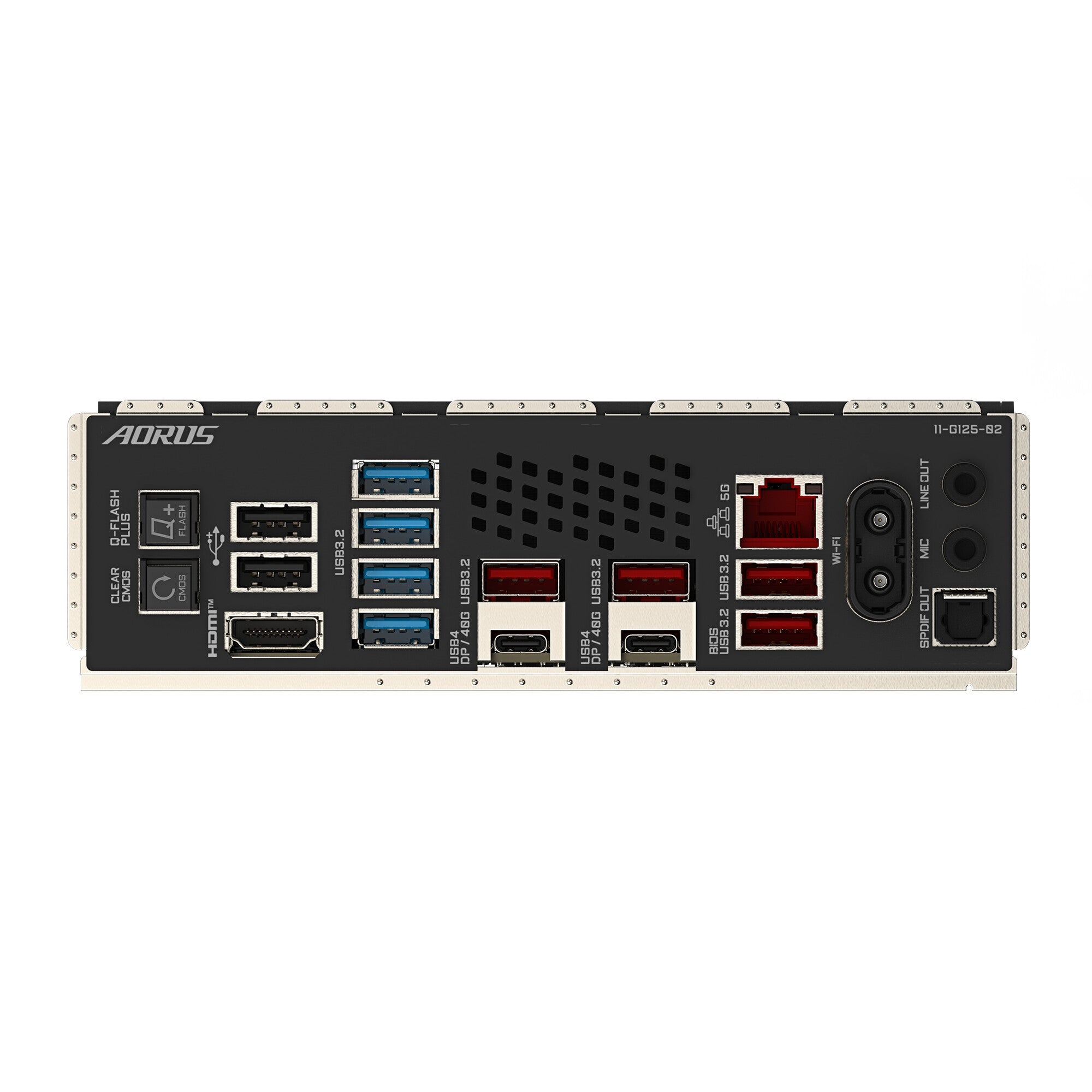

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| WLAN controller model | Qualcomm QCNCM865 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| PC health monitoring | Fan, Temperature, Voltage |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220 |
| Motherboard chipset | AMD X870 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x4 slots | 2 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 2.97 kg |
| Package height | 80 mm |
| Package depth | 294 mm |
| Package width | 345 mm |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Antenna included | Yes |
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 2.54 kg |
