Gigabyte X870 GAMING WIFI6 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
KEY FEATURES
- Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Gigabyte X870 GAMING WIFI6 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6
Description
The Gigabyte X870 Gaming WiFi6 is an ATX motherboard built around AMD's X870 chipset for Socket AM5 processors, including the latest Ryzen 9000 series CPUs. This enthusiast-tier board combines serious performance credentials with gaming-focused features, making it an excellent choice for high-performance builds where both raw power and connectivity matter. The 8+2+2 phase VRM design ensures stable power delivery even under heavy loads, while support for DDR5 memory up to 8000MHz (overclocked) provides the bandwidth modern processors demand.
Memory capabilities are particularly strong, with four DIMM slots supporting up to 256GB of DDR5 and EXPO memory profiles for easy overclocking. The PCIe configuration includes one PCIe 5.0 x16 slot for next-generation graphics cards plus two PCIe 4.0 slots for additional expansion cards. Connectivity covers all the bases with built-in Wi-Fi 6 for wireless networking, 2.5 Gigabit Ethernet for wired connections, and USB 4 support for the fastest data transfer and display output through a single cable.
Setup is straightforward thanks to EXPO memory profile support that automatically configures compatible DDR5 kits to their rated speeds. The board includes RGB LED headers for custom lighting setups, appealing to builders who want to add some visual flair to their system. Gigabyte backs the X870 Gaming WiFi6 with a three-year warranty, and the package includes the necessary mounting hardware and cables to get your build up and running.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz |
| Supported memory clock speed (max) | 8000 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory | 256 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Number of HDDs supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

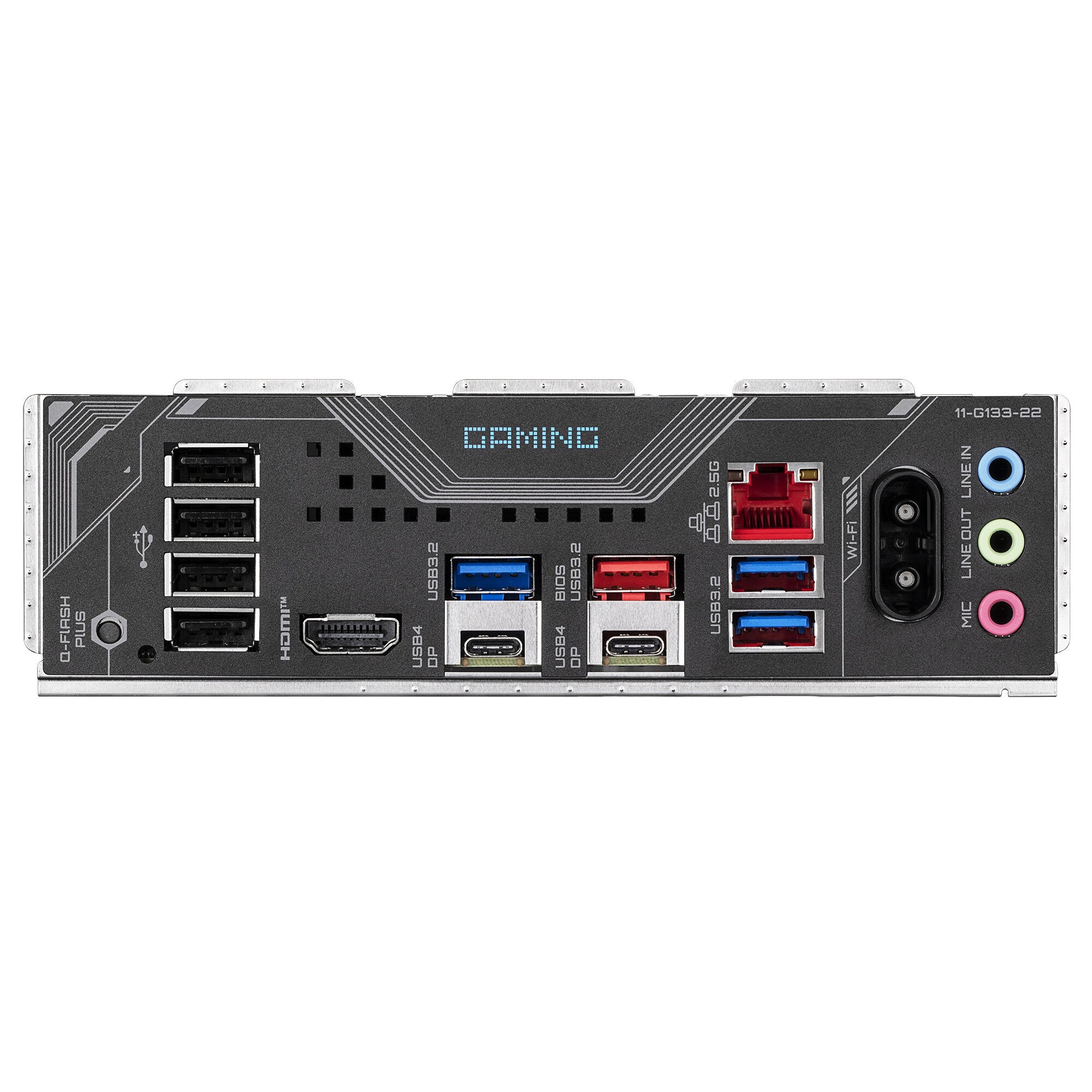

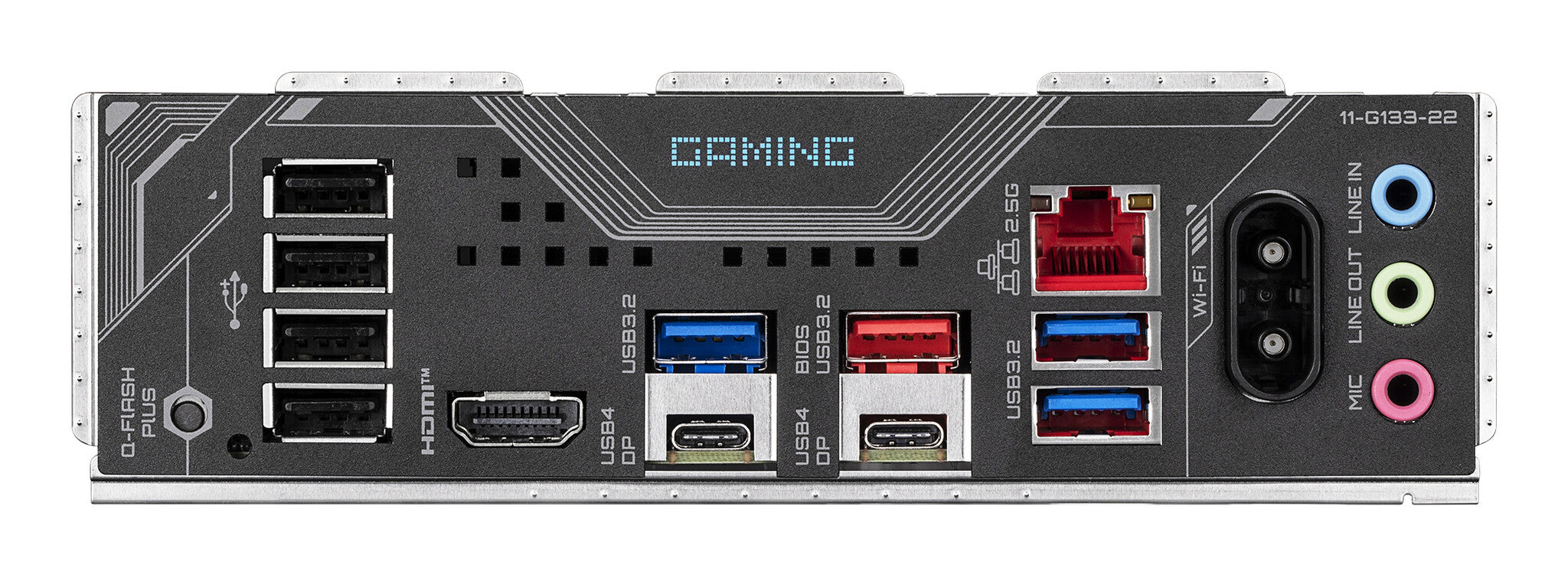

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 2.23 kg |
