Gigabyte X870 AORUS ELITE X3D ICE ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Gigabyte X870 AORUS ELITE X3D ICE ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The Gigabyte X870 AORUS ELITE X3D ICE stands as a premium ATX motherboard built around AMD's flagship X870 chipset, specifically engineered for the latest Ryzen 9000 series processors. This white-themed board targets enthusiast builders who want top-tier performance without the extreme cost of X870E alternatives. The 16+2+2 phase digital VRM design ensures stable power delivery even under heavy workloads, while the distinctive ICE white aesthetic sets it apart in a market dominated by black components.
Memory performance reaches exceptional heights with DDR5 support up to 9000MHz when overclocked, backed by four DIMM slots that accommodate up to 256GB total capacity. The board provides serious expansion flexibility through two PCIe 5.0 x16 slots alongside four M.2 connectors - two running at PCIe 5.0 speeds for cutting-edge NVMe drives and two at PCIe 4.0. Modern connectivity comes via Wi-Fi 7, 2.5 Gigabit Ethernet, and USB 4 support, ensuring this board stays relevant as peripheral standards evolve.
Installation convenience shows through thoughtful extras including pre-mounted screws, an included antenna for wireless connectivity, and comprehensive RGB lighting control through four dedicated headers. The board supports AMD's EXPO memory profiles for simplified DDR5 overclocking, while dual 8-pin EPS power connectors and three water pump headers cater to high-performance cooling setups. A three-year warranty backs this premium offering, reflecting Gigabyte's confidence in the AORUS ELITE series build quality.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Supported memory clock speed (max) | 9000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP version | 2.3 |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of noise detection headers | 1 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 3 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

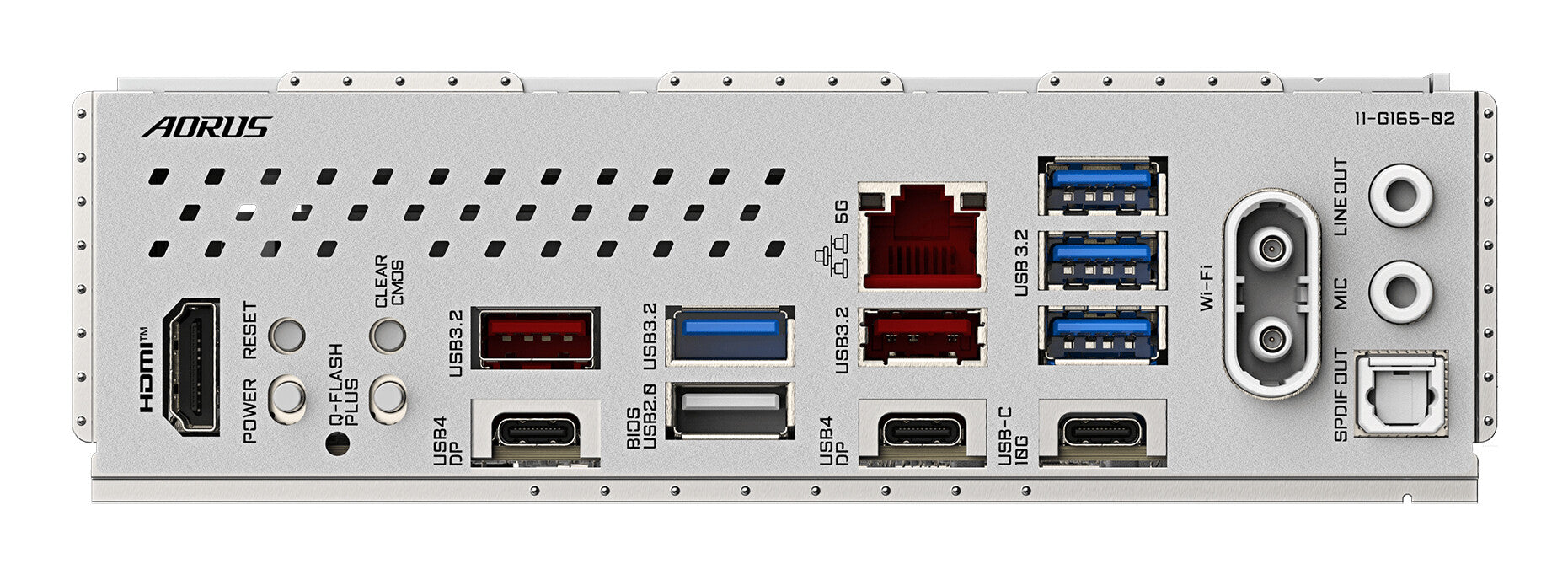

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | White |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.71 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 2.42 kg |
