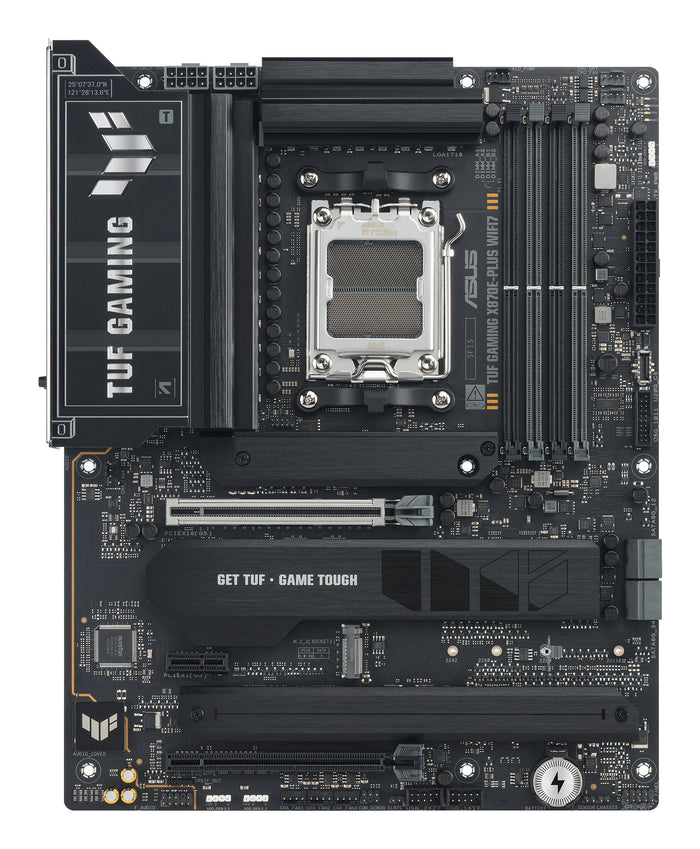

ASUS TUF GAMING X870E-PLUS WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870E 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS TUF GAMING X870E-PLUS WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description

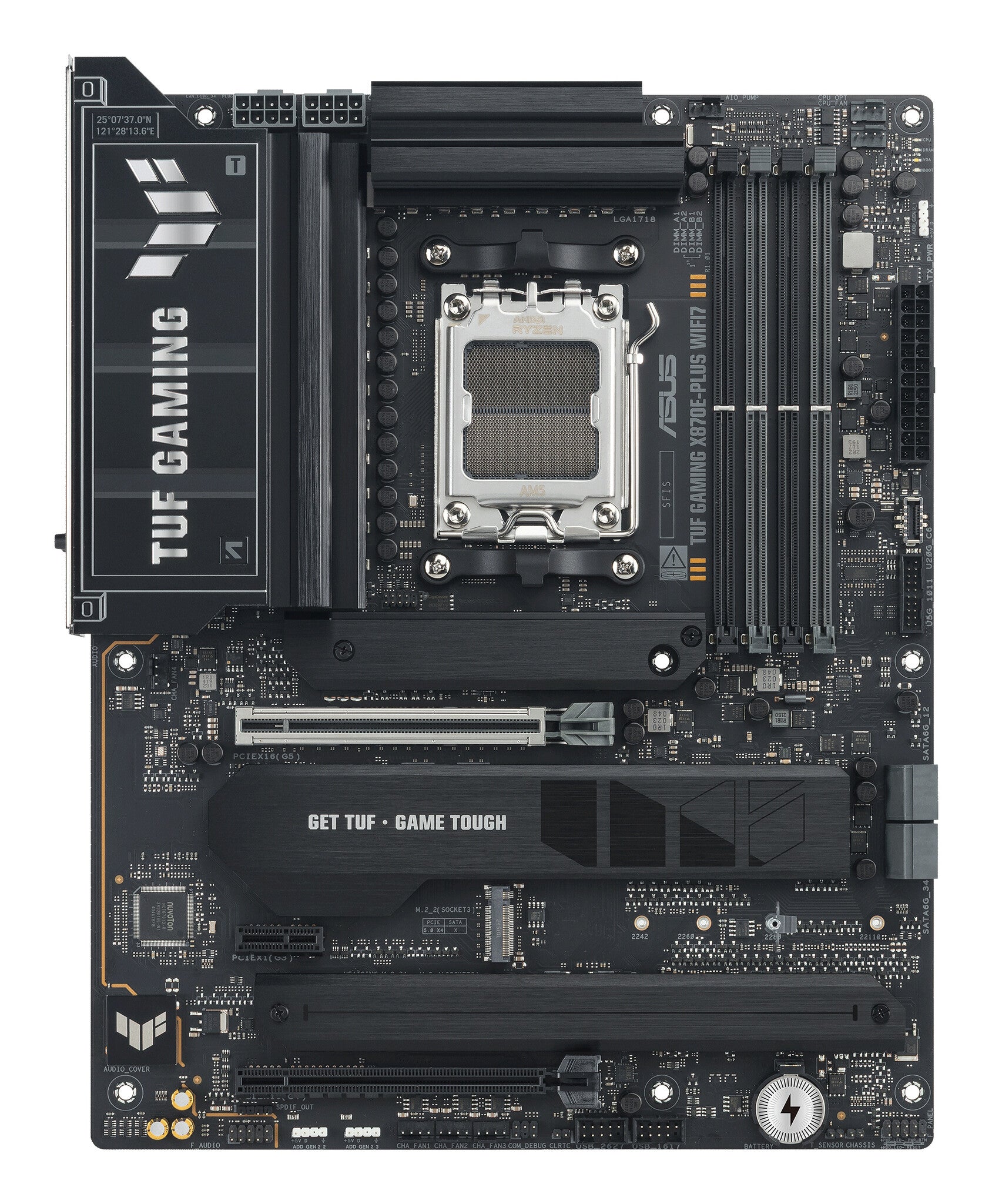

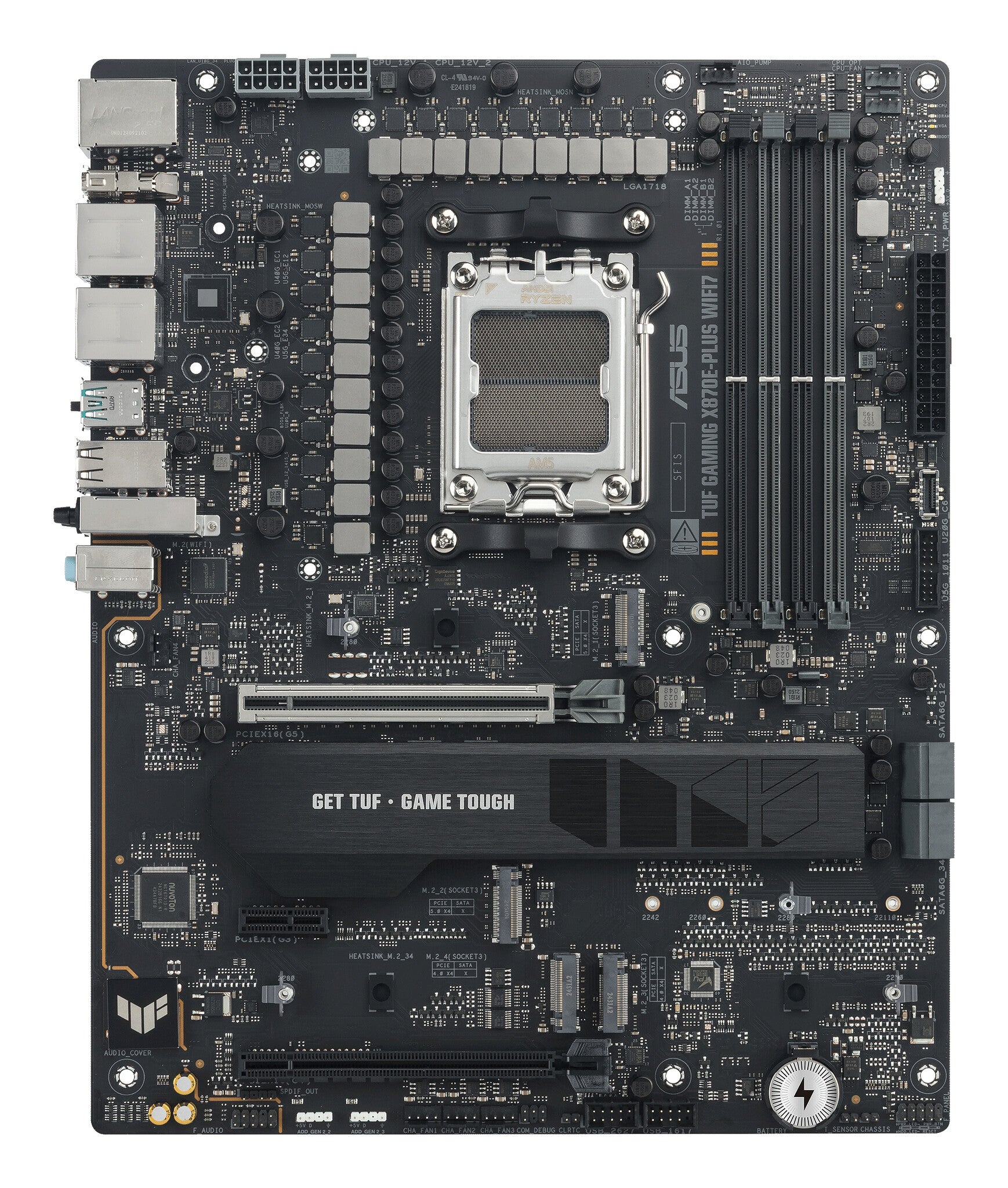

The ASUS TUF GAMING X870E-PLUS WIFI7 delivers enthusiast-level features in an ATX package designed for modern AM5 builds. This X870E chipset board supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, making it a forward-thinking choice for gamers and enthusiasts who want cutting-edge performance. The board accommodates up to 256 GB of DDR5 memory across four DIMM slots, with speeds reaching 8000 MHz for those who want to push their system's limits.
Storage enthusiasts will appreciate the four M.2 slots, with two supporting PCIe 5.0 (including support for longer 22110 drives on the second slot) and two additional PCIe 4.0 slots for high-speed NVMe drives. The single PCIe x16 slot runs at full Gen 4.0 speeds for modern graphics cards, while connectivity includes Wi-Fi 7 for the latest wireless standard. Dual 8-pin EPS power connectors ensure stable power delivery even under heavy loads, and the board includes RGB lighting headers for system customization.
ASUS includes practical extras like mounting screws, Wi-Fi antennas, and supports both ECC and non-ECC memory configurations. The TUF Gaming series balances performance with reliability, offering enthusiast features without the premium price of ROG boards. XMP memory profiles make DDR5 setup straightforward, while the robust power delivery handles everything from mid-range to high-end Ryzen processors with confidence.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 1 |
| Number of water pump connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |

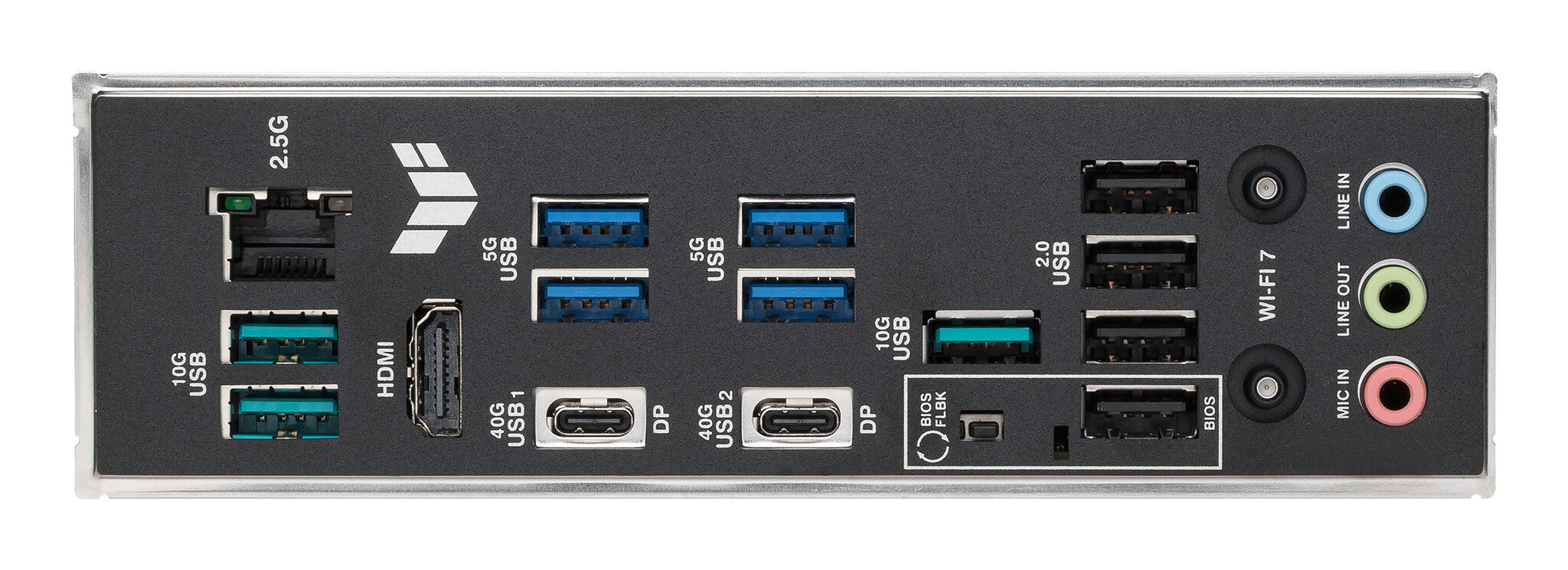

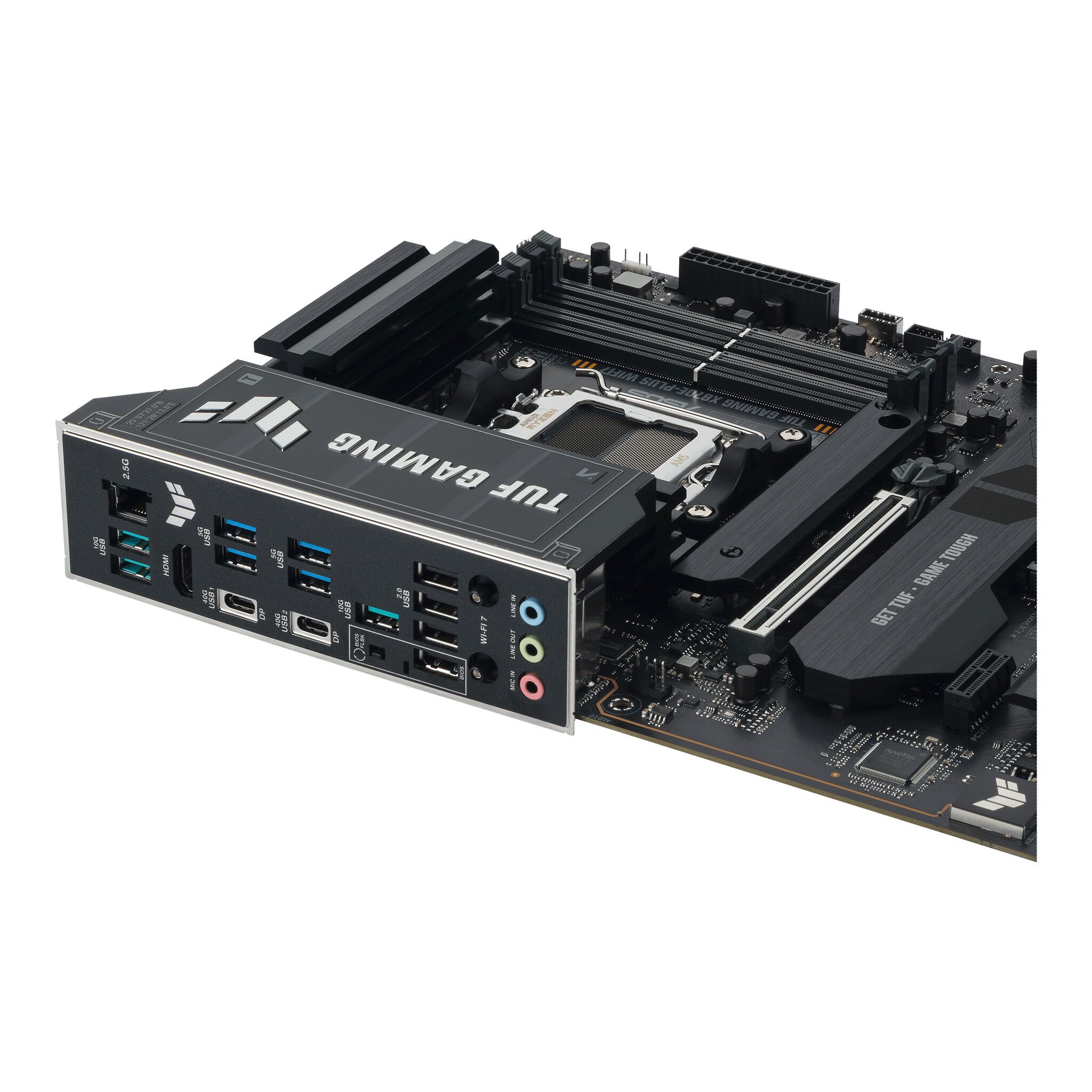

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.08 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 48 mm |

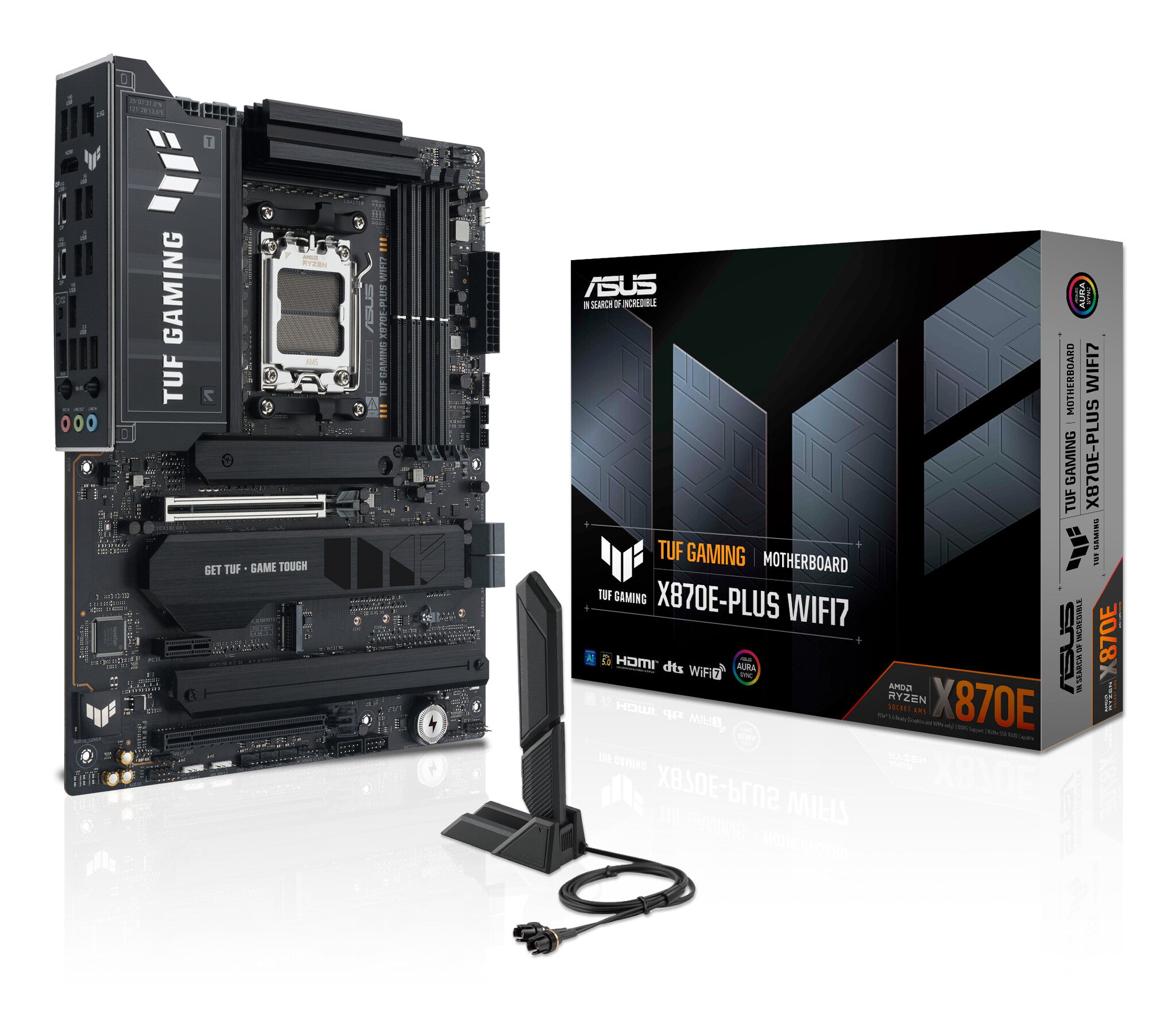

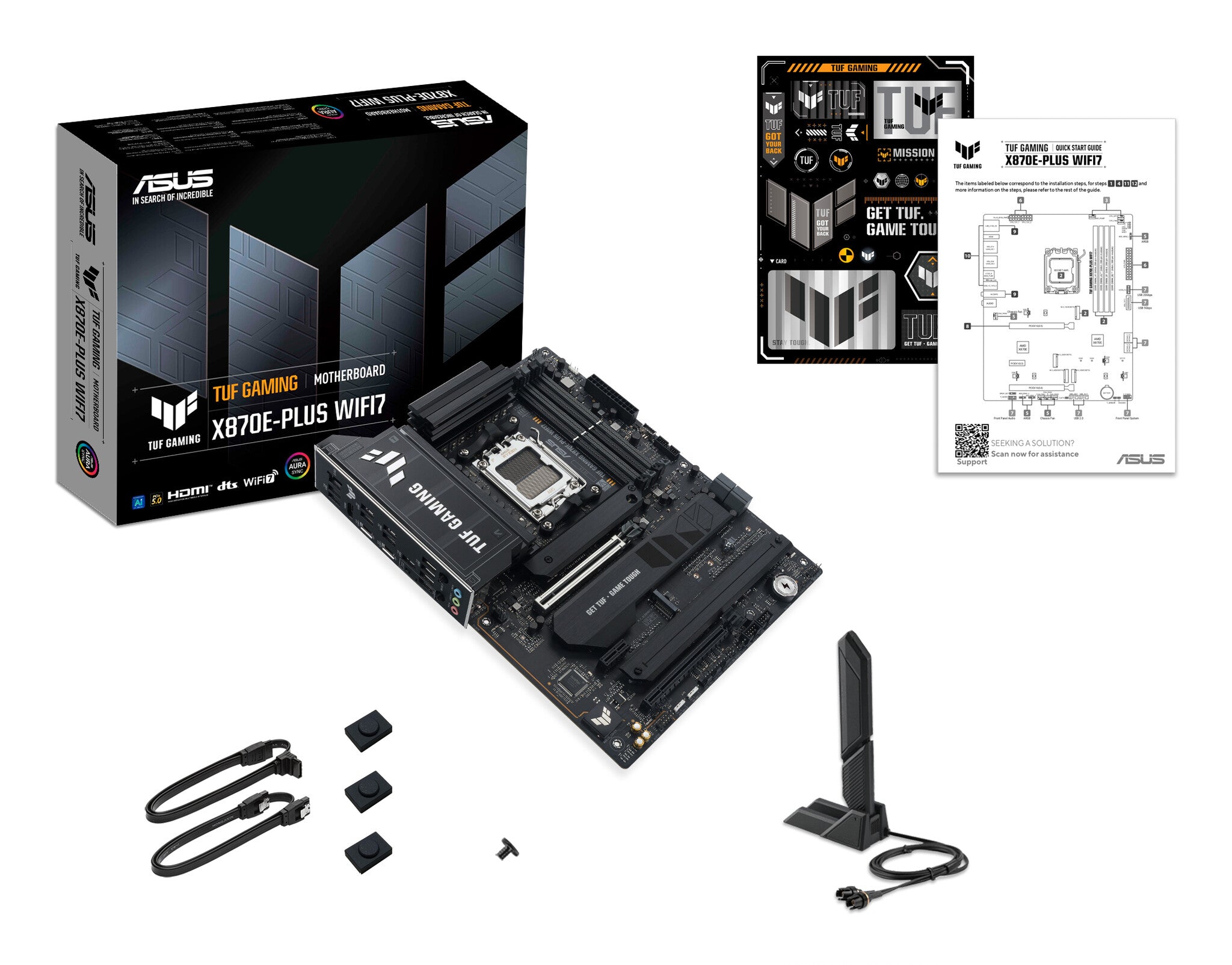

| Packaging content | |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 1.56 kg |
| Quick installation guide | Yes |
