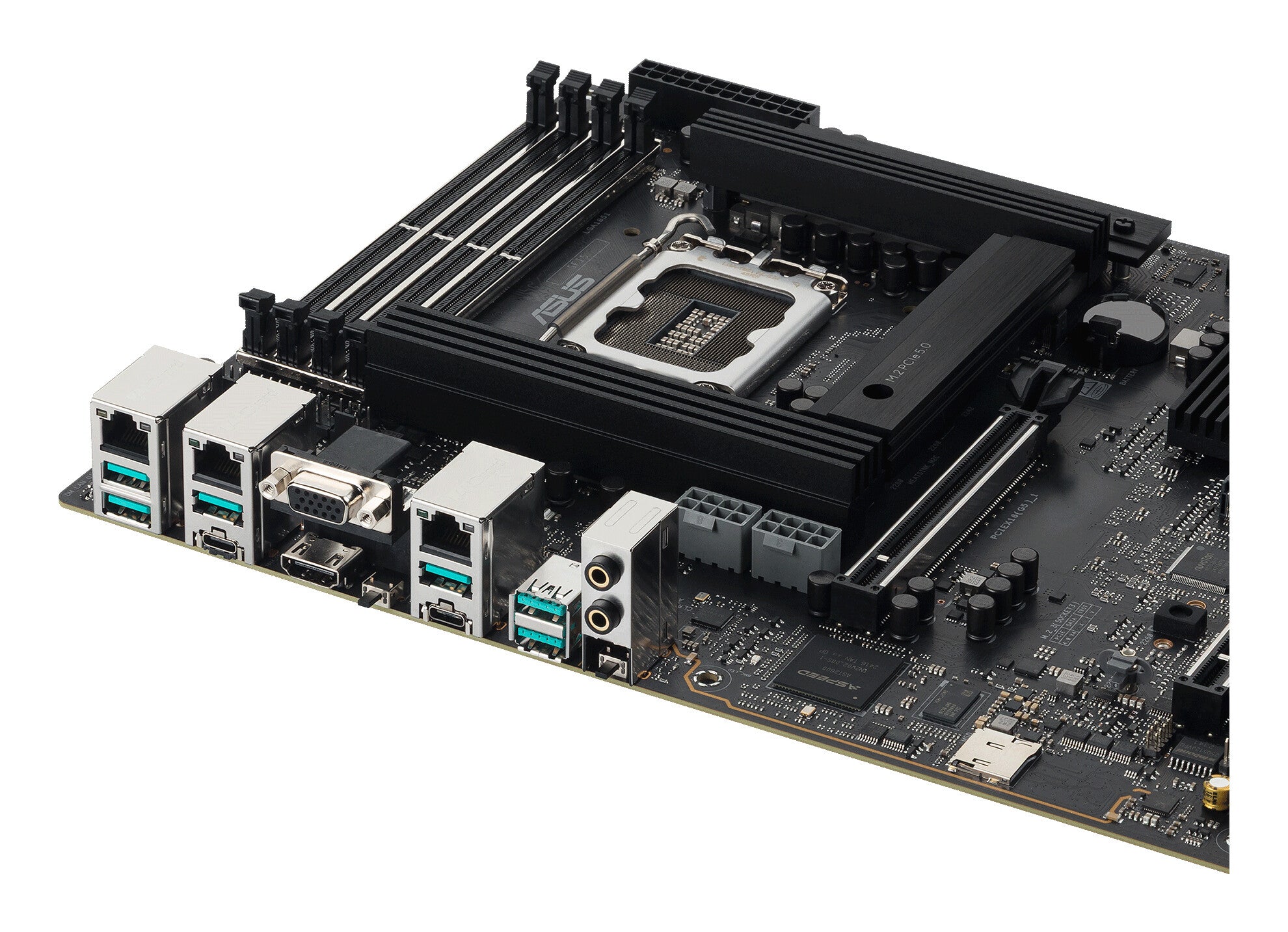

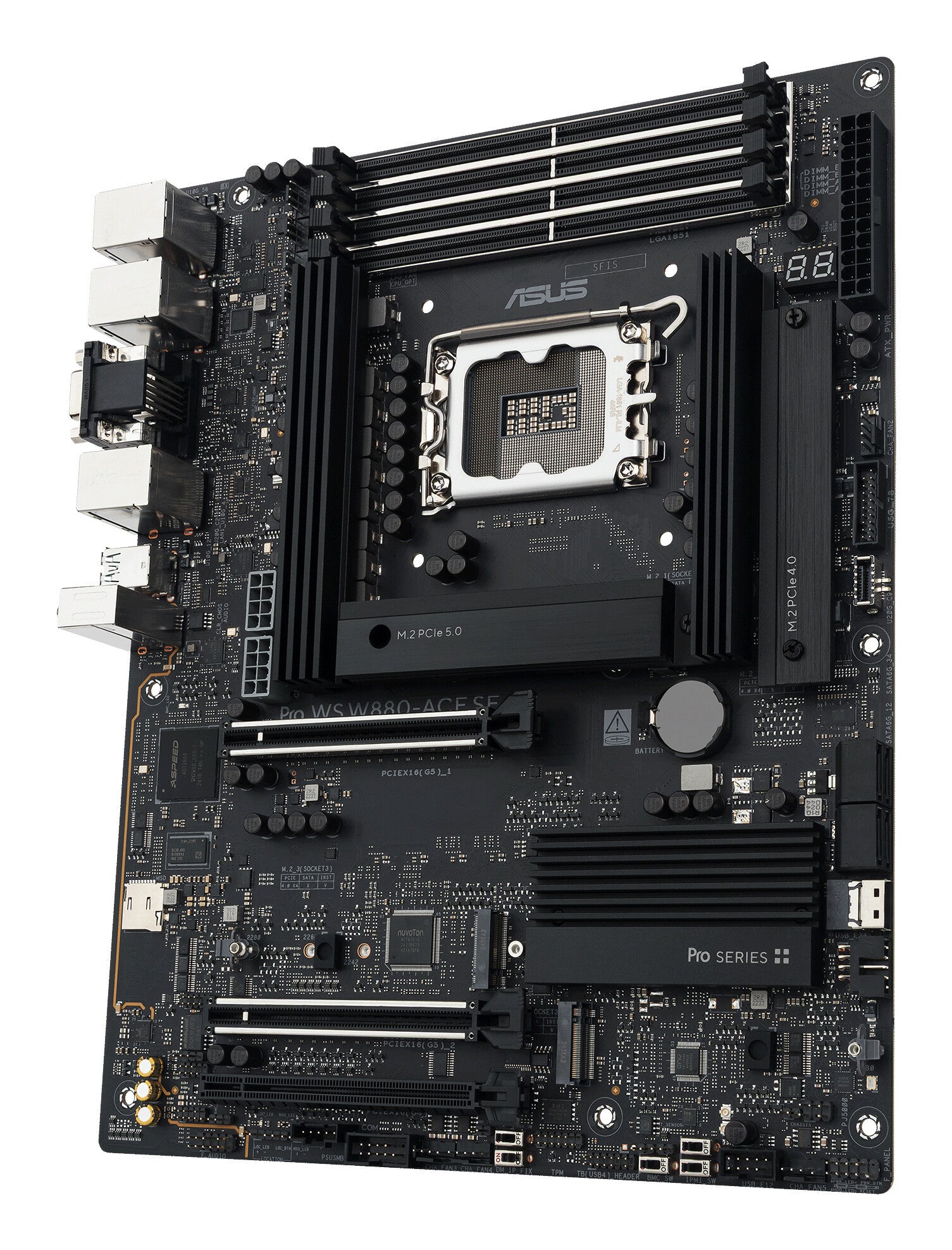

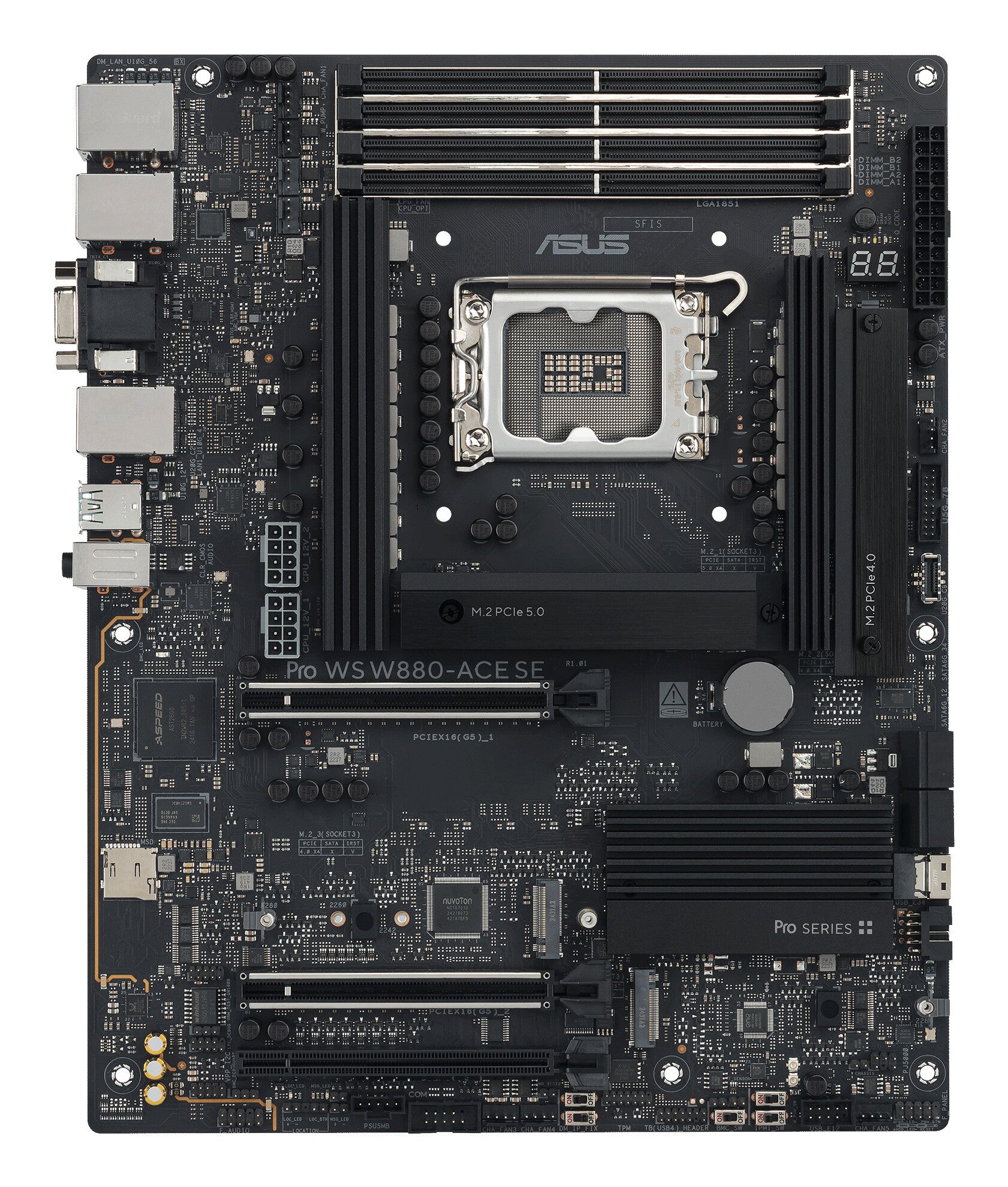

ASUS PRO WS W880-ACE SE ATX Motherboard | LGA1851 | 4x DDR5 Slots
KEY FEATURES
- Ready for advanced AI PCs : Designed for the future of AI computing, with the placement and connectivity needed for demanding AI applications
- Intel LGA1851 socket : Ready for Intel Core Ultra 9, 7, and 5 desktop processors
- Robust performance : 8+1+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity : Thunderbolt 4, Dual 2.5Gb Ethernet, two PCIe 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
- Exclusive AI technologies : AI Cooling II, AI Advisor and NPU boost
- DIY-friendly design : M.2 Q-Latch, BIOS FlashBack, Q-Connector
- Server-grade IPMI remote management and onboard BMC : Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRO WS W880-ACE SE ATX Motherboard | LGA1851 | 4x DDR5 Slots
Description

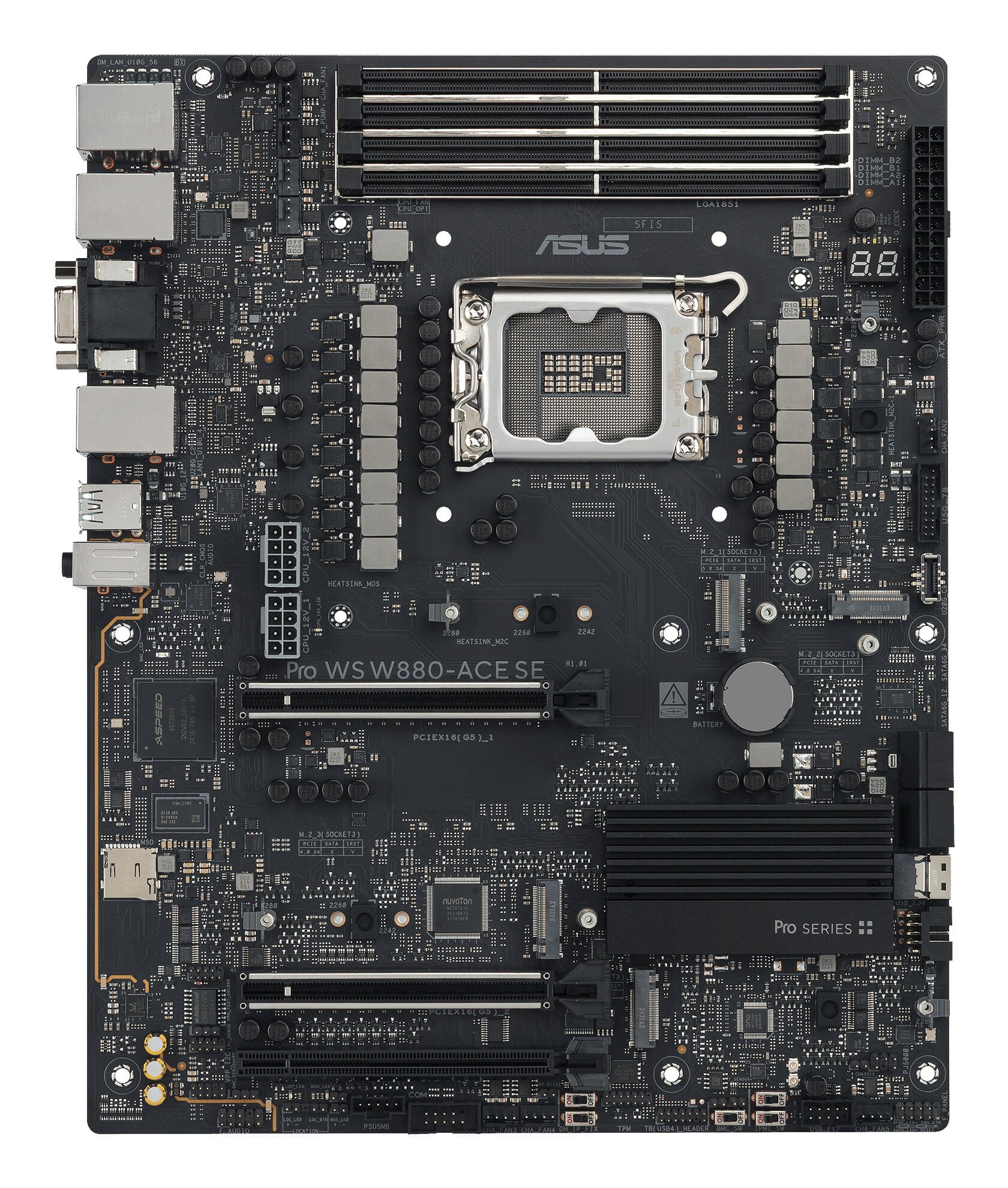

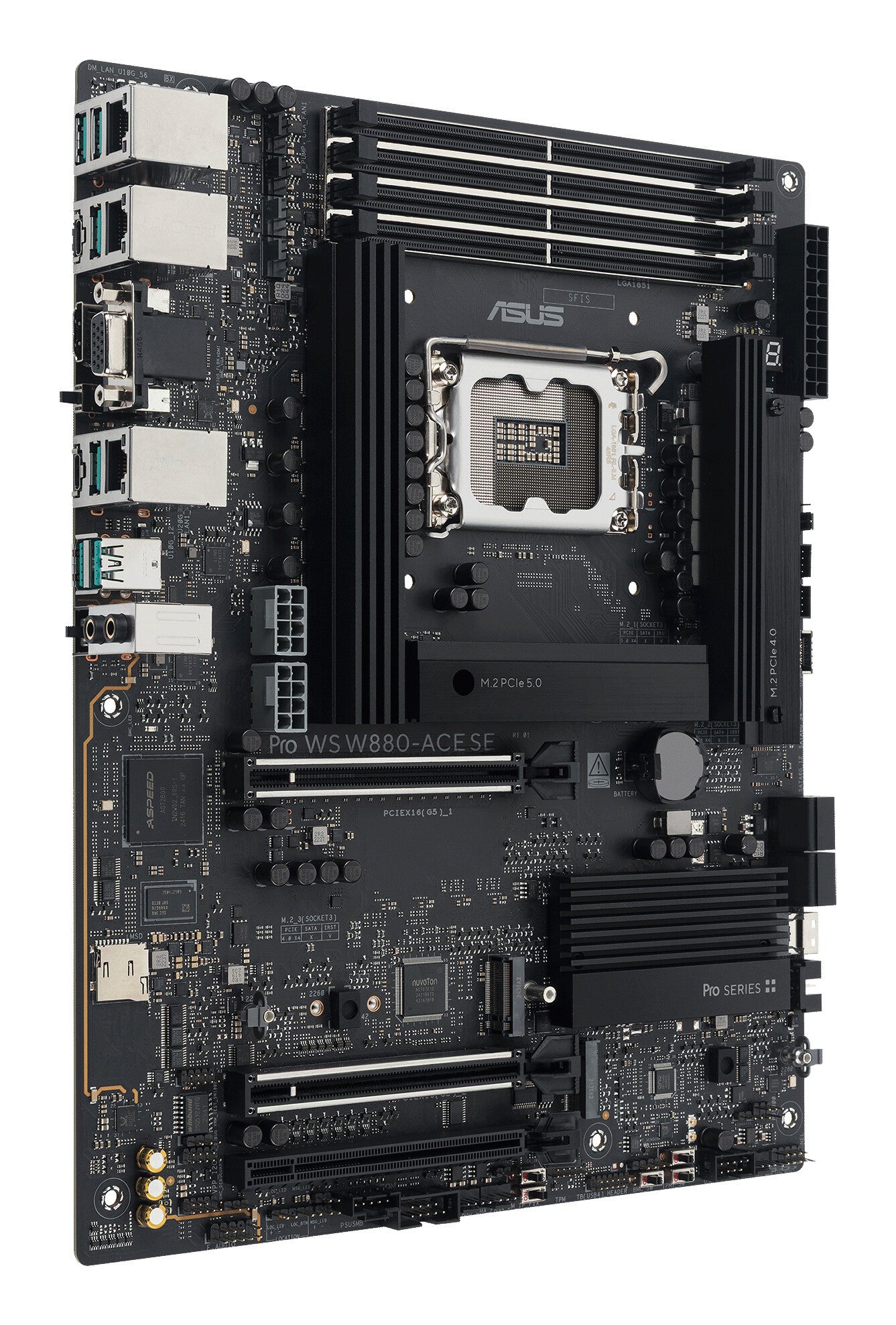

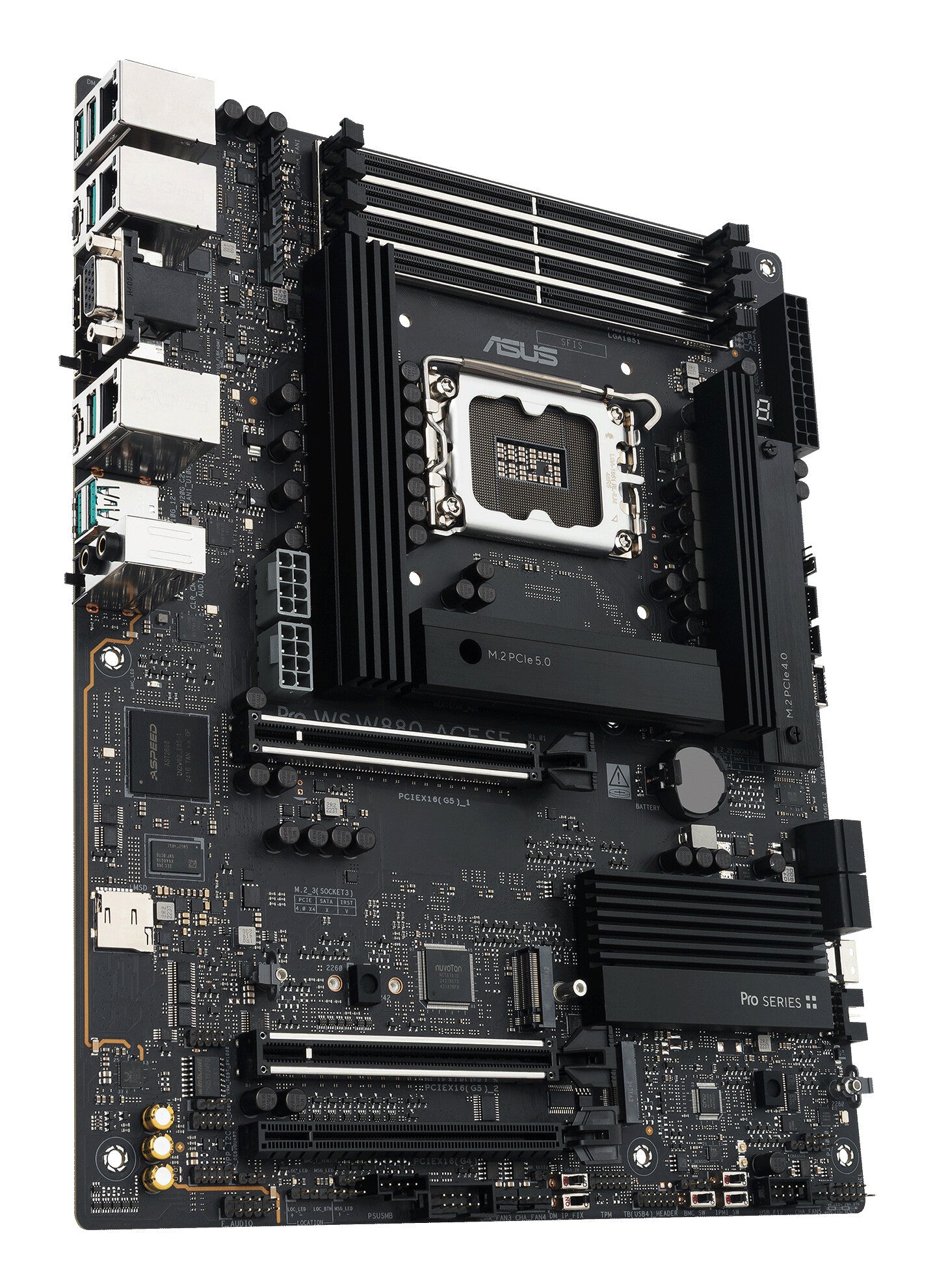

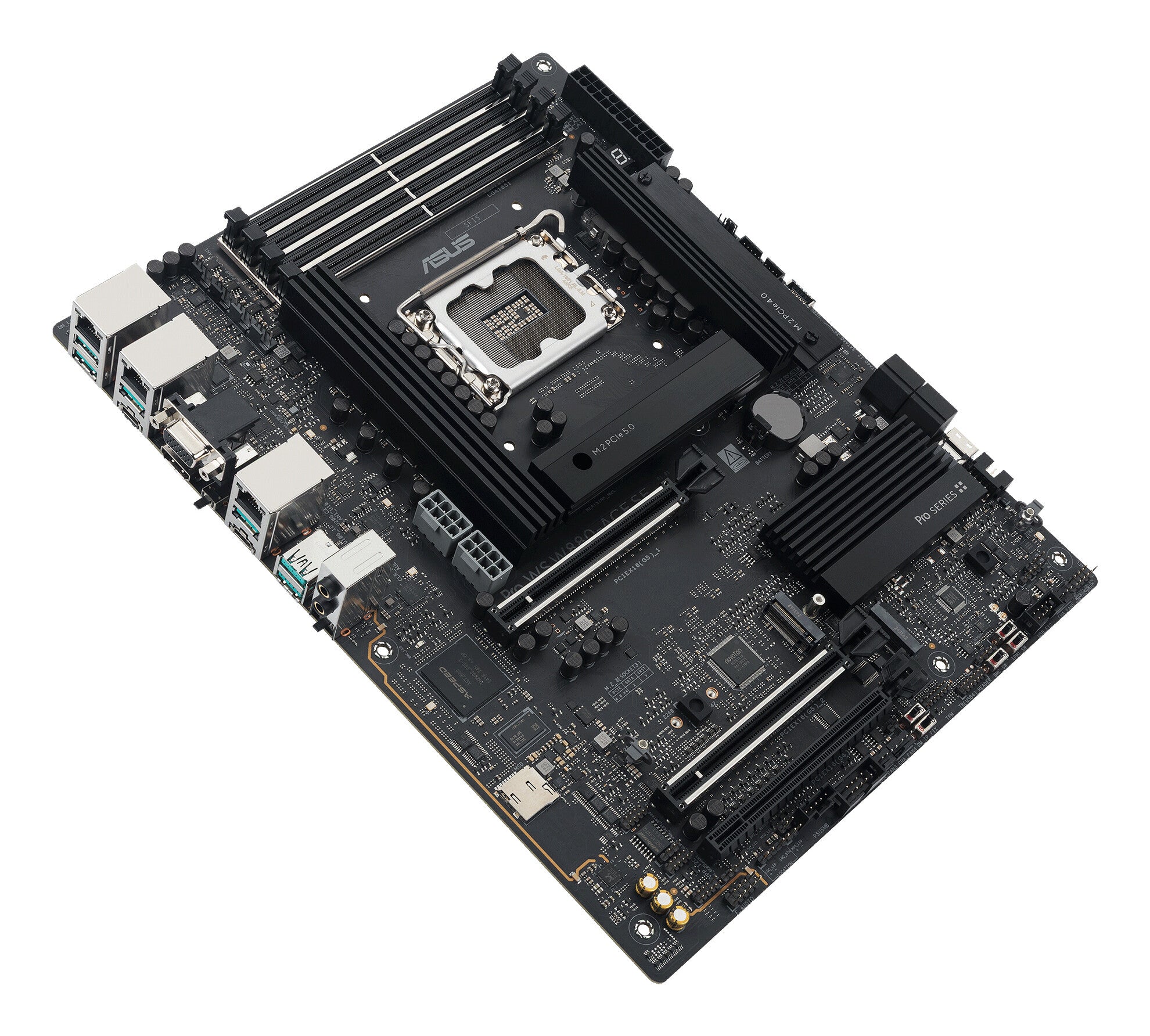

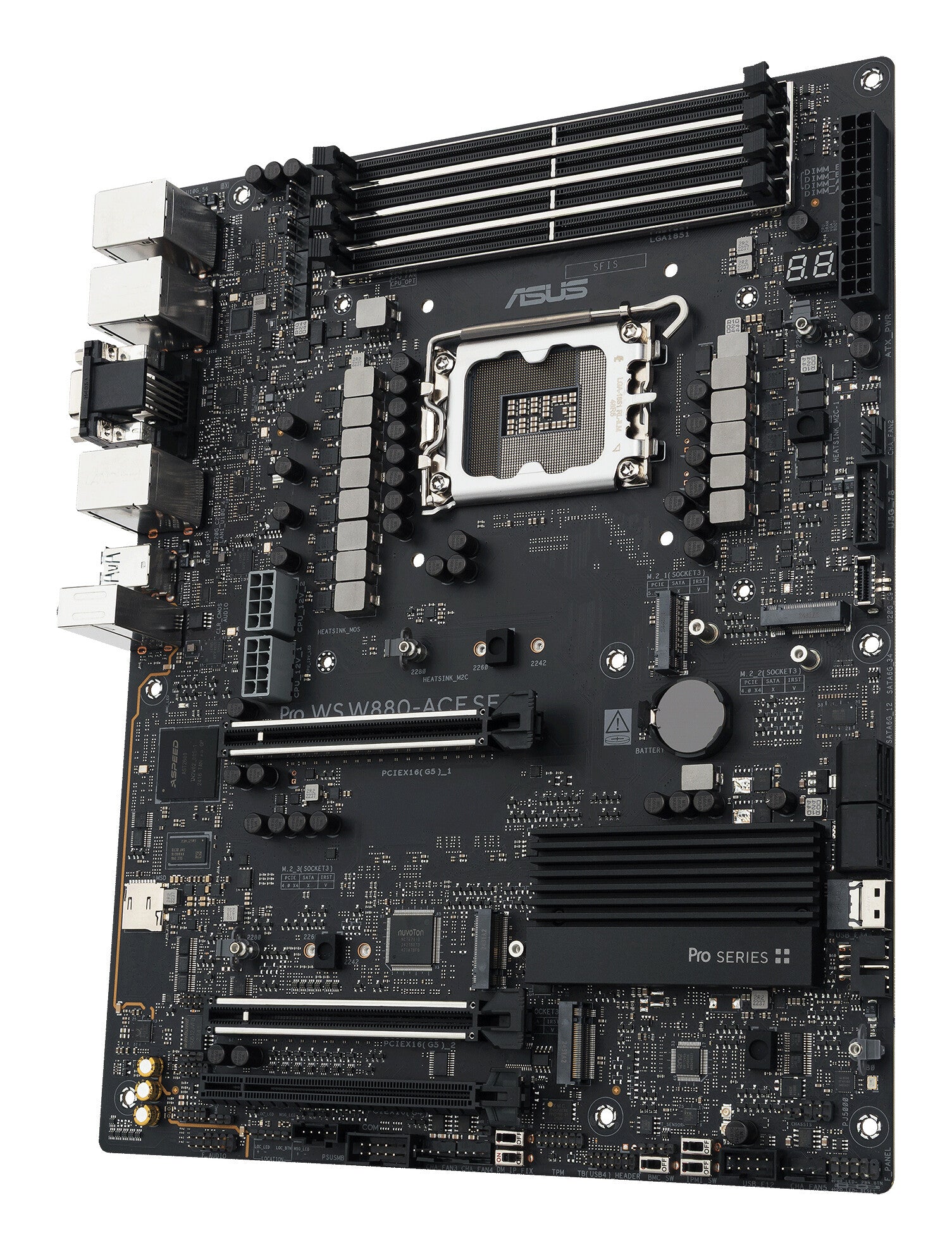

The ASUS PRO WS W880-ACE SE is a professional workstation motherboard built around Intel's W880 chipset and LGA1851 socket, designed specifically for demanding workstation applications requiring Intel Core Ultra Series 2 processors. This ATX board targets professional users running CAD, 3D rendering, video editing, and other compute-intensive workloads where reliability and expandability matter more than gaming features. The W880 chipset provides enterprise-grade stability and supports ECC memory validation, though this particular model uses standard DDR5 memory modules.
Memory support reaches up to 256GB across four DIMM slots, with speeds up to DDR5-9066 for high-bandwidth applications. Expansion options include three PCIe x16 slots - two running at PCIe 5.0 and one at PCIe 4.0 - providing ample room for multiple high-end graphics cards or professional accelerators. Storage connectivity spans four M.2 slots supporting 2280 form factor drives, with one PCIe 5.0 slot for the fastest NVMe drives and three PCIe 4.0 slots for additional storage. Dual 2.5GB Ethernet ports ensure robust network connectivity for file transfers and remote workstation access.

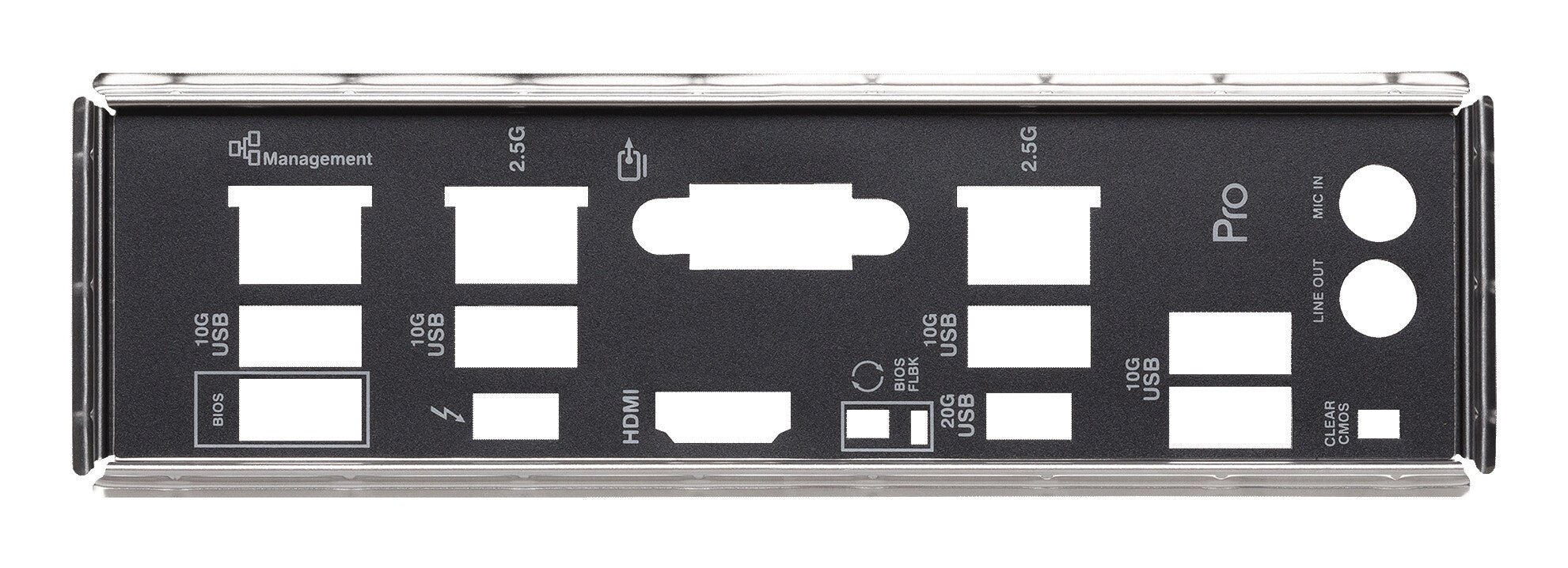

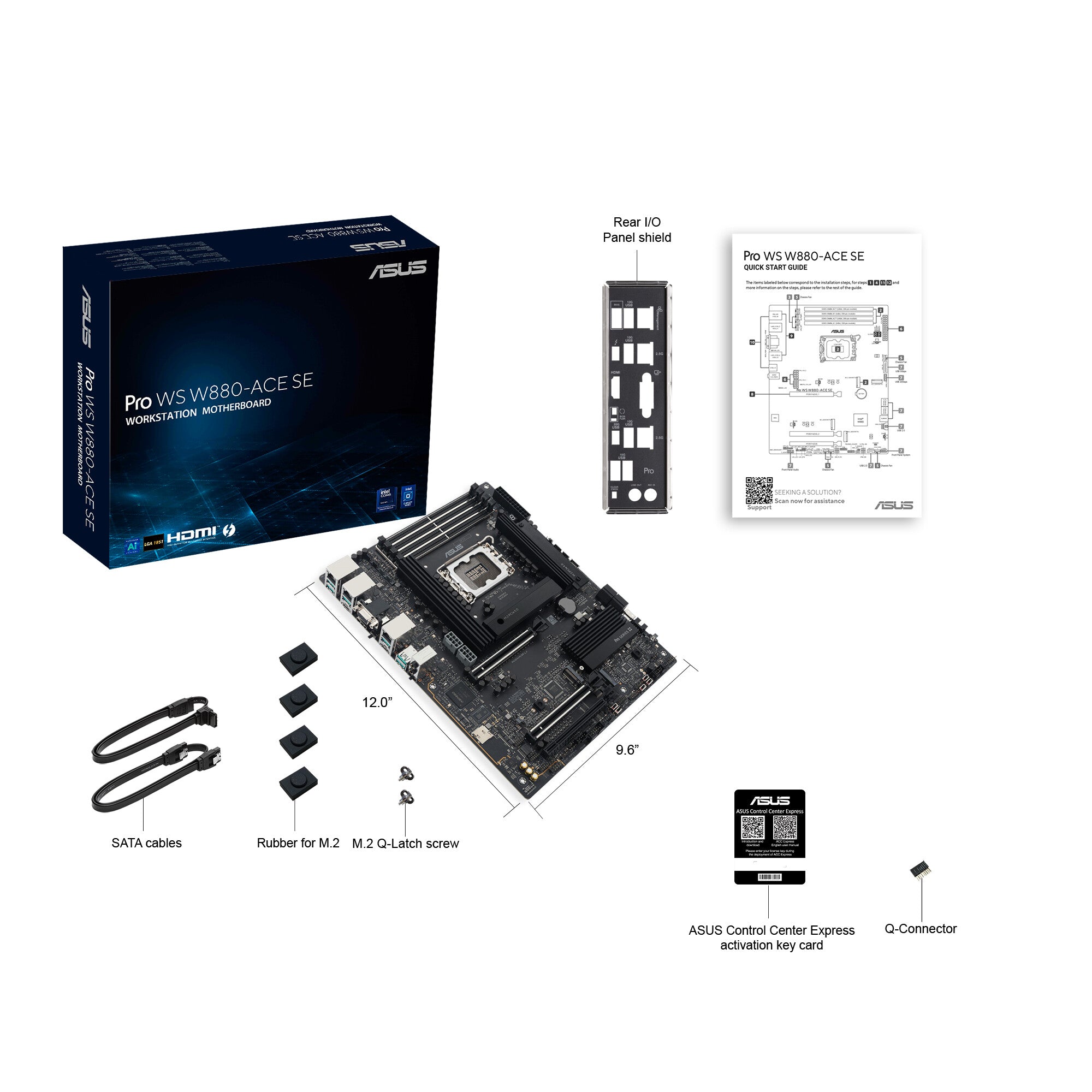

Professional touches include dual 8-pin EPS power connectors for stable power delivery under sustained loads, AI Cooling II for intelligent thermal management, and BIOS Flashback for easy firmware updates without needing a CPU installed. The board includes standard accessories like an I/O shield and user documentation. ASUS backs this workstation platform with validation testing and longer product lifecycles compared to consumer boards, making it suitable for mission-critical professional environments where downtime isn't an option.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 1 |
| Number of water pump connectors | 1 |
| Integrated SAS ports | 1 |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |

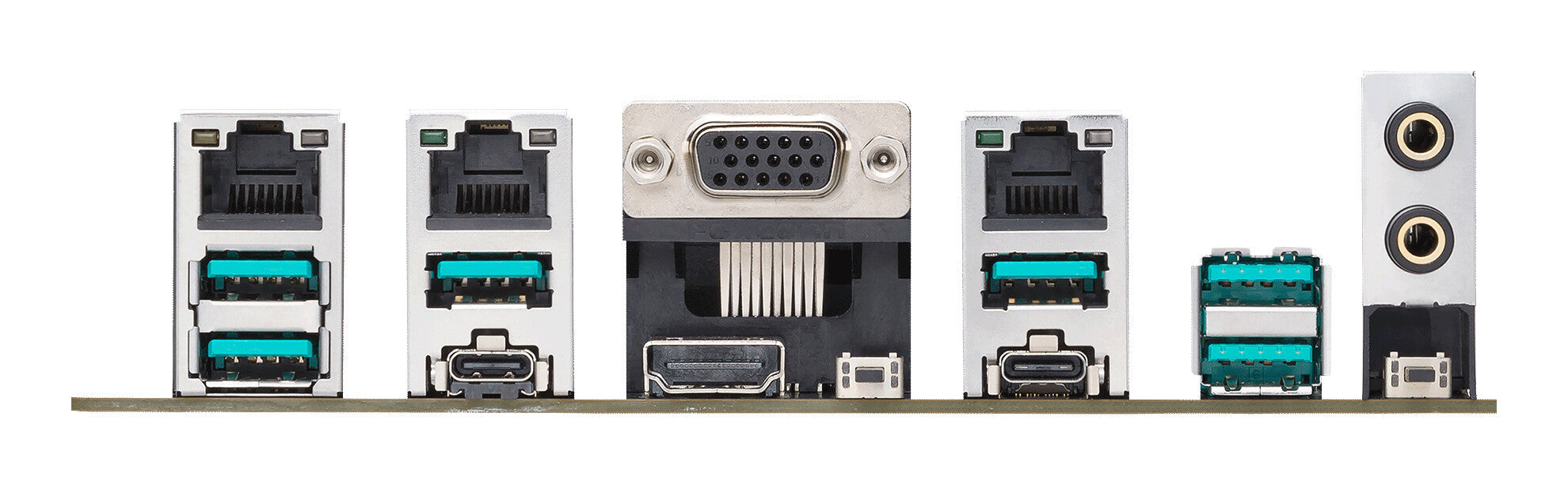

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Workstation |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W880 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
