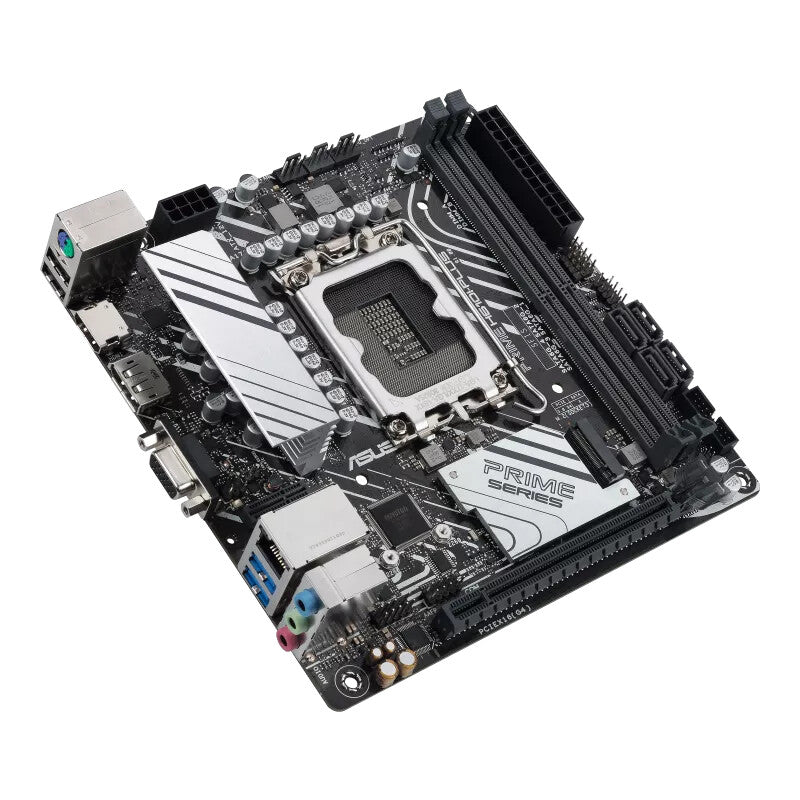

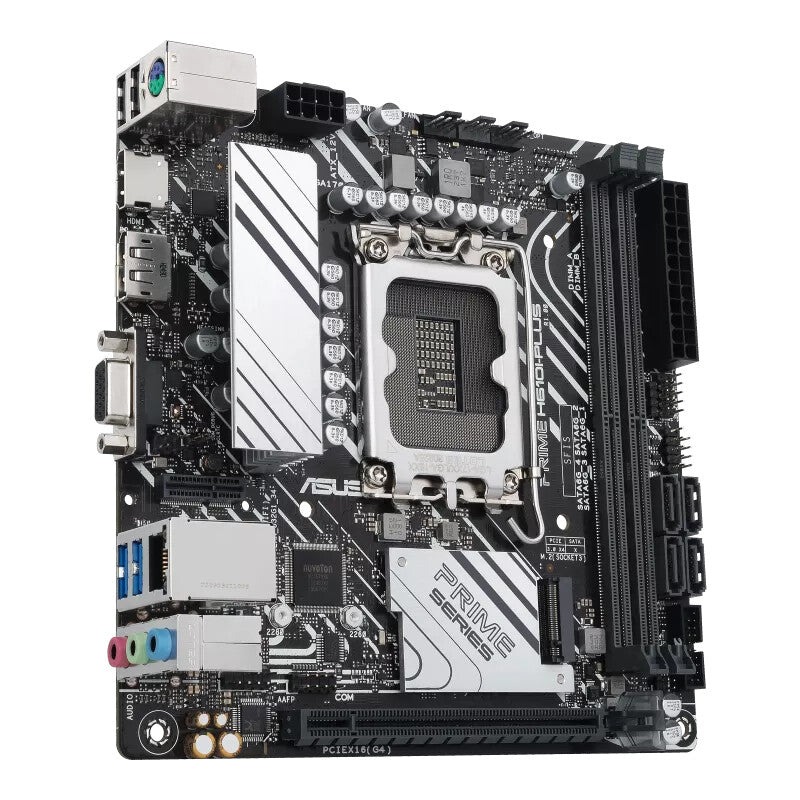

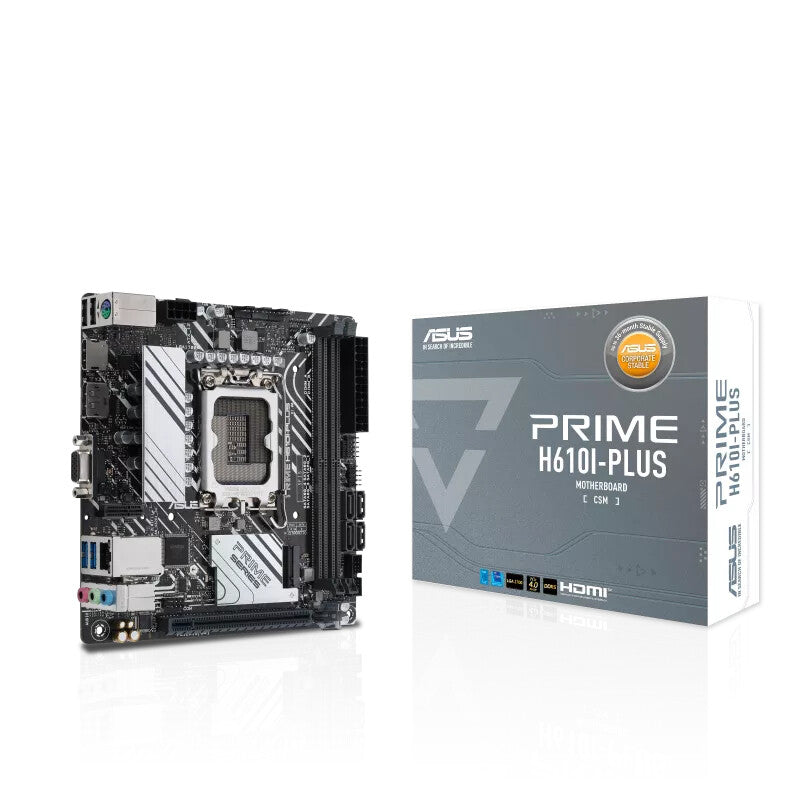

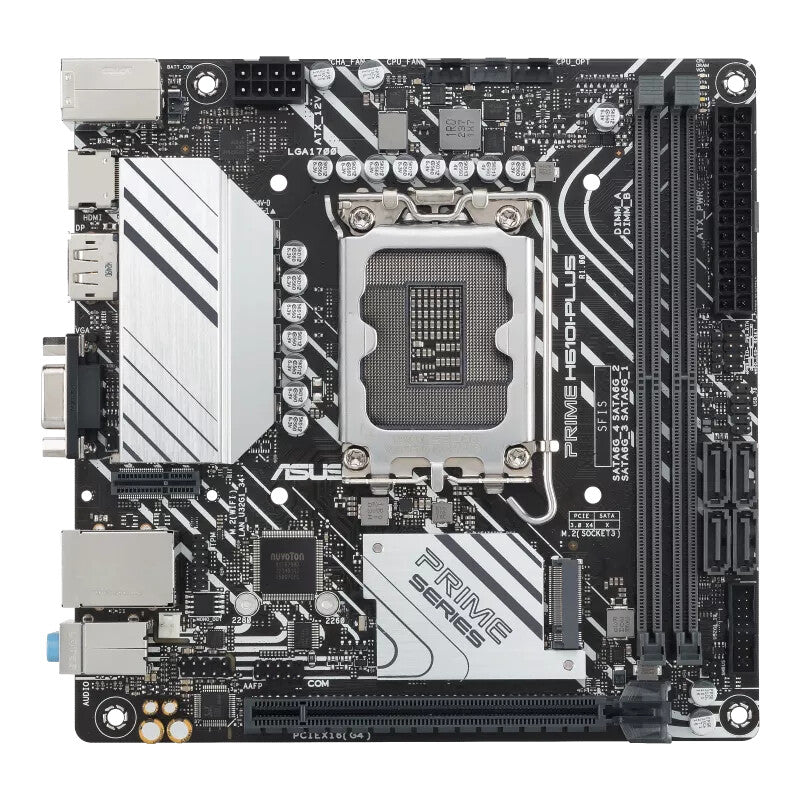

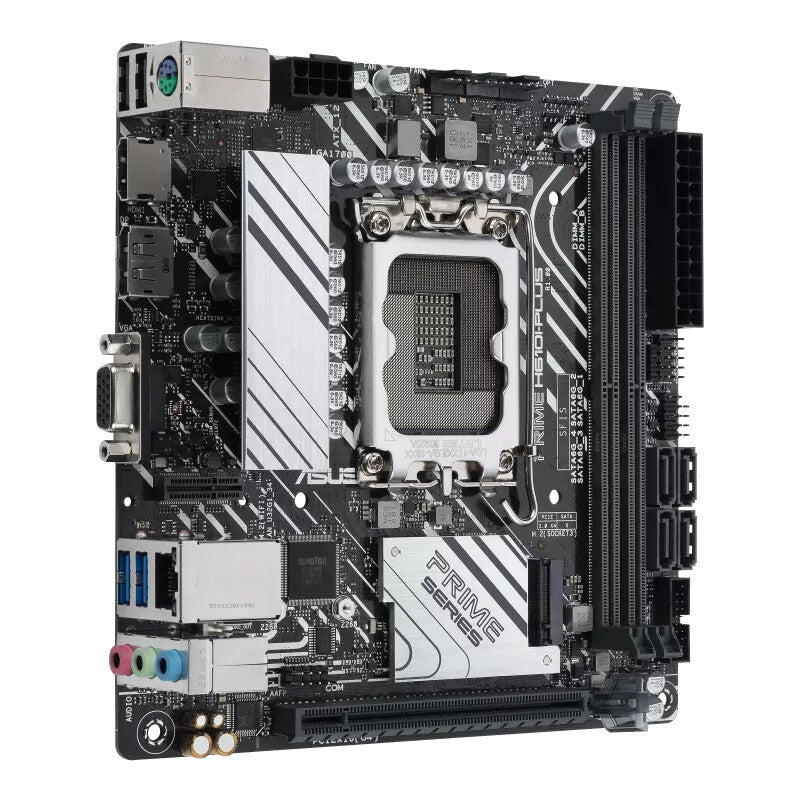

ASUS PRIME H610I-PLUS-CSM Mini-ITX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® Core™ processors
- Enhanced power solution: 5+1+1 DrMOS power stages for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
- Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 ports
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Remote management Software: ASUS Control Center Express (ACCE) for easier IT endpoint management
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME H610I-PLUS-CSM Mini-ITX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The ASUS PRIME H610I-PLUS-CSM delivers essential features in a compact Mini-ITX format for space-conscious builders working with Intel's LGA1700 platform. Based on the H610 chipset, this board handles 12th and 13th generation Intel processors from budget Celeron chips through flagship Core i9 models. At just 17cm square, it fits into the smallest cases while maintaining full compatibility with modern DDR5 memory and essential connectivity options.
Memory support extends up to 96GB across two DIMM slots, with DDR5 speeds reaching 5600MHz when using compatible modules and enabling XMP profiles. The single PCIe 4.0 x16 slot provides full bandwidth for graphics cards, while integrated Ethernet ensures reliable network connectivity. ASUS includes their UEFI BIOS interface with 128MB flash storage, offering straightforward setup and system tuning options without overwhelming novice builders.
This CSM (Corporate Stable Model) variant targets business and industrial applications where long-term availability matters, though it works equally well in compact home systems. The board ships with an I/O shield and essential documentation to get systems running quickly. For builders prioritizing small footprints over expansion options, this H610 board provides the core functionality needed for reliable Intel-based systems in Mini-ITX cases.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

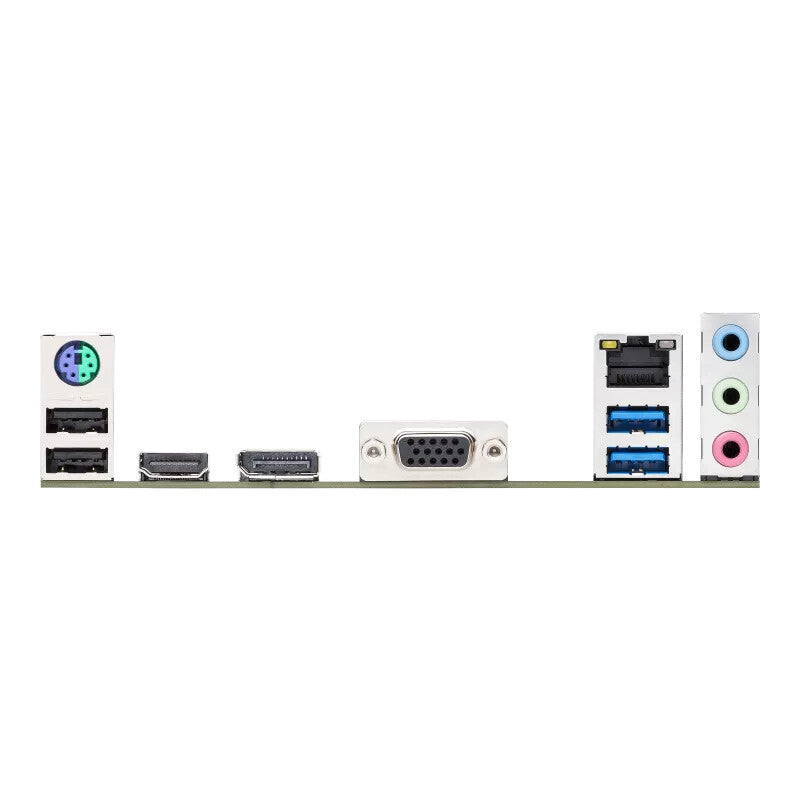

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 228 mm |
| Package depth | 187 mm |
| Package height | 62 mm |
| Package weight | 550 g |
| Weight & dimensions | |
|---|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Height | 36.5 mm |
| Other features | |
|---|---|
| Weight | 420 g |
