ASUS PRIME B760M-A-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
KEY FEATURES
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME B760M-A-CSM mATX Motherboard | LGA1700 | 4x DDR5 Slots
Description

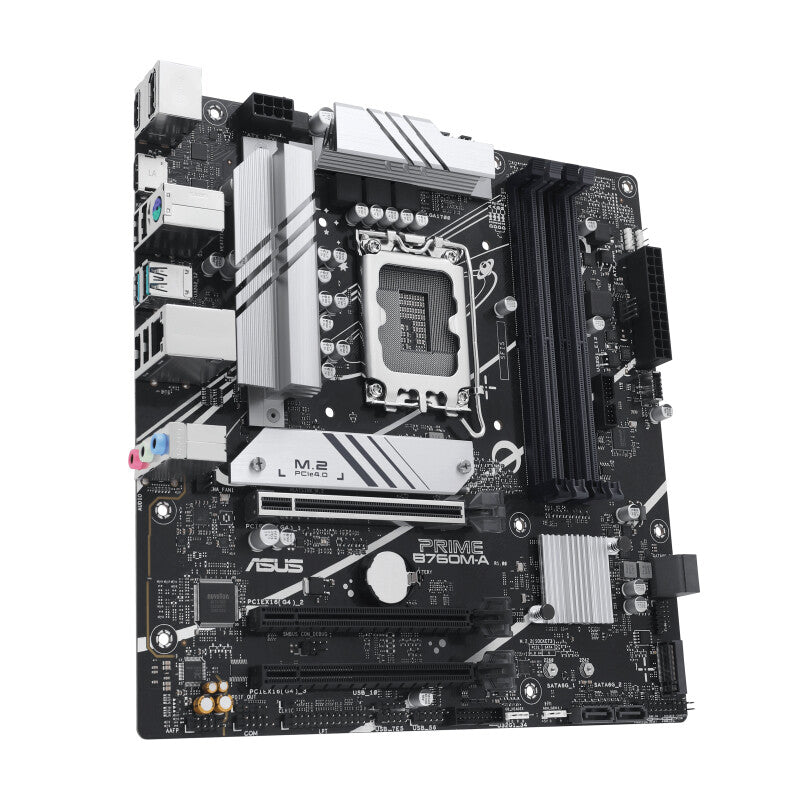

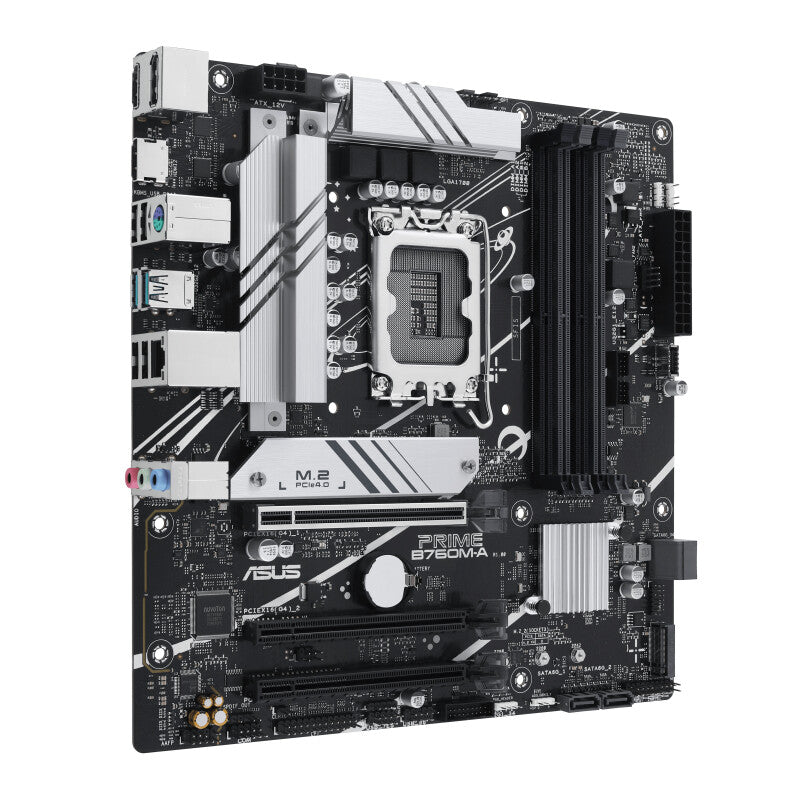

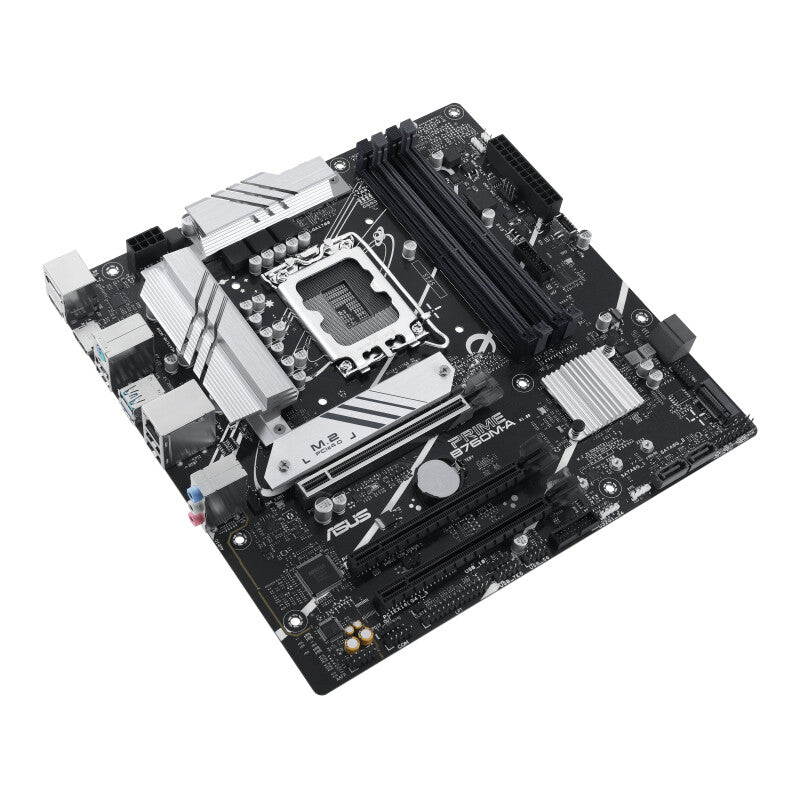

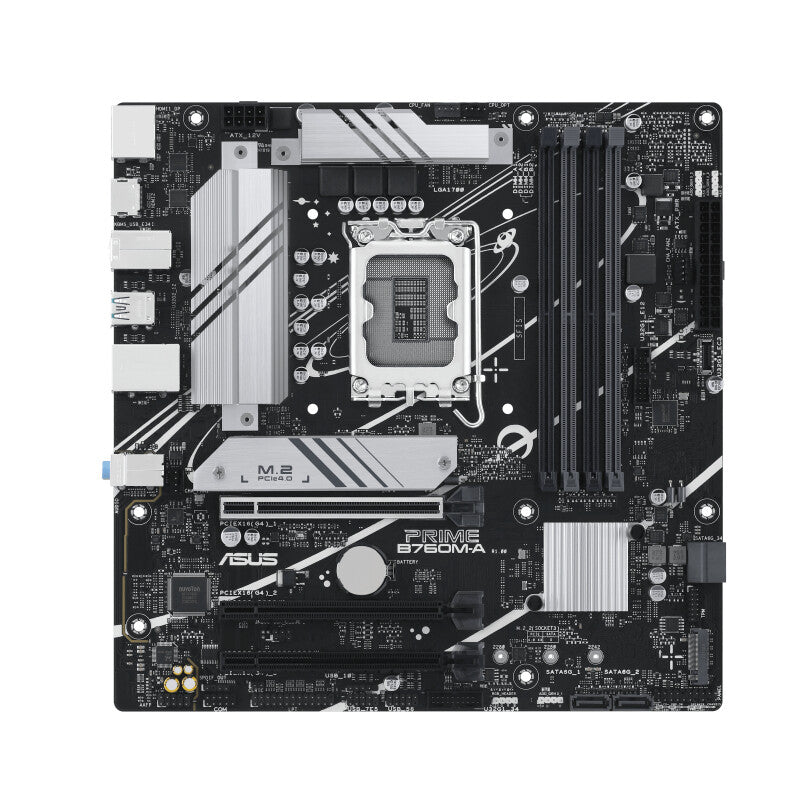

The ASUS PRIME B760M-A-CSM is a micro ATX motherboard built around Intel's B760 chipset, bringing solid mainstream features to LGA1700 builds in a compact form factor. This board accommodates 12th and 13th generation Intel processors from Celeron up to Core i9, making it suitable for everything from basic productivity systems to capable gaming rigs. The mATX size strikes a practical balance for builders who want more expansion options than Mini-ITX provides while keeping the overall system footprint smaller than full ATX.
Memory support extends to DDR5 with speeds up to 7200MHz across four DIMM slots, supporting up to 128GB total capacity for future expansion needs. Storage connectivity includes two M.2 slots for NVMe SSDs plus traditional SATA ports, while three PCIe 4.0 x16 slots provide room for graphics cards and expansion cards. Connectivity highlights include Realtek 2.5Gb Ethernet for faster network speeds, dual HDMI and DisplayPort outputs for integrated graphics, plus a mix of USB 3.2 ports including a front-facing Type-C connector.

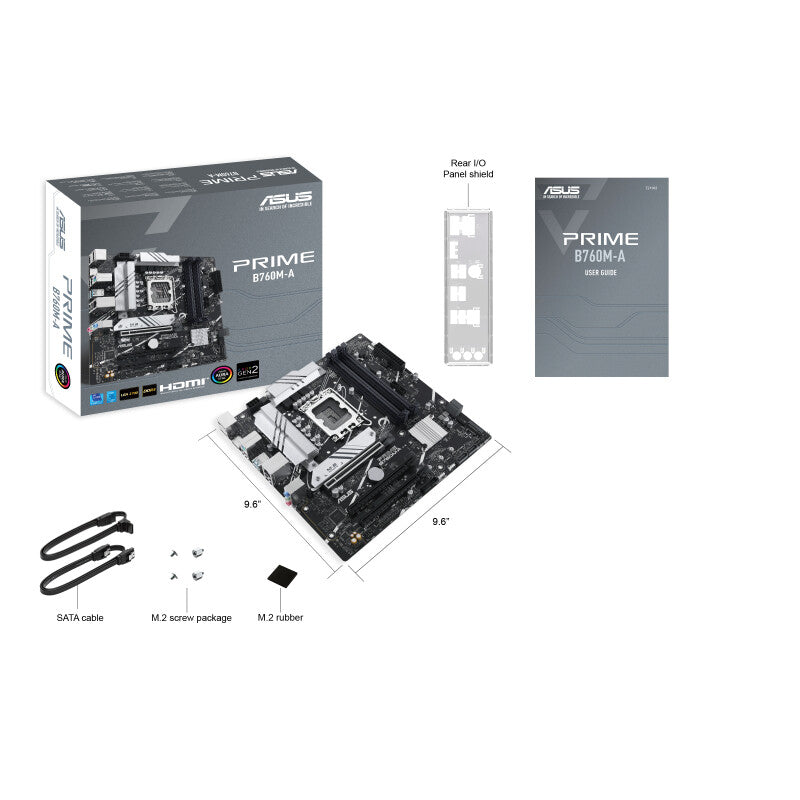

The board includes ASUS Aura Sync RGB support through dedicated pin headers, letting builders add synchronized lighting effects to compatible components. Standard inclusions cover the I/O shield, SATA cables, M.2 mounting hardware, and detailed user documentation. XMP memory profile support simplifies DDR5 setup, automatically configuring higher-speed memory kits to their rated specifications without manual tweaking.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

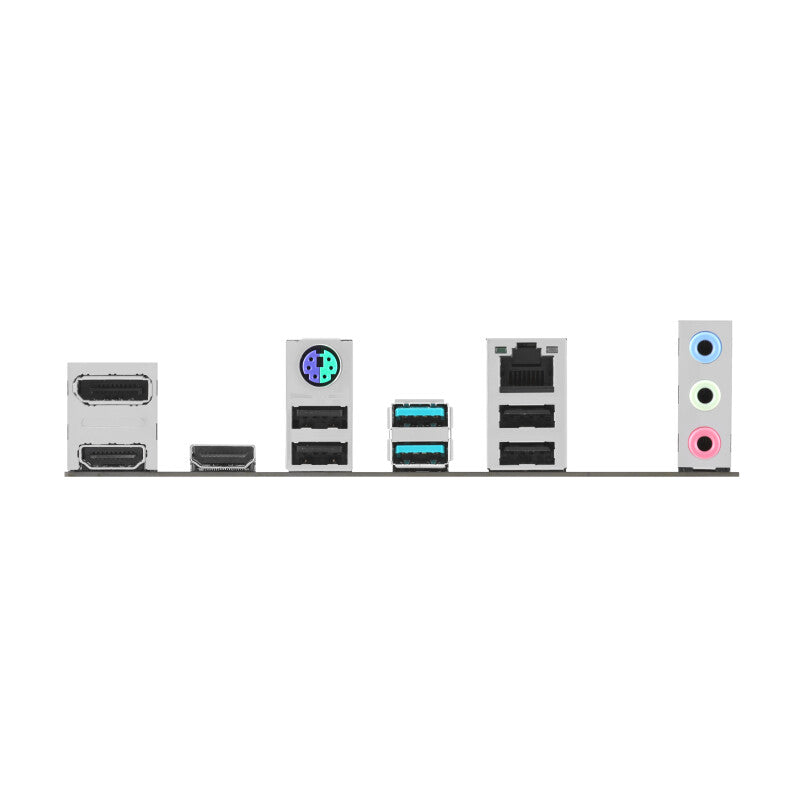

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 52 mm |
| Package weight | 1.14 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 40 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
