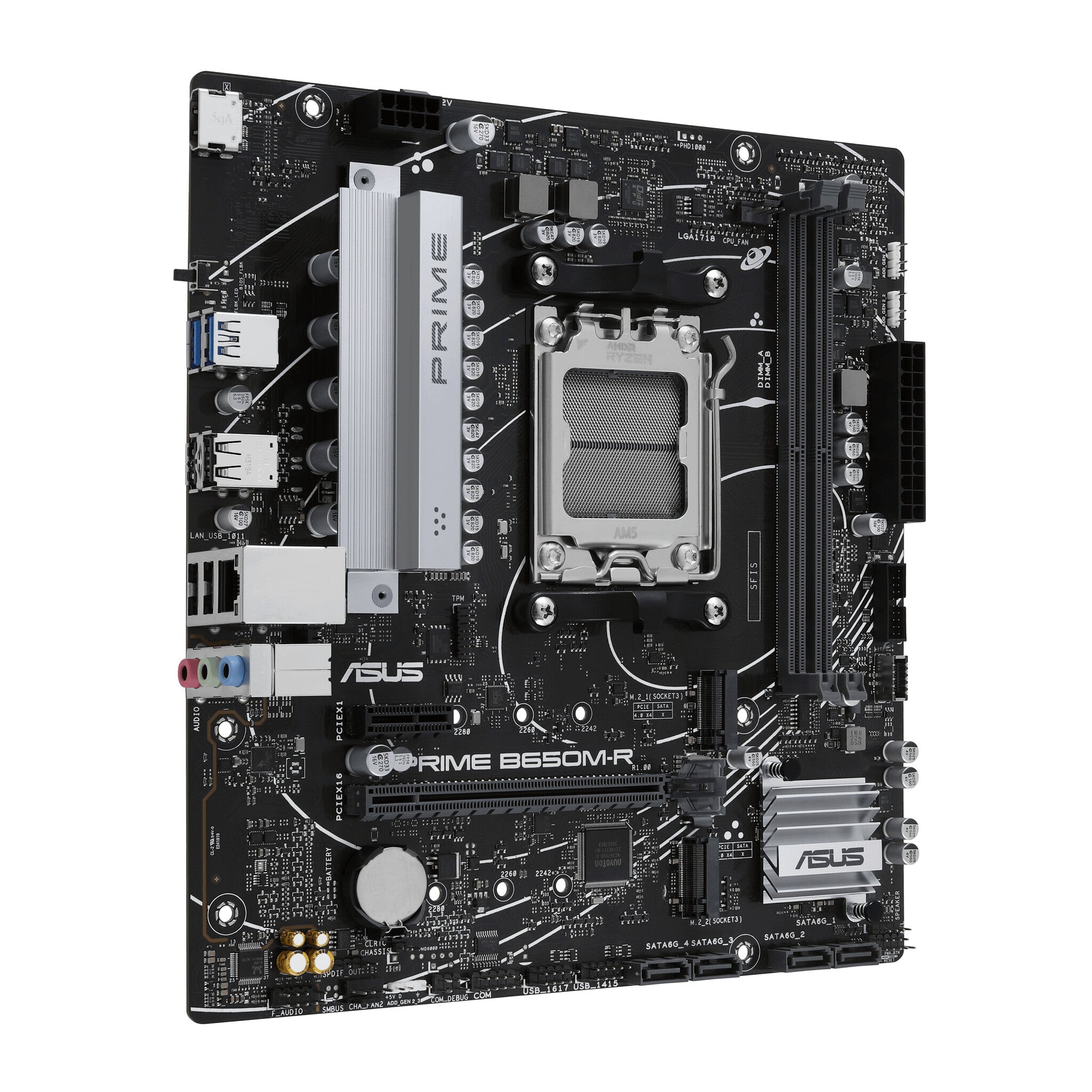

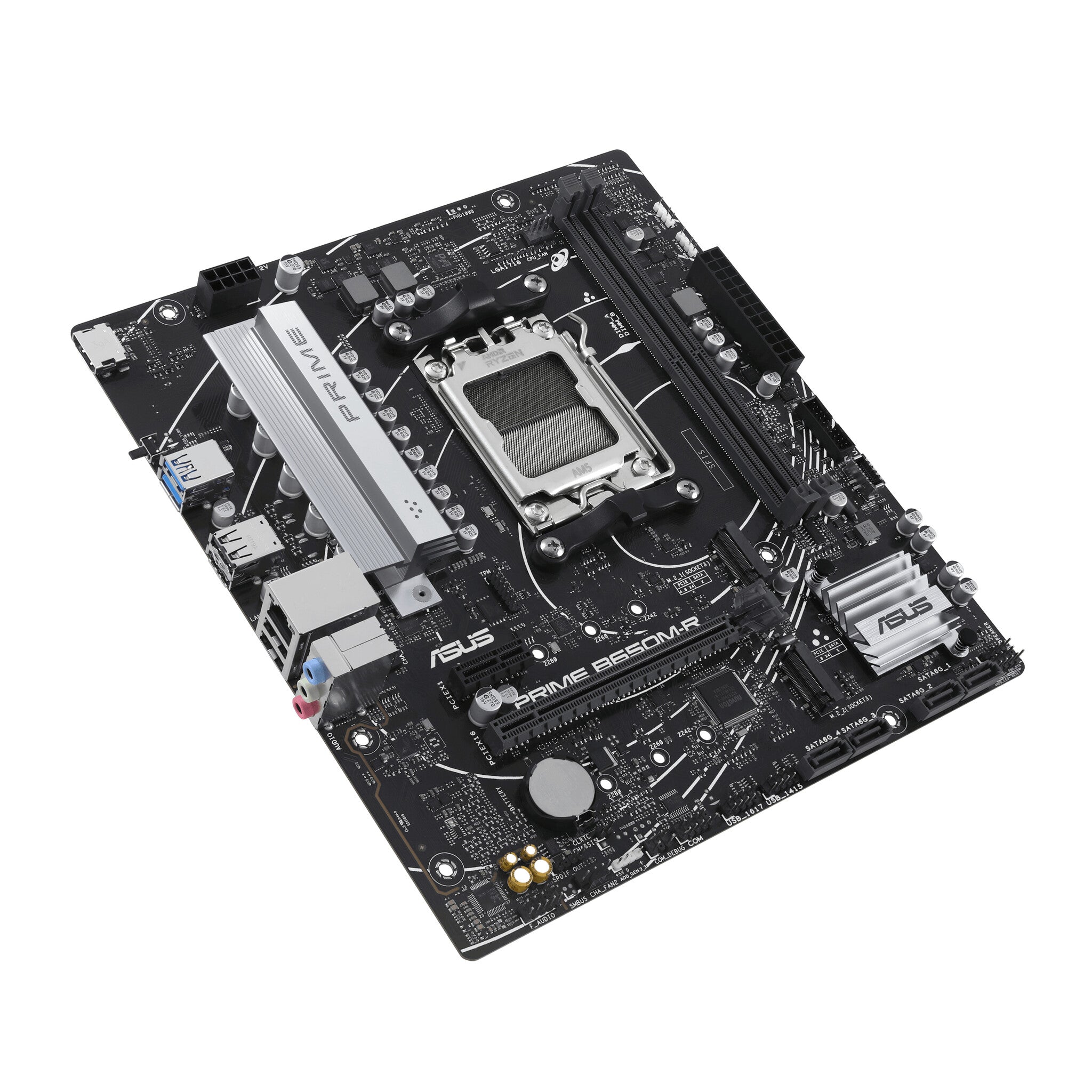

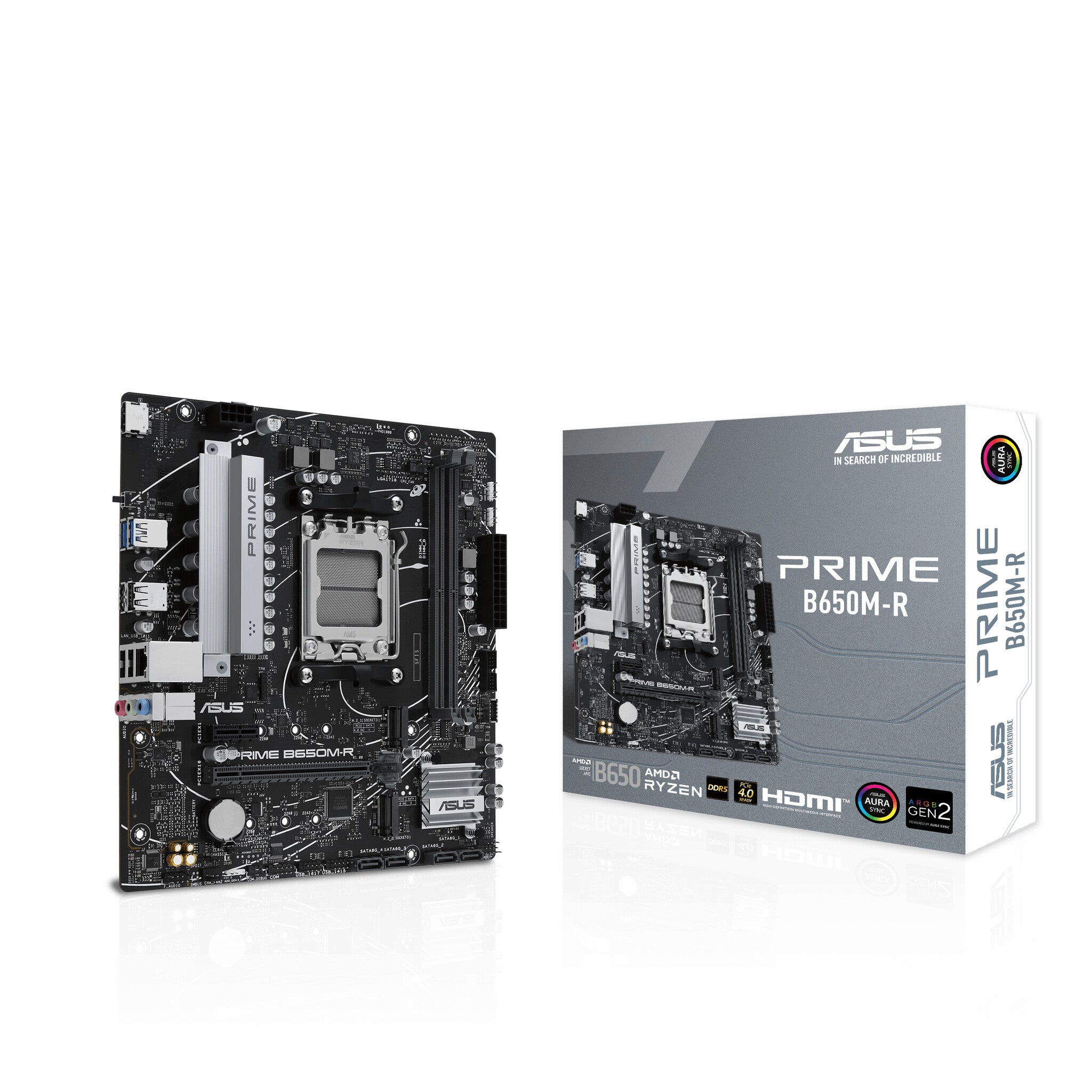

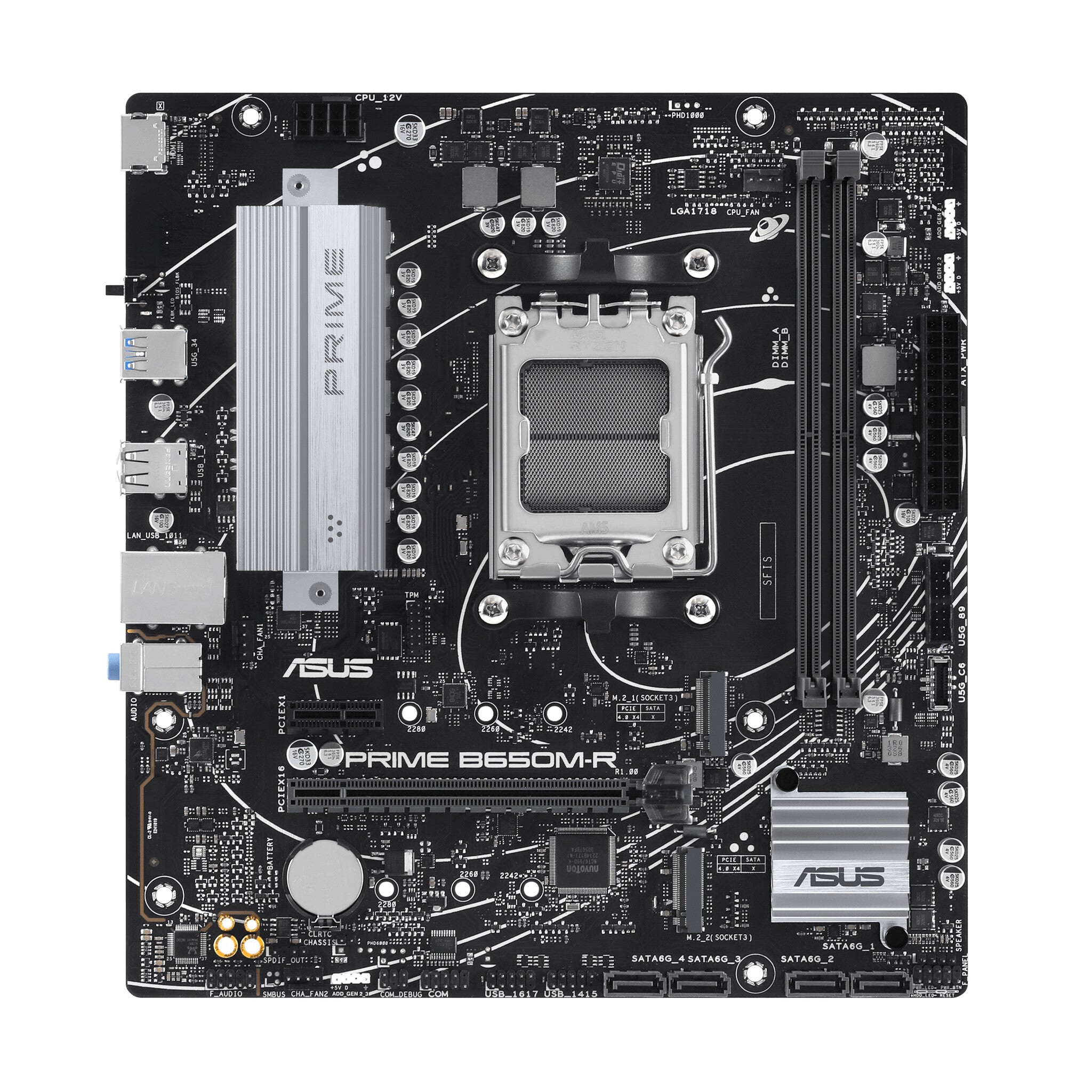

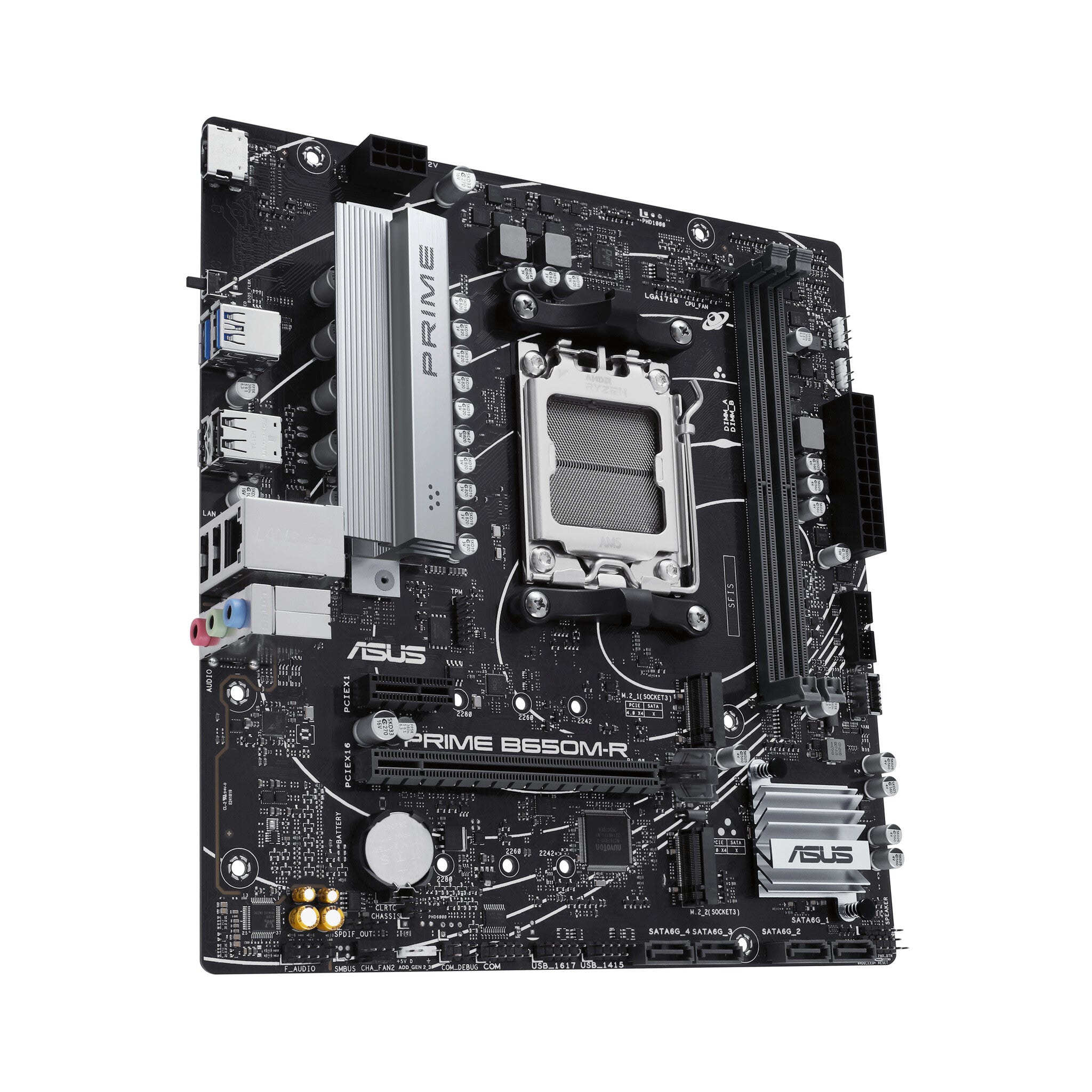

ASUS PRIME B650M-R mATX Motherboard | AM5 | 2x DDR5 Slots
KEY FEATURES
- AM5 Socket for AMD Ryzen Desktop Processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS PRIME B650M-R mATX Motherboard | AM5 | 2x DDR5 Slots
Description
The ASUS PRIME B650M-R is a compact micro ATX motherboard that brings modern AMD AM5 platform capabilities to smaller builds without sacrificing essential features. Based on the mainstream B650 chipset, it supports both AMD Ryzen 7000 and 8000 series processors, making it a practical choice for users who want current-generation performance in a space-efficient format. The micro ATX form factor fits well in compact cases while still providing room for essential expansion components.
Memory support is comprehensive, with two DDR5 slots accommodating up to 96GB of system RAM at speeds up to DDR5-7200. The board includes one PCIe 4.0 x16 slot for a graphics card plus an additional PCIe 4.0 x1 slot for expansion cards. Connectivity features include Realtek 2.5Gb Ethernet for fast network performance and HDMI output for integrated graphics support. The RGB LED pin header allows connection of compatible lighting strips for system customisation.
ASUS includes practical features like BIOS Flashback for easy firmware updates and Aura Sync RGB integration. The board supports EXPO memory profiles for simple DDR5 overclocking to achieve rated memory speeds. Standard package contents include an I/O shield, SATA cables, and user documentation. With its focus on core functionality rather than extreme overclocking features, this B650 motherboard delivers solid foundation components for mainstream AMD builds where space efficiency matters.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

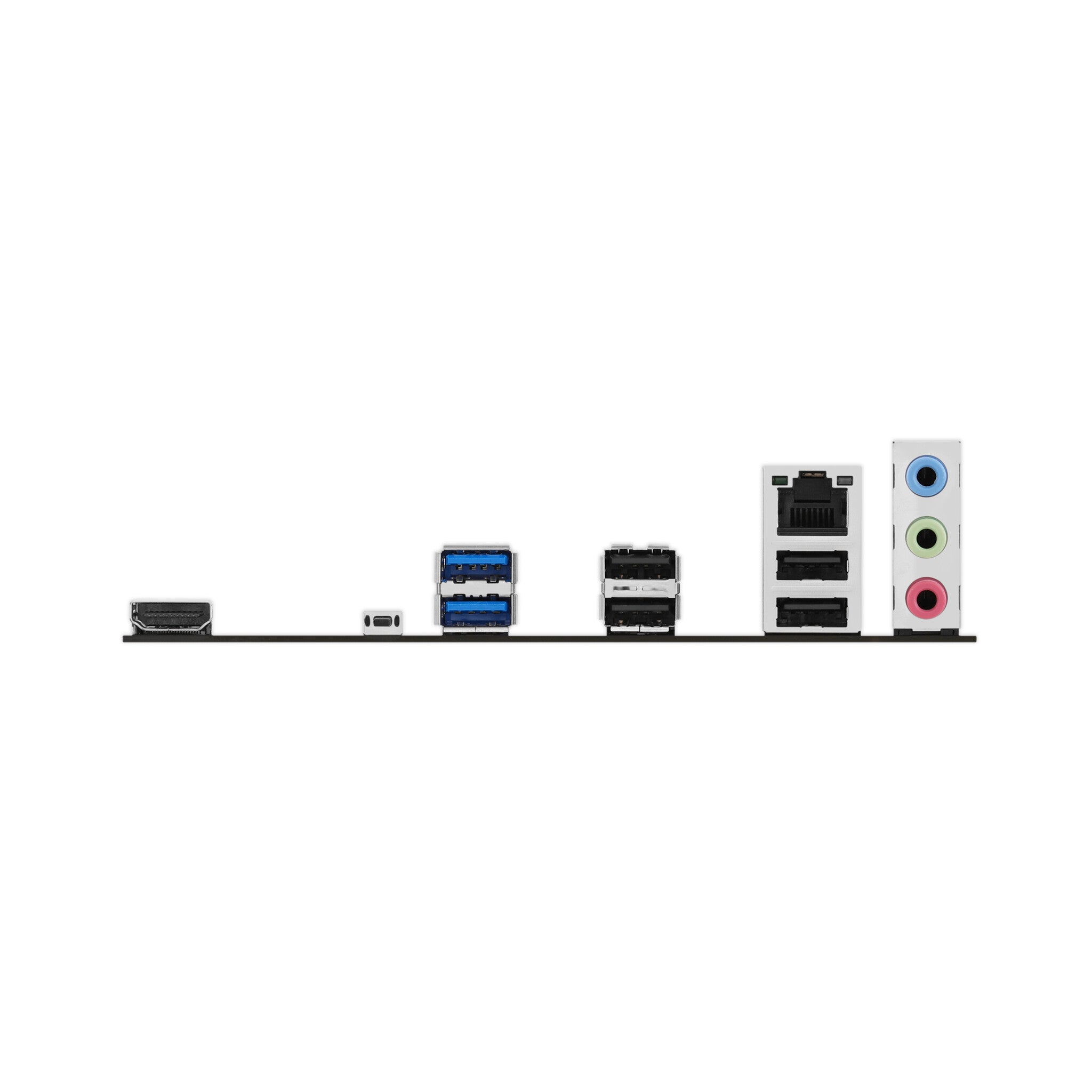

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 855 g |
| Weight & dimensions | |
|---|---|
| Width | 236 mm |
| Depth | 221 mm |

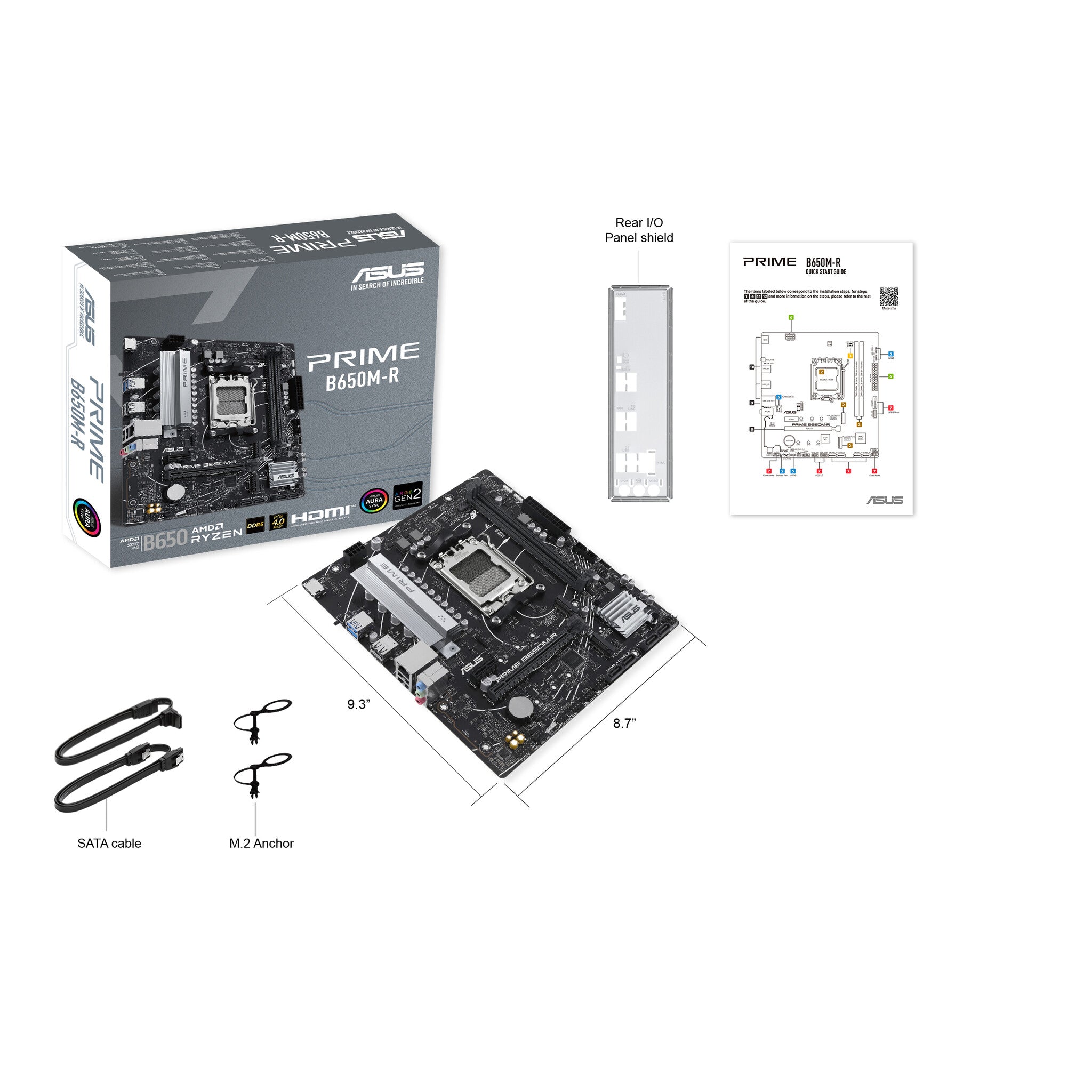

| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Back-to-BIOS button | Yes |
