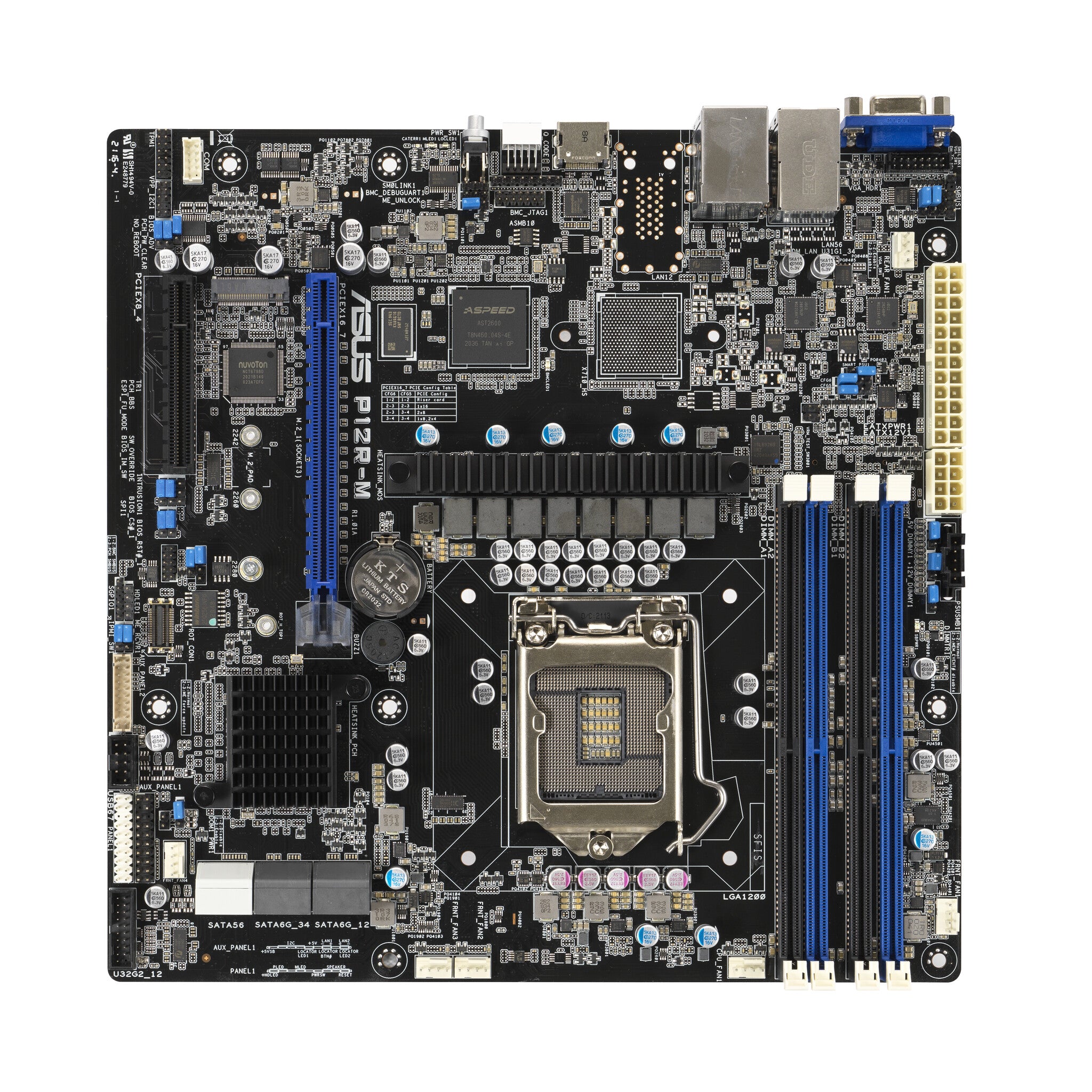

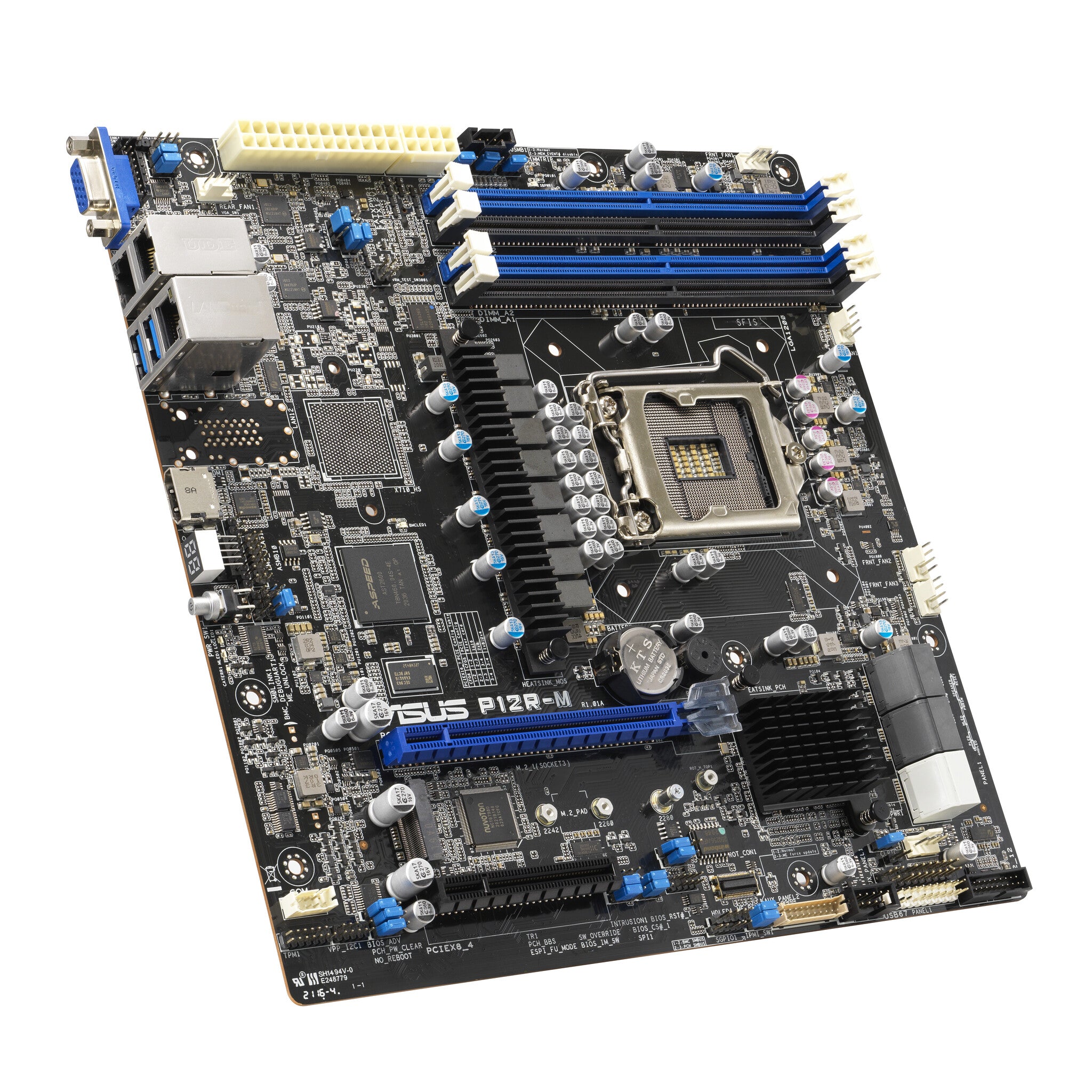

ASUS P12R-M ATX Motherboard | LGA1200 | 4x DDR4 Slots
KEY FEATURES
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS P12R-M ATX Motherboard | LGA1200 | 4x DDR4 Slots
Description
The ASUS P12R-M delivers server-grade reliability in a micro ATX package built around Intel's C256 chipset. This professional motherboard supports LGA1200 processors from Intel's Pentium and Xeon E series, making it well-suited for small form factor servers, workstations, and business systems that need more stability than consumer boards typically provide. With four DDR4 memory slots supporting up to 128 GB total capacity, it handles substantial workloads while fitting into compact chassis configurations.
Memory performance scales from DDR4-2666 up to DDR4-3200, with individual module support ranging from 8GB to 32GB capacities per slot. The PCIe expansion includes one full x16 slot and one x8 slot, both running at Gen 4.x speeds for modern graphics cards or professional accelerator cards. Six SATA 6Gb/s ports provide ample storage connectivity for multiple drives, essential for server applications requiring redundancy or high-capacity storage arrays.
This board targets system builders constructing reliable business machines rather than gaming rigs. The C256 chipset brings enterprise-focused features like enhanced error correction and improved power management compared to mainstream consumer chipsets. ASUS includes the essential installation hardware and documentation needed to get systems operational, though the focus remains squarely on dependable performance rather than flashy extras or overclocking capabilities.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 10 |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C256 |
| PC health monitoring | CPU, Fan |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
|---|---|
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.3 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
| Other features | |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| Weight | 700 g |
