Asrock Z790 Steel Legend WiFi ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 16+1+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
- Realtek 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Asrock Z790 Steel Legend?
How much memory can the motherboard support?
Does it support Wi-Fi connectivity?
Asrock Z790 Steel Legend WiFi ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description
The Asrock Z790 Steel Legend WiFi is an enthusiast-grade ATX motherboard designed around Intel's flagship Z790 chipset for LGA1700 processors. This board supports Intel's 12th, 13th, and 14th generation Core processors, making it a solid choice for builders who want to run high-performance CPUs like Core i7 and i9 chips. The Steel Legend series brings Asrock's distinctive industrial aesthetic with built-in RGB LED headers for custom lighting setups.
Memory performance gets serious attention with four DDR5 DIMM slots supporting up to 128GB of capacity. The board includes two PCIe x16 slots - one PCIe 5.0 slot for the latest graphics cards and one PCIe 4.0 slot for additional expansion cards. Connectivity is comprehensive with 2.5 Gigabit Ethernet for fast wired networking and built-in Wi-Fi 6E with Bluetooth for wireless connections. The integrated 7.1-channel HD audio delivers quality sound without needing a separate sound card.
Setup is straightforward with support for memory overclocking profiles that let DDR5 modules run at their rated speeds with simple BIOS configuration. The motherboard comes with essential accessories including the rear I/O shield, SATA cables for storage connections, and mounting hardware. The Z790 chipset enables CPU overclocking capabilities for enthusiasts who want to push their processors beyond stock speeds, while the robust power delivery system ensures stable operation even under demanding workloads.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

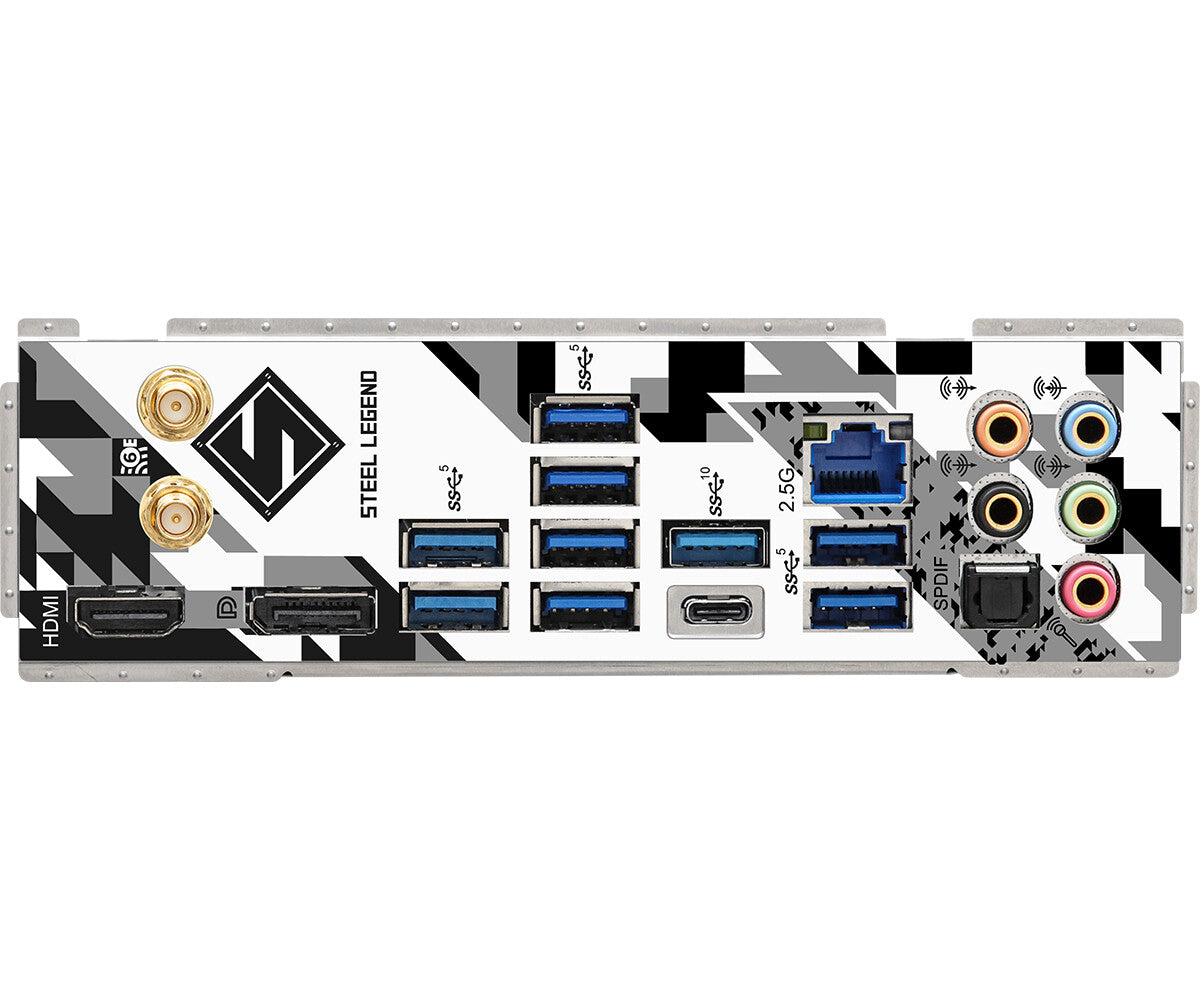

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Frequently Asked Questions
What processors are compatible with the Asrock Z790 Steel Legend?
How much memory can the motherboard support?
Does it support Wi-Fi connectivity?
What is the maximum data transfer rate for the M.2 slot?
