Asrock Z790 Riptide WiFi ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 7
Description
The ASRock Z790 Riptide WiFi is an enthusiast-grade ATX motherboard built around Intel's flagship Z790 chipset for LGA1700 processors. It supports everything from budget Celeron chips to flagship Core i9 processors, making it a versatile choice for builders who want room to upgrade. The board handles DDR5 memory up to an impressive 8000MHz across four DIMM slots, with a maximum capacity of 192GB - more than enough for demanding workloads like content creation, heavy multitasking, or future-proofing a high-end gaming system.

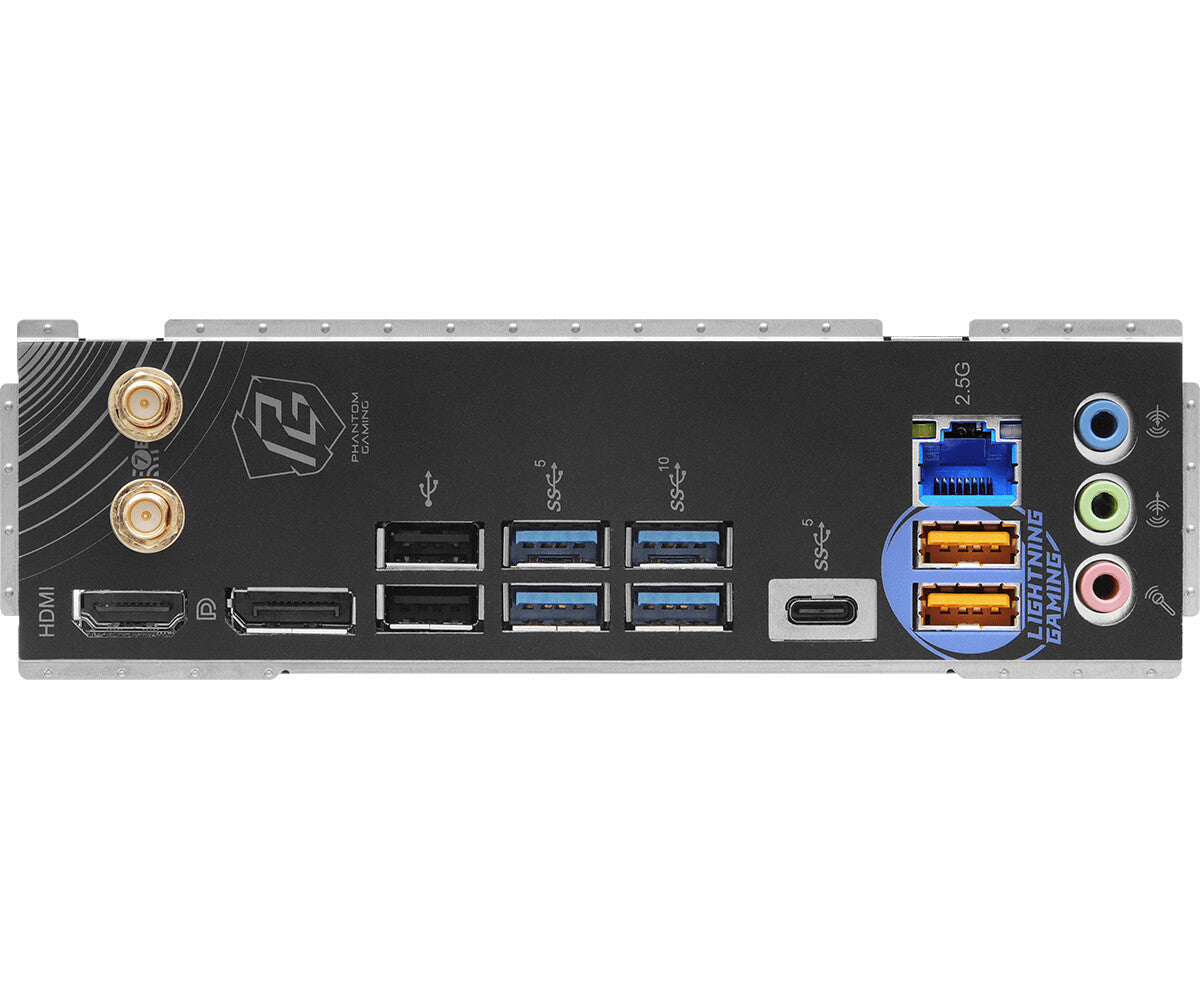

Connectivity is comprehensive, featuring the latest Wi-Fi 7 wireless standard with Bluetooth 5.4 for cutting-edge wireless performance. The rear I/O includes a good spread of USB ports ranging from legacy USB 2.0 to high-speed USB 3.2 Gen2x2 Type-C, plus HDMI 2.1 and DisplayPort 1.4 outputs for integrated graphics. Storage options include four SATA3 ports for traditional drives, while expansion is handled by two PCIe x16 slots - one PCIe 5.0 for the latest graphics cards and another PCIe 4.0 slot for additional expansion cards.
The Z790 chipset brings full overclocking support for both CPU and memory, with XMP profiles making DDR5 setup straightforward. Audio is handled by Realtek's ALC1220 codec for clean sound output. ASRock includes essential accessories like an I/O shield and antenna for the wireless functionality. The black PCB keeps aesthetics clean, while an RGB LED header lets you add custom lighting if desired.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | CrossFire |
| Graphics card family | Intel |
| Graphics card | Intel Iris Xe Graphics |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Discrete graphics support | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Killer E3100G |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Cables included | SATA |
| Bundled software | - ASRock Motherboard Utility (Phantom Gaming Tuning)- Killer Control Center- ASRock Polychrome SYNC |
| Technical details | |
|---|---|
| Compliance certificates | CE, EuP, Federal Communications Commission (FCC) |
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
