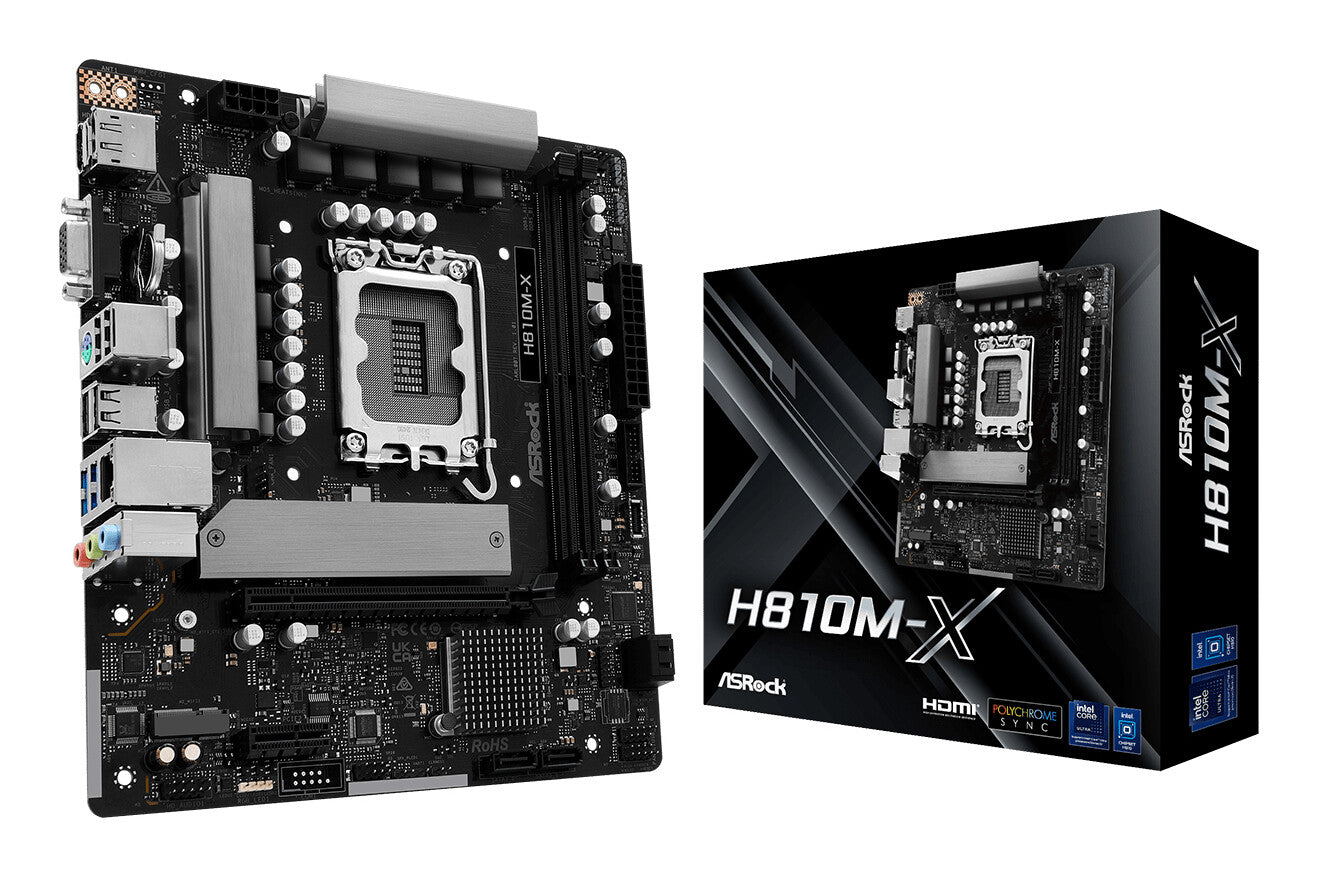

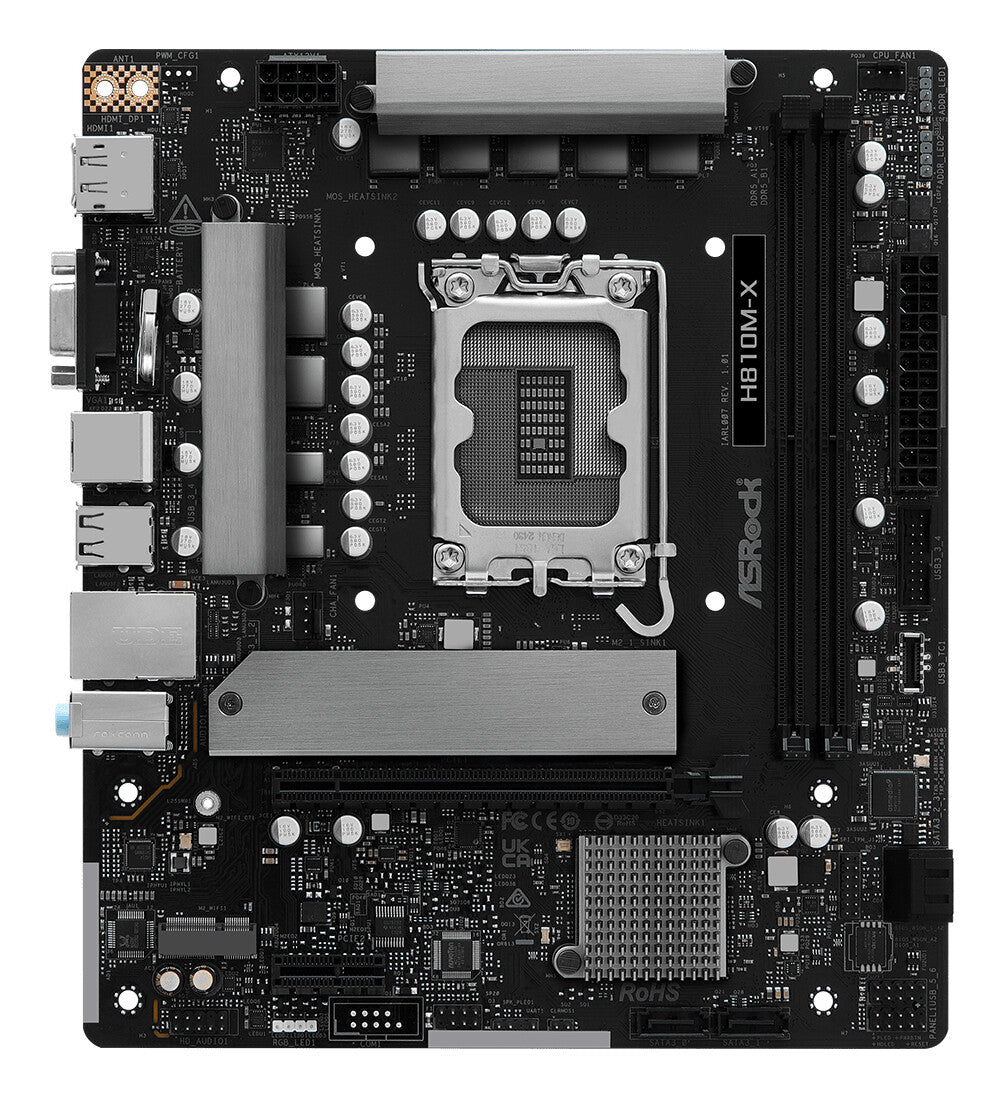

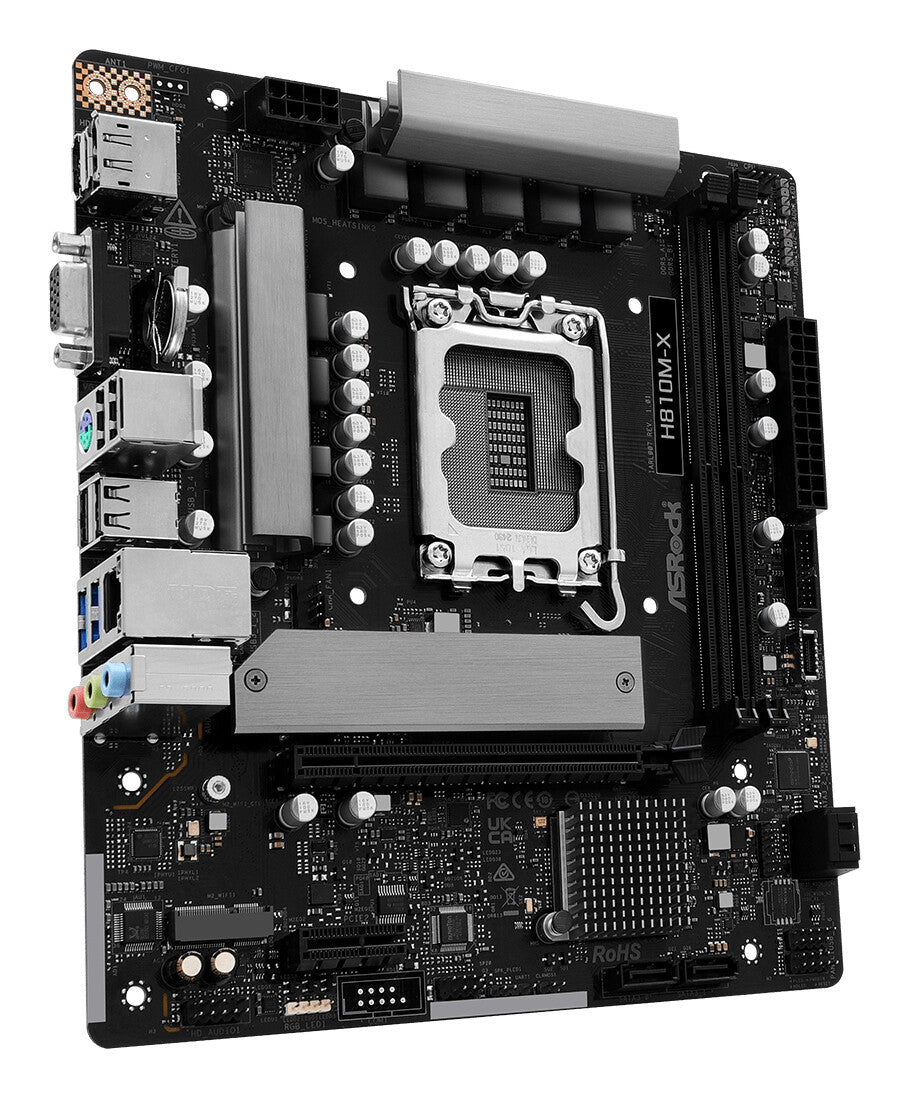

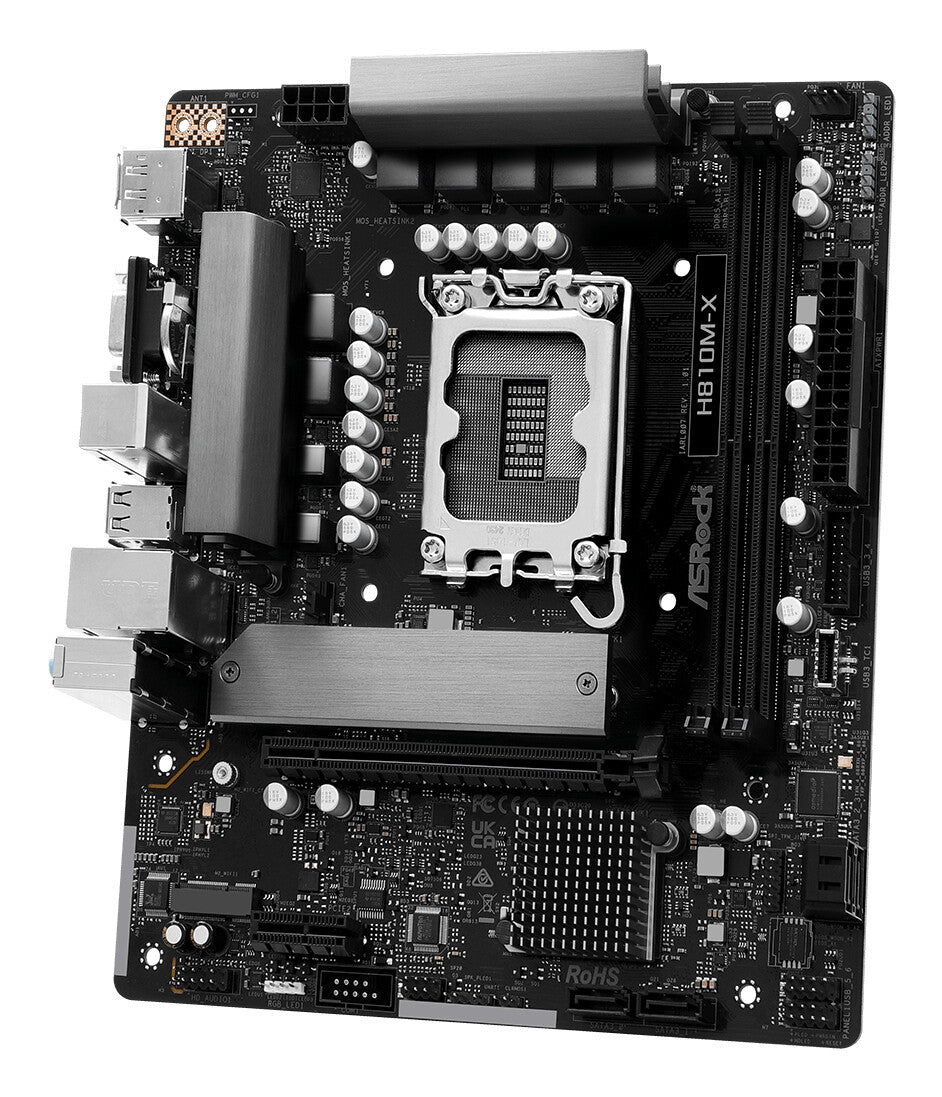

Asrock H810M-X mATX Motherboard | LGA1851 | 2x DDR5 Slots
KEY FEATURES
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 6+1+1+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 6400
- 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen1 Type-C (Front)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek 2.5G LAN
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Asrock H810M-X mATX Motherboard | LGA1851 | 2x DDR5 Slots
Description
The ASRock H810M-X is an entry-level mATX motherboard built around Intel's H810 chipset and LGA1851 socket for Intel Core Ultra Series 2 processors. This budget-focused board provides the essentials for straightforward PC builds without unnecessary extras, making it suitable for office computers, basic gaming rigs, or simple workstations where cost matters more than extensive expansion options.
Memory support extends to DDR5 with speeds up to 6400 MHz across two DIMM slots, accommodating up to 128GB total capacity. The board includes one PCIe 4.0 x16 slot for a graphics card and one PCIe 4.0 x1 slot for additional expansion cards. Networking comes via 2.5 Gigabit Ethernet, offering faster network speeds than standard gigabit connections for file transfers and streaming.
Setup is handled through a 256MB AMI UEFI BIOS interface, and the board includes an RGB LED header for users wanting to add some lighting to their build. The H810M-X ships with standard accessories including an I/O shield and user documentation. With its compact mATX size and essential feature set, this motherboard focuses on delivering reliable performance for budget-conscious builders who need modern DDR5 support without premium extras.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 11 x64 |
| Compatible operating systems | Microsoft Windows 11 64-bit |
| Certification | - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 193 mm |
