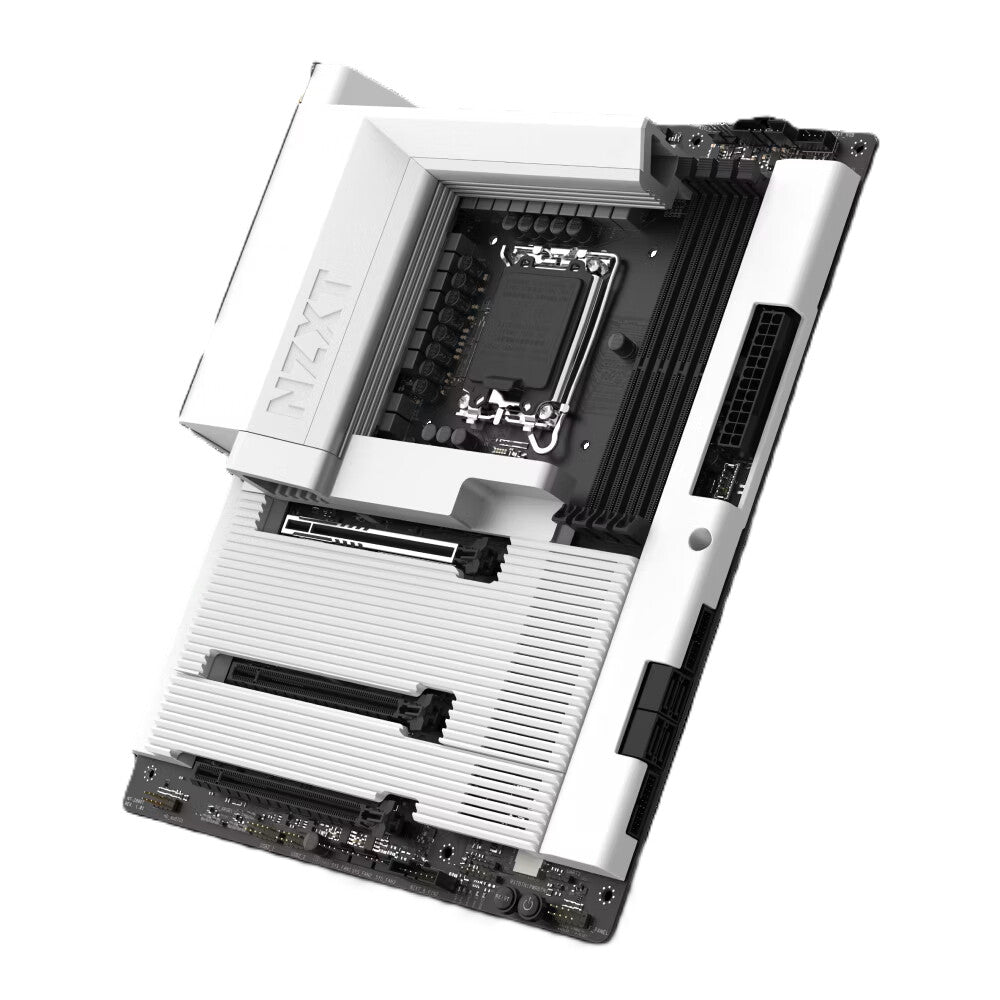

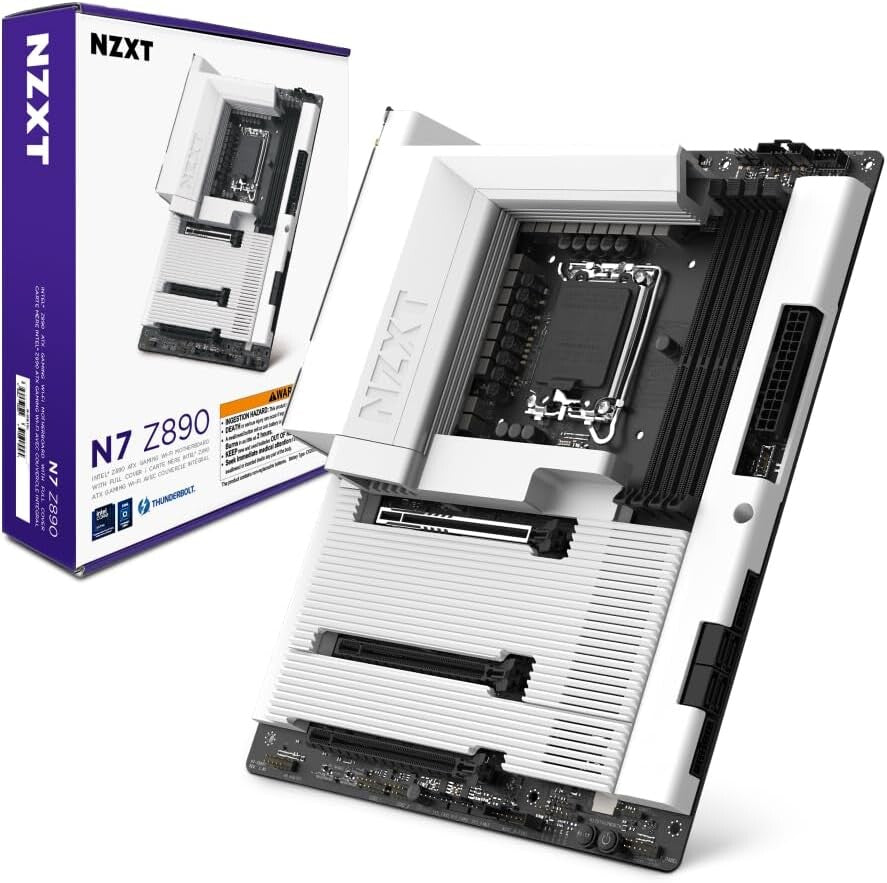

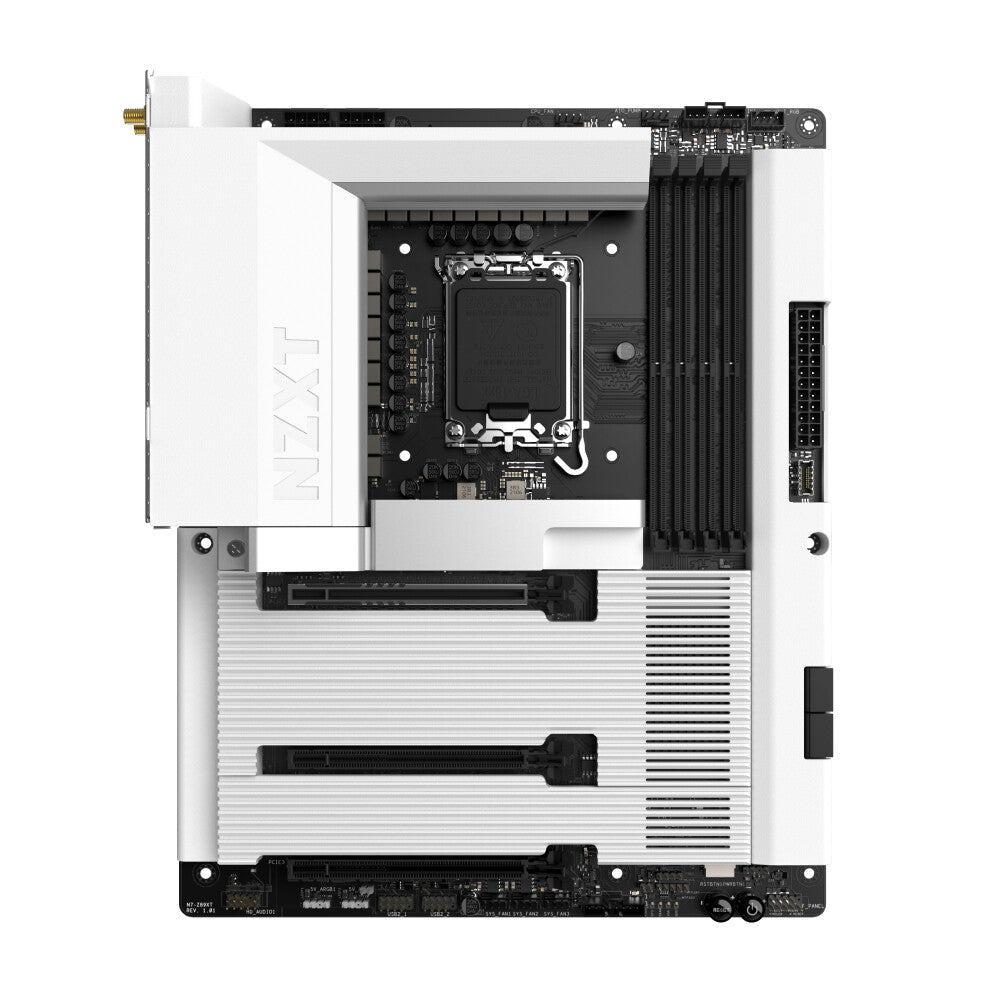

NZXT N7 Z890 ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Intel® LGA 1851 Socket: Ready for the latest Intel® Core™ Ultra processors (Series 2)
- Reliable Power Delivery: A 16+1+2 power phase design with 80A DrMOS provides stable and efficient power for critical components
- Optimized Thermal Design: Stay cool under pressure with an aluminum VRM heatsink featuring thermal pads for MOSFETs and chokes, plus a dedicated PCIe® 5.0 M.2 heatsink
- PCIe® 5.0 M.2 Slot: Access PCIe® 5.0 storage speeds with the top M.2 slot, plus three additional PCIe® 4.0 M.2 slots
- DDR5 Performance: Four dual-channel DDR5 RAM slots accelerate load times, enhance multitasking, and support speeds up to 8000+ MHz through overclocking
- High-Speed Connectivity: Two Thunderbolt™ 4 ports deliver 40 Gbps data transfer speeds, video output, and device charging through a single, versatile connection
- High-Speed Networking: Enjoy fast and reliable internet with Wi-Fi 6E and 2.5G LAN, providing a lag-free connection for both wireless and wired setups

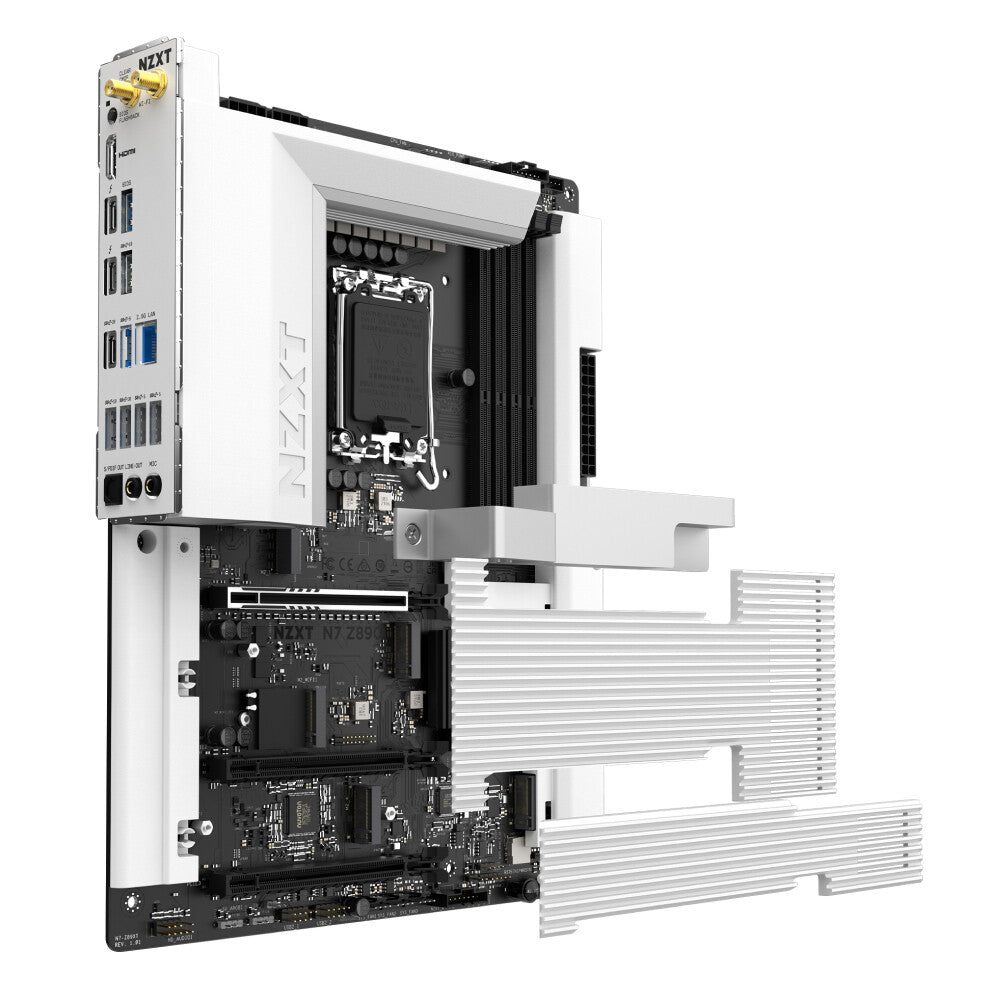

- Seamless Style: Achieve a sleek and sophisticated aesthetic with a full cover that conceals the majority of the PCB
- Single-Frame Fans: Effortlessly connect and control NZXT RGB single-frame fans with the convenient 8-pin combo fan headers (4-pin RGB + 4-pin PWM)
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
NZXT N7 Z890 ATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
Description
The NZXT N7 Z890 is an enthusiast-class ATX motherboard built around Intel's flagship Z890 chipset for the latest LGA1851 Intel Core Ultra processors. This white-themed board targets builders who want both premium features and distinctive aesthetics, with NZXT's signature full-cover design that hides most traditional motherboard clutter under a sleek shroud. The Z890 chipset delivers full overclocking support and the latest connectivity standards, making this board suitable for high-performance gaming rigs and content creation workstations.
Memory support covers DDR5 across four DIMM slots, while PCIe expansion includes three x16 slots split between one PCIe 5.0 slot for the latest graphics cards and two PCIe 4.0 slots for additional expansion. The board includes built-in Wi-Fi for wireless connectivity and features a USB 3.2 Gen 2x2 connector delivering up to 20Gbps transfer speeds for fast external storage. The premium Z890 platform ensures compatibility with Intel's XMP memory profiles for easy performance tuning.
Setup is straightforward with the included I/O shield protecting rear connectors, plus SATA cables and M.2 mounting hardware to get storage drives installed quickly. The comprehensive user guide walks through installation and BIOS configuration. NZXT includes their CAM software ecosystem integration, allowing system monitoring and customization through their unified platform. The full-cover design not only looks distinctive but also helps with airflow management by creating cleaner internal routing paths.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |

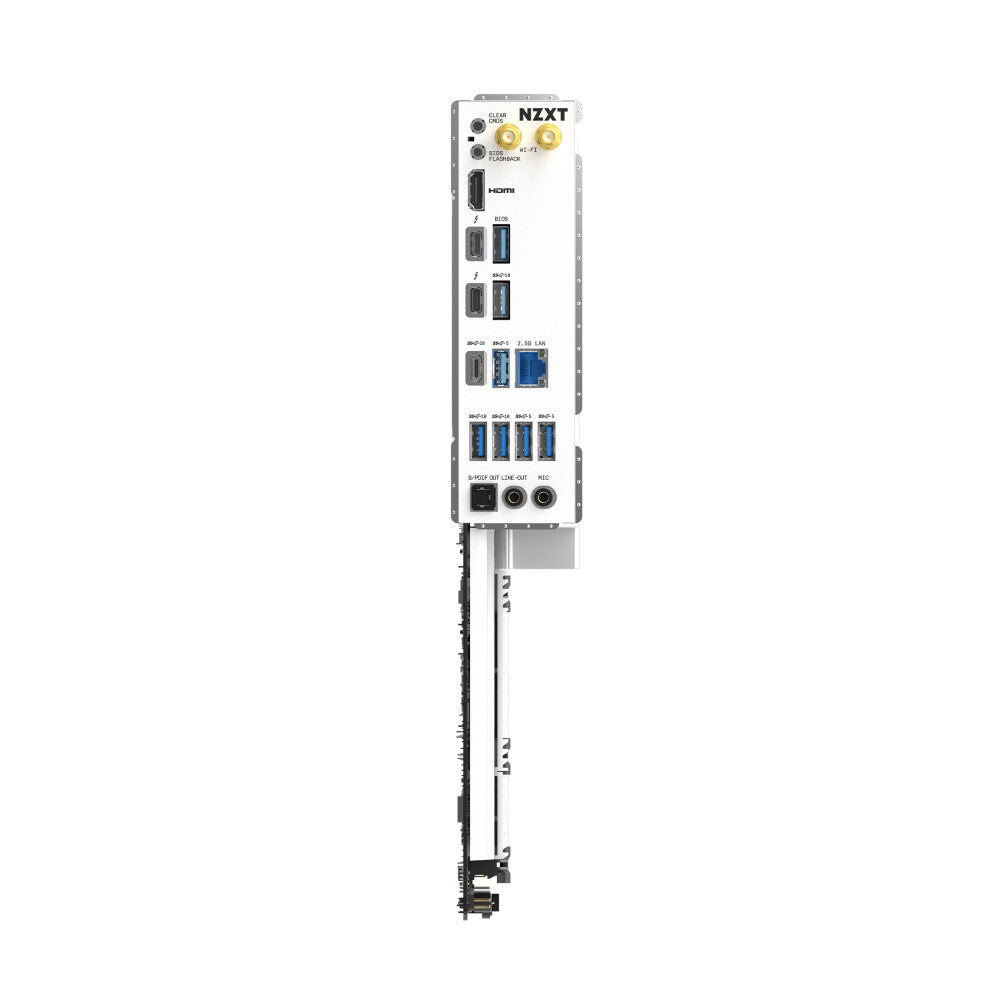

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| USB4 Gen 2x2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
