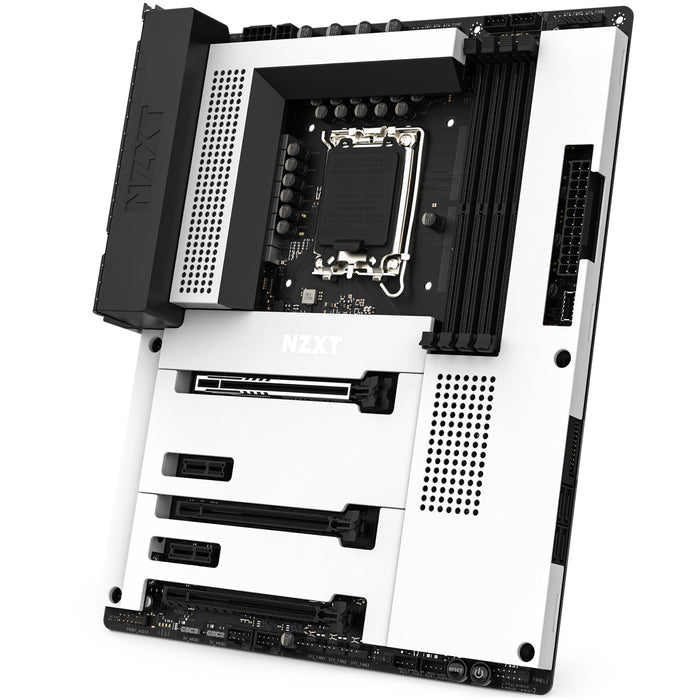

NZXT N7 Z790 ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB
- Full cover in black or white with integrated heat spreader for the top-most M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Three M.2 connectors for storage devices
- Supports memory overclocking speeds of up to 6000 MHz and Intel® XMP 3.0
- 8-channel high-definition audio
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the NZXT N7 Z790 support?
Does the NZXT N7 Z790 have built-in Wi-Fi?
What is the warranty period for the NZXT N7 Z790?
NZXT N7 Z790 ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description
The NZXT N7 Z790 brings premium Z790 chipset performance to a full ATX build with distinctive design elements that set it apart from typical motherboards. Supporting Intel's 12th and 13th generation processors through the LGA1700 socket, this board handles everything from Core i3 chips up to flagship Core i9 processors. The Z790 chipset positions this as an enthusiast-grade platform, offering the overclocking capabilities and advanced features that serious builders expect.
Memory support reaches impressive heights with four DDR5 DIMM slots supporting up to 128GB total capacity and speeds ranging from standard DDR5-5000 all the way up to DDR5-8333 for extreme performance builds. The board provides substantial expansion options through three PCIe x16 slots - one running at full PCIe 5.0 speeds for the latest graphics cards, plus two additional PCIe 4.0 x16 slots for multi-GPU setups or high-speed storage cards. Two PCIe 3.0 x1 slots handle smaller expansion cards, while integrated Wi-Fi 6E and Bluetooth 5.2 eliminate the need for separate wireless adapters.
NZXT includes thoughtful touches like RGB LED pin headers for custom lighting integration and 8-channel audio for premium sound quality. The board supports both XMP memory profiles for easy DDR5 overclocking and provides the robust power delivery needed for high-performance Intel processors. Standard motherboard essentials like an I/O shield, user documentation, and necessary installation hardware come in the box to complete your build.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5000,5066,5100,5133,5200,5300,5333,5400,5600,5800,6000,6200,6400,6600,6666,6800,7000,7200,7400,7600,7800,7900,7950,8000,8333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 8 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| Clear CMOS button | Yes |
| Packaging content | |
|---|---|
| Cables included | SATA |
