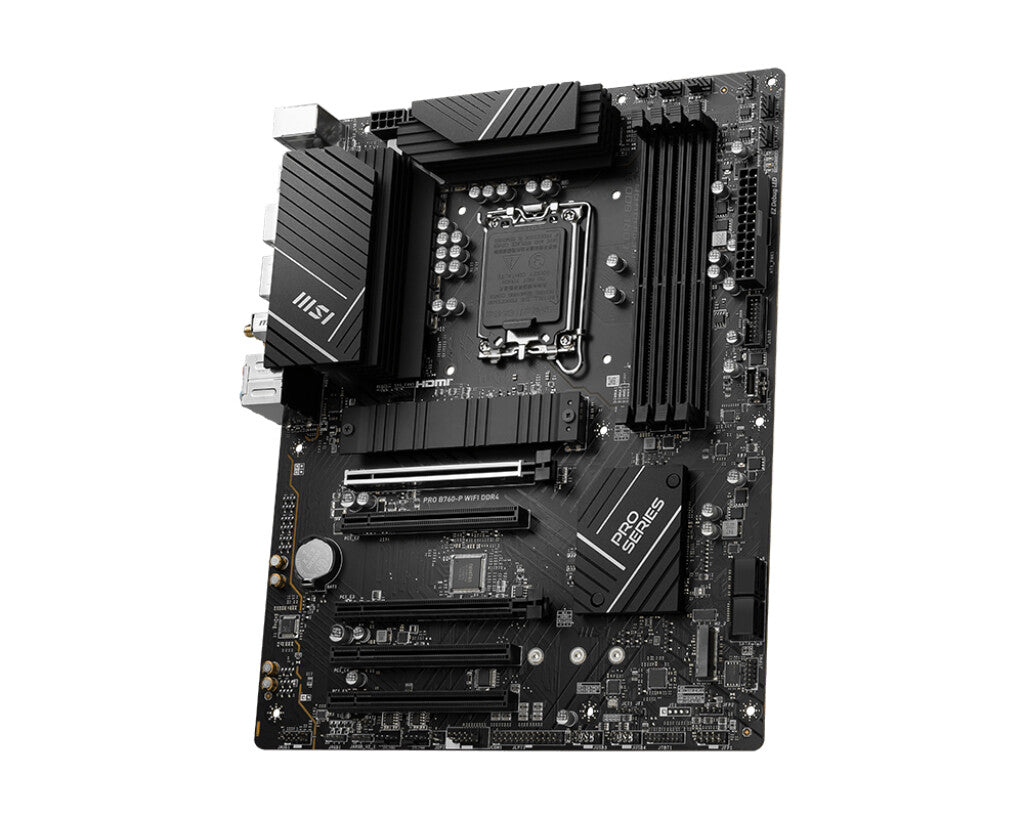

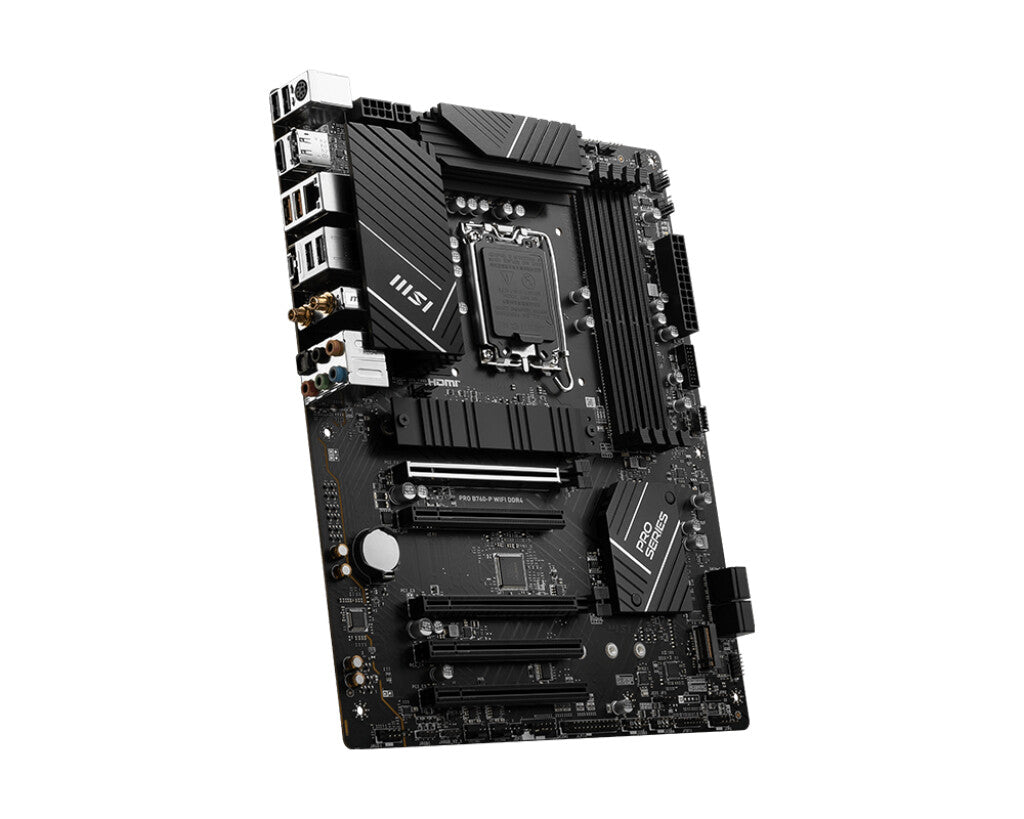

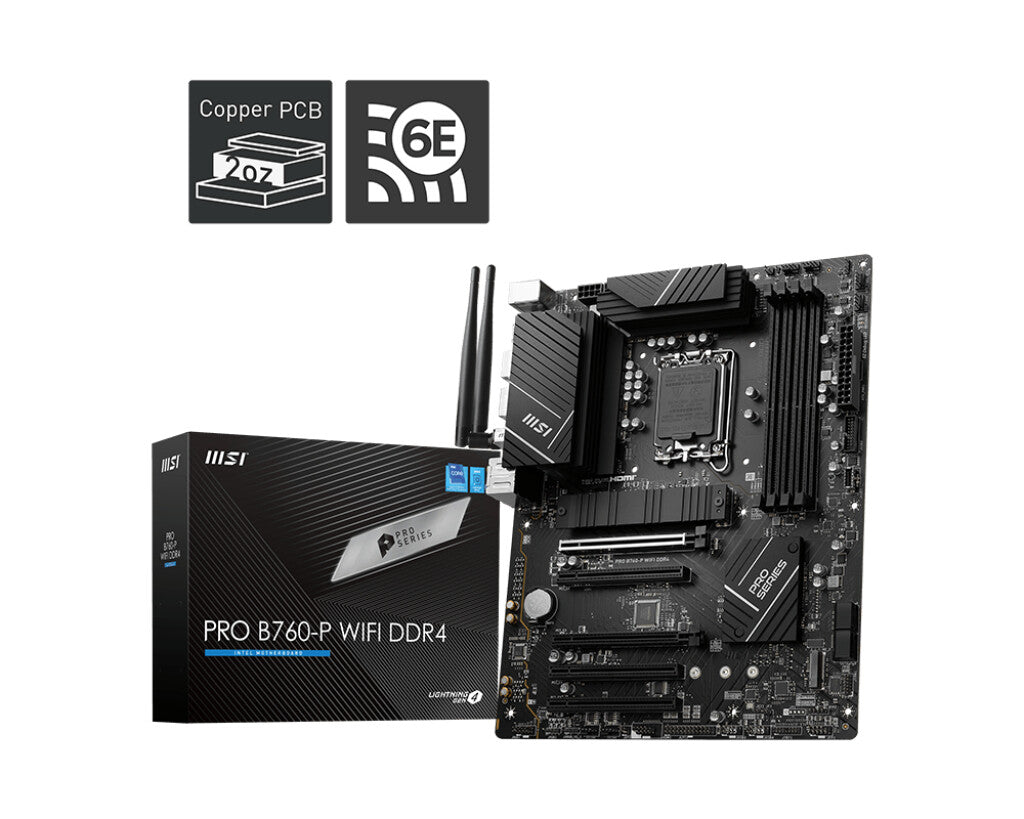

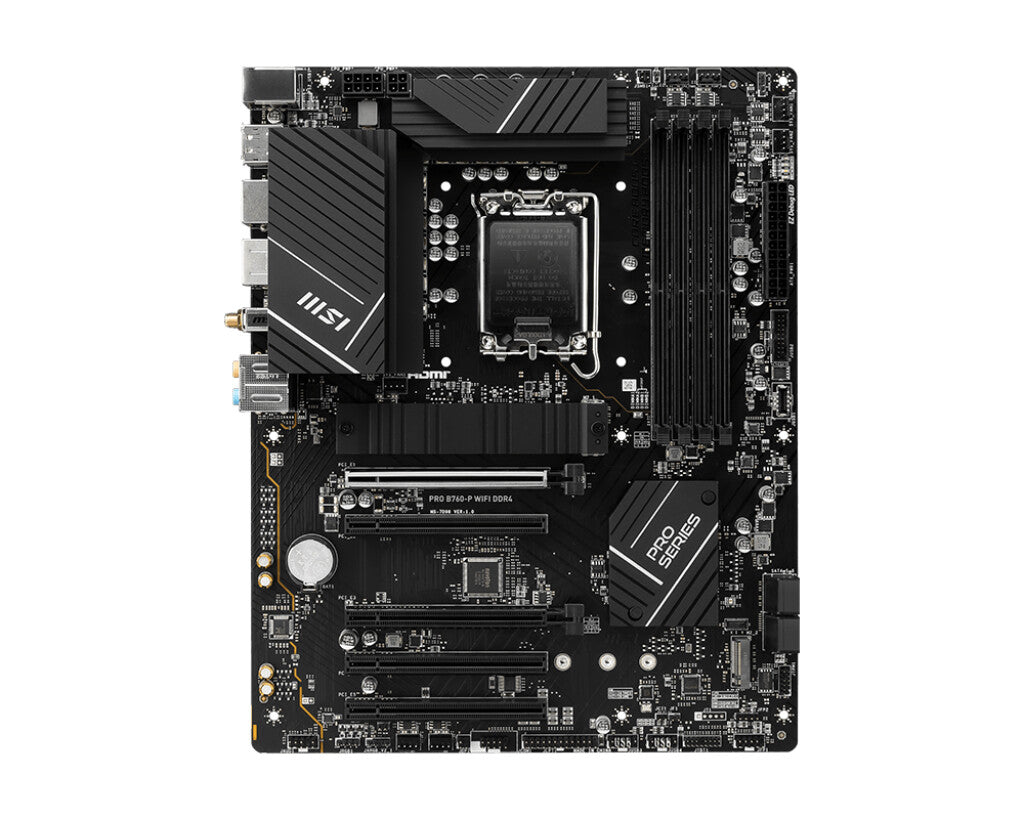

MSI PRO B760-P WIFI DDR4 ATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6E
KEY FEATURES
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
What is the advantage of the M.2 Shield Frozr feature?
Does the motherboard support fast internet connections?
MSI PRO B760-P WIFI DDR4 ATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6E
Description
The MSI PRO B760-P WIFI DDR4 serves budget-conscious builders who need reliable connectivity without premium pricing. This ATX motherboard pairs Intel's B760 chipset with the LGA1700 socket, making it compatible with Intel Celeron and Pentium Gold processors. The inclusion of Wi-Fi 6E sets it apart from basic motherboards, delivering fast wireless connectivity alongside solid wired options.
Memory support reaches up to 128GB across four DDR4 slots, with speeds scaling from standard DDR4-2133 all the way to DDR4-5333 when using compatible modules and XMP profiles. Five PCIe x16 slots provide exceptional expansion flexibility for this price point, allowing multiple graphics cards or specialized add-in cards. The board includes essential connectivity with HDMI output, four SATA ports for storage drives, and an RGB LED header for lighting customization.
Setup benefits from XMP memory profile support, which automatically configures DDR4 modules to their rated speeds without manual timing adjustments. The retail package includes the motherboard with pre-installed I/O shield, SATA cables for connecting drives, mounting hardware, and a comprehensive user guide. The black PCB design fits standard ATX cases and provides a neutral backdrop for component builds.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

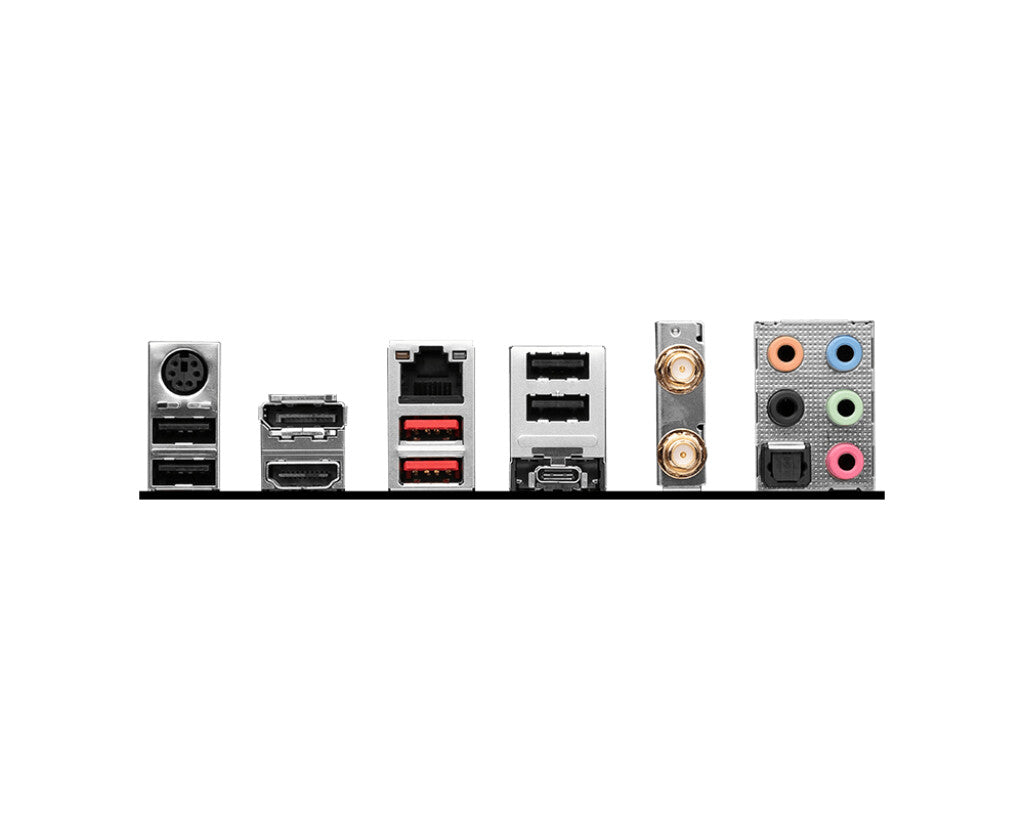

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 5 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Weight & dimensions | |
|---|---|
| Width | 243.8 mm |
| Depth | 304.8 mm |
Frequently Asked Questions
How much memory can the motherboard support?
What is the advantage of the M.2 Shield Frozr feature?
Does the motherboard support fast internet connections?
What processors are compatible with the MSI PRO B760-P?
