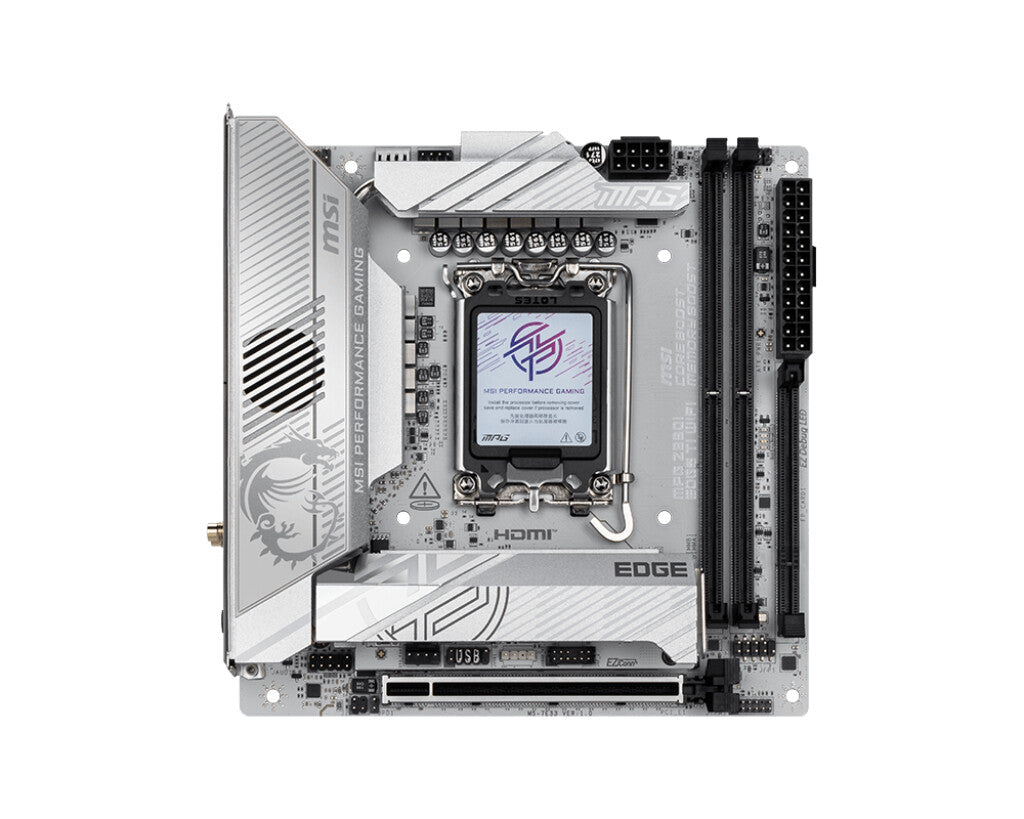

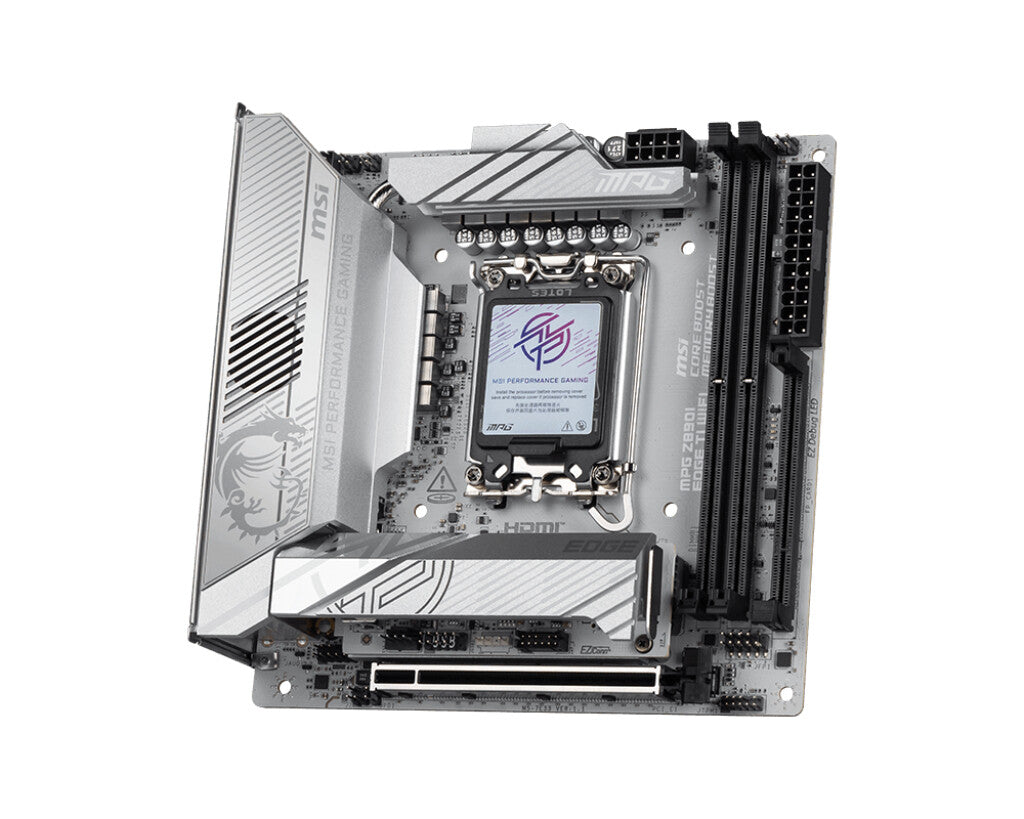

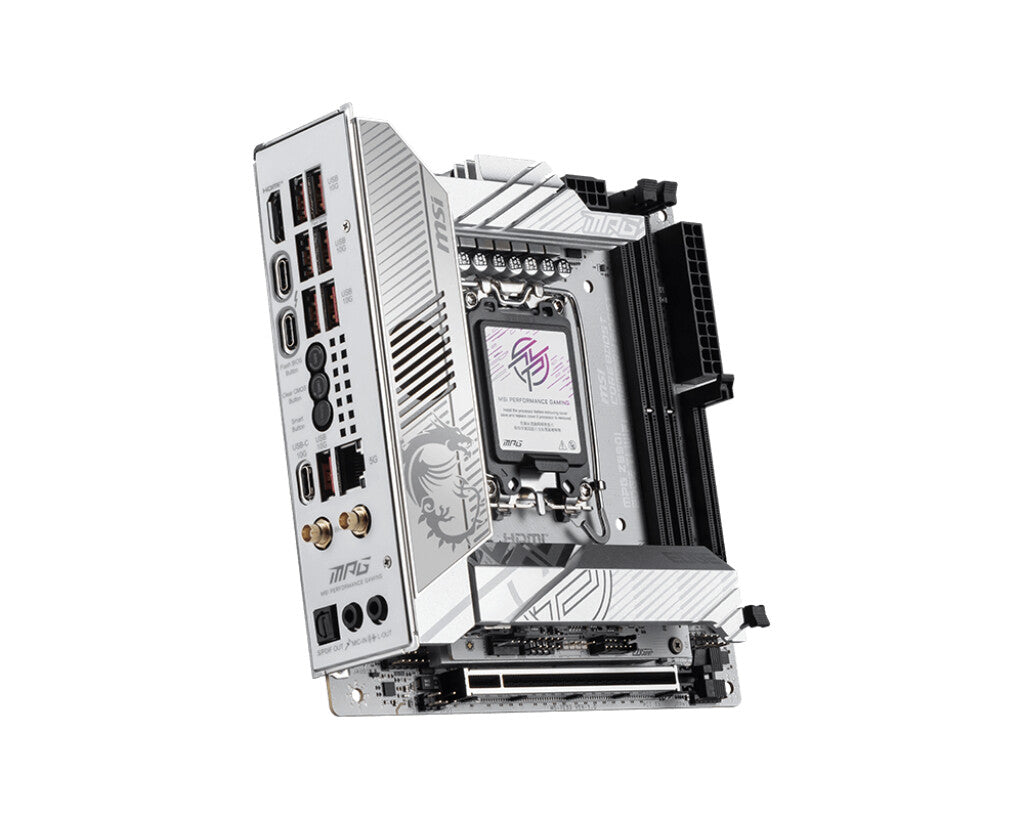

MSI MPG Z890I EDGE TI WIFI Mini-ITX Motherboard | LGA1851 | 2x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the MSI MPG Z890I EDGE TI WIFI?
How many memory slots does this motherboard have?
What networking capabilities does this motherboard offer?
MSI MPG Z890I EDGE TI WIFI Mini-ITX Motherboard | LGA1851 | 2x DDR5 Slots | Wi-Fi 7
Description
The MSI MPG Z890I EDGE TI WIFI brings Intel's flagship Z890 chipset to the Mini-ITX form factor, creating a premium small form factor board that doesn't compromise on performance. Built around the LGA1851 socket for Intel Core Ultra Series 2 processors, this white-themed board targets enthusiast builders creating compact powerhouse systems. The Z890 chipset unlocks full overclocking potential and advanced connectivity features that mainstream chipsets simply can't match.
Memory performance stands out with support for DDR5-8600 speeds when overclocked, pushing well beyond standard DDR5-4800 to extract maximum performance from your processor across the board's two DIMM slots supporting up to 128GB total capacity. The single PCIe x16 slot handles the latest graphics cards while four M.2 slots provide exceptional storage expansion for such a compact board. Modern connectivity includes dual Thunderbolt 4 ports for high-speed peripherals and displays, 5-gigabit Ethernet for network-intensive tasks, and Wi-Fi 7 for cutting-edge wireless performance.

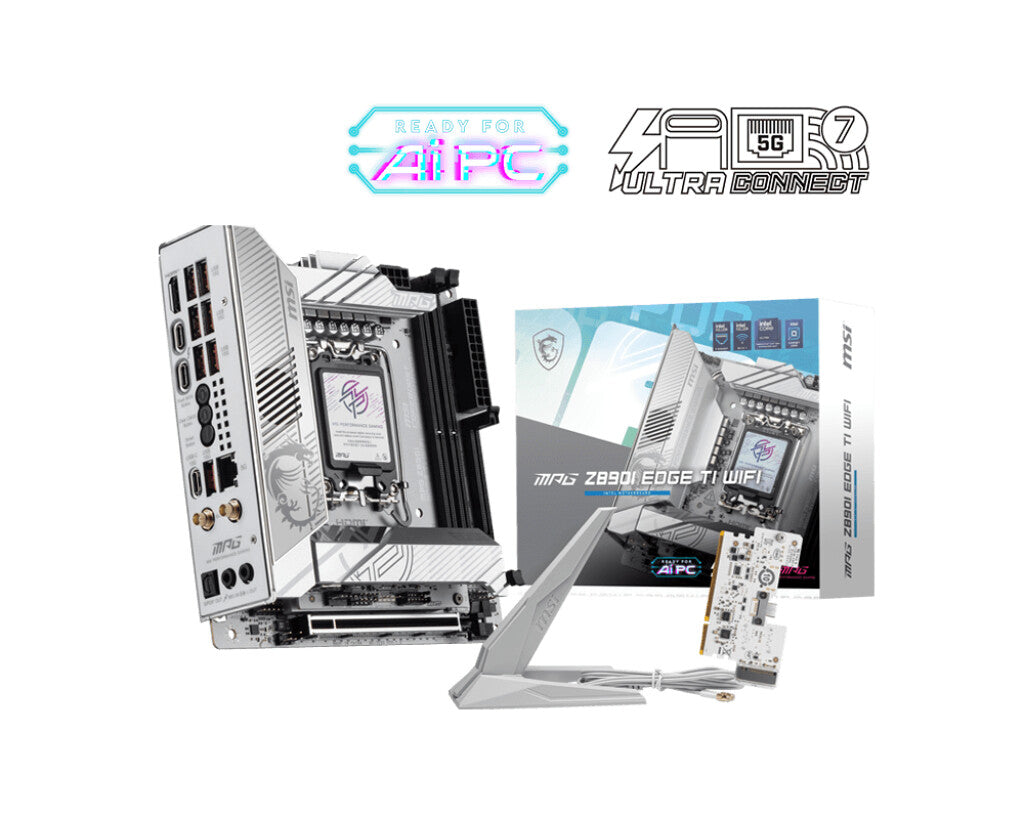

Setup is straightforward with DDR5 memory profiles handled automatically through Intel's memory overclocking technology. The board includes essential accessories like the rear I/O shield, M.2 mounting hardware for all four slots, SATA cables for the two available SATA ports, and a comprehensive user guide. The white color scheme and premium build quality make this board as much about aesthetics as performance, perfect for showcase builds where the internals are visible through tempered glass panels.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,6400,8600 MHz |
| Supported memory clock speed (max) | 8600 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 2 |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Total number of SATA connectors | 2 |
| CPU fan connector | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
