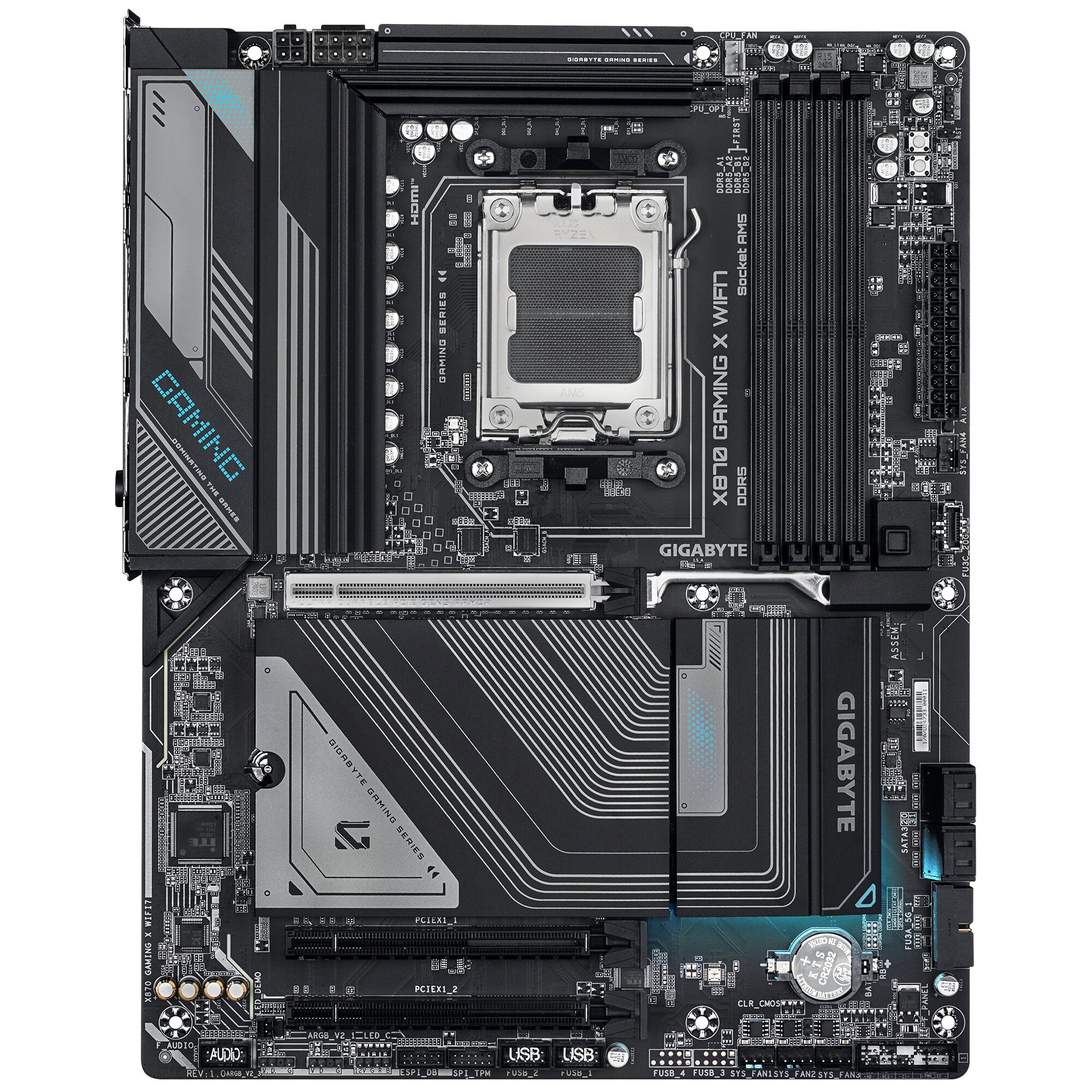

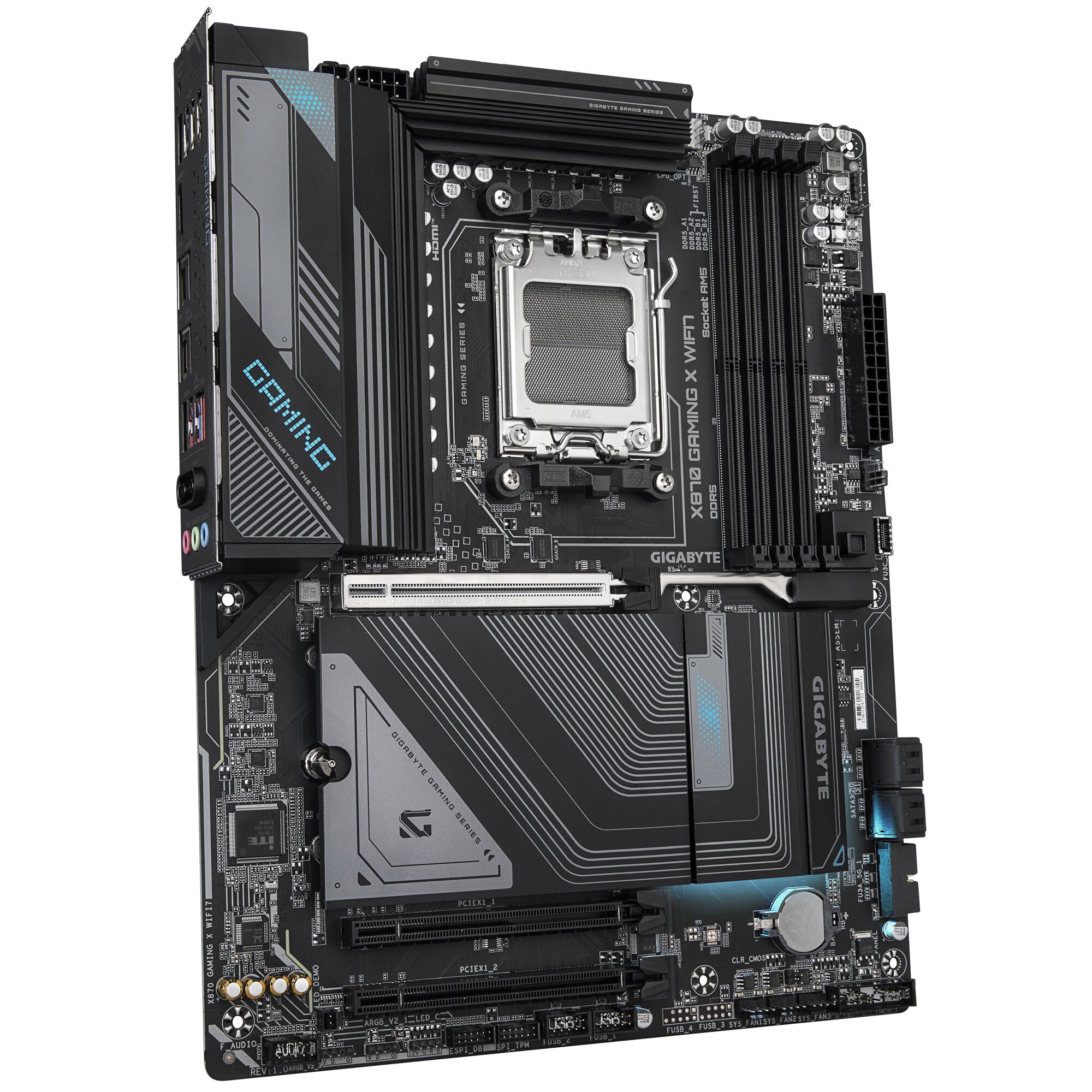

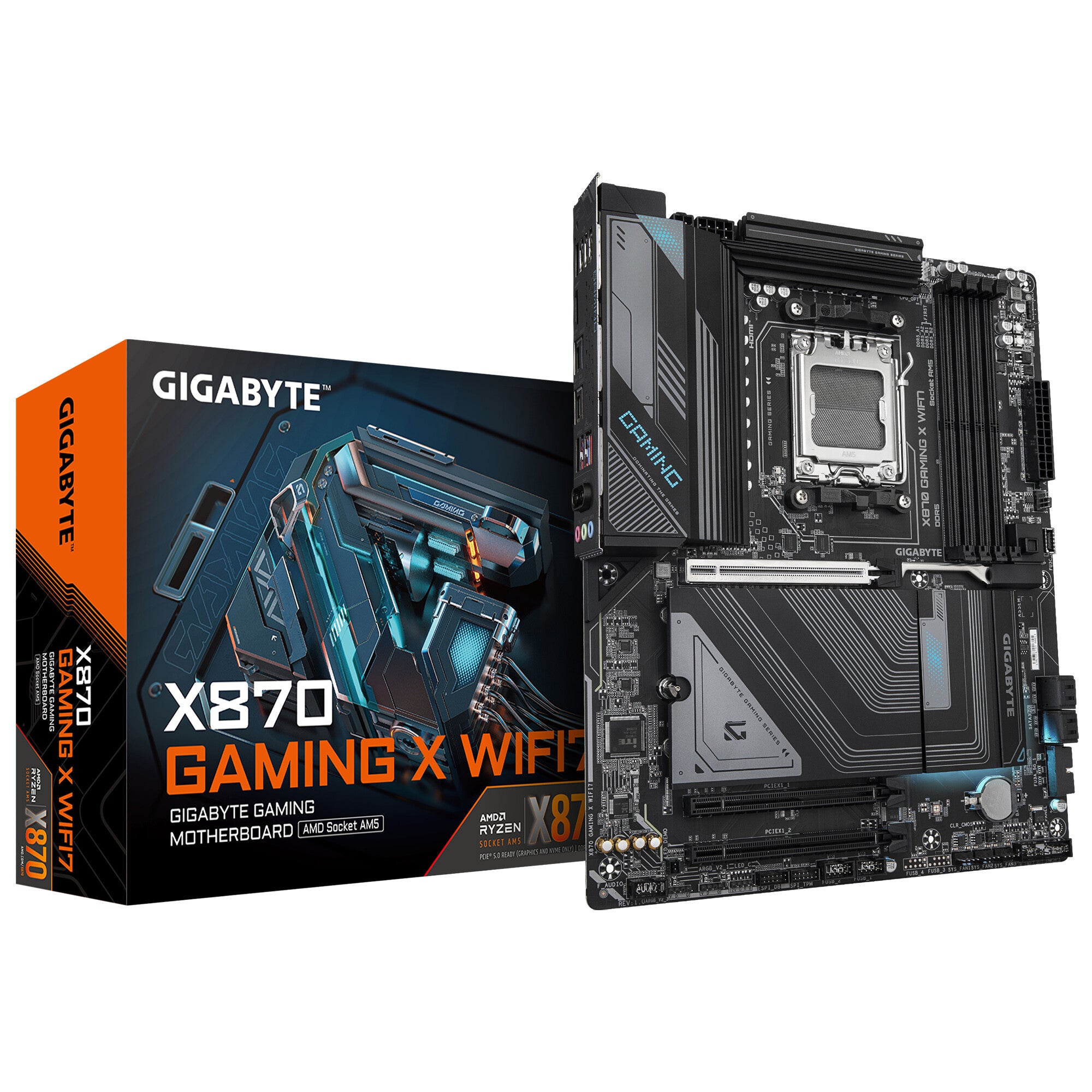

Gigabyte X870 GAMING X WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extension
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte X870 GAMING X WIFI7?
How much memory can I install on this motherboard?
Does this motherboard support Wi-Fi?
Gigabyte X870 GAMING X WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description
The Gigabyte X870 GAMING X WIFI7 brings AMD's premium X870 chipset to standard ATX dimensions, positioning it as a mainstream-to-enthusiast board for current AMD Ryzen processors. Built around the AM5 socket, it supports the latest Ryzen 7000, 8000, and 9000 series CPUs with a robust 16+2+2 phase VRM that ensures clean power delivery under demanding workloads. The ATX form factor provides ample room for expansion while fitting standard PC cases, making it accessible to most builders.
Memory performance gets serious attention with support for up to 256GB of DDR5 across four DIMM slots, officially validated at speeds reaching 8200MHz when overclocked. EXPO memory profiles simplify the process of running high-speed kits at their rated specifications. Storage expansion centres on three M.2 slots - one PCIe 5.0 and two PCIe 4.0 - accommodating the fastest current SSDs with room for future upgrades. Graphics cards connect via a single PCIe 5.0 x16 slot, ready for the most demanding GPUs.
Connectivity reflects modern requirements with Wi-Fi 7 for cutting-edge wireless performance, 2.5 Gigabit Ethernet for wired networks, and comprehensive USB options including USB 4 support. The board includes practical extras like an I/O shield, antenna for the Wi-Fi module, mounting screws, and RGB headers for system lighting. With its three-year warranty and blend of current-gen features, this X870 board delivers the capabilities that matter for high-performance AMD builds without unnecessary complexity.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

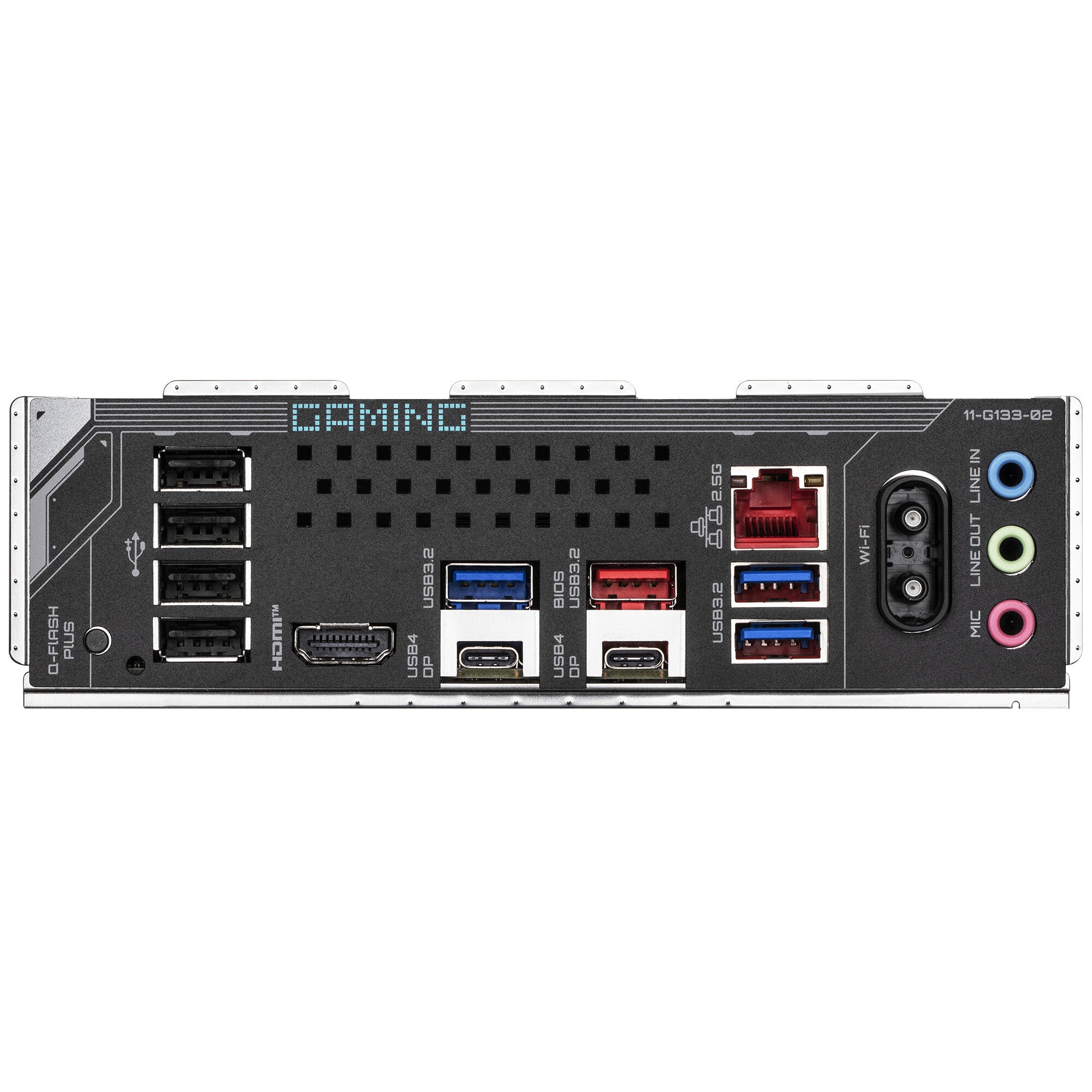

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 25110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 2.23 kg |
