Gigabyte X870 AORUS ELITE WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can I install on this motherboard?
Does this motherboard support overclocking?
What type of connectivity options does it offer?
Gigabyte X870 AORUS ELITE WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description

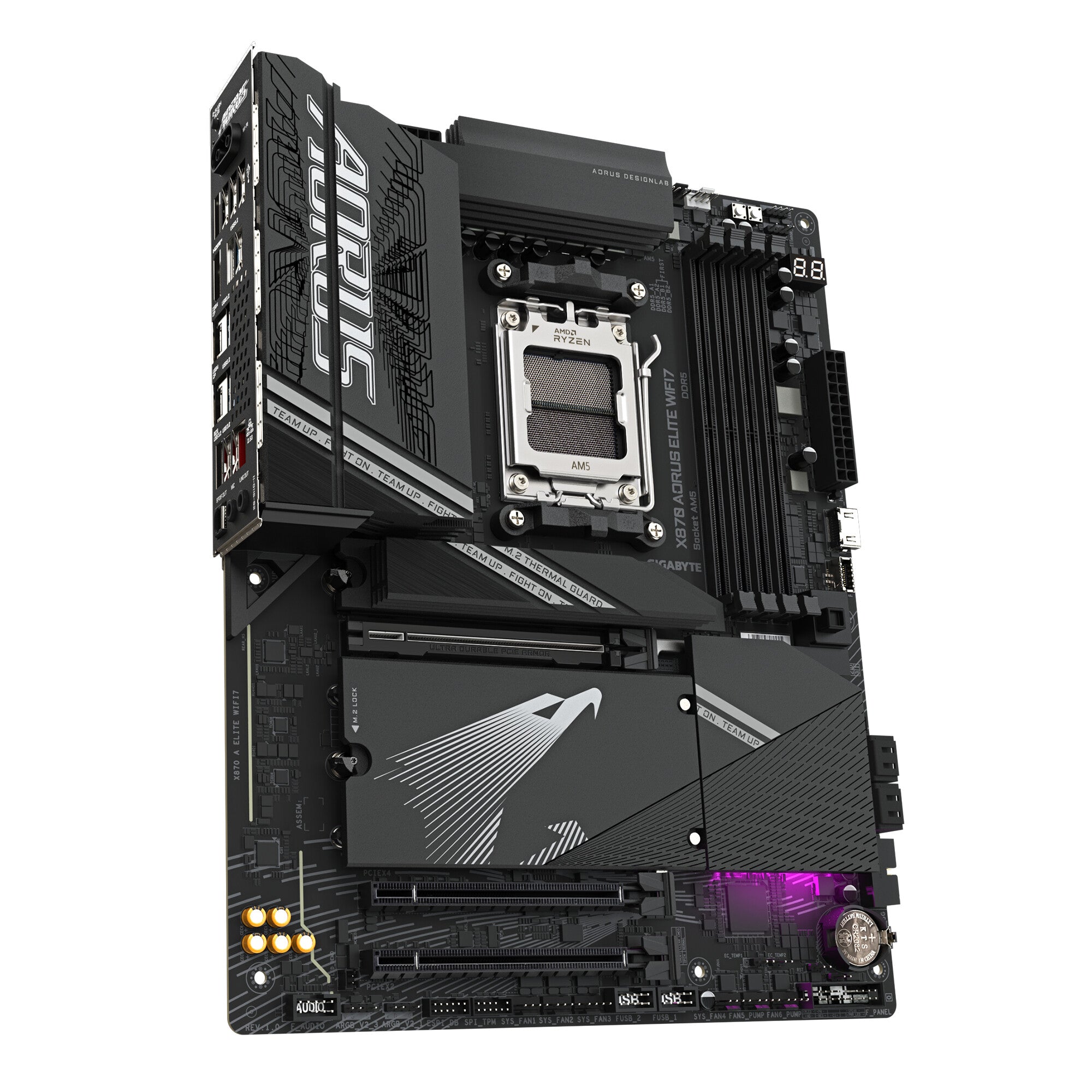

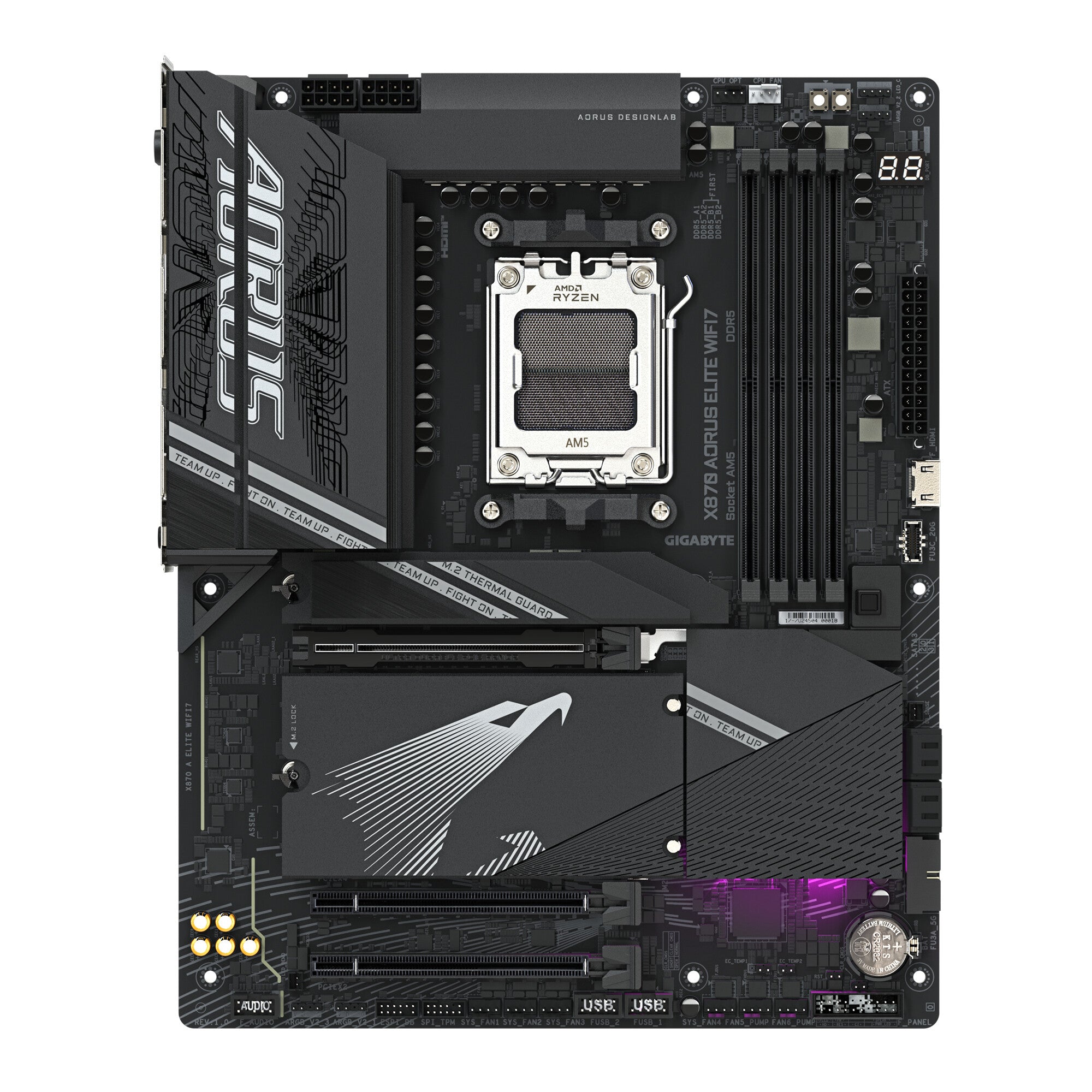

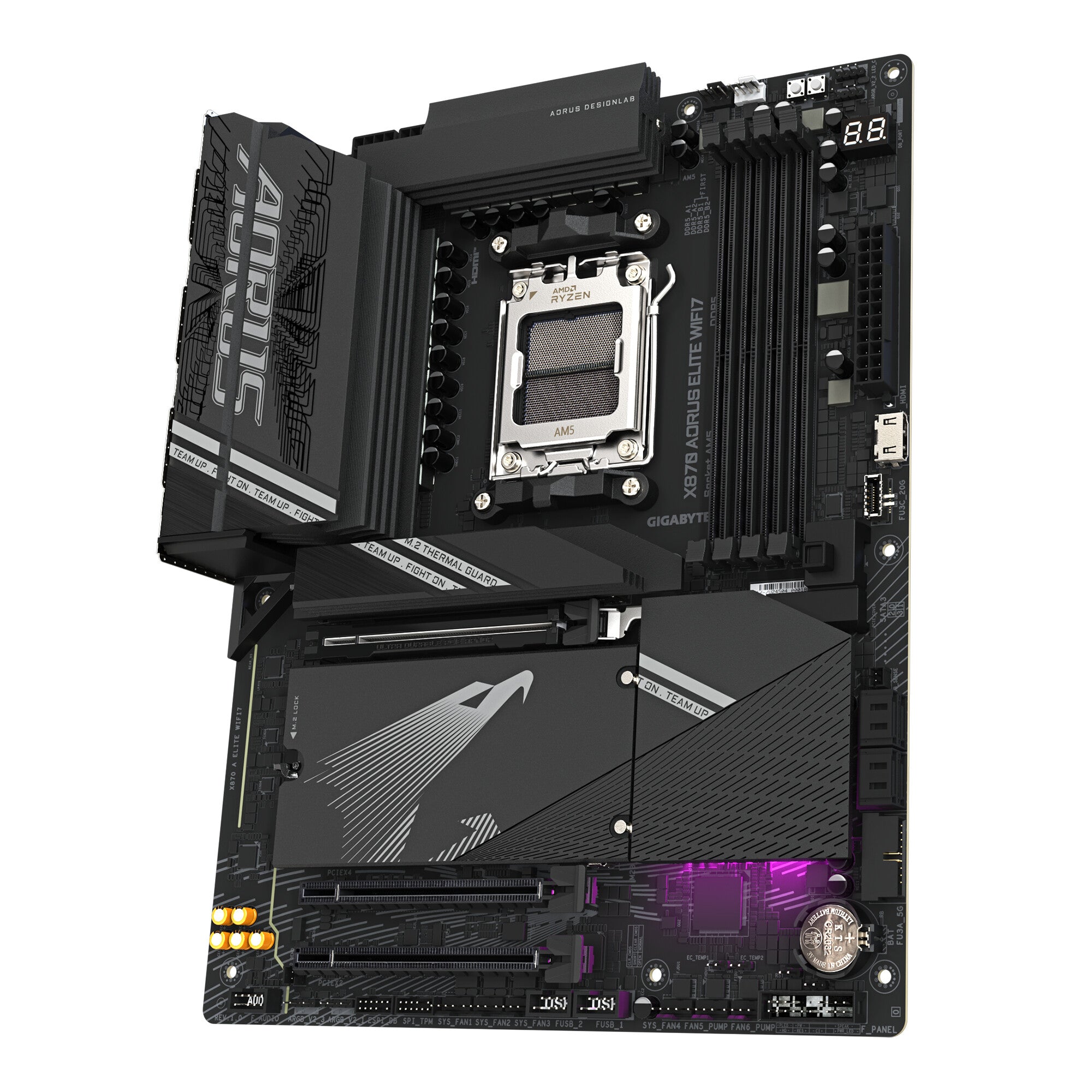

The Gigabyte X870 AORUS ELITE WIFI7 delivers enthusiast-level features in an ATX form factor, built around AMD's latest X870 chipset for AM5 processors. This board supports the full range of current AMD Ryzen CPUs, from 7000-series through the newest 9000-series processors, making it an excellent foundation for high-performance builds. The 16+2+2 phase VRM design provides robust power delivery for demanding workloads and overclocking scenarios.
Memory support reaches impressive heights with DDR5 compatibility up to 8200MHz when overclocked, across four DIMM slots that can accommodate up to 256GB total capacity. Storage flexibility comes from four M.2 slots - three supporting PCIe 5.0 and one PCIe 4.0 - allowing for multiple high-speed NVMe drives without compromising expansion options. The PCIe layout includes both a PCIe 5.0 x16 slot and PCIe 4.0 x16 slot for graphics cards and other expansion needs.
Connectivity stands out with cutting-edge Wi-Fi 7 wireless, 2.5GbE wired networking, and USB 4 support for the fastest data transfers available. The board includes practical extras like mounting screws, a Wi-Fi antenna, and a CR2032 battery pre-installed. RGB lighting enthusiasts get four dedicated headers for customizable lighting setups, while the multiple fan and pump connectors ensure comprehensive cooling control for any build configuration.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 3 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

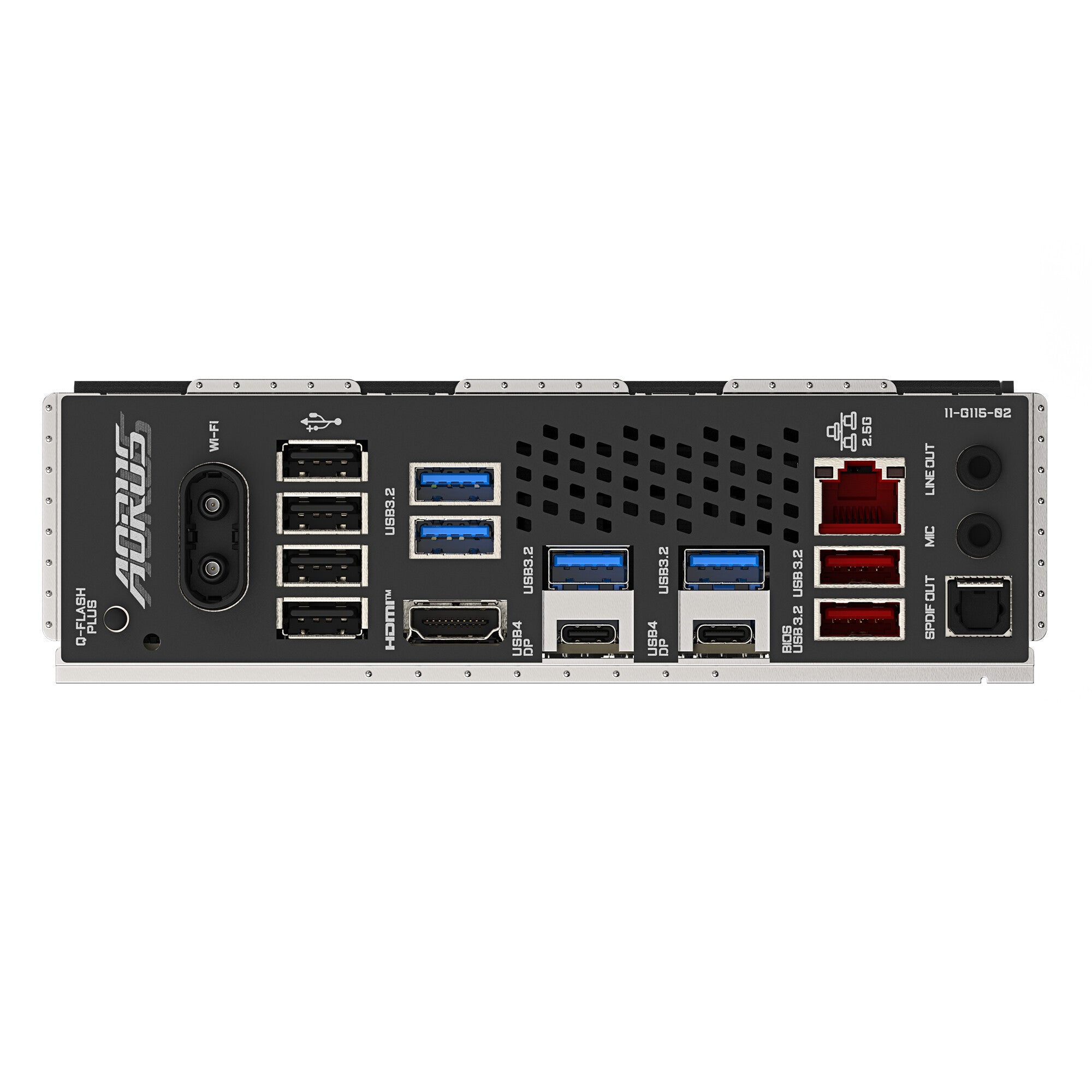

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.74 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 2.4 kg |
