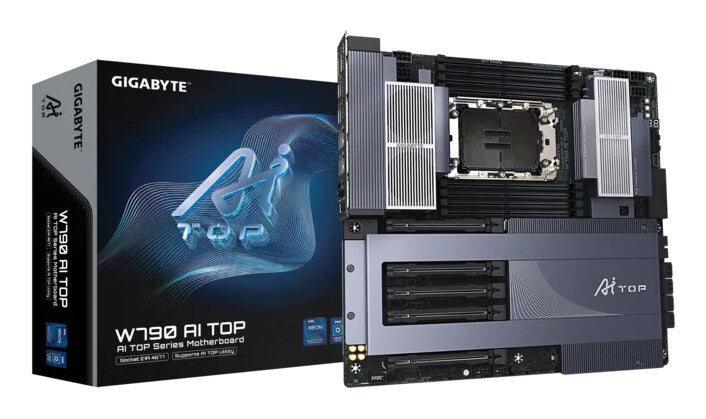

Gigabyte W790 AI TOP EATX Motherboard | LGA4677 | 8x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- Training your own AI on your desk
- Support 5th Gen Intel® Xeon® W processors
- Digital twin 16+2+2 phases VRM solution
- Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt
- Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
- Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
- Friendly UI : AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Gigabyte W790 AI TOP EATX Motherboard | LGA4677 | 8x DDR5 Slots | Wi-Fi 7
Description

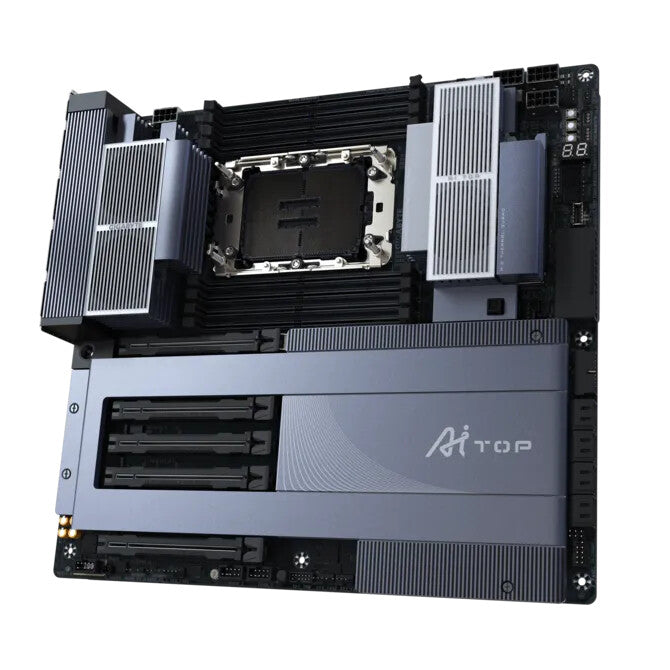

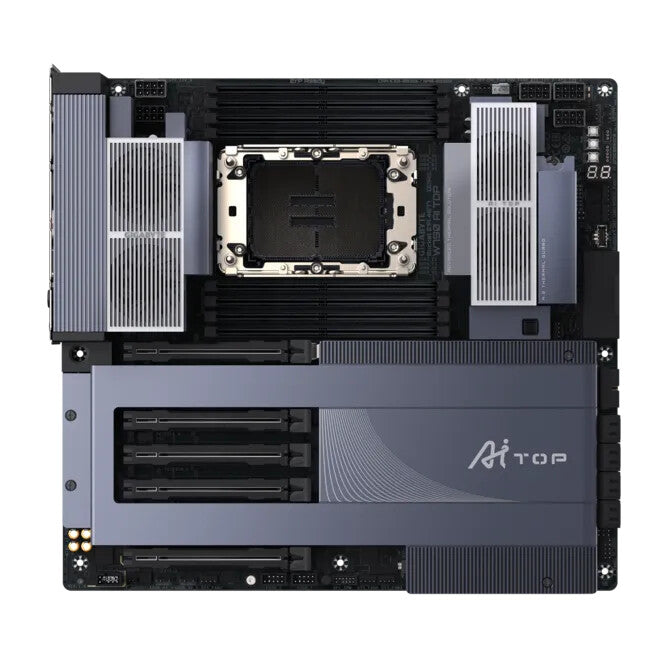

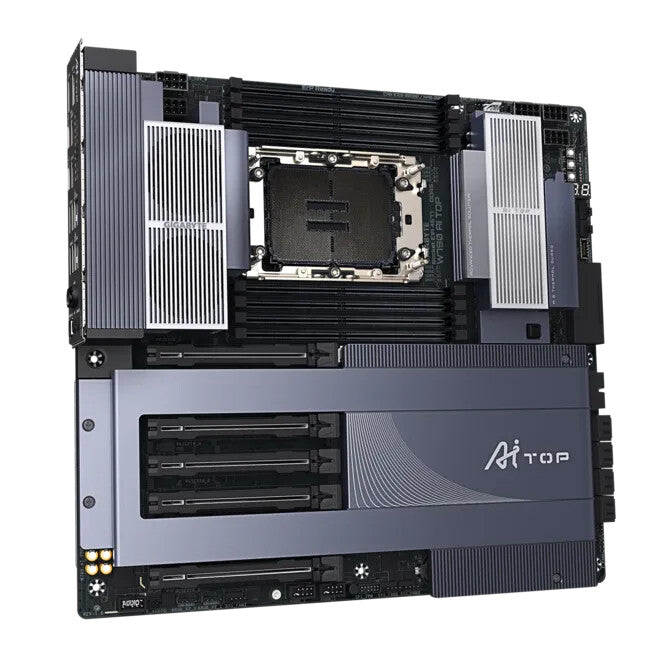

The Gigabyte W790 AI TOP is a professional-grade EATX motherboard built around Intel's W790 chipset and LGA4677 socket, specifically engineered for Intel Xeon processors in workstation and server environments. This board delivers enterprise-level performance with support for up to 2TB of DDR5 memory across eight DIMM slots, reaching speeds of 5600MHz when overclocked. The robust 16+2+2 phase VRM design ensures stable power delivery even under heavy computational loads, making it ideal for AI development, content creation, data analysis, and other professional workloads that demand maximum reliability.
Storage and expansion capabilities are extensive, with six M.2 slots providing ample room for high-speed NVMe drives - four PCIe 5.0 slots for cutting-edge performance and two PCIe 4.0 slots for additional capacity. Five PCIe x16 slots accommodate multiple graphics cards or professional accelerator cards, essential for machine learning, rendering, or other GPU-intensive tasks. Connectivity matches the board's professional focus with Wi-Fi 7 wireless, 10 Gigabit Ethernet for high-speed networking, and Thunderbolt 4 for fast external device connections. The board also includes ECC memory support for error correction in mission-critical applications.
Setup is straightforward with comprehensive bundled accessories including mounting screws, antenna for wireless connectivity, and a pre-installed CR2032 battery. Four RGB LED headers and two temperature sensor connectors provide system customization and monitoring capabilities. Multiple fan and pump connectors, including four 8-pin EPS power connectors, accommodate complex cooling configurations needed for high-performance Xeon systems. The three-year warranty reflects Gigabyte's confidence in this board's build quality and reliability for professional use.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | W-2400, W-3400, W3500, W-2500 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 2 TB |
| Maximum RDIMM memory | 256 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 14 |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 8 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 4 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

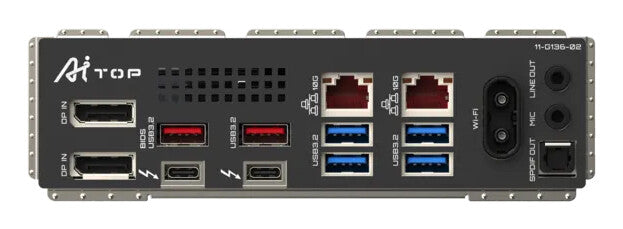

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 6 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 6th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Processor special features | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | Taiwan |
| Packaging data | |
|---|---|
| Package width | 363 mm |
| Package depth | 383 mm |
| Package height | 93 mm |
| Package weight | 5.7 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 330 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 4.87 kg |
