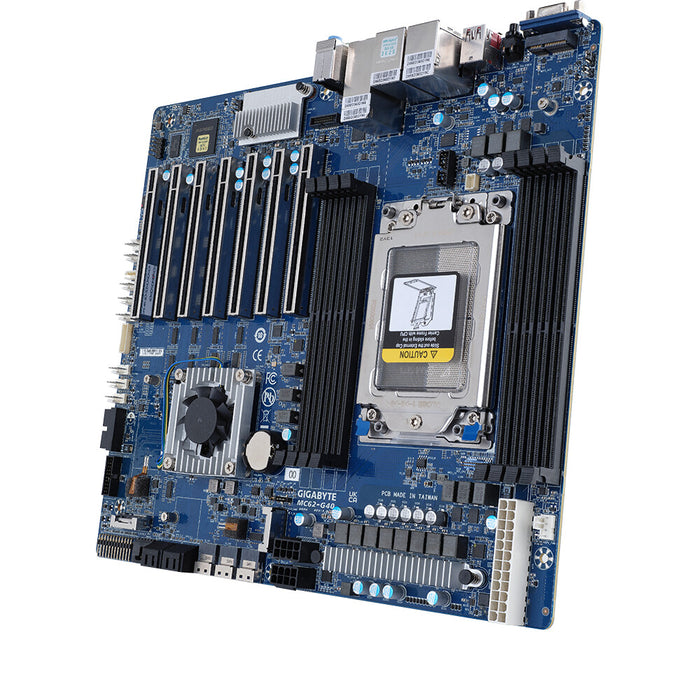

Gigabyte MC62-G40 SSI CEB Motherboard | sWRX8 | 8x DDR4 Slots
KEY FEATURES
- AMD Ryzen Threadripper PRO 3000WX Processors
- 8-Channel DDR4 UDIMM/RDIMM/3DS RDIMM/LRDIMM 8 x DIMMs
- Dual Intel 10GbE and 1GbE LAN Ports
- 1 x Dedicated Management Port
- 7 x PCIe 4.0 Slots for Multi-GPU
- 4x SATA Ports, 3x SlimSAS Ports (PCIe Gen4 or SATA)
- Dual M.2 (PCIe Gen4 or SATA) and USB 3.2 Gen2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte MC62-G40?
How much memory can the Gigabyte MC62-G40 support?
What type of storage interfaces does the Gigabyte MC62-G40 offer?
Gigabyte MC62-G40 SSI CEB Motherboard | sWRX8 | 8x DDR4 Slots
Description
The Gigabyte MC62-G40 is a server-grade SSI CEB motherboard built around AMD's WRX80 chipset for the sWRX8 socket. Supporting AMD Ryzen Threadripper PRO 3000 WX-Series processors, this board targets professional workstations and servers that demand extreme processing power and memory capacity. The SSI CEB form factor provides substantial space for high-density component layouts while maintaining compatibility with many server chassis and full-tower cases.
Memory handling is exceptional, with eight DDR4 DIMM slots supporting up to 2TB of total capacity at speeds from 2133MHz to 3200MHz. Both ECC and non-ECC memory configurations are supported, giving flexibility for error-corrected server applications or cost-optimised workstation builds. Seven PCIe x16 Gen 4.0 slots deliver massive expansion potential for multiple high-end graphics cards, storage controllers, or specialised accelerator cards. Network connectivity includes both 1Gigabit and 10Gigabit LAN ports for high-speed data transfer in enterprise environments.
Storage options include SATA III ports and M.2 slots for fast NVMe drives, while USB 3.2 ports handle peripheral connectivity. The board measures 305x267mm and includes essential accessories like an I/O shield, SATA cables, and installation hardware. Memory profiles support JEDEC standard speeds, ensuring reliable operation in mission-critical applications where stability takes priority over maximum overclocking performance.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
| Maximum number of SMP processors | 1 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3200 MHz |
| Maximum internal memory | 2 TB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 1920 x 1200 pixels |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 8 |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel I210, Intel® X550-AT2 |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD WRX80 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Linux operating systems supported | Ubuntu 20.04 LTS |
| Windows operating systems supported | Windows 10 x64 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
