Gigabyte H610M H V2 mATX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Supports IntelĀ® Coreā¢ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte H610M H V2?
How many memory slots does this motherboard have?
What is the warranty period for this motherboard?
Gigabyte H610M H V2 mATX Motherboard | LGA1700 | 2x DDR5 Slots
Description

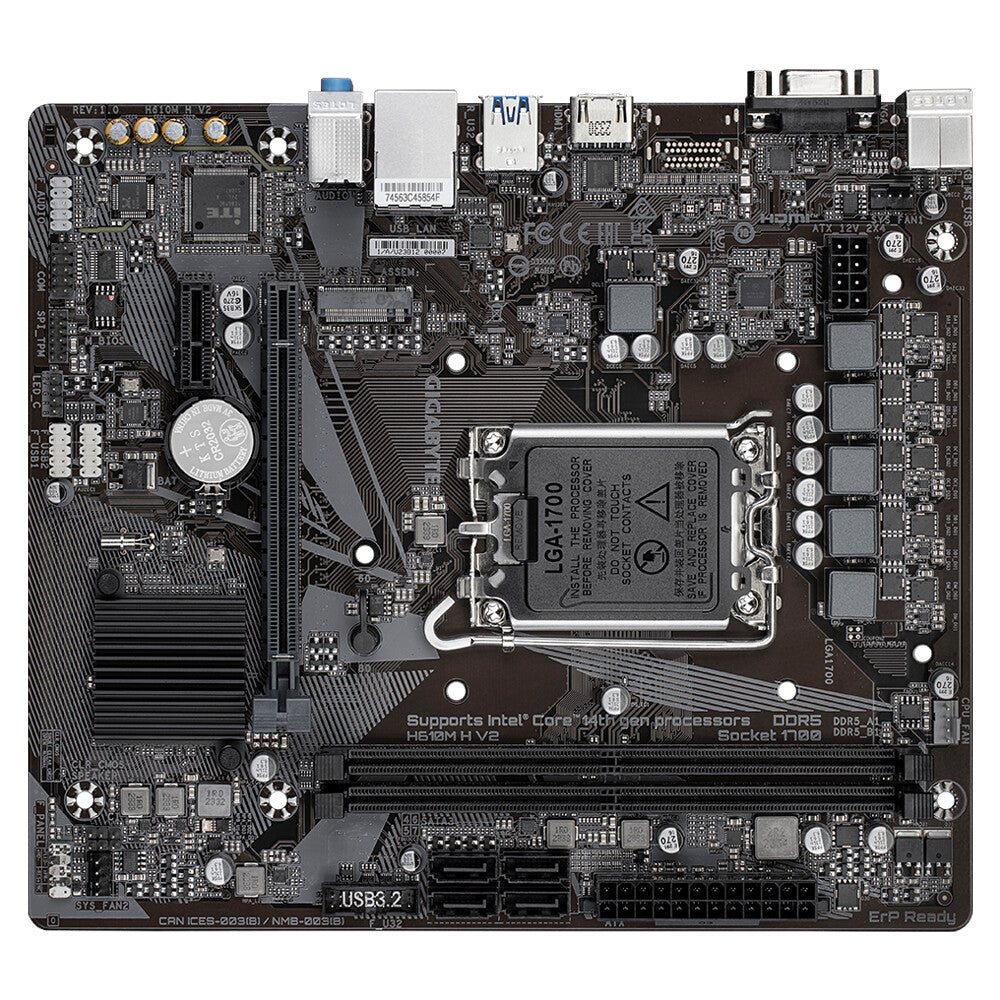

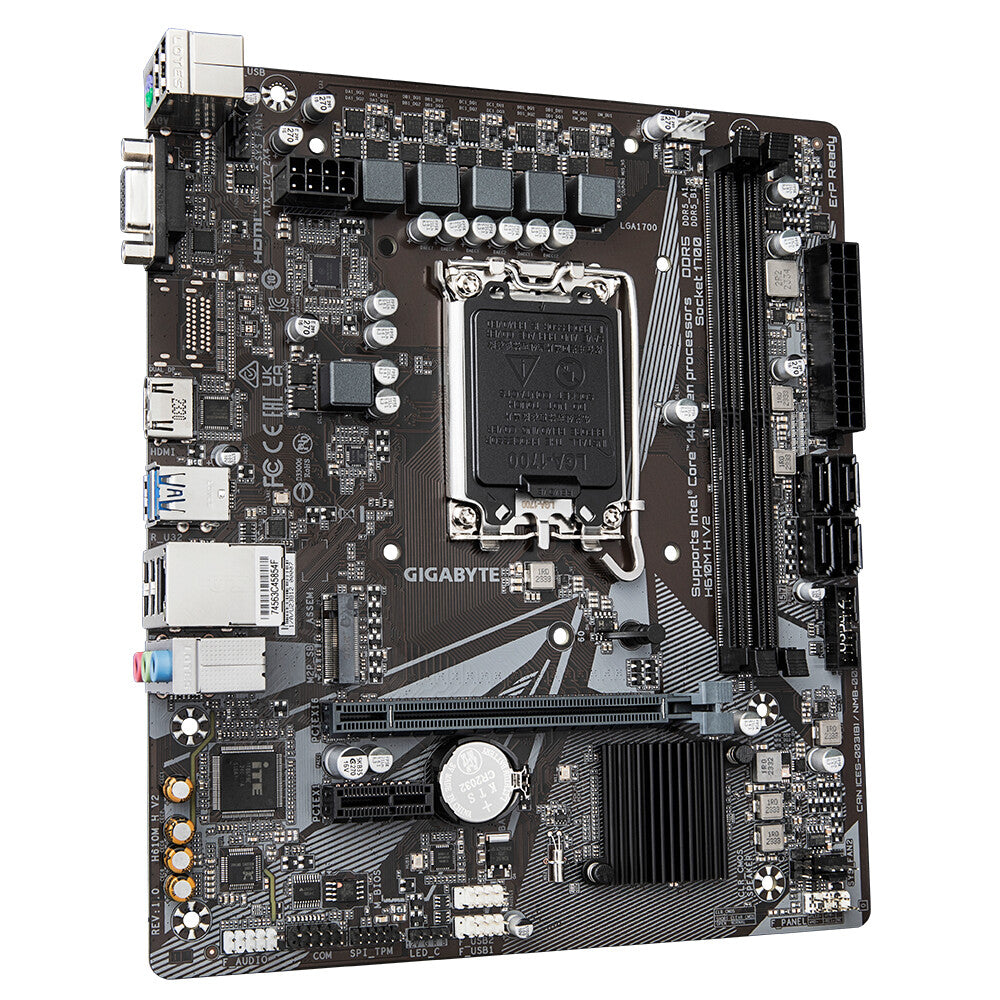

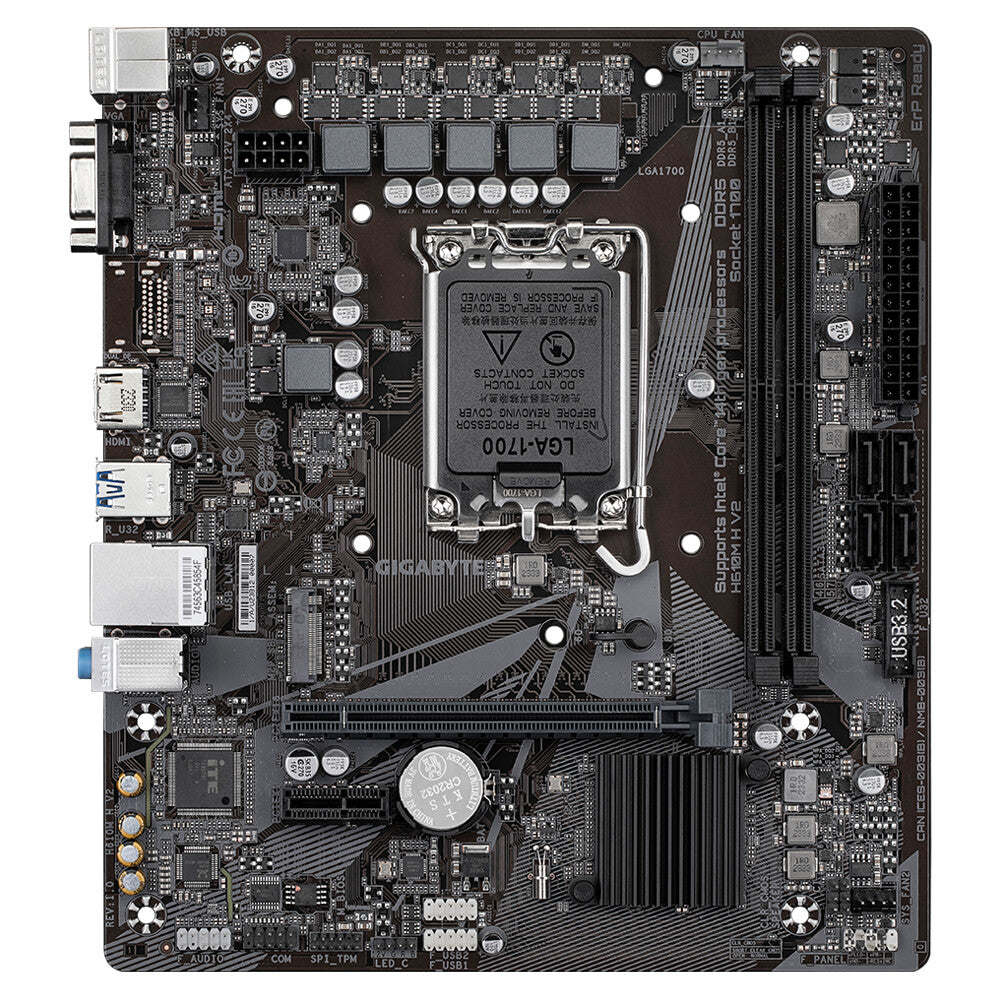

The Gigabyte H610M H V2 is a micro ATX motherboard built around Intel's H610 Express chipset, positioning it as a practical choice for budget-conscious builders using 12th gen Intel Core or budget Celeron and Pentium processors. The mATX form factor makes it suitable for compact builds while still providing room for essential expansion. Its 4+1+1 hybrid phases digital VRM design delivers clean power delivery for stable operation across Intel's LGA1700 processor lineup.
Memory support covers DDR5 modules up to 96GB across two DIMM slots, with speeds reaching 5600MHz for responsive performance in everyday computing tasks. The board includes a single PCIe x16 slot for graphics cards and features PCIe 4.0 design alongside a Gen3 x4 M.2 slot for fast storage. Anti-sulfur resistors protect against environmental damage, while Smart Fan 6 technology manages system cooling automatically. An RGB LED pin header allows for basic lighting customization.
Setup is straightforward with the included I/O shield, user documentation, and a three-year warranty for peace of mind. The board supports both ECC and non-ECC memory configurations, making it versatile for different system requirements. A CR2032 battery comes pre-installed to maintain BIOS settings, and the compact design fits well in smaller cases while delivering the essential features needed for reliable Intel-based systems.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day:Ā Ā£6.99
- 2 days Delivery: Ā£4.99
- 3- 5 Days Shipping: Ā£3.99
- Orders Over Ā£99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | IntelĀ® CeleronĀ®, IntelĀ® Coreā¢ i3, IntelĀ® Coreā¢ i5, IntelĀ® Coreā¢ i7, IntelĀ® Coreā¢ i9, IntelĀ® PentiumĀ® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 96 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 1 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

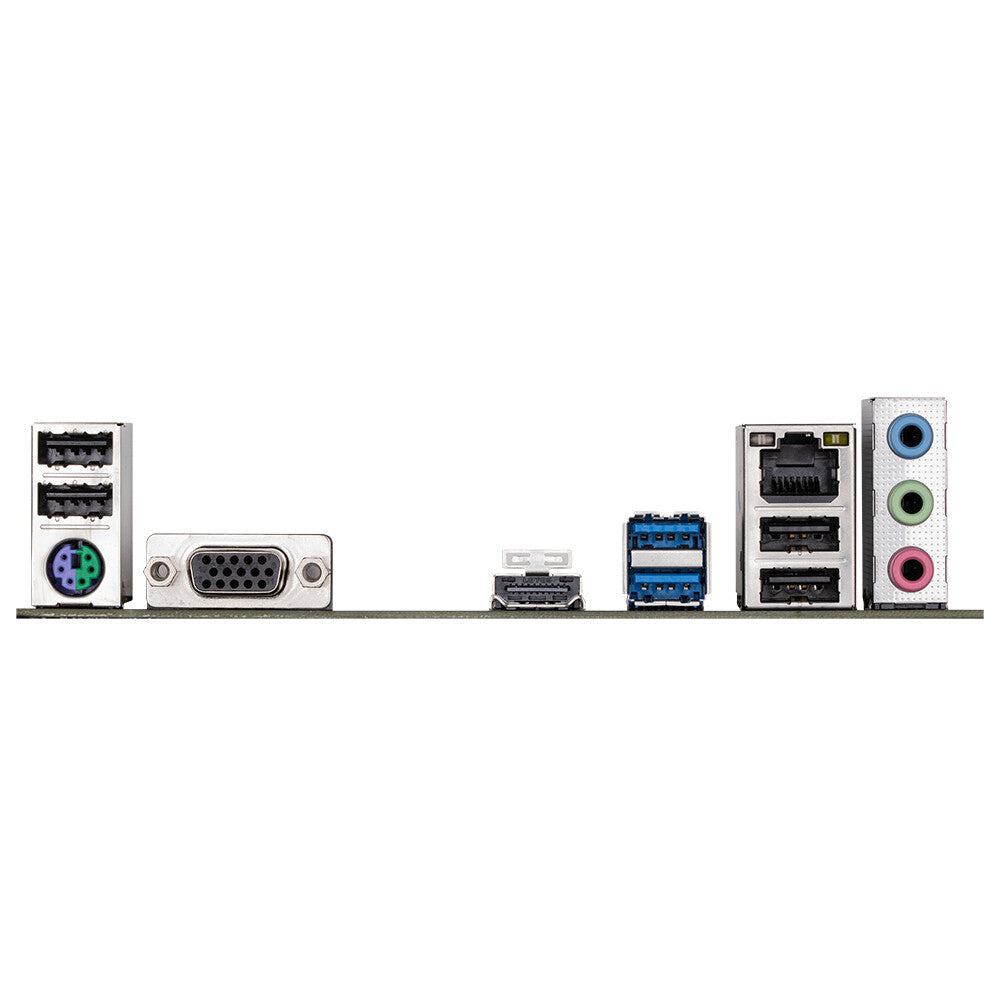

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 694 g |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 196 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
