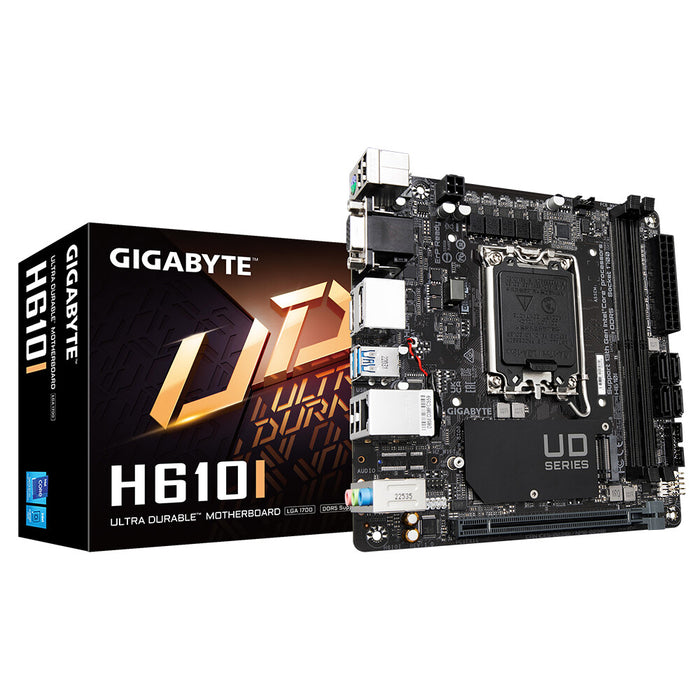

Gigabyte H610I Mini-ITX Motherboard | LGA1700 | 2x DDR5 Slots
KEY FEATURES
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte H610I?
How much memory can the motherboard support?
Does it support RGB lighting?
Gigabyte H610I Mini-ITX Motherboard | LGA1700 | 2x DDR5 Slots
Description
The Gigabyte H610I brings Intel's H610 chipset to the compact Mini-ITX form factor, creating an affordable foundation for small-form-factor builds using 12th, 13th, or 14th generation Intel processors. This budget-focused board supports the full range of LGA1700 CPUs, from entry-level Celeron and Pentium processors up to Core i9 chips, making it versatile for builds ranging from basic office systems to more capable compact gaming rigs. The 4+1+1 hybrid digital VRM design provides clean power delivery even in the space constraints of Mini-ITX, while anti-sulfur resistors help ensure long-term reliability.
Memory support centers on DDR5 with two DIMM slots accommodating up to 64GB total capacity and speeds reaching 5600MHz through memory profile support. The single PCIe 4.0 x16 slot handles modern graphics cards, while a Gen3 x4 M.2 connector provides fast storage expansion. Connectivity includes Intel Gigabit Ethernet enhanced with cFosSpeed traffic management software, plus an RGB LED header for lighting customization. The compact design doesn't sacrifice essential features, maintaining ECC memory compatibility for users who need error correction support.
Smart Fan 6 technology manages system temperatures automatically, adjusting fan curves based on multiple thermal sensors throughout the board. The package includes the essential I/O shield, user documentation, and a pre-installed CR2032 CMOS battery. Gigabyte backs the H610I with a three-year warranty, reflecting confidence in the board's build quality despite its budget positioning in the chipset hierarchy.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Number of HDDs supported | 1 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Cooling type | Active |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 222 mm |
| Package depth | 180 mm |
| Package height | 65 mm |
| Package weight | 590 g |
| Weight & dimensions | |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
