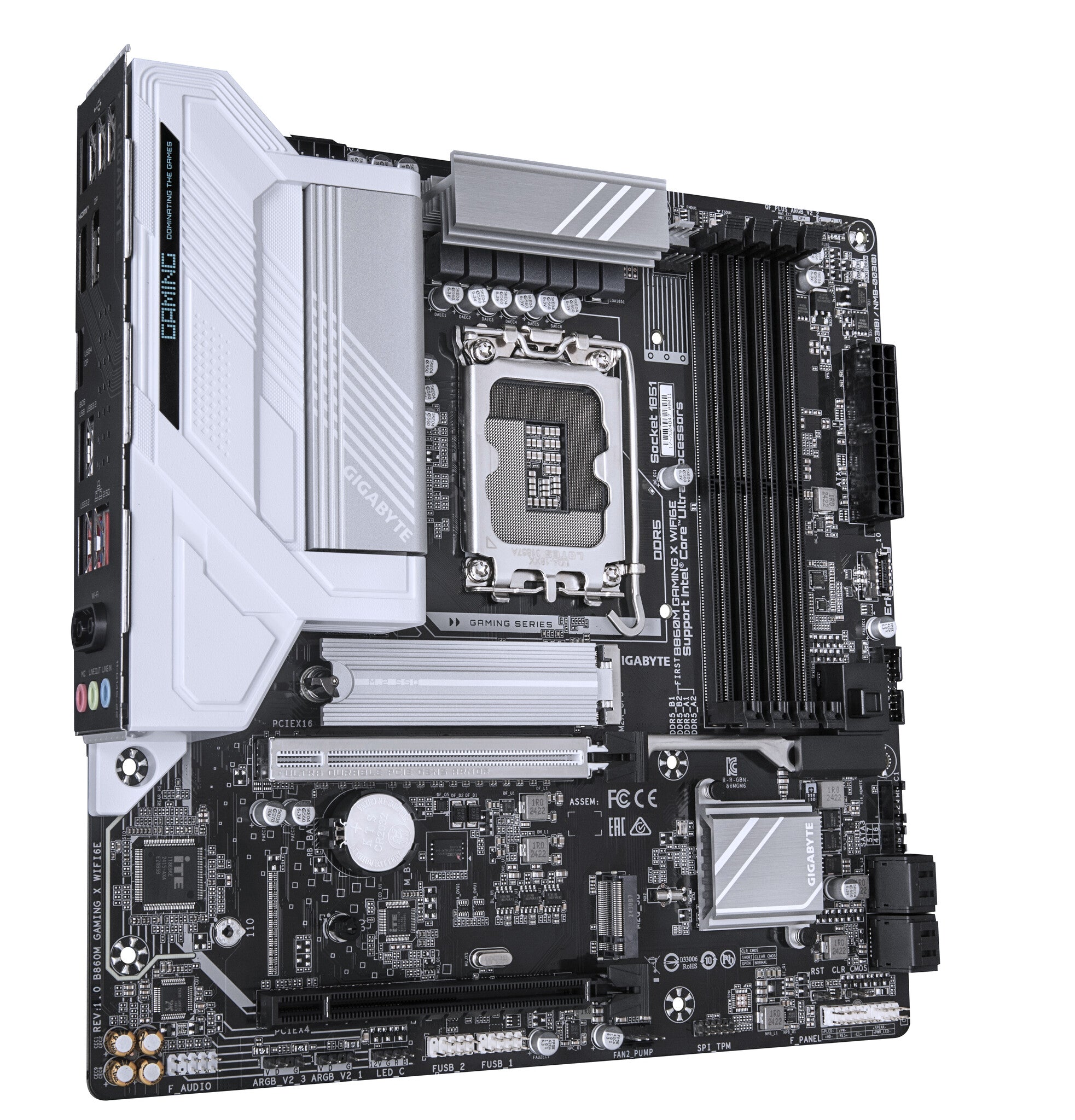

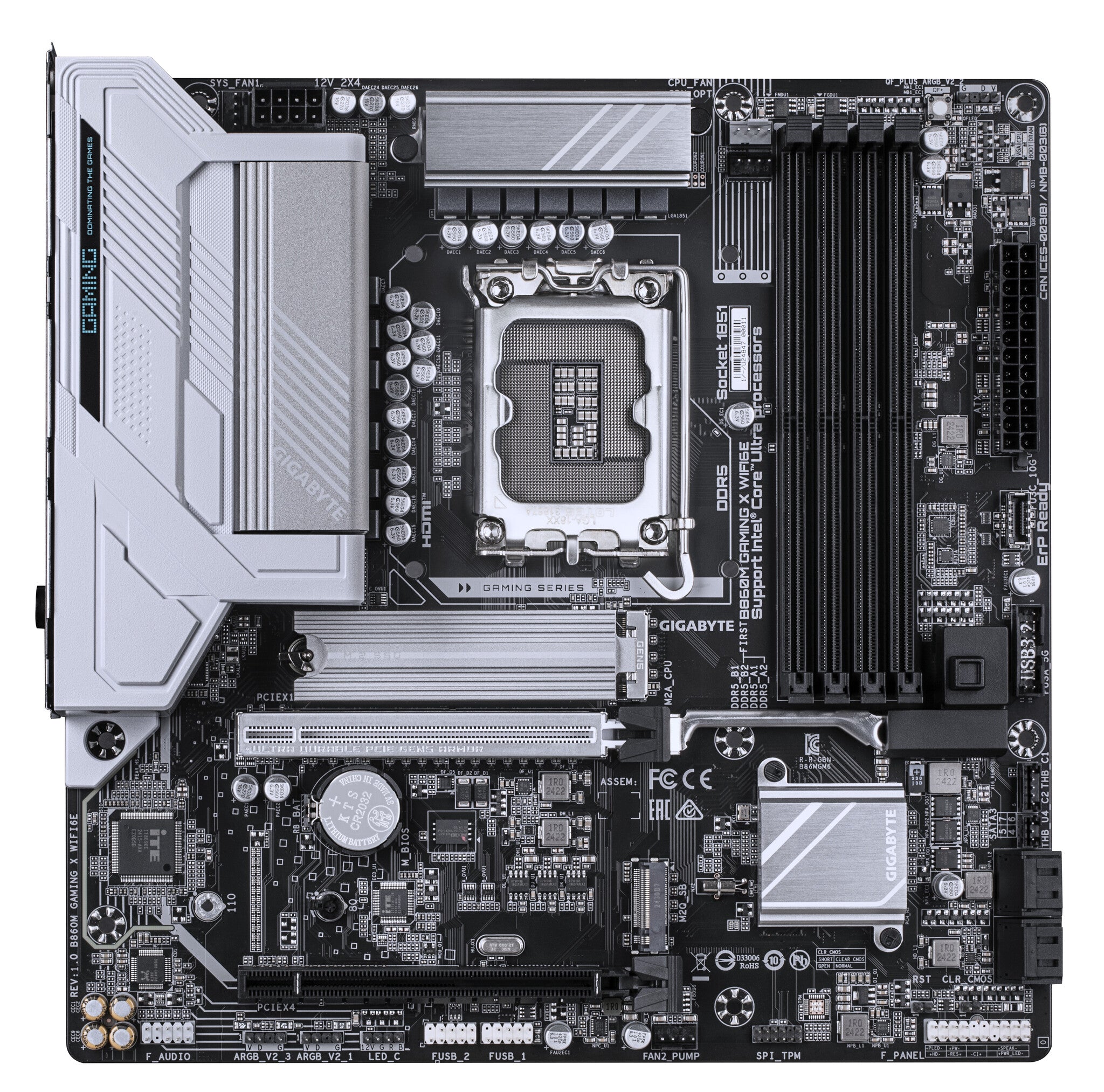

Gigabyte B860M GAMING X WIFI6E mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Hybrid Digital 8+1+2+2 Phases 60A DrMOS VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
- M.2 Thermal Guard with EZ-Latch Click
- Advanced MOSFET Heatsinks & PCH Heatsink
- Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen 2 Type-C
- Q-Flash Plus
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with this motherboard?
How much memory can this motherboard support?
Does it come with built-in Wi-Fi?
Gigabyte B860M GAMING X WIFI6E mATX Motherboard | LGA1851 | 4x DDR5 Slots | Wi-Fi 6E
Description
The Gigabyte B860M GAMING X WIFI6E delivers solid performance in a compact micro ATX package, built around Intel's B860 chipset to support the latest Core Ultra processors on the LGA1851 socket. This mainstream board strikes a balance between features and affordability, making it ideal for gaming builds, productivity workstations, and compact systems where space matters but performance can't be compromised. The 8+1+2+2 phase VRM design ensures stable power delivery even under demanding workloads.
Memory support extends up to 256GB of DDR5 across four DIMM slots, with speeds reaching 9200MHz for those wanting maximum performance. Two M.2 slots accommodate fast storage - one PCIe 5.0 slot for cutting-edge NVMe drives and one PCIe 4.0 slot for additional capacity. Graphics cards get full bandwidth through the PCIe 5.0 x16 slot, while the secondary PCIe 4.0 x16 slot handles expansion cards. Connectivity is comprehensive with 2.5 Gigabit Ethernet, Wi-Fi 6E wireless, and USB 4 support for the latest devices.
Setup is straightforward with support for memory XMP profiles to achieve rated speeds with a simple BIOS setting. The board includes essential accessories like mounting screws for M.2 drives, a Wi-Fi antenna, and the I/O shield. RGB headers let you sync lighting effects across compatible components, while multiple fan and pump connectors provide flexible cooling options. A three-year warranty backs this reliable foundation for modern Intel builds.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600,6400,9200 MHz |
| Supported memory clock speed (max) | 9200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Thunderbolt headers | 2 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

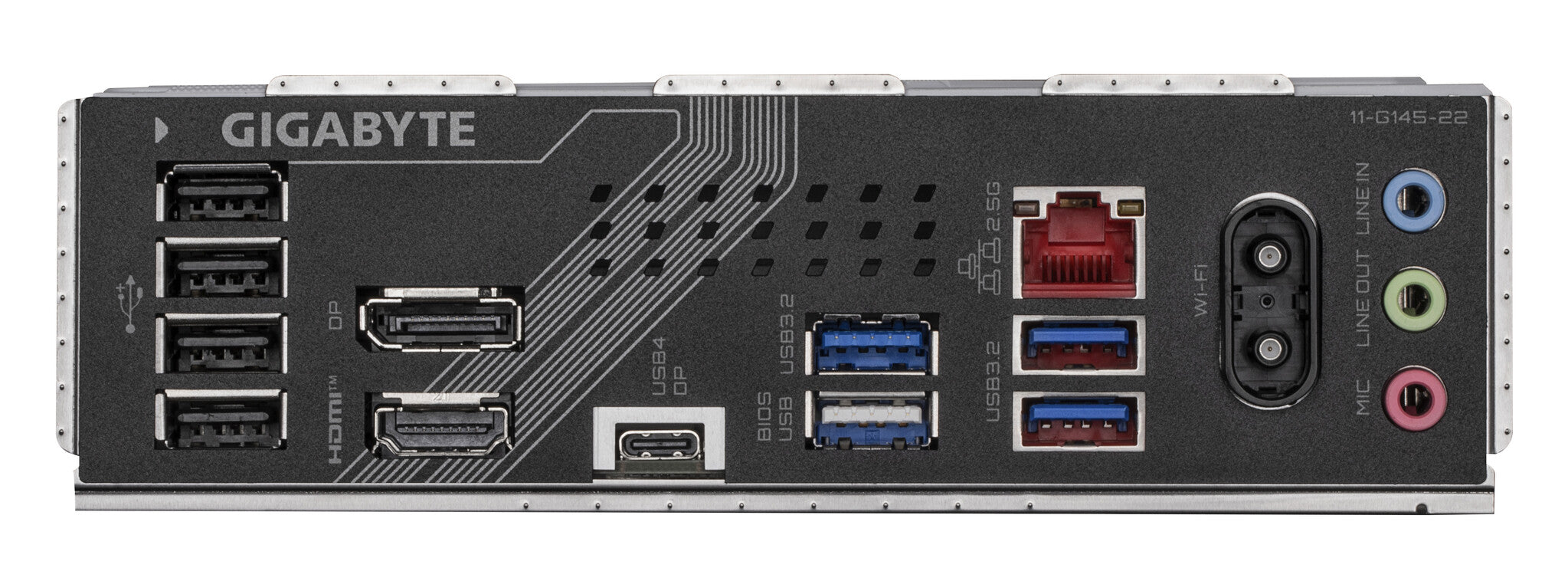

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.43 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |

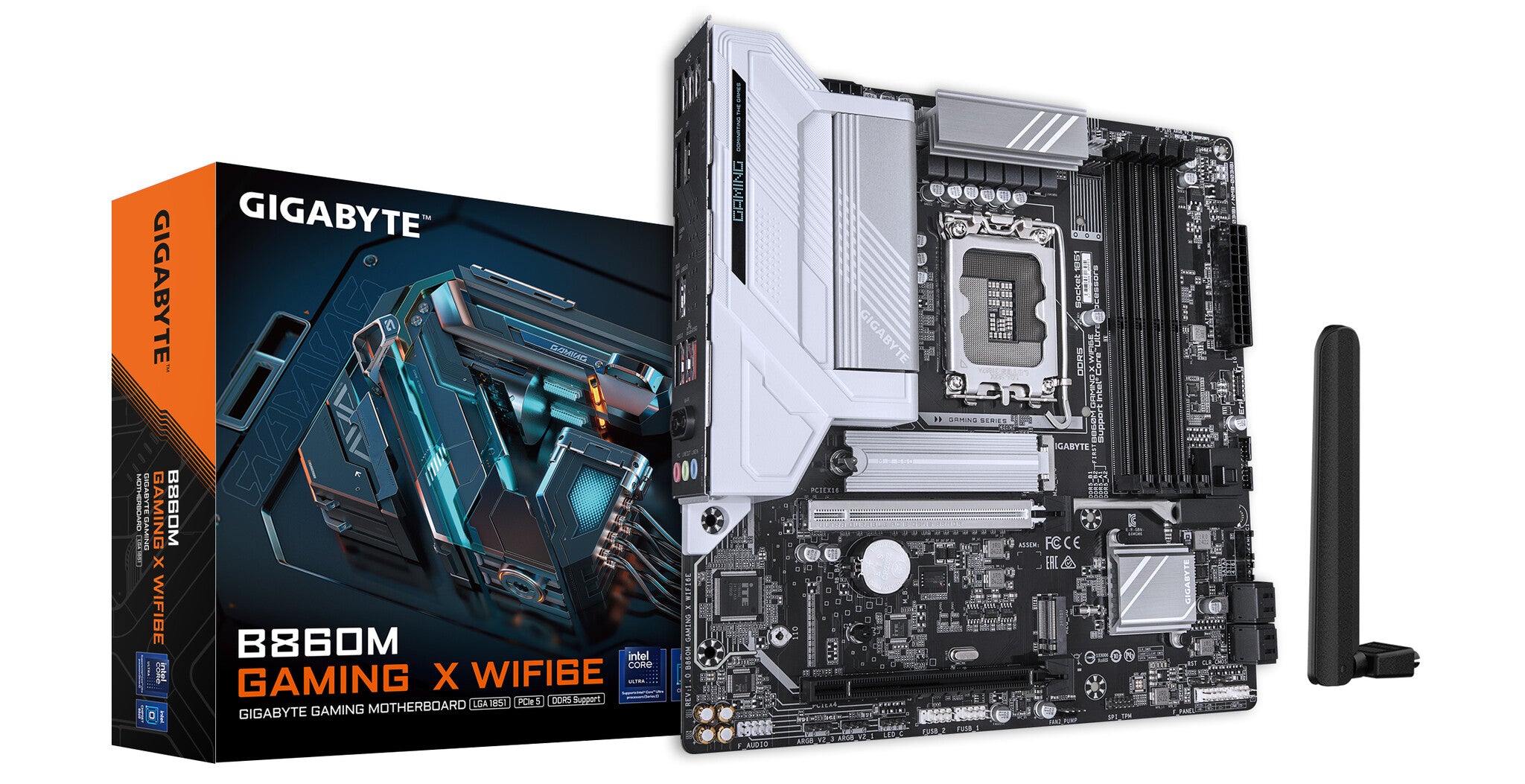

| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.23 kg |
