Gigabyte B850M AORUS ELITE WIFI6E mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
Gigabyte B850M AORUS ELITE WIFI6E mATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 6E
Description
The Gigabyte B850M AORUS ELITE WIFI6E packs serious performance into a compact mATX design. Built around AMD's latest B850 chipset and AM5 socket, this board supports the newest Ryzen 7000, 8000, and 9000 series processors while offering premium features at a mainstream price point. The 12+2+2 phase digital VRM design ensures stable power delivery even under demanding workloads, making it suitable for both productivity builds and gaming systems where space is at a premium.
Memory performance stands out with DDR5 support up to 8200MHz when overclocked, spread across four DIMM slots for a maximum capacity of 256GB. Storage is equally impressive with two M.2 slots - one PCIe 5.0 and one PCIe 4.0 - alongside a single PCIe 5.0 x16 slot for your graphics card. Connectivity covers all modern needs through Wi-Fi 6E wireless, 2.5 Gigabit Ethernet, and multiple USB 3.2 Gen 2 ports. The inclusion of four RGB LED headers lets you customize lighting across your system.
Setup is straightforward with everything needed in the box: I/O shield, antenna for Wi-Fi, mounting screws, and a CR2032 battery already installed for BIOS settings. XMP memory profiles work seamlessly to hit those high DDR5 speeds without manual tweaking. The black PCB maintains a clean aesthetic that works in windowed cases, while the compact mATX footprint leaves room for additional components in smaller chassis without sacrificing the connectivity and performance features you'd expect from a modern AMD platform.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| 12V power connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

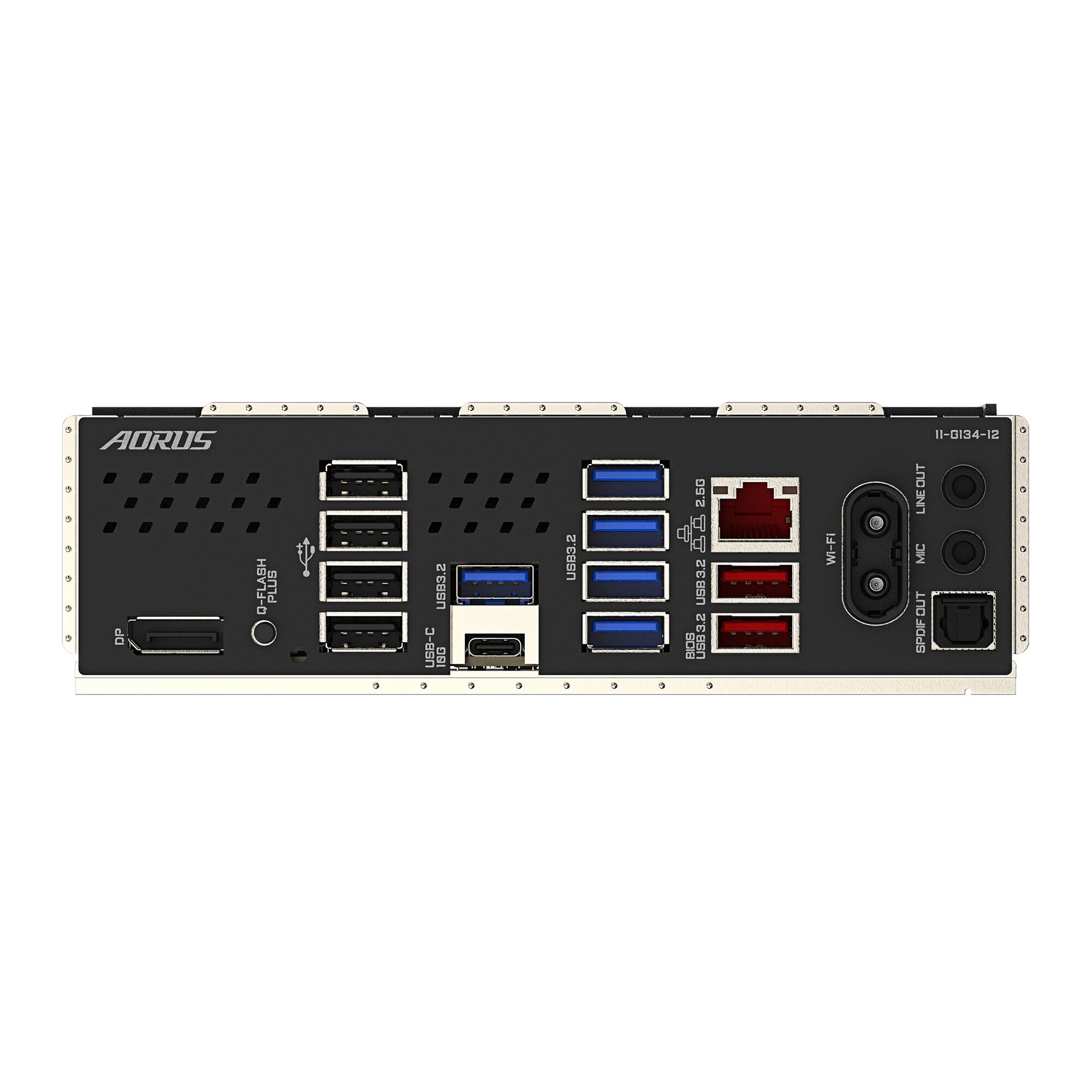

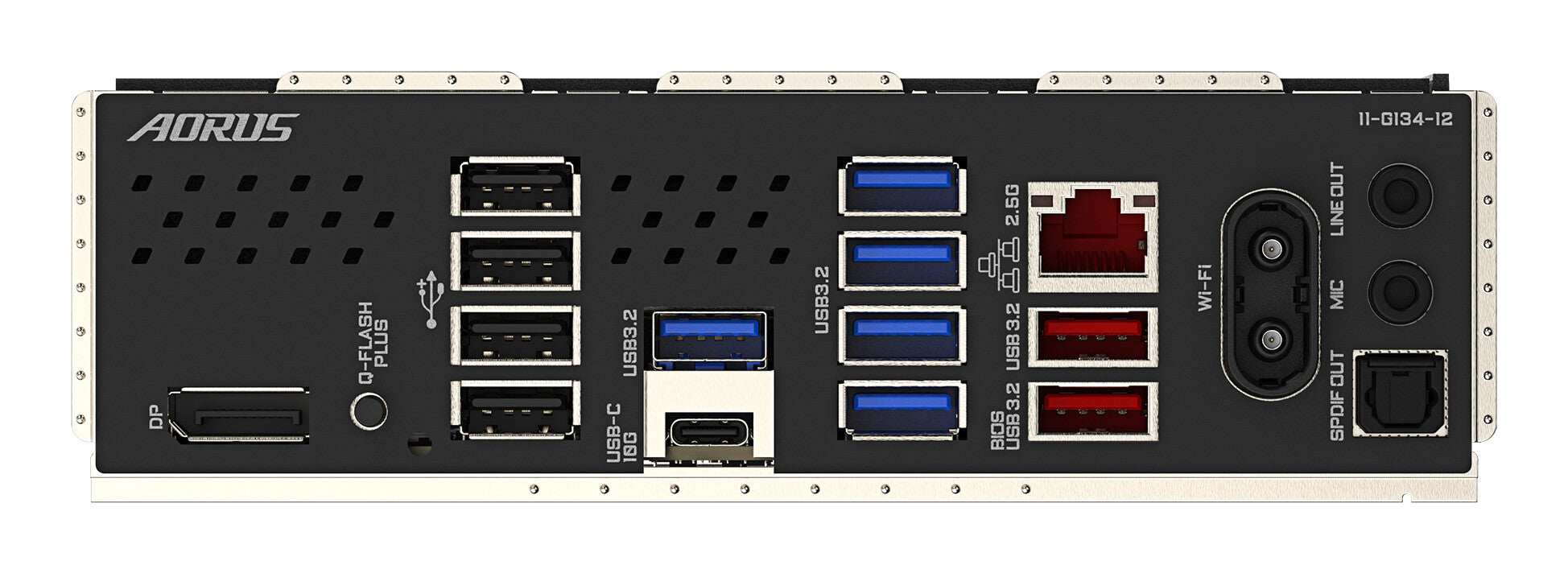

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.97 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.78 kg |
