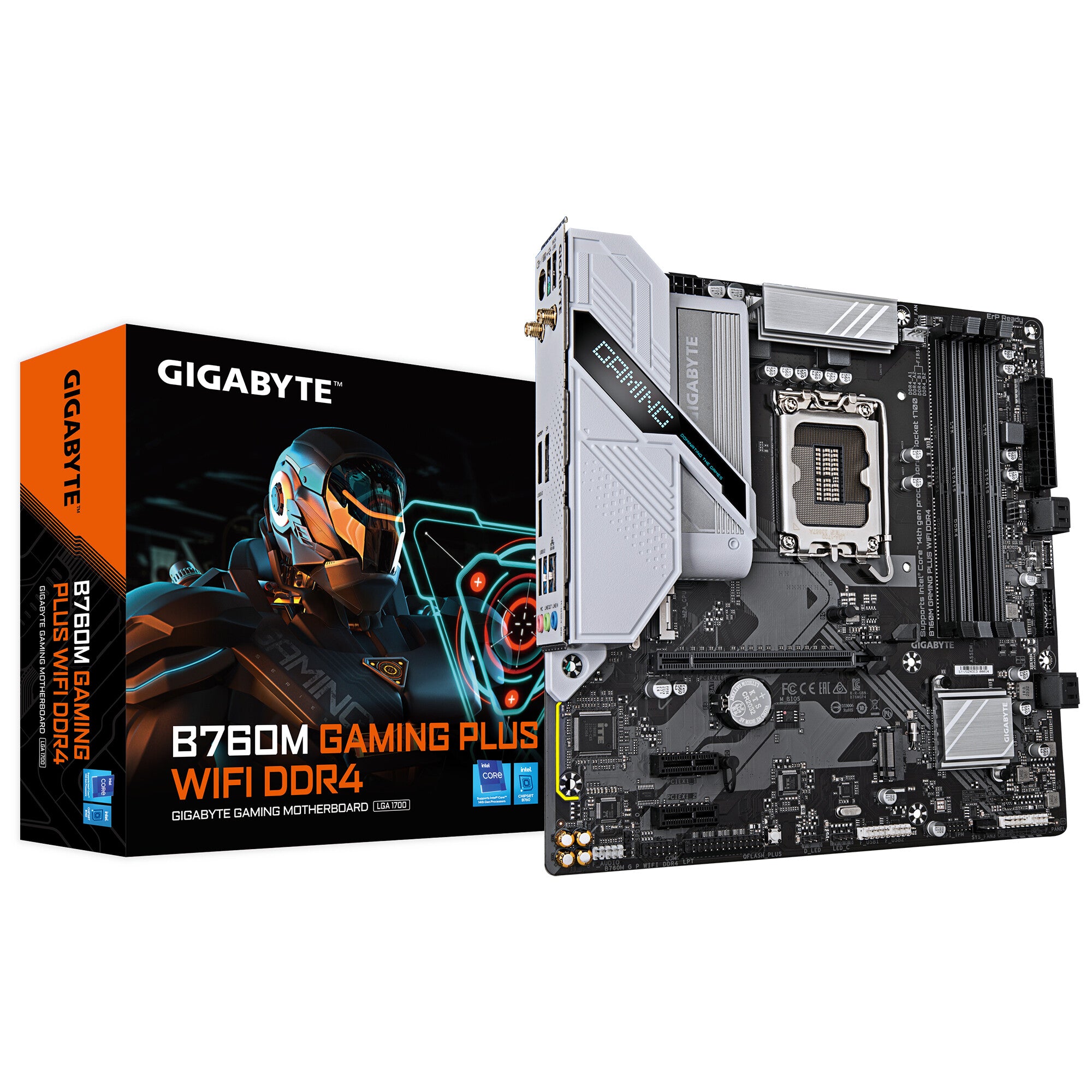

Gigabyte B760M GAMING PLUS WIFI DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte B760M GAMING PLUS?
How much memory can I install on this motherboard?
Does this motherboard support Wi-Fi?
Gigabyte B760M GAMING PLUS WIFI DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots | Wi-Fi 6
Description

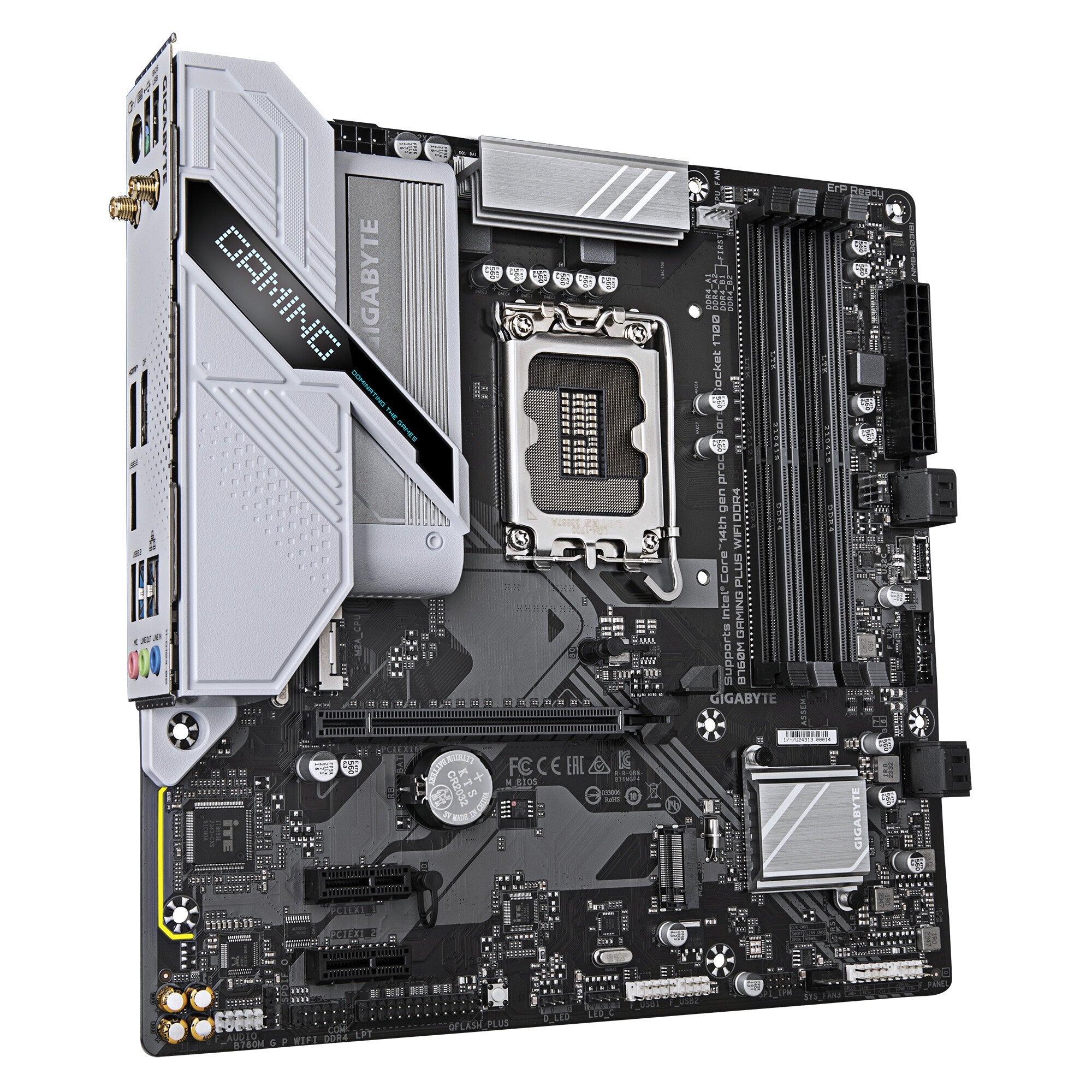

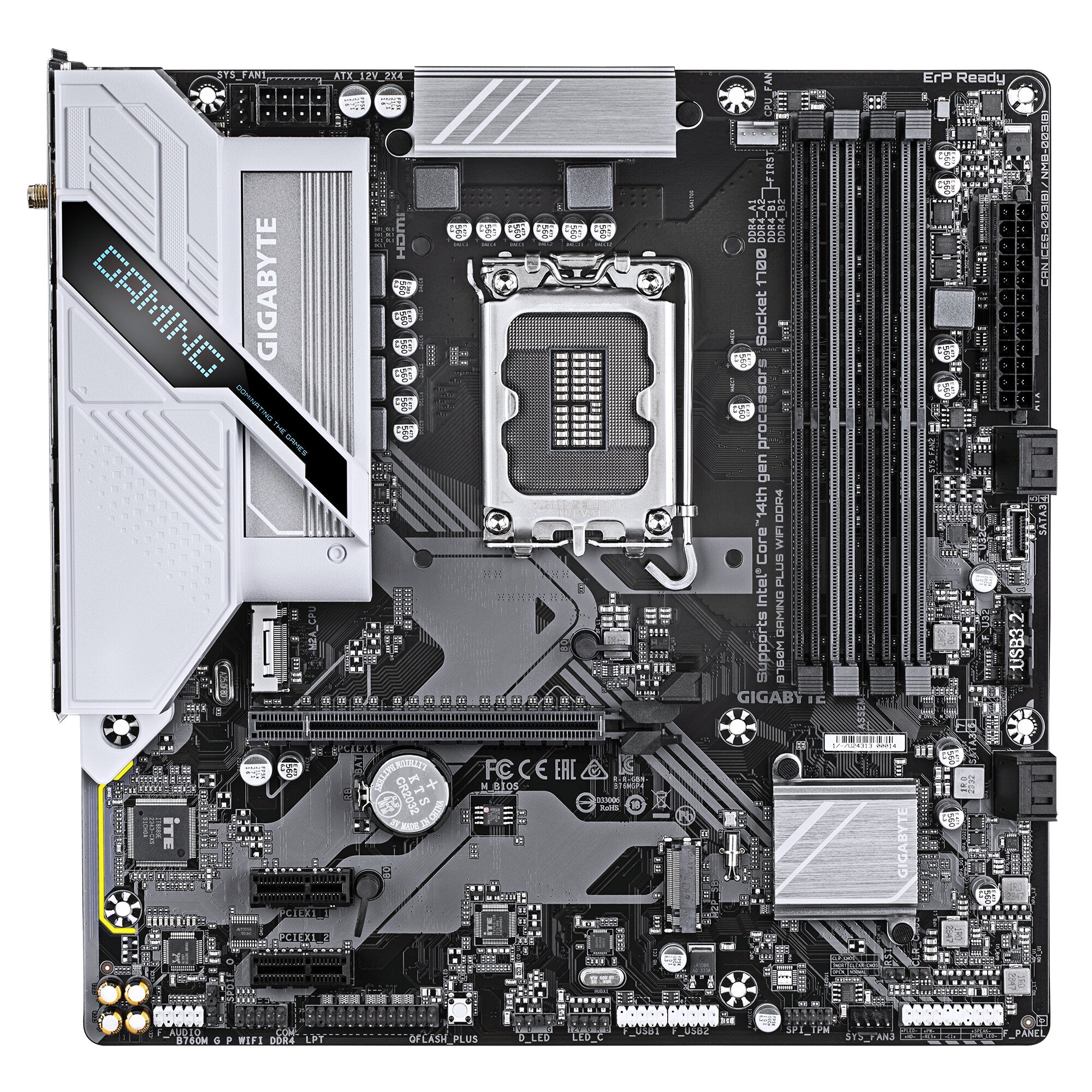

The Gigabyte B760M GAMING PLUS WIFI DDR4 delivers mainstream performance in a compact mATX package, built around Intel's B760 chipset for 12th, 13th, and 14th generation Intel Core processors. This board strikes a practical balance between features and price, making it well-suited for mid-range gaming systems and general-purpose builds where space efficiency matters. The 4+1+1 phase VRM provides stable power delivery for Intel's mainstream CPU lineup, while the mATX form factor fits comfortably in smaller cases without sacrificing essential connectivity.
Memory support extends up to 128GB of DDR4 across four DIMM slots, with speeds reaching 5333MHz when overclocked through XMP profiles. Two PCIe 4.0 M.2 slots handle fast NVMe storage, both supporting the standard 2280 form factor for maximum SSD compatibility. The single PCIe x16 slot runs at Gen 4.0 speeds for modern graphics cards, while two additional PCIe x1 slots provide room for expansion cards. Built-in Wi-Fi 6 eliminates the need for separate wireless adapters, and Gigabit Ethernet handles wired connections reliably.
Setup is straightforward with the included I/O shield, antenna for Wi-Fi functionality, and necessary mounting screws. The motherboard includes RGB LED headers for lighting customization, plus all the standard connectors you'd expect including USB 3.2 Gen 1 ports and a single 8-pin EPS power connector. XMP memory profile support simplifies RAM overclocking, letting you achieve rated speeds beyond DDR4's standard 2133MHz without manual tuning. A three-year warranty backs the hardware, with a CR2032 CMOS battery included to maintain system settings.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Parallel connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 2 |

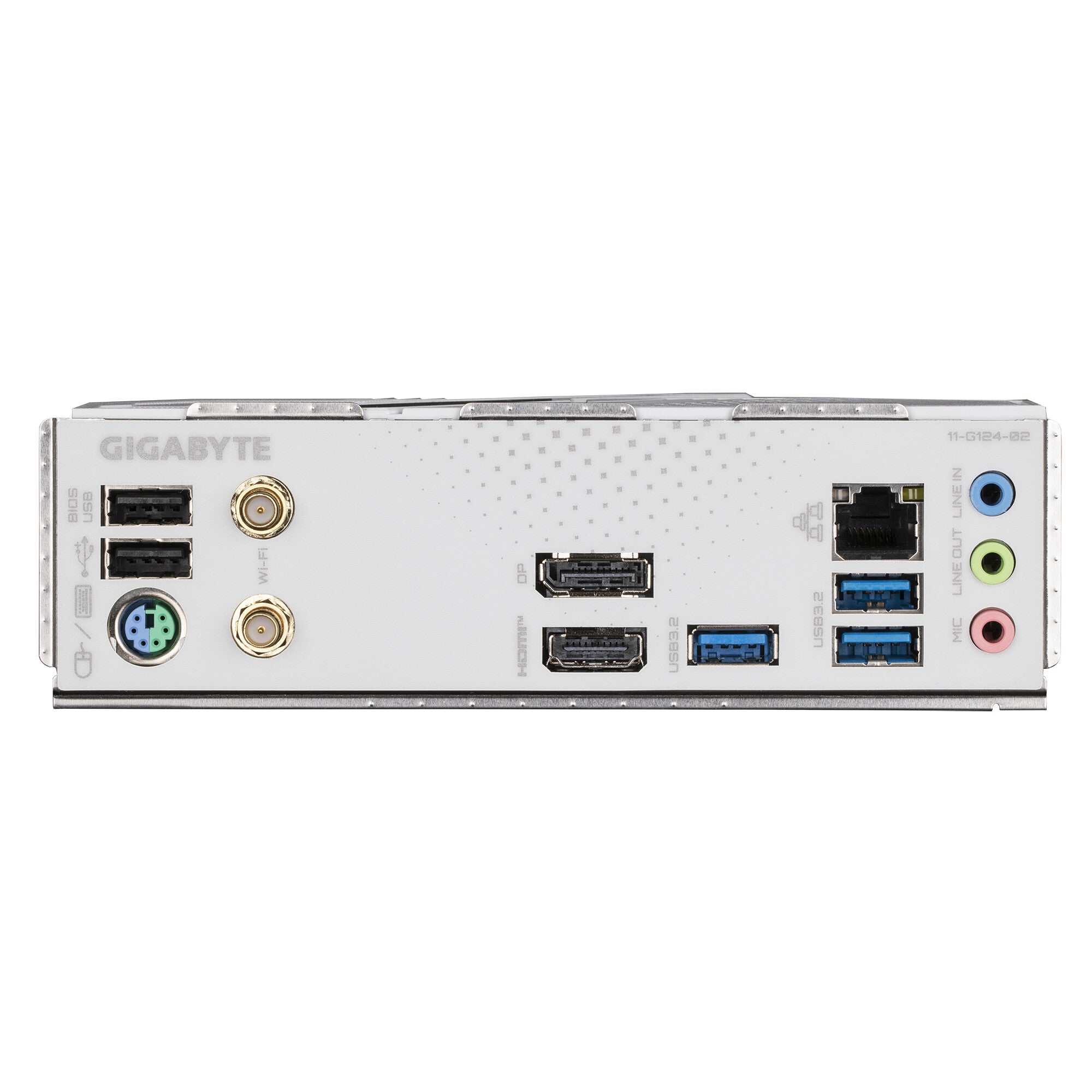

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Line-in | Yes |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.2 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.1 kg |
