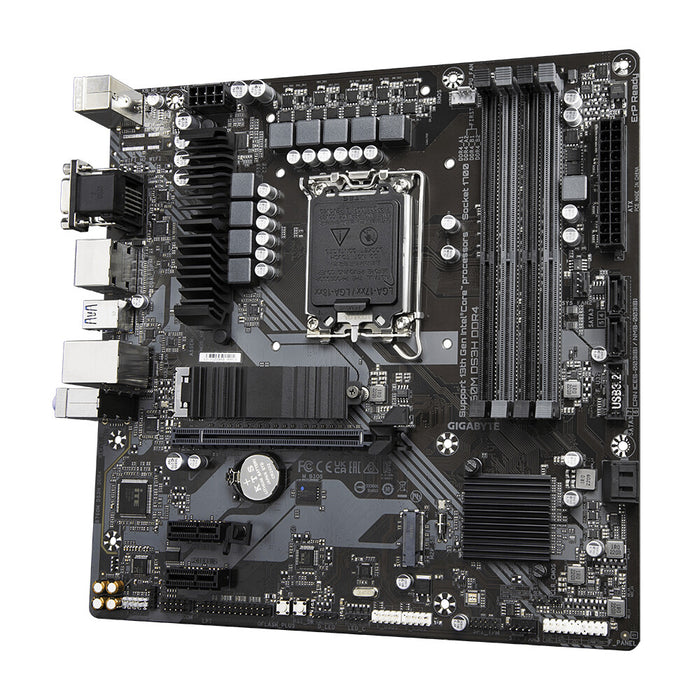

Gigabyte B760M DS3H DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
What is the benefit of the M.2 Thermal Guard?
Can I customise the lighting effects on this motherboard?
Gigabyte B760M DS3H DDR4 mATX Motherboard | LGA1700 | 4x DDR4 Slots
Description
The Gigabyte B760M DS3H DDR4 is a micro ATX motherboard designed around Intel's budget-friendly B760 chipset and LGA1700 socket. This board accommodates Intel's 12th and 13th generation processors, from basic Celeron and Pentium chips right up to high-end Core i9 models. Its compact form factor makes it suitable for smaller builds where space is at a premium, while the B760 chipset provides essential features without the premium cost of Z-series boards.
Memory support centers on four DDR4 DIMM slots with capacity for up to 128GB of system RAM. The board handles DDR4 speeds from standard JEDEC specifications up to overclocked speeds of 5333MHz through memory profiles, giving builders flexibility to balance cost and performance based on their specific needs. A single PCIe 4.0 x16 slot provides graphics card support with full bandwidth for modern GPUs.
Setup is straightforward with AMI UEFI BIOS handling system configuration and memory profile activation. The board includes an RGB LED header for builders wanting to add lighting effects to their system. Gigabyte backs this motherboard with a three-year warranty, and it ships with the necessary mounting hardware and documentation to get your build running. The board uses a CR2032 battery to maintain BIOS settings when powered down.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Number of displays supported | 4 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Bundled software | Norton Internet Security |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
