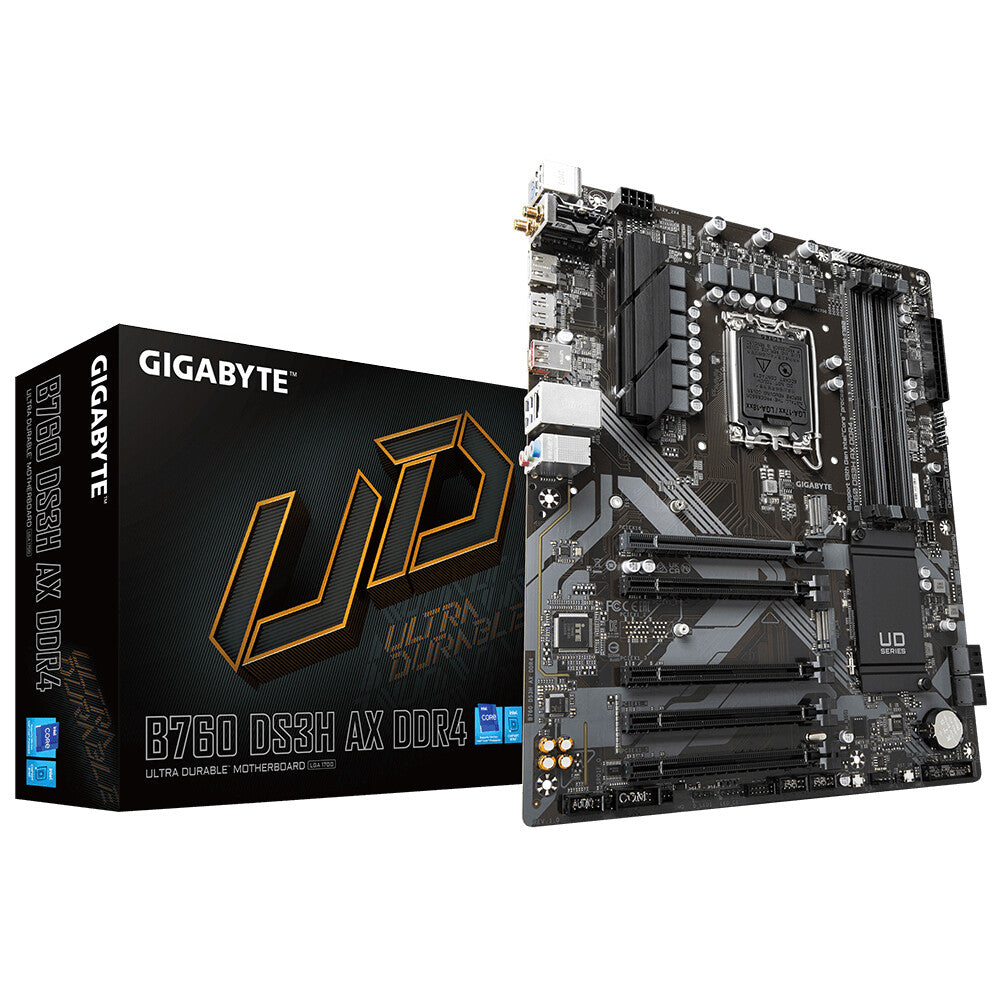

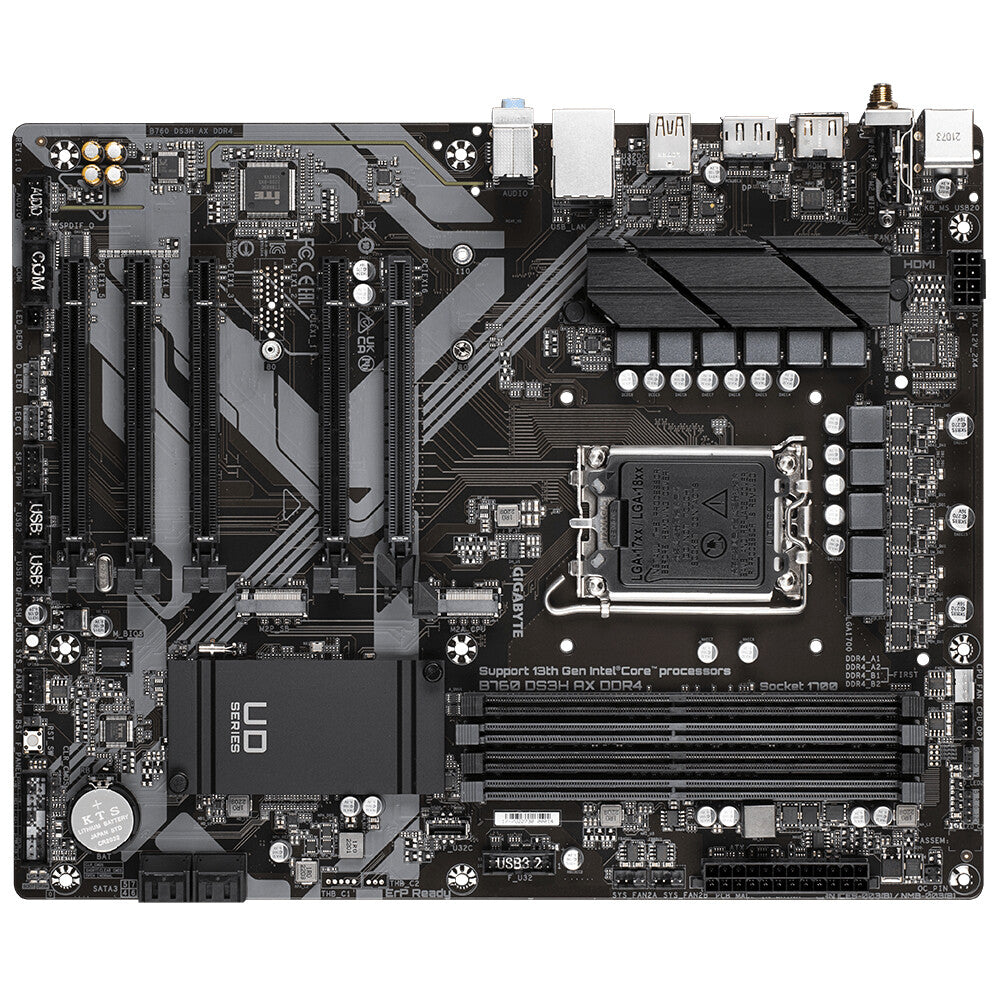

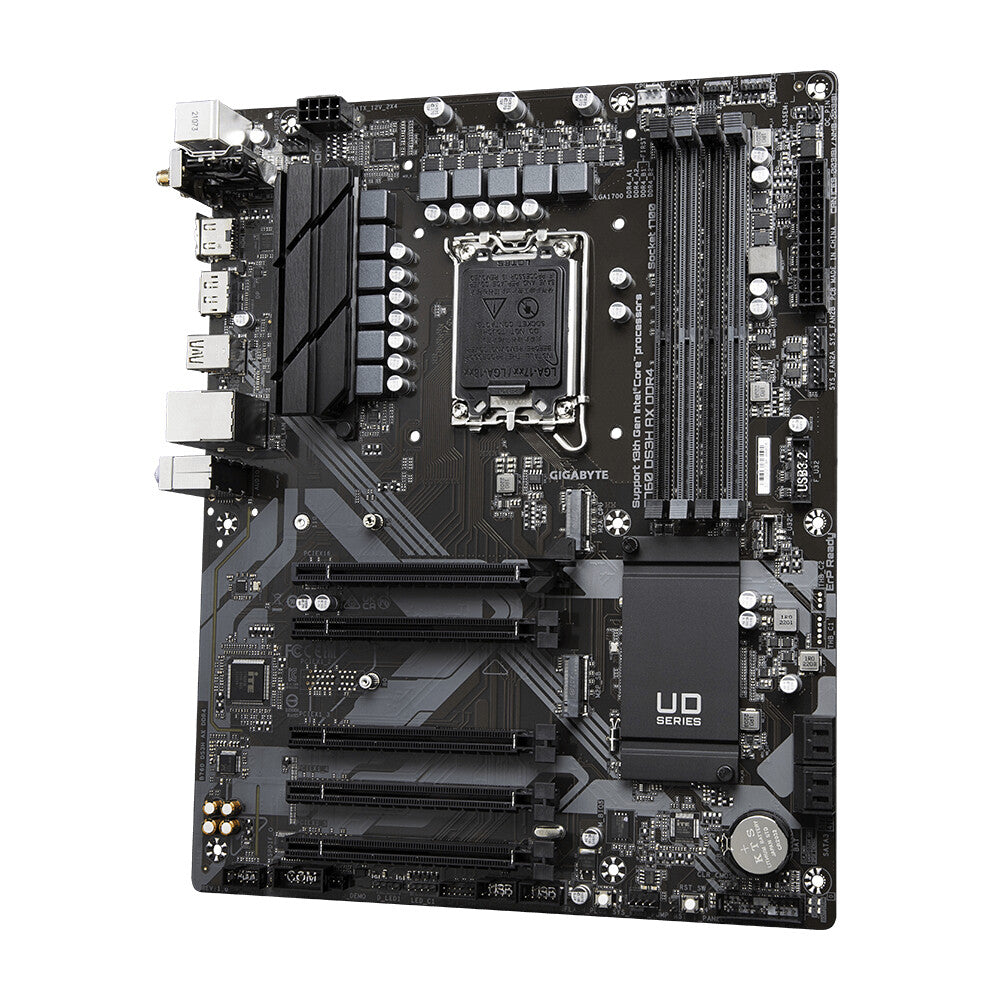

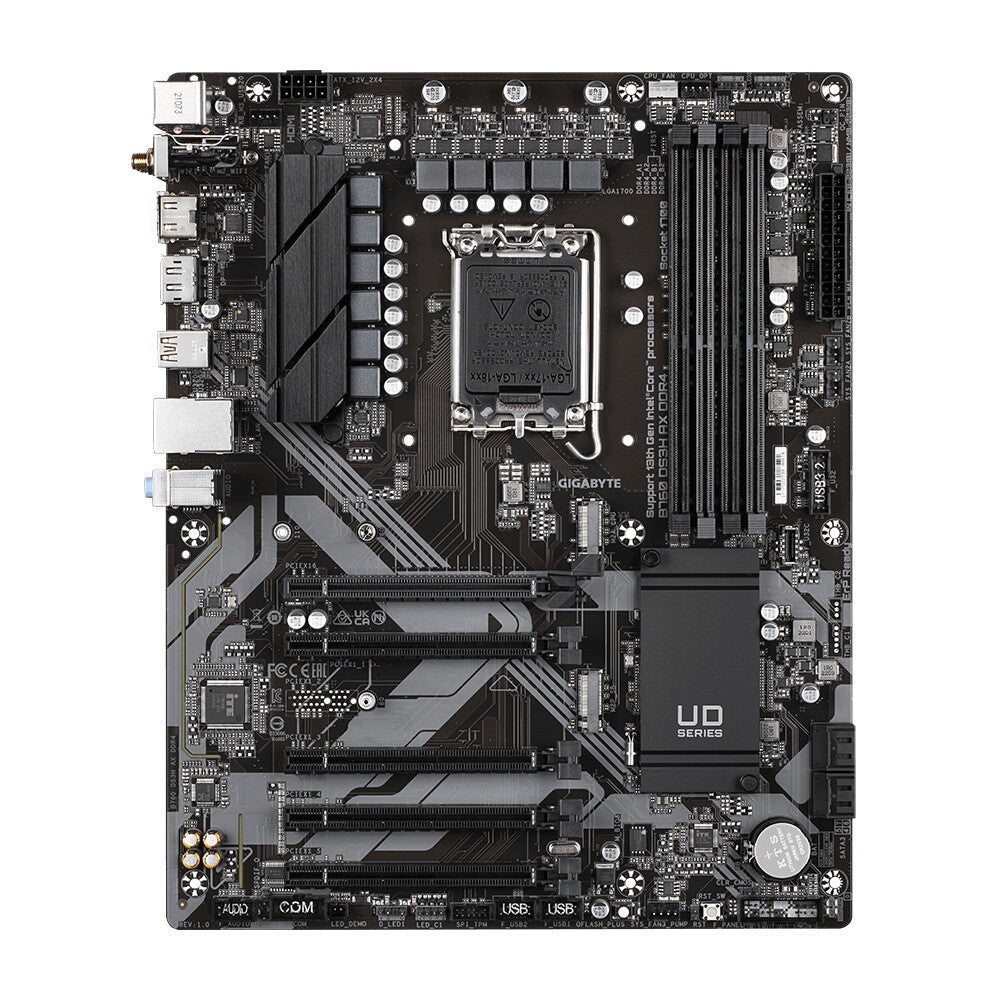

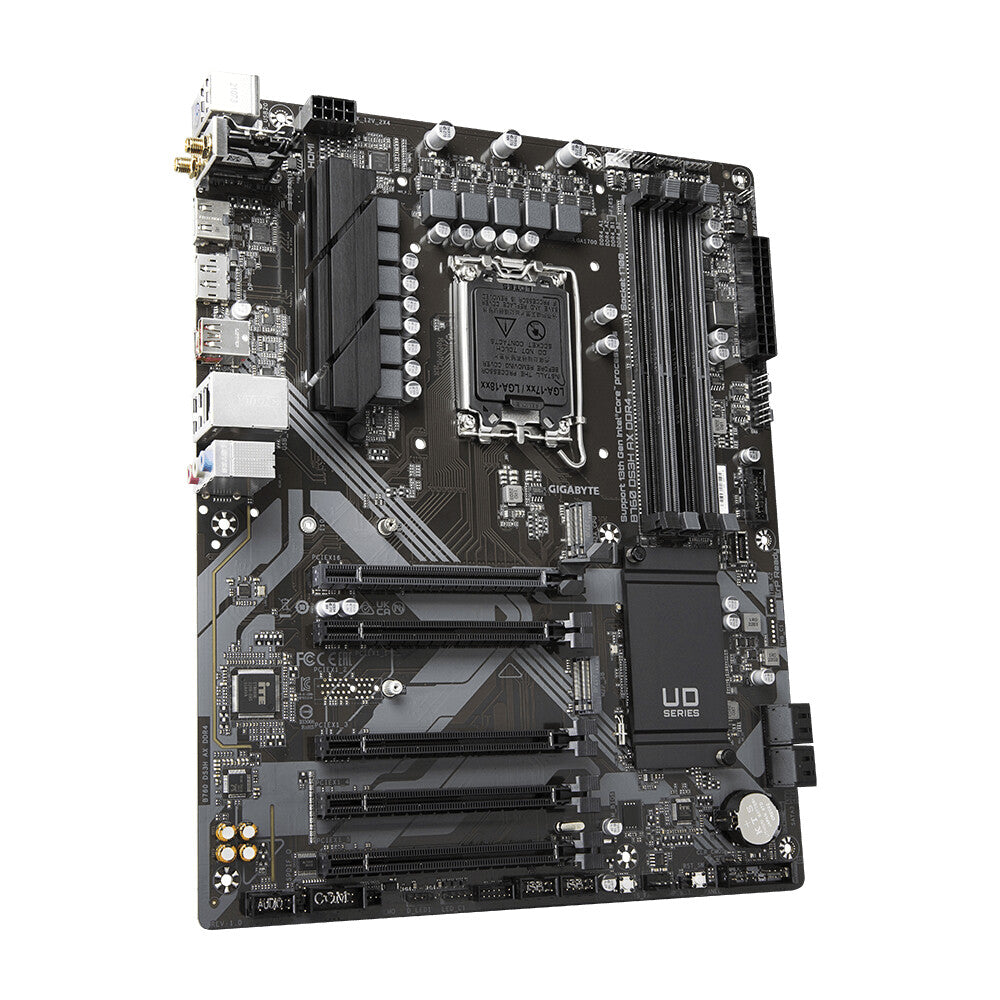

Gigabyte B760 DS3H AX DDR4 ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
KEY FEATURES
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：Rear USB-C 20Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
Does it support Wi-Fi 6E?
What is the warranty period for this motherboard?
Gigabyte B760 DS3H AX DDR4 ATX Intel Motherboard | LGA1700 Socket - 4 x DDR4 Memory Slots
Description
Introducing the Gigabyte B760 DS3H AX DDR4 ATX Intel Motherboard, a powerhouse designed to elevate your gaming and computing experience. With cutting-edge technology and robust features, this motherboard is engineered to meet the demands of modern users, whether you're a gamer, content creator, or simply looking for reliable performance in your PC build.
Key Benefits
- Unparalleled Performance: Equipped with an 8+2+1 Phases Hybrid Digital VRM Design, the motherboard ensures stable power delivery, enhancing performance and efficiency during intense gaming sessions.
- Next-Gen Connectivity: With PCIe 4.0 support, enjoy triple the bandwidth compared to PCIe 3.0, allowing for faster data transfer and improved signal integrity.
- Wi-Fi 6E Capability: Experience gigabit wireless performance with the latest 802.11ax Wi-Fi 6E technology, providing smoother streaming and gaming with reduced interference.
- Smart Fan Control: The Smart Fan 6 BIOS UI allows for precise fan curve control, ensuring optimal cooling and noise management tailored to your needs.
- High-End Audio Experience: Featuring high-end audio capacitors and an audio noise guard, this motherboard delivers high-fidelity sound, perfect for immersive gaming and entertainment.
- Customisable Aesthetics: With RGB Fusion Multi-Zone Light Show Design, personalise your build with vibrant LED lighting that reflects your unique style.
Additional Features
The Gigabyte B760 DS3H AX is not just about performance; it also offers a range of features that enhance usability and durability. It supports up to 128 GB of DDR4 memory across four DIMM slots, ensuring ample capacity for multitasking and demanding applications. The motherboard is built with Ultra Durable™ technology, reinforcing every slot for increased longevity and reliability.
Connectivity options are abundant, including USB 3.2 Gen 2x2 Type-C® for ultra-fast data transfer speeds of up to 20Gbps. The integrated GbE LAN with bandwidth management ensures low latency and improved responsiveness, particularly in crowded network environments. Additionally, the Q-Flash Plus feature allows for easy BIOS updates without the need for a CPU or graphics card installation, simplifying maintenance.
Why Buy
Choosing the Gigabyte B760 DS3H AX DDR4 ATX Intel Motherboard means investing in a reliable, high-performance foundation for your PC. With its blend of advanced technology, user-friendly features, and customisation options, this motherboard is designed to meet the needs of both casual users and hardcore gamers alike. Experience the difference in performance and connectivity that this motherboard brings to your computing experience.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
24/7 Customer support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |

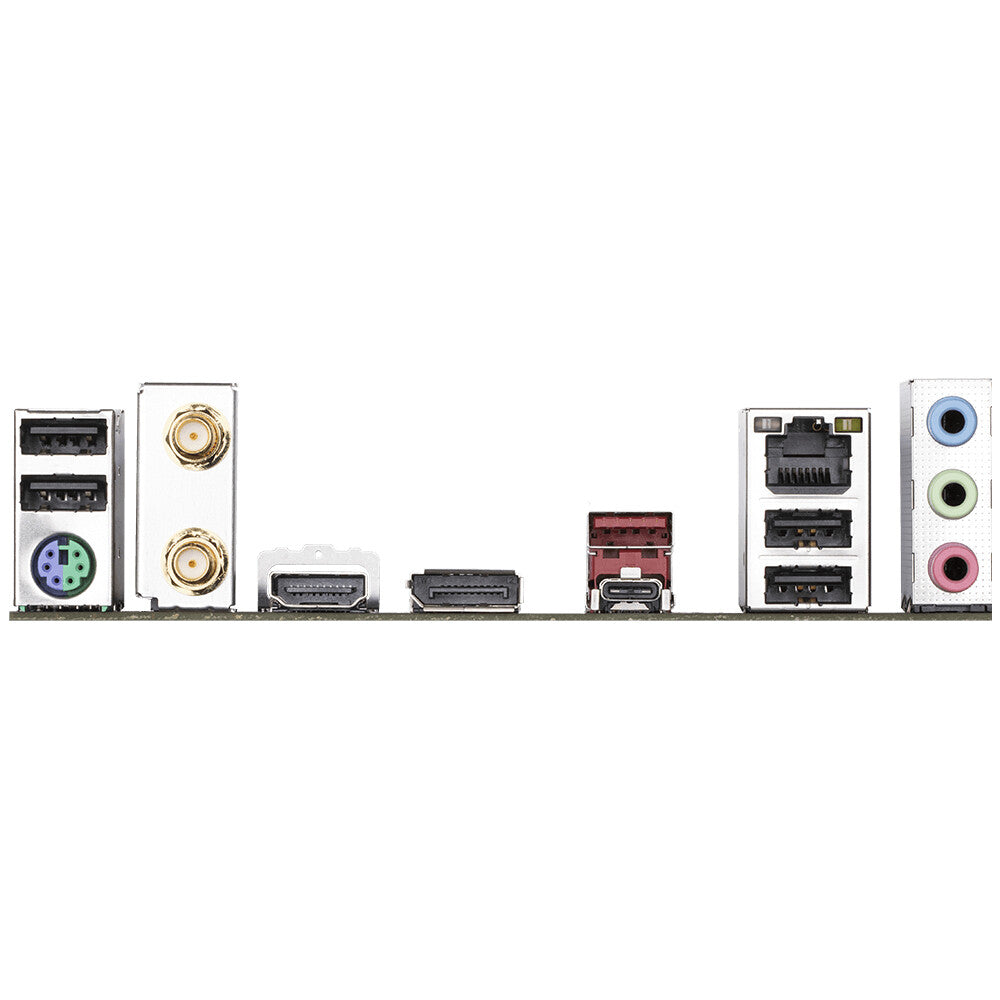

| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| WLAN controller model | RZ608 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Product colour | Brown |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 5 |
| BIOS | |
|---|---|
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 1.49 kg |
| Package height | 80 mm |
| Package depth | 270 mm |
| Package width | 335 mm |
| Battery | |
|---|---|
| Battery type | CR2032 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Logistics data | |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Height | 35 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Bundled software | Norton Internet Security |
| Batteries included | Yes |
| Cables included | SATA |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
