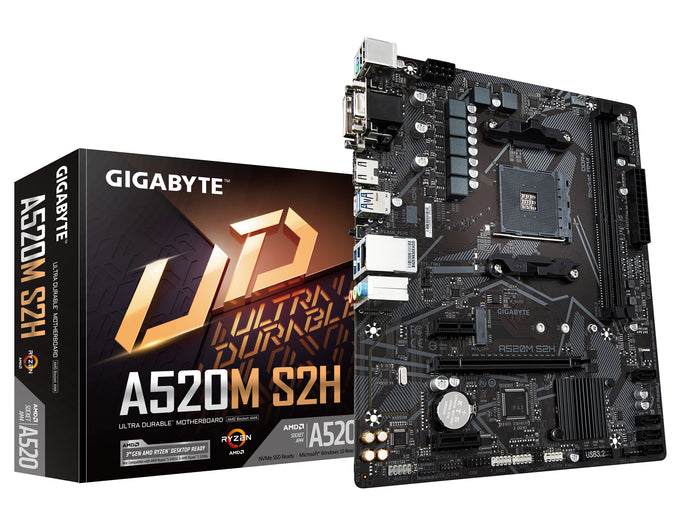

Gigabyte A520M S2H mATX Motherboard | AM4 | 2x DDR4 Slots
KEY FEATURES
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the Gigabyte A520M S2H?
How much memory can the motherboard support?
Does the motherboard support RGB lighting?
Gigabyte A520M S2H mATX Motherboard | AM4 | 2x DDR4 Slots
Description
The Gigabyte A520M S2H is a micro ATX motherboard built around AMD's entry-level A520 chipset, designed for budget-conscious builders who want solid fundamentals without premium features. Supporting AMD's AM4 socket, this board works with Ryzen 3000, 4000, and 5000 series processors, making it a practical foundation for everyday computing, light gaming, and productivity builds. The compact micro ATX form factor fits well in smaller cases while still providing room for essential expansion.
Memory support covers DDR4 with speeds up to DDR4-5000 through overclocking, though most users will find DDR4-3200 offers the best price-to-performance balance on this platform. With two DIMM slots supporting up to 64GB total capacity, there's enough headroom for most applications. The board includes a 4+3 phase pure digital VRM design that handles mid-range Ryzen processors comfortably, while dual PCIe 3.0 x1 slots provide expansion options for additional cards.
Connectivity covers the basics with Gigabit Ethernet and USB 3.2 Gen 1 ports for modern peripherals. The board supports both ECC and non-ECC memory configurations, and includes an RGB LED pin header for those wanting to add some lighting effects. Standard accessories include the rear I/O shield, user manual, and a CR2032 CMOS battery. This motherboard delivers reliable performance for users who need AMD Ryzen compatibility without the cost of higher-tier chipsets.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 GB |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| On-board graphics card | No |
| HDCP | Yes |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Packaging data | |
|---|---|
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 740 g |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 205 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
