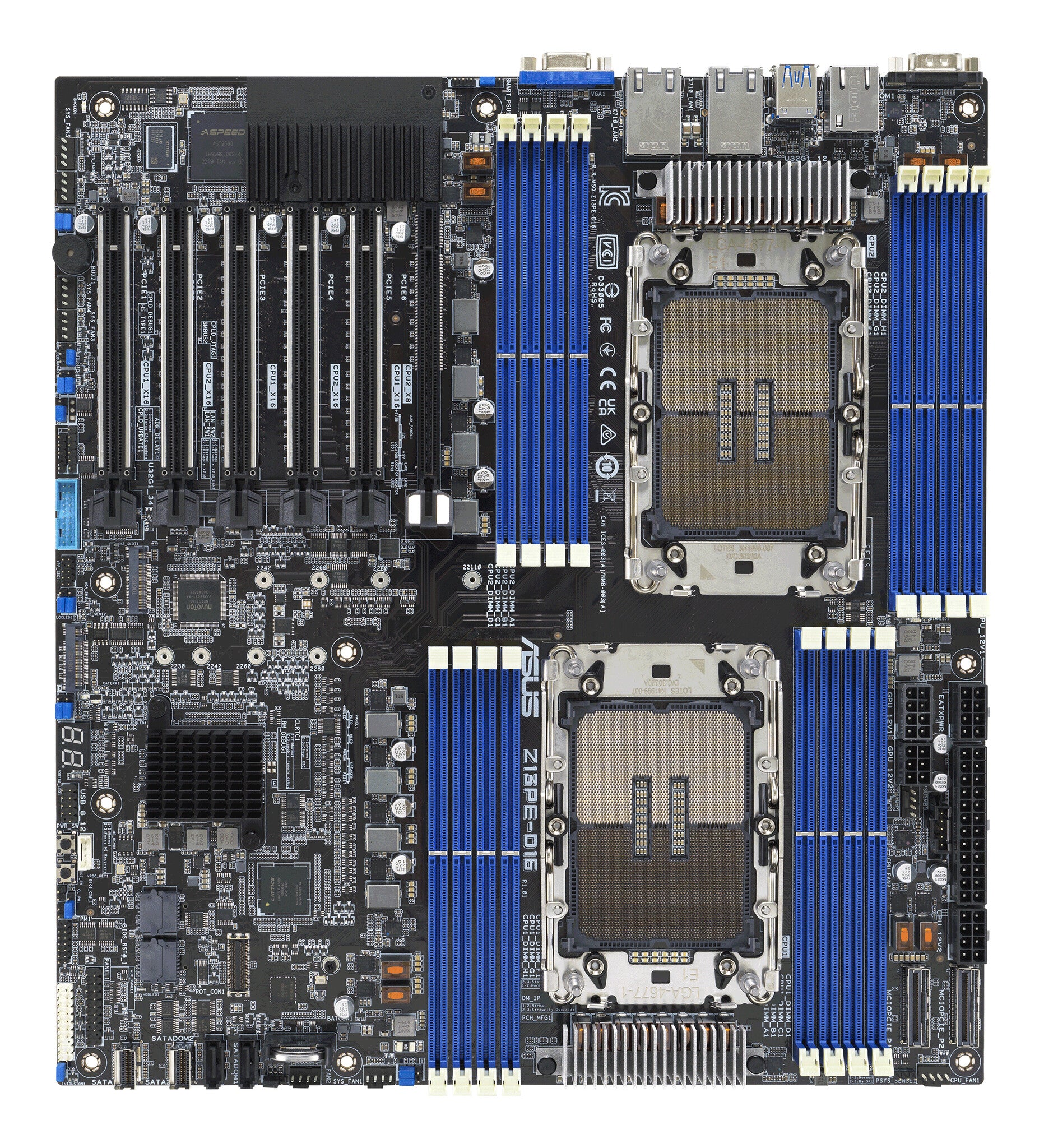

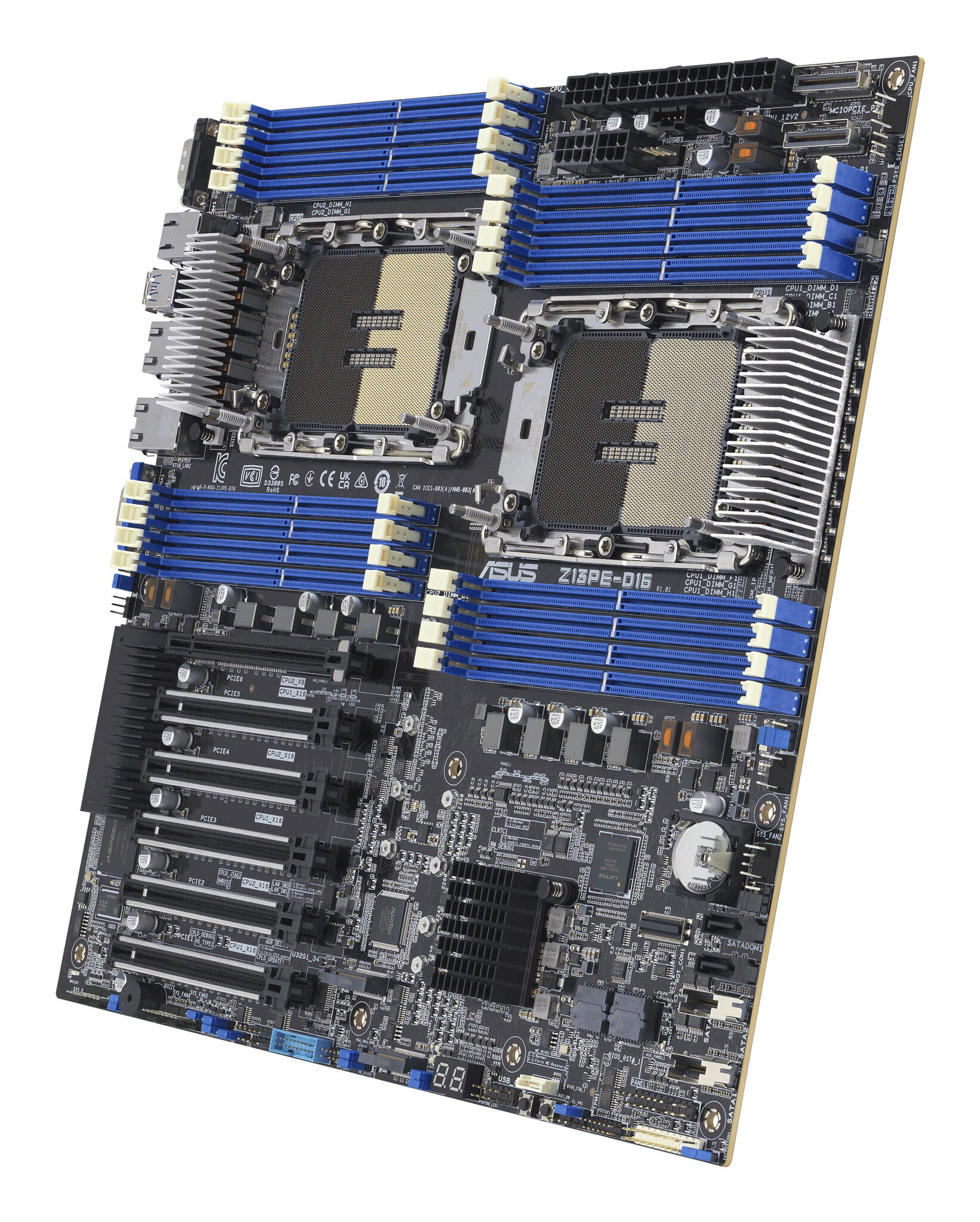

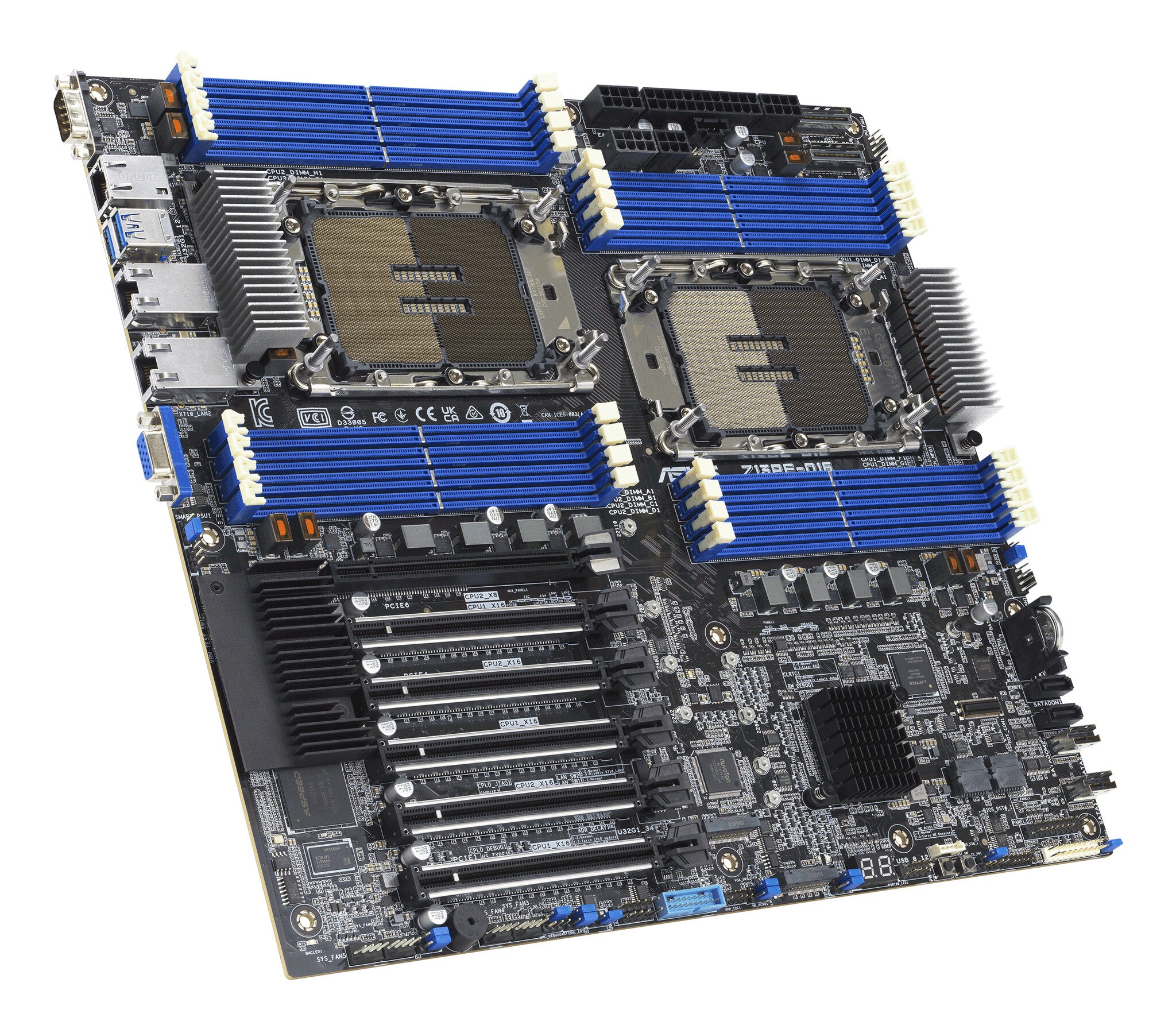

ASUS Z13PE-D16/ASMB11 EATX Motherboard | LGA4677 | 16x DDR5 Slots
KEY FEATURES
- E-ATX board ready for dual 5th Gen Intel Xeon Scalable processors, with LGA 4677 socket, and supporting up to 350 W TDP
- A single CPU supports a maximum of three PCIe cards
- 16 x DDR5 4800 RDIMM for up to 4 TB RAM
- Integrated dual M.2 provides PCIe 5.0 x4 bandwidth for faster OS booting
- Dual Intel 10 Gbps Ethernet with teaming support
- Comprehensive IT-infrastructure-management solution with ASUS Control Center (ACC) and ASMB11-iKVM
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
ASUS Z13PE-D16/ASMB11 EATX Motherboard | LGA4677 | 16x DDR5 Slots
Description
The ASUS Z13PE-D16/ASMB11 is a professional server motherboard built around Intel's C741 chipset and LGA4677 socket, designed specifically for Intel Xeon processors in enterprise and datacenter environments. This Extended ATX board delivers enterprise-grade reliability with comprehensive remote management capabilities, including the integrated ASMB11-iKVM module that provides out-of-band management through an Aspeed AST2600 controller with 64MB memory. The inclusion of 10 Gbps Ethernet connectivity ensures this board can handle demanding network workloads that characterize modern server applications.
Memory capacity reaches an impressive 2TB across 16 DIMM slots, supporting DDR5 modules from 16GB to 128GB per slot with speeds up to 5600MHz. The board provides five PCIe 5.0 x16 slots for maximum expansion flexibility, accommodating multiple high-performance add-in cards such as network adapters, storage controllers, or accelerator cards. DDR5 support with JEDEC standard profiles ensures stable operation at certified speeds, while the generous slot count allows for configurations that can scale with growing computational demands.
Server-focused features include integrated baseboard management controller functionality through the ASMB11-iKVM module, enabling remote monitoring, power management, and system recovery even when the main system is offline. The 10 Gbps LAN port provides the high-bandwidth connectivity essential for server workloads, while the Extended ATX form factor accommodates the robust power delivery and cooling requirements of multi-core Xeon processors. This combination of enterprise management tools, extensive memory support, and high-speed connectivity makes it suitable for virtualization hosts, database servers, and compute-intensive applications.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 16 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 4800,5600 MHz |
| Supported memory module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 2 TB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 10 |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

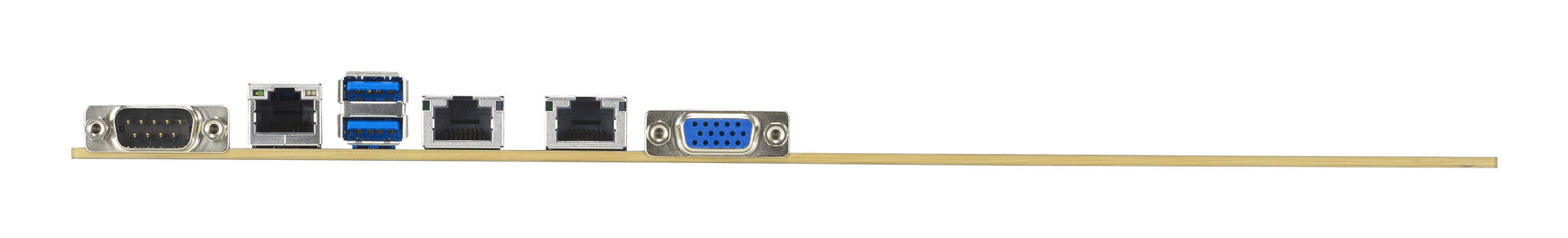

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Features | |
|---|---|
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C741 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
|---|---|
| Package weight | 2.75 kg |
| Weight & dimensions | |
|---|---|
| Width | 304.8 mm |
| Depth | 330.2 mm |
| Other features | |
|---|---|
| Weight | 1.75 kg |
