ASUS X870 MAX GAMING WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
KEY FEATURES
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS X870 MAX GAMING WIFI7?
How much memory can the ASUS X870 MAX GAMING WIFI7 support?
Does the motherboard support Wi-Fi 7?
ASUS X870 MAX GAMING WIFI7 ATX Motherboard | AM5 | 4x DDR5 Slots | Wi-Fi 7
Description

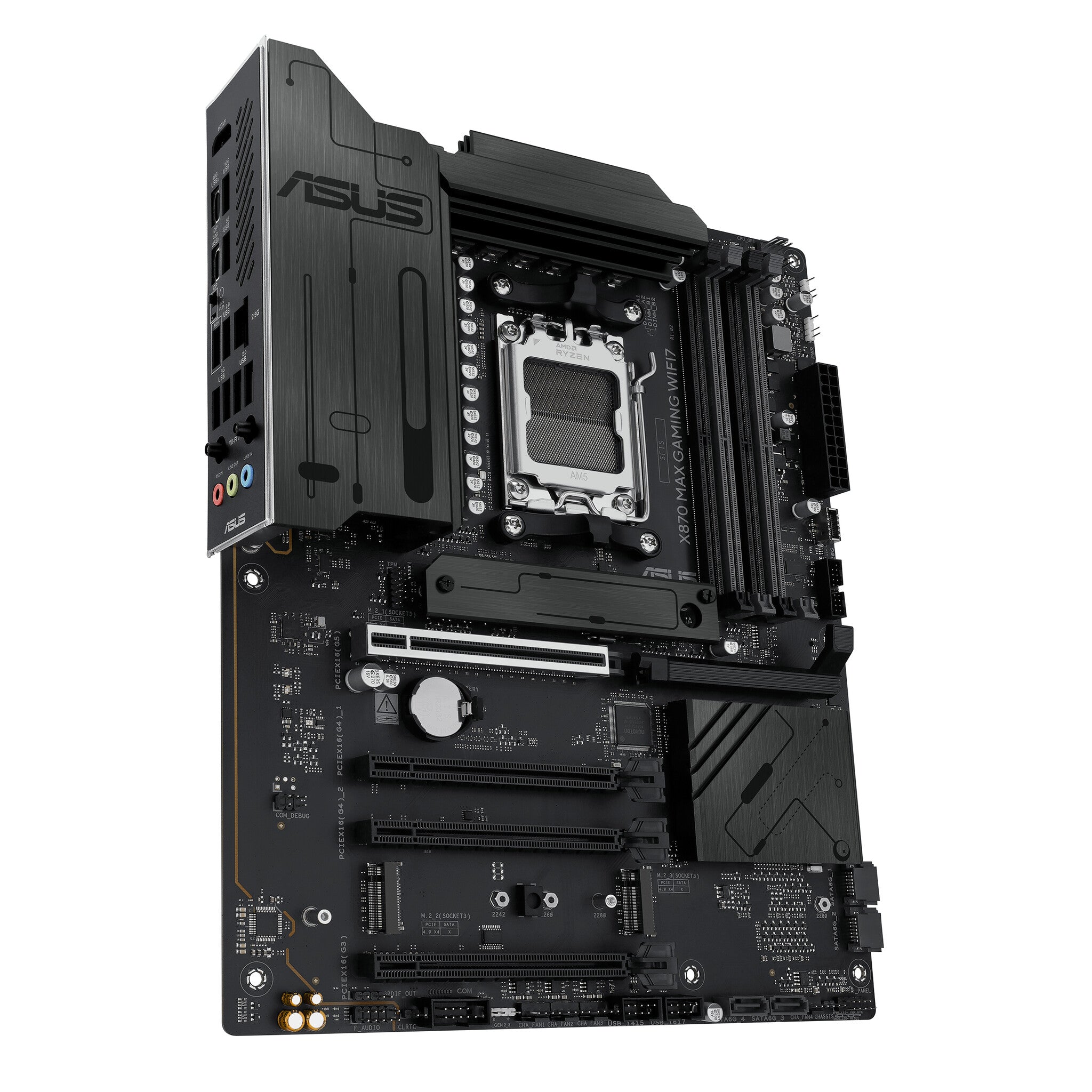

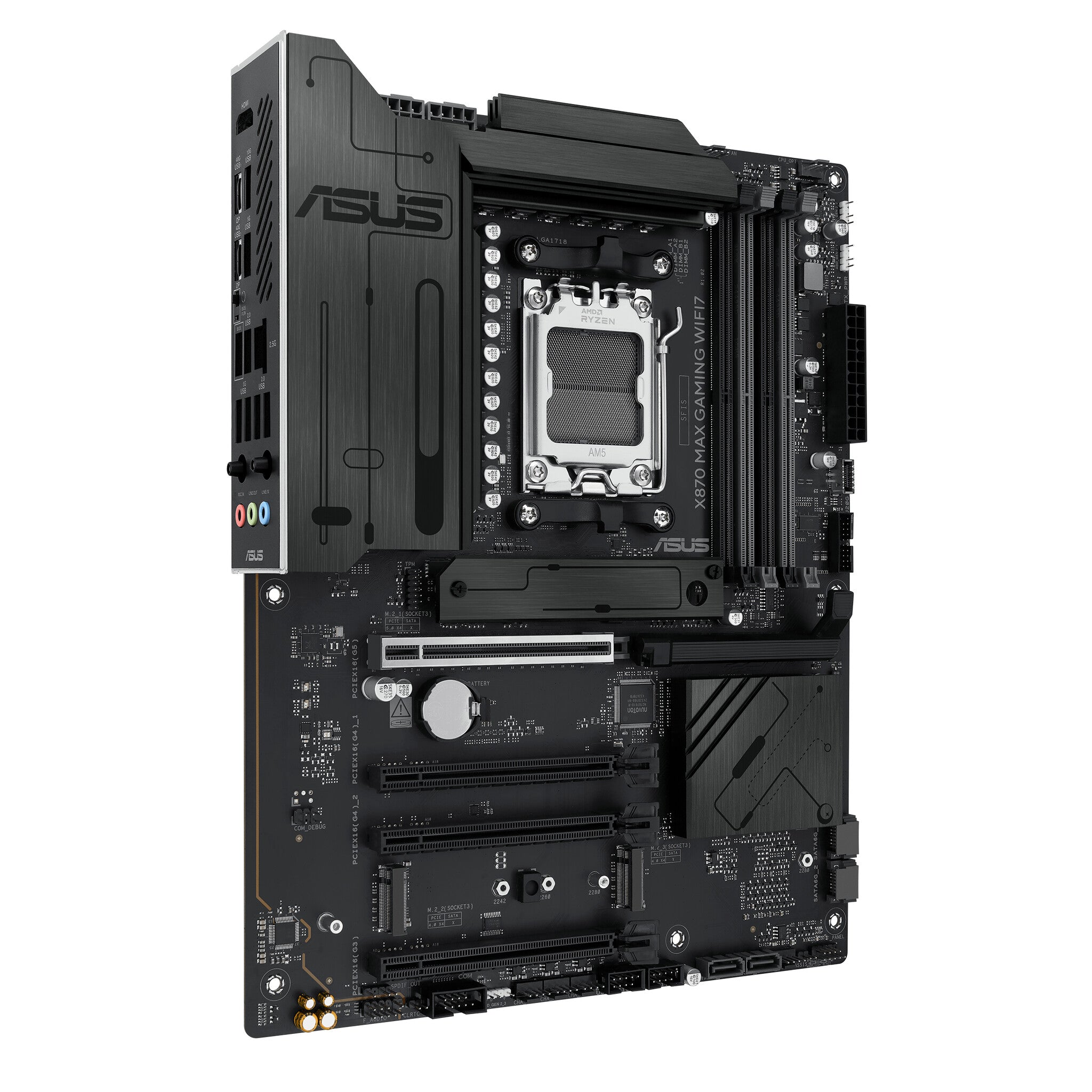

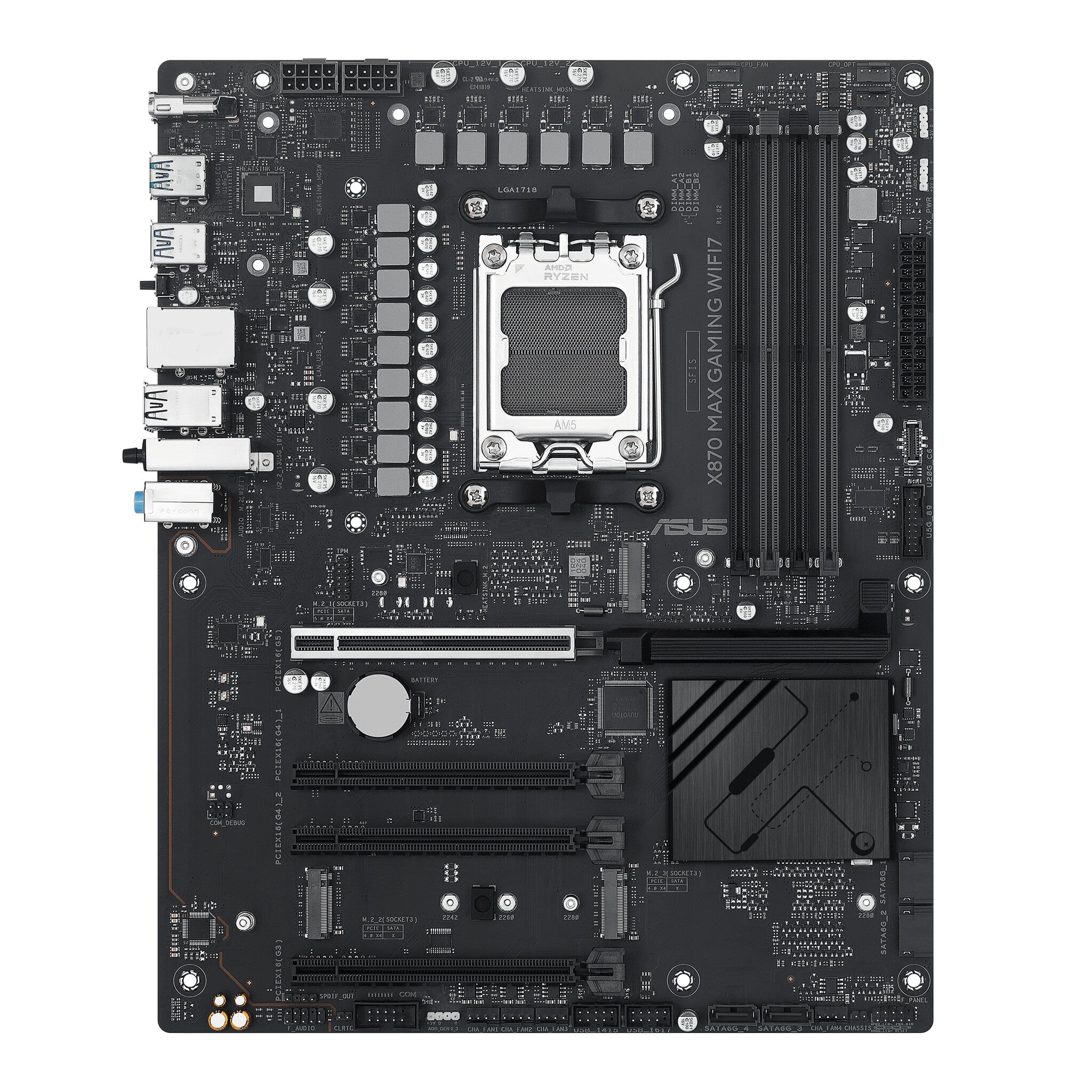

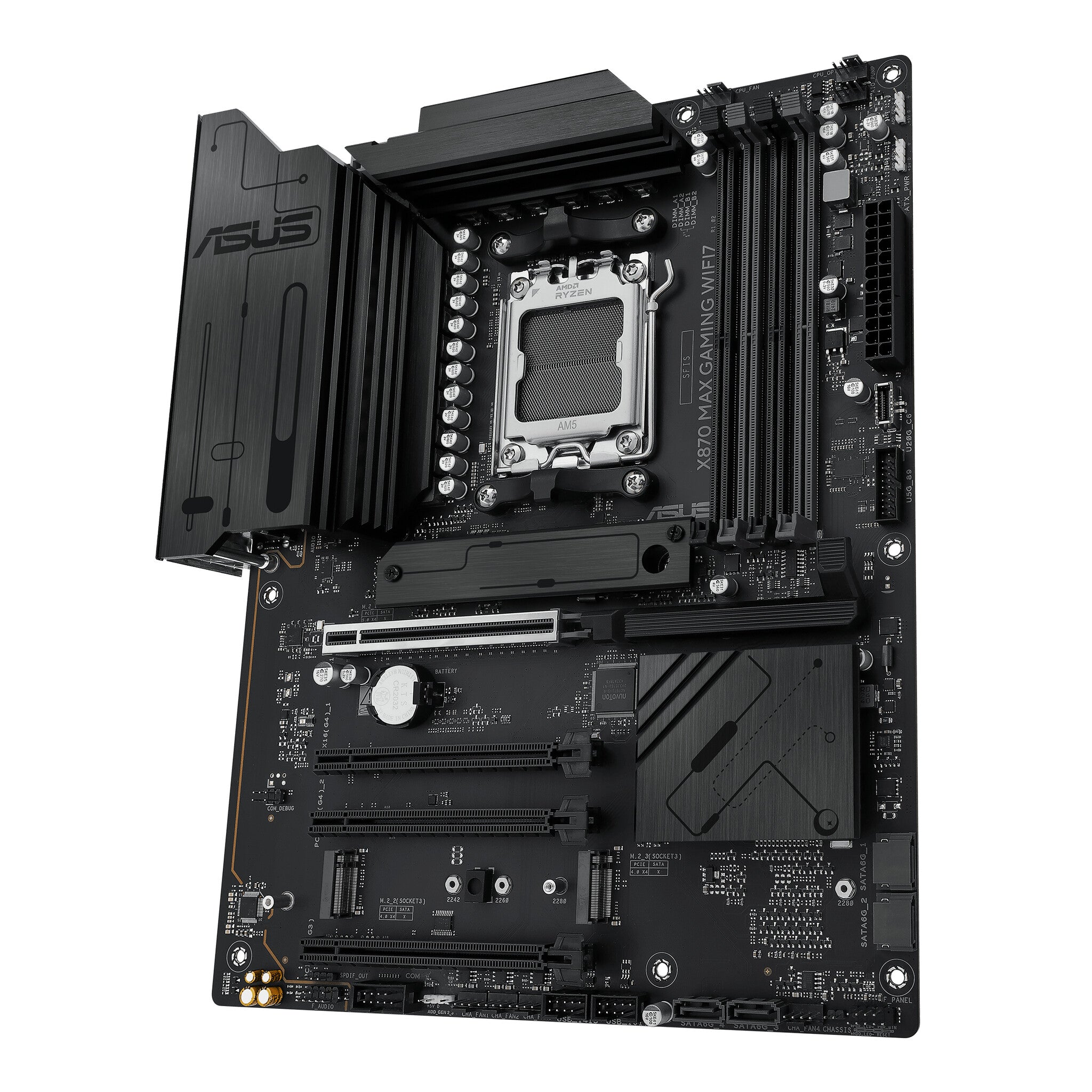

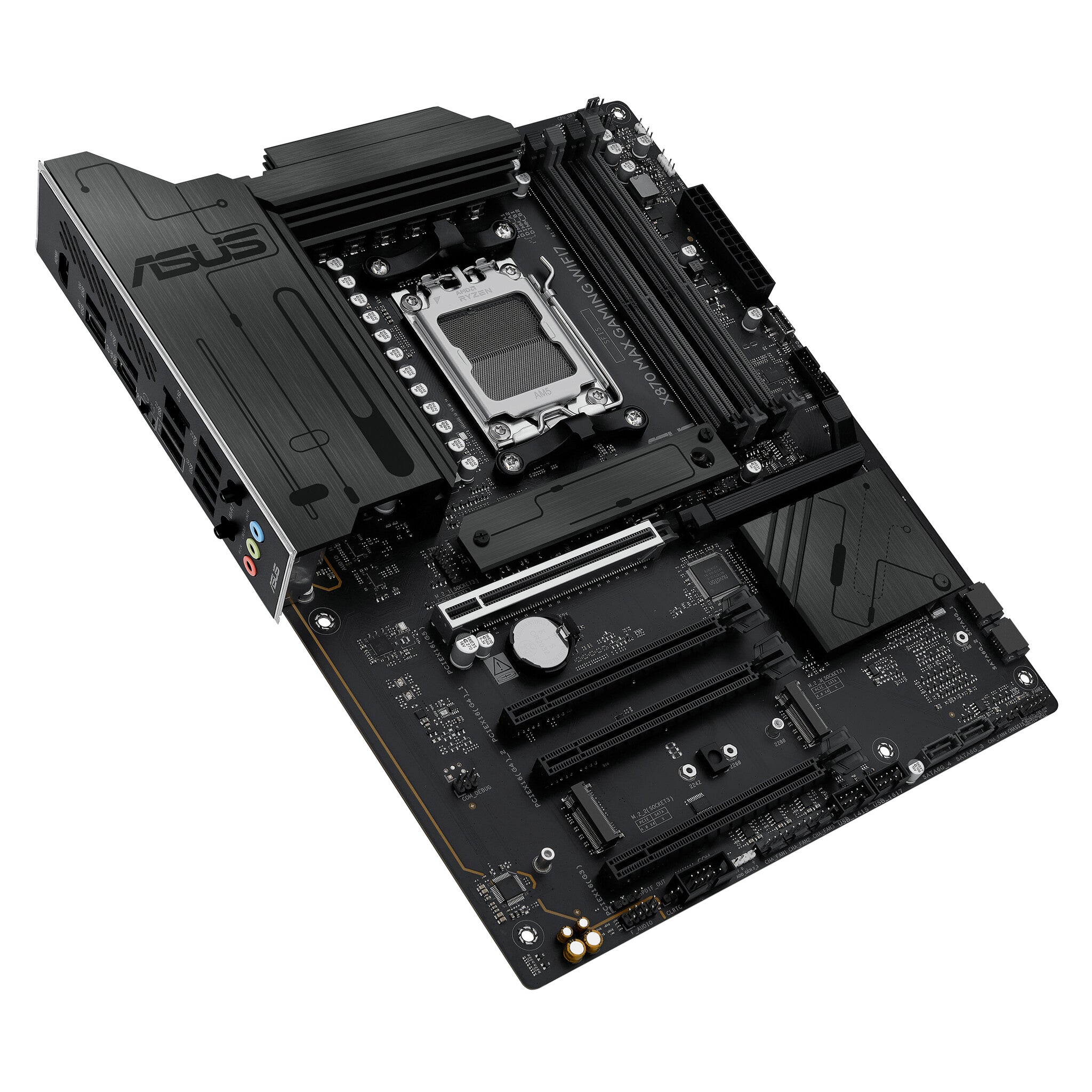

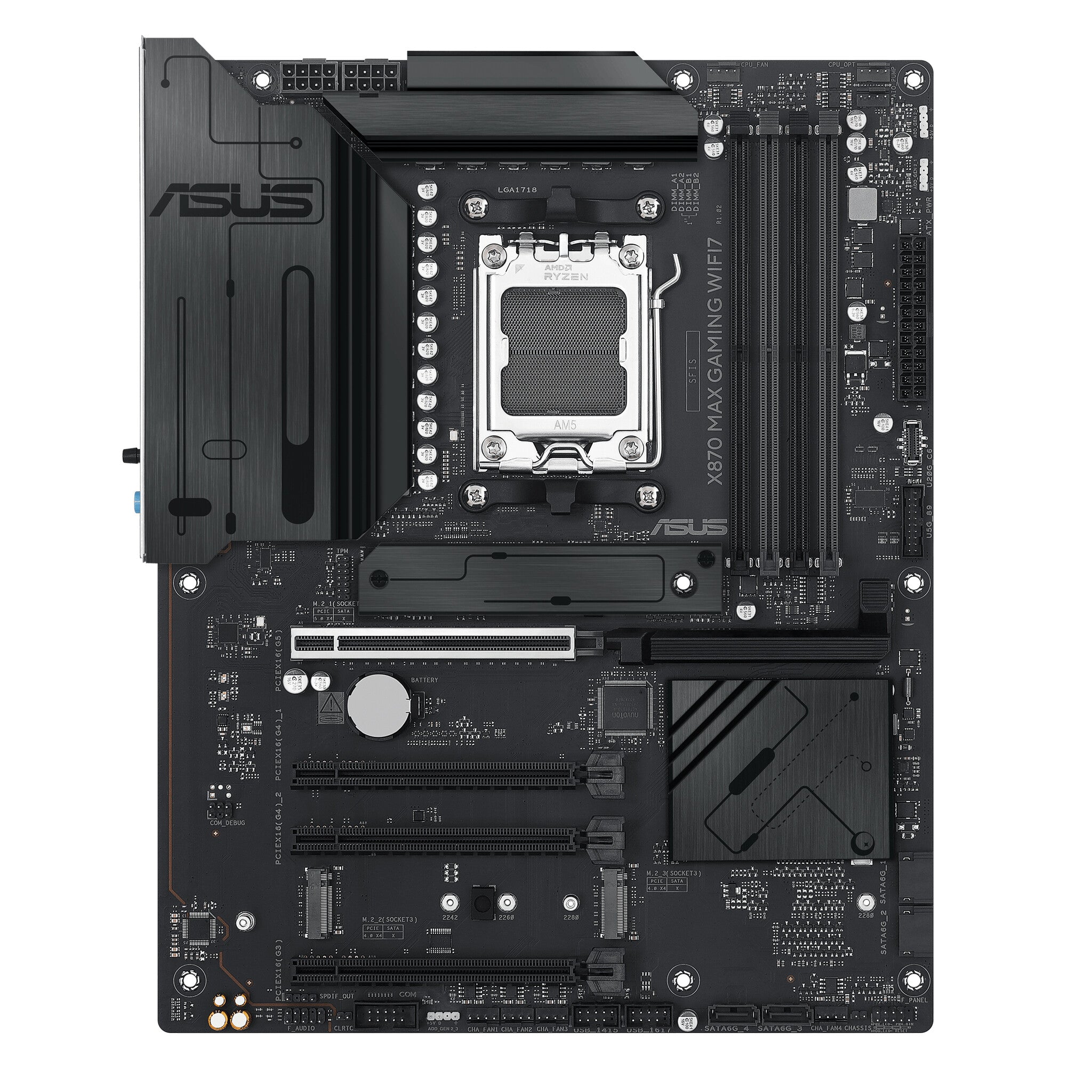

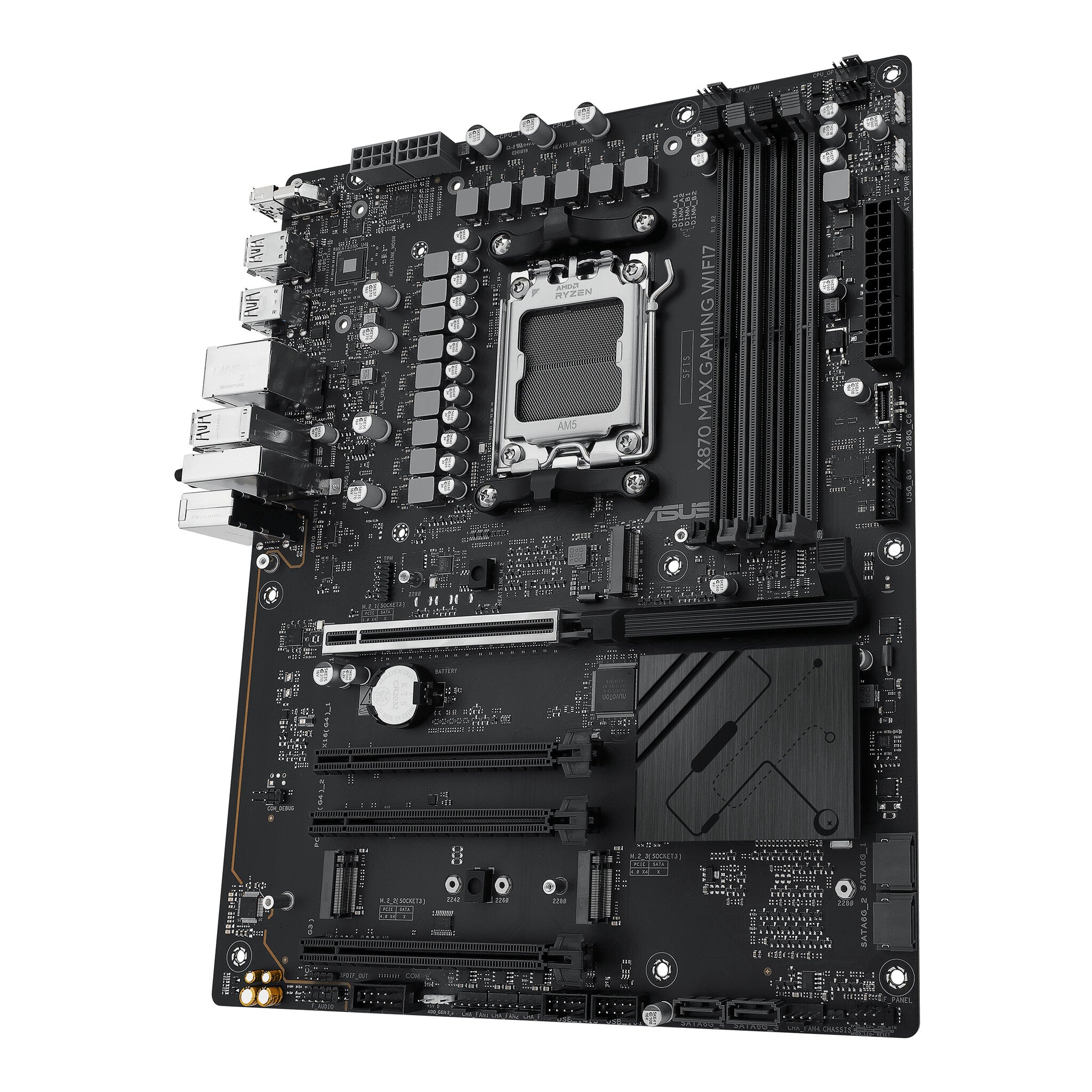

The ASUS X870 MAX GAMING WIFI7 is an ATX motherboard built around AMD's flagship X870 chipset, designed for users who want premium features without the extreme price of X870E boards. Supporting AMD's AM5 socket, it works with Ryzen 7000, 8000, and 9000 series processors, making it a solid choice for current builds with clear upgrade potential. The X870 chipset sits at the top of AMD's mainstream tier, offering enthusiast-level connectivity and features while remaining more accessible than the extreme variants.

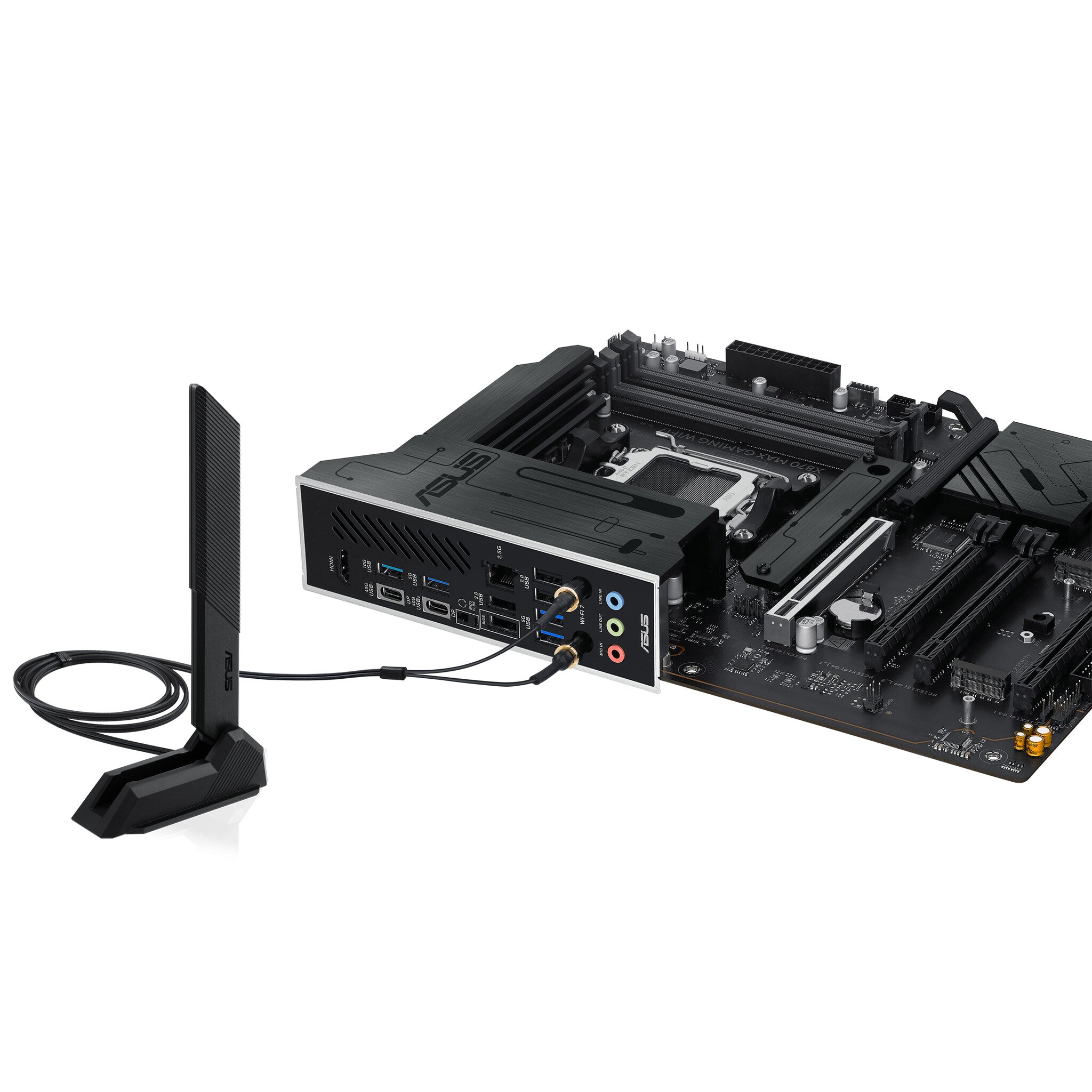

Memory support extends to DDR5 with speeds up to 8000 MHz across four DIMM slots, accommodating up to 256GB total capacity. Two PCIe 4.0 x16 slots provide flexibility for multi-GPU setups or additional expansion cards. Network connectivity includes built-in Wi-Fi 7 support with included antennas, plus Realtek 2.5Gb Ethernet for wired connections. A USB 3.2 Gen 2x2 connector delivers high-speed data transfer for compatible devices.

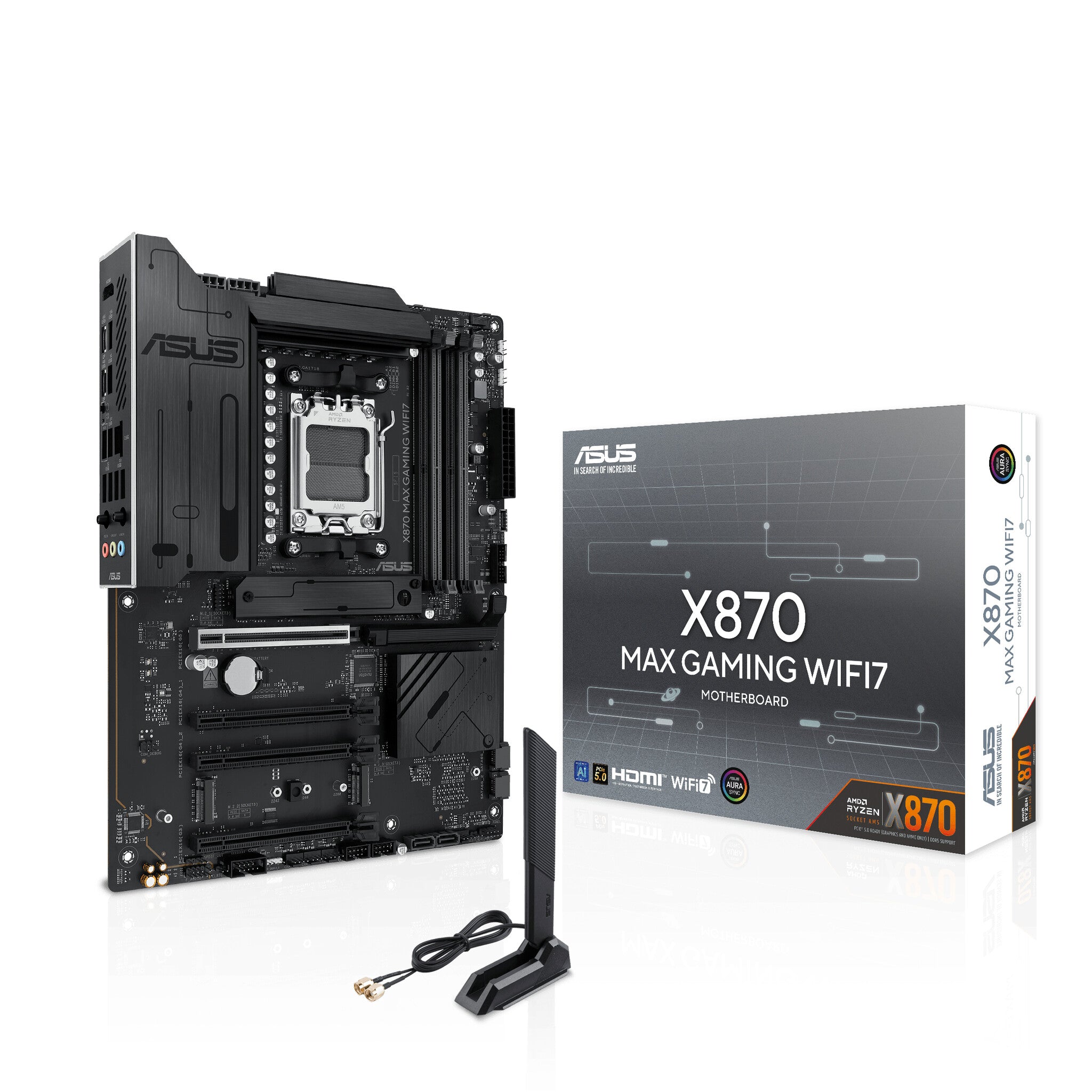

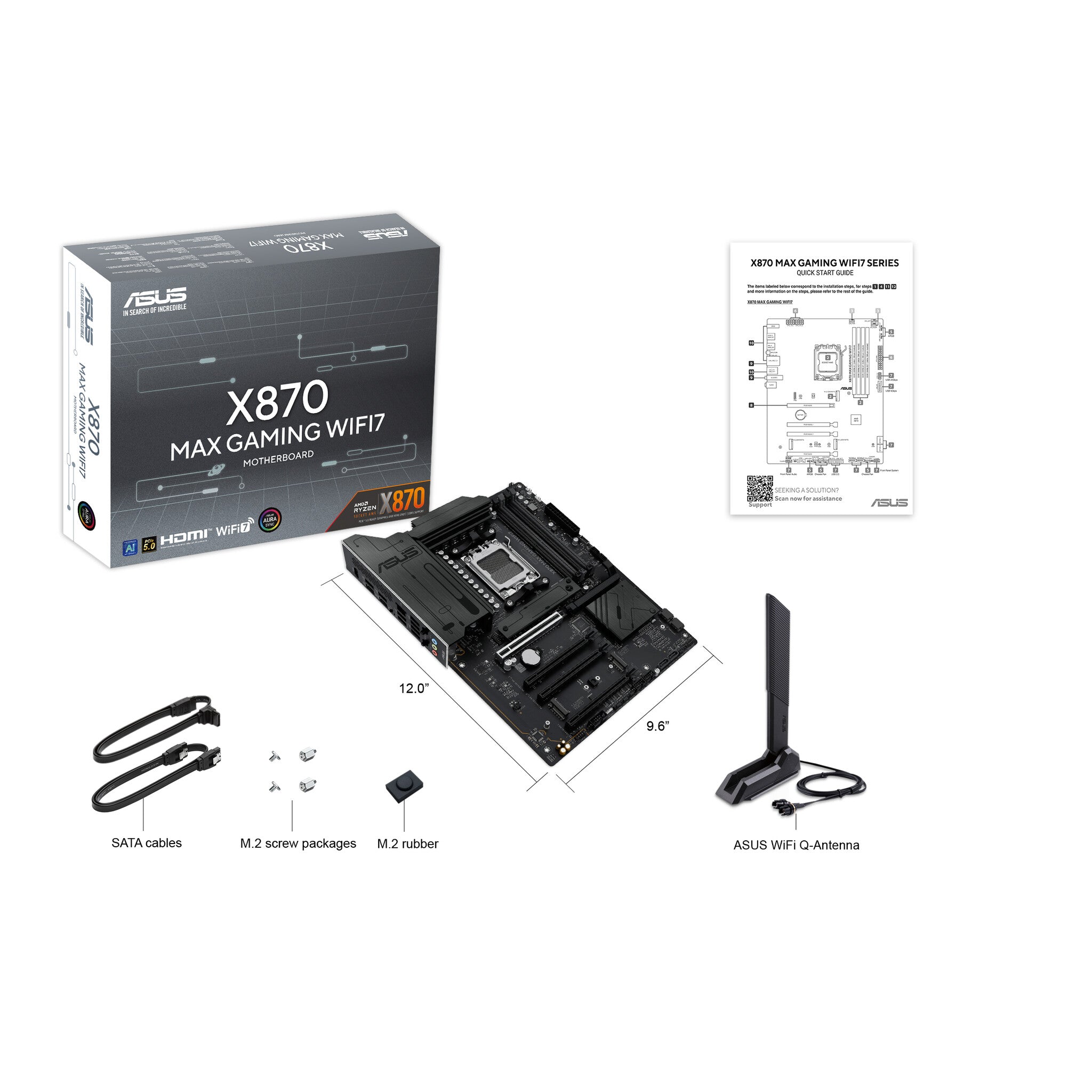

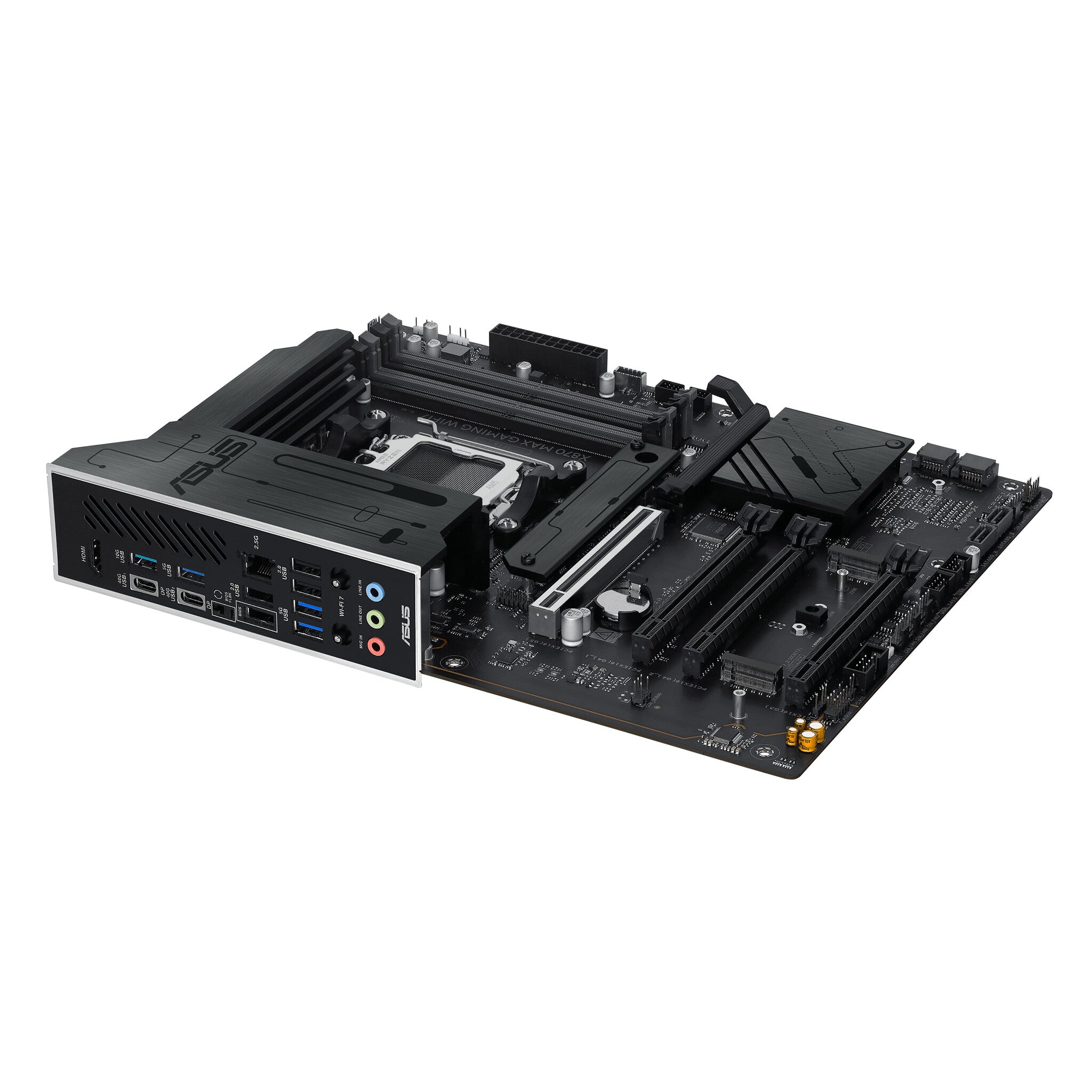

The board includes comprehensive memory profile support for easy overclocking, with both ECC and non-ECC memory compatibility for flexibility in memory choice. ASUS ships the board with essential installation hardware including the rear I/O shield, and the UEFI BIOS provides straightforward setup and configuration options. The 256MB flash ROM ensures plenty of space for future BIOS updates and features, while the single CPU fan header manages processor cooling requirements efficiently.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |

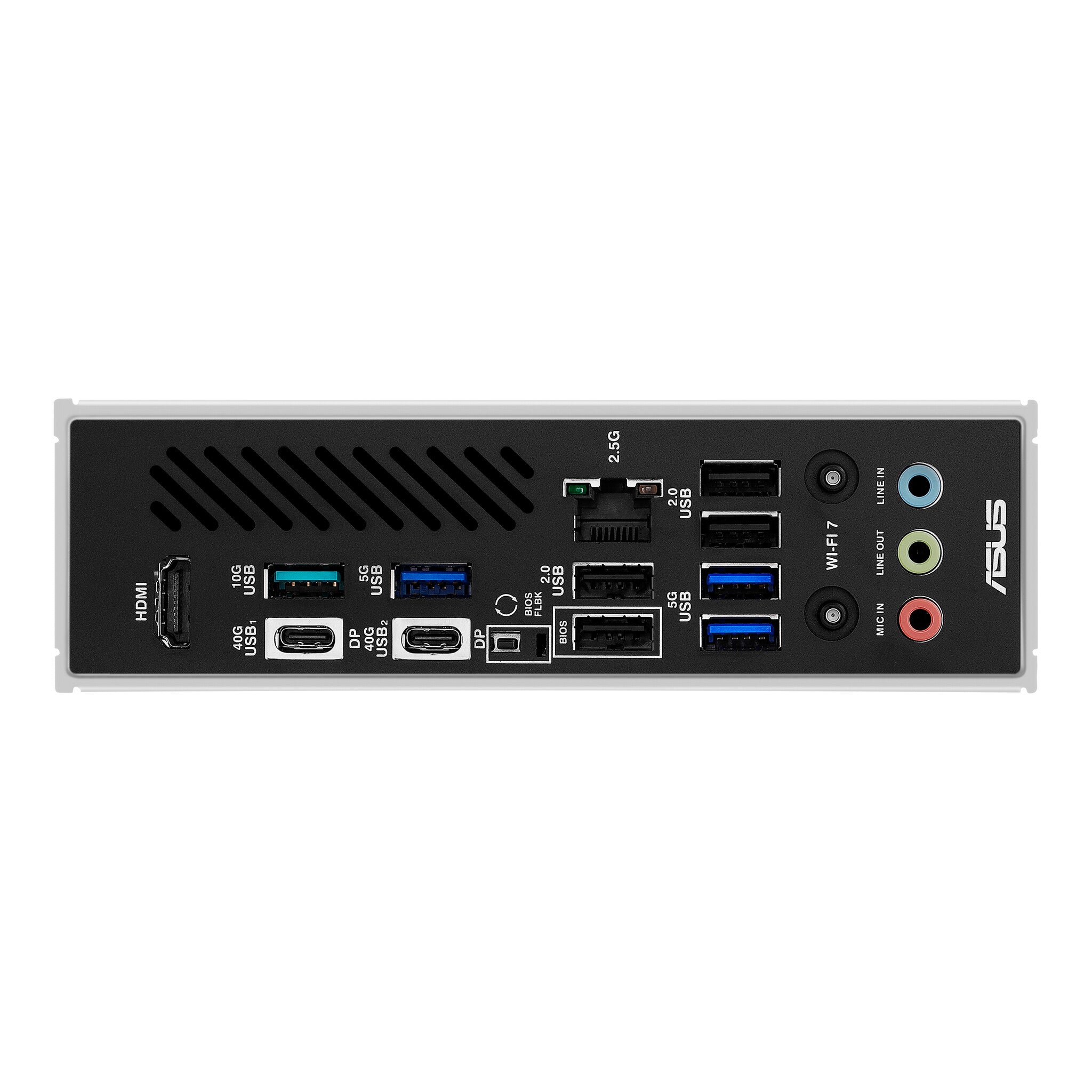

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
|---|---|
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.95 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 48 mm |
| Packaging content | |
|---|---|
| Antenna included | Yes |
| Other features | |
|---|---|
| Weight | 1.36 kg |
