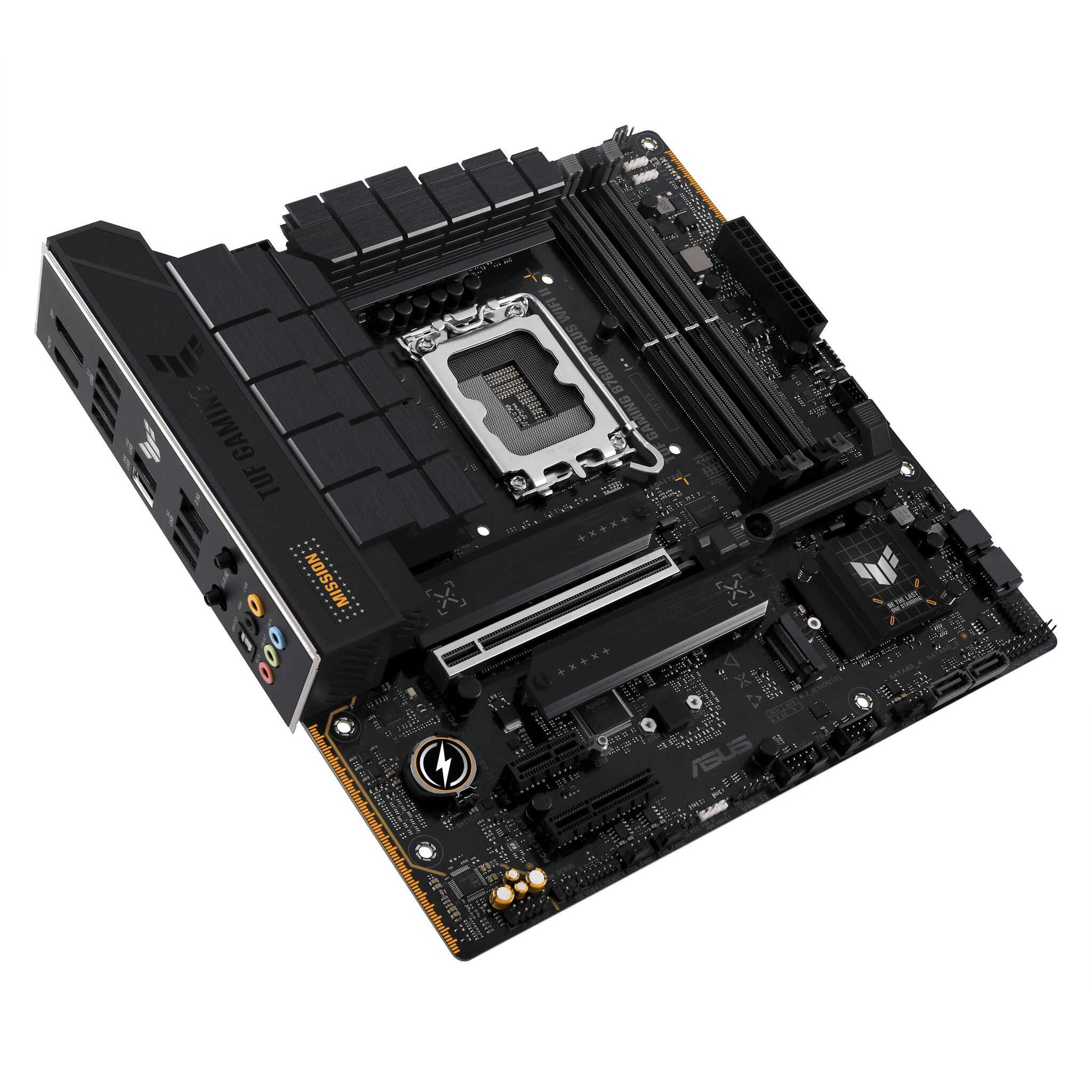

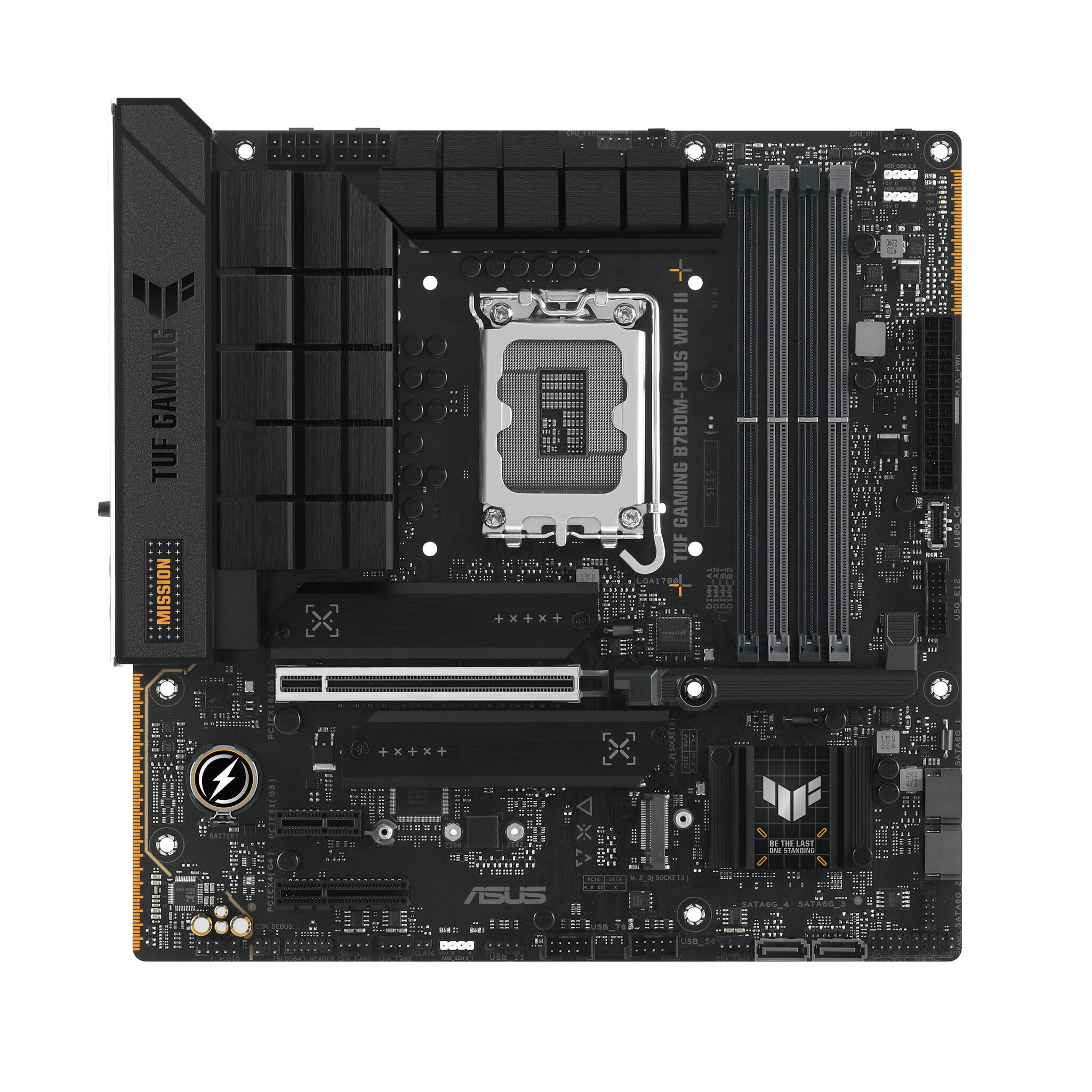

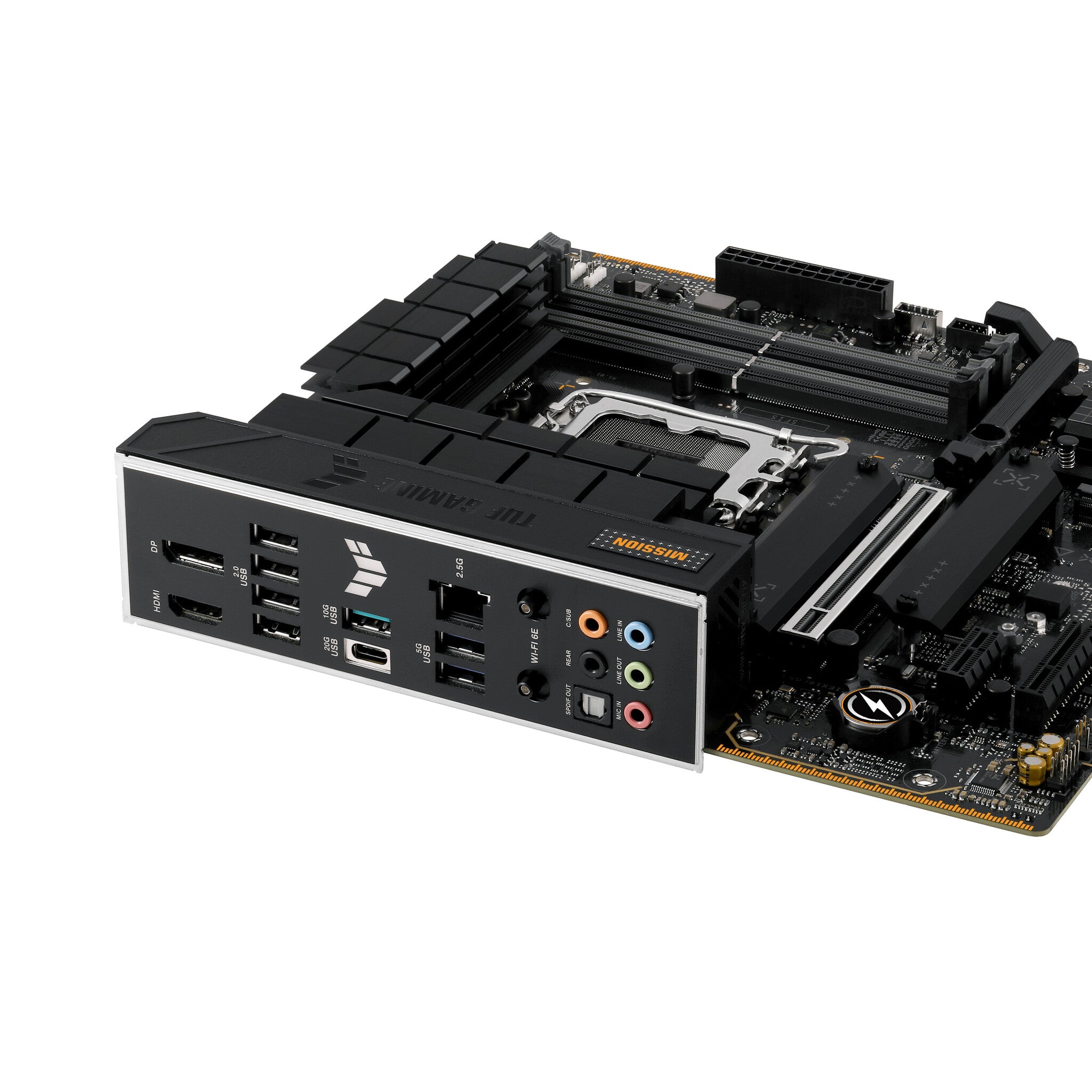

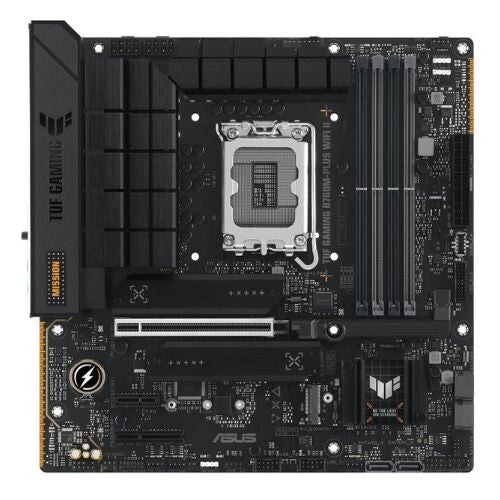

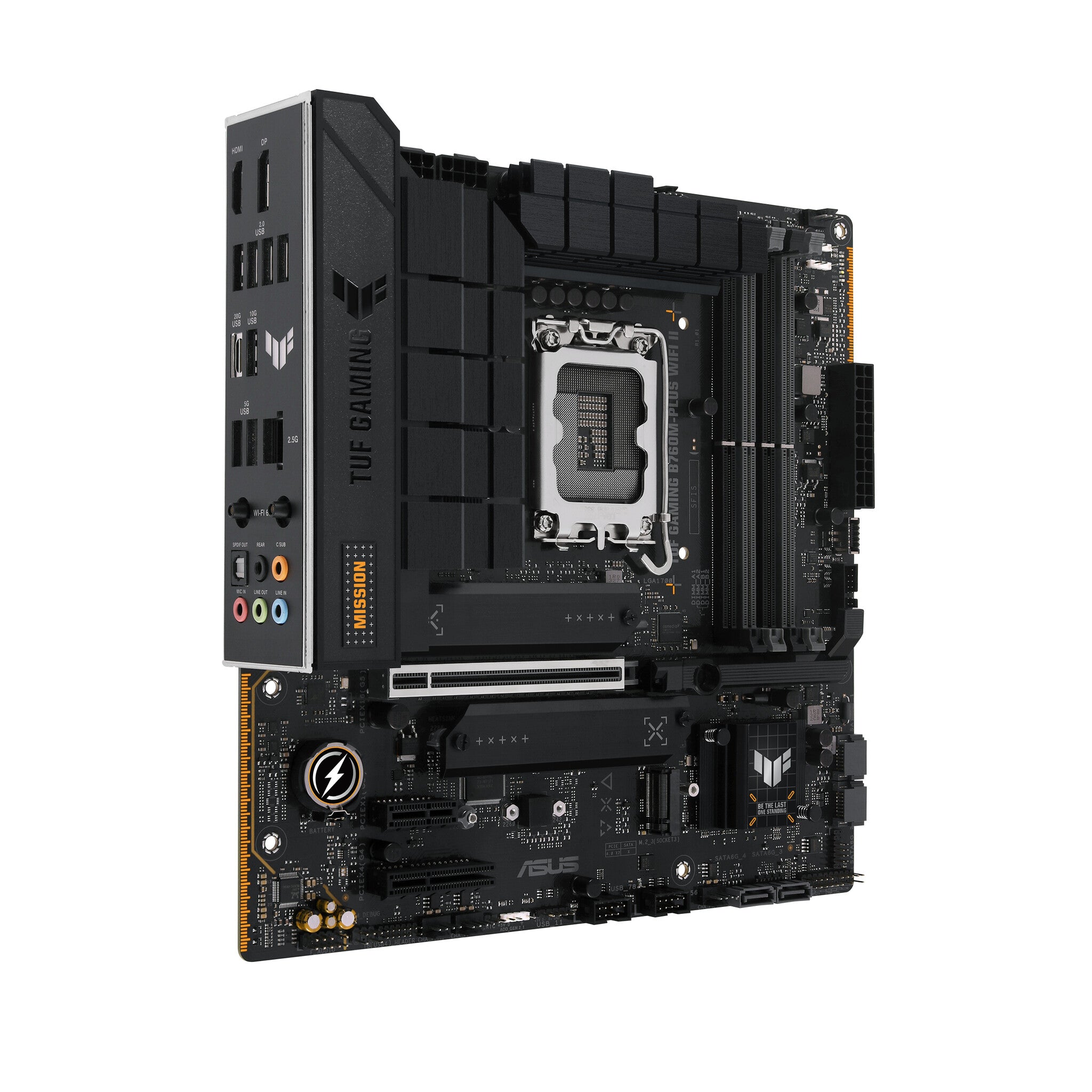

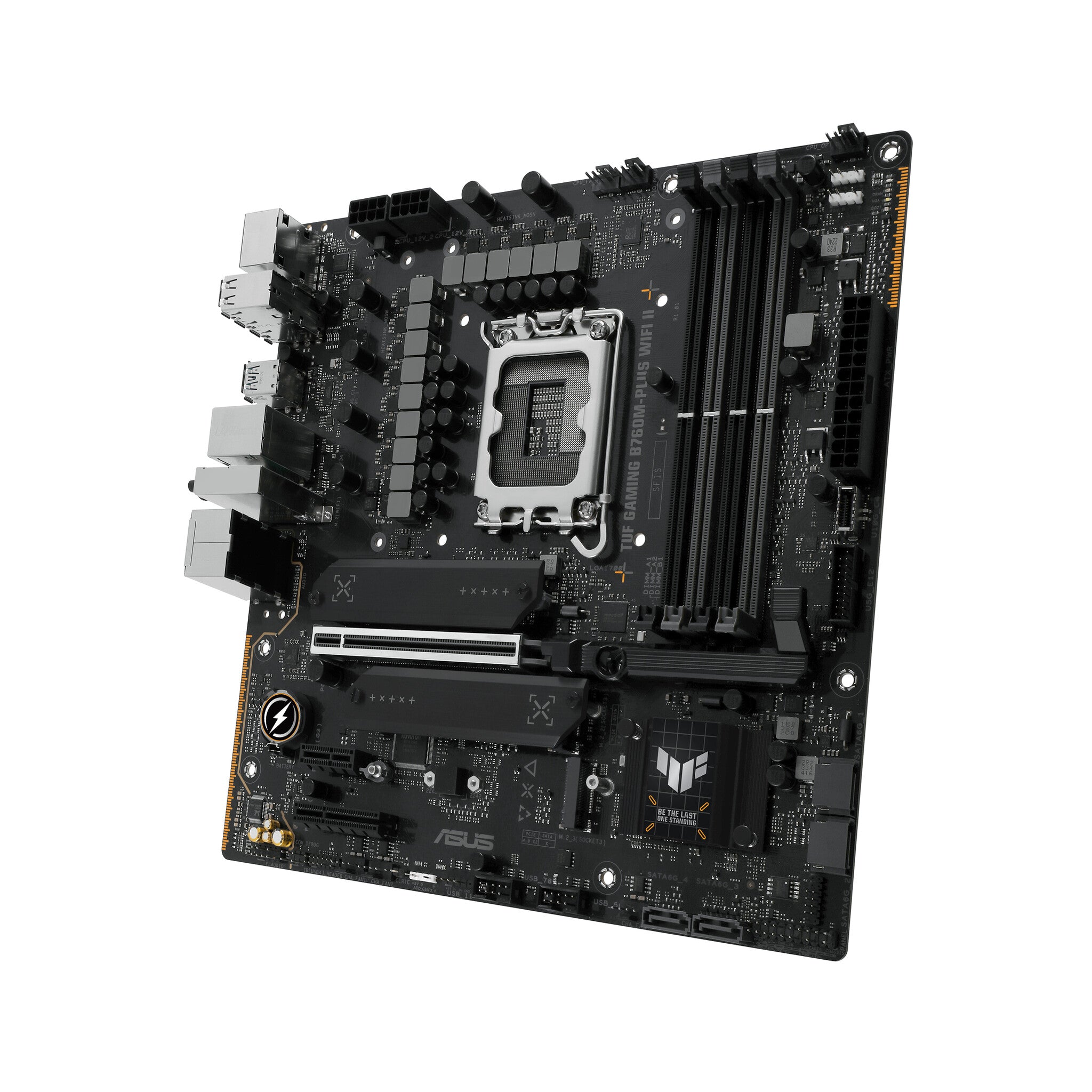

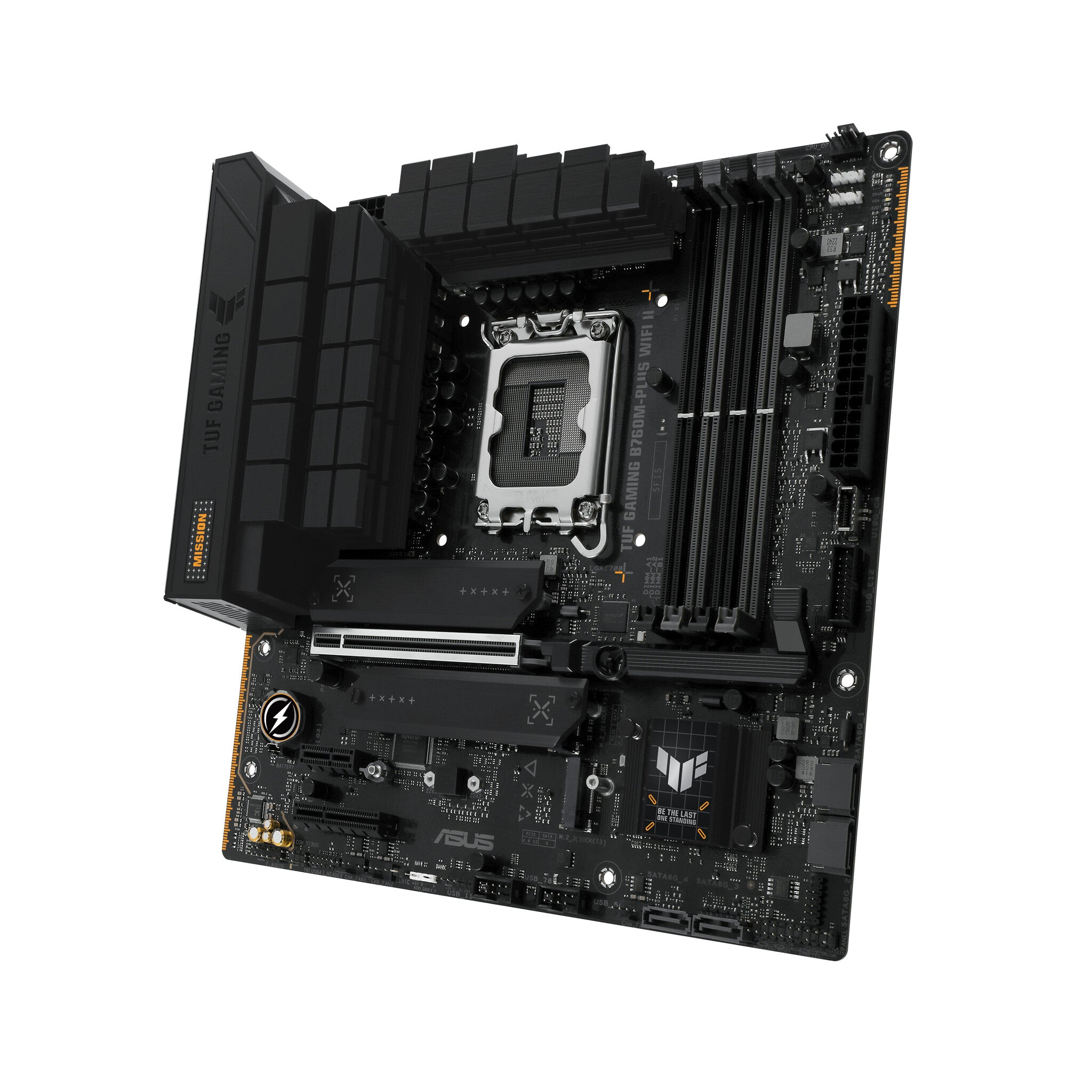

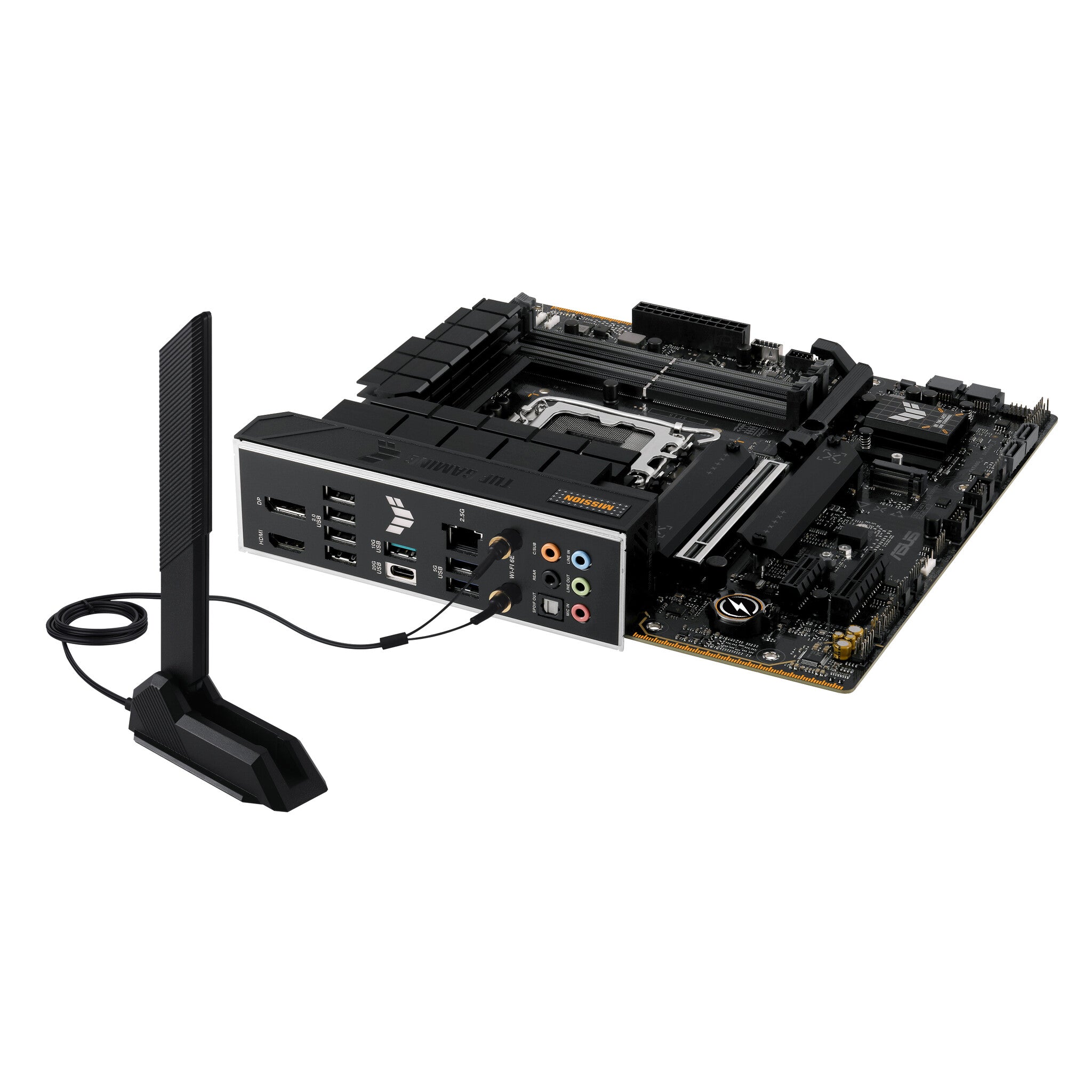

ASUS TUF GAMING B760M-PLUS WIFI II mATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC micro ATX Intel B760 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 128 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
How much memory can the motherboard support?
Does it have built-in Wi-Fi?
What is the form factor of this motherboard?
ASUS TUF GAMING B760M-PLUS WIFI II mATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description
The ASUS TUF GAMING B760M-PLUS WIFI II brings Intel B760 chipset features to a compact micro ATX form factor, making it an excellent choice for mid-range gaming builds where space efficiency matters. This LGA1700 socket board supports all current Intel 12th, 13th, and 14th generation processors, from budget Celeron chips up to flagship Core i9 models. The B760 chipset hits the sweet spot between features and price, offering modern connectivity without the premium cost of Z-series boards.
Memory performance gets serious attention with four DDR5 slots supporting up to 192GB capacity and speeds reaching 7800MHz with XMP profiles enabled. Three M.2 slots provide flexible storage expansion, while the single PCIe 5.0 x16 slot ensures your graphics card has full bandwidth. Wi-Fi 6E and Thunderbolt 4 connectivity keep you connected to the latest peripherals and networks, while Aura Sync RGB headers let you customize lighting across compatible components.
Setup stays straightforward with the included I/O shield, M.2 mounting hardware, SATA cables, and clear user documentation. The TUF Gaming series emphasizes reliability through military-grade components and enhanced power delivery, making this board suitable for both gaming enthusiasts and productivity-focused builds. The micro ATX footprint saves space without sacrificing essential features, fitting well in smaller cases while maintaining room for future upgrades.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7800 MHz |
| Supported memory clock speed (max) | 7800 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |

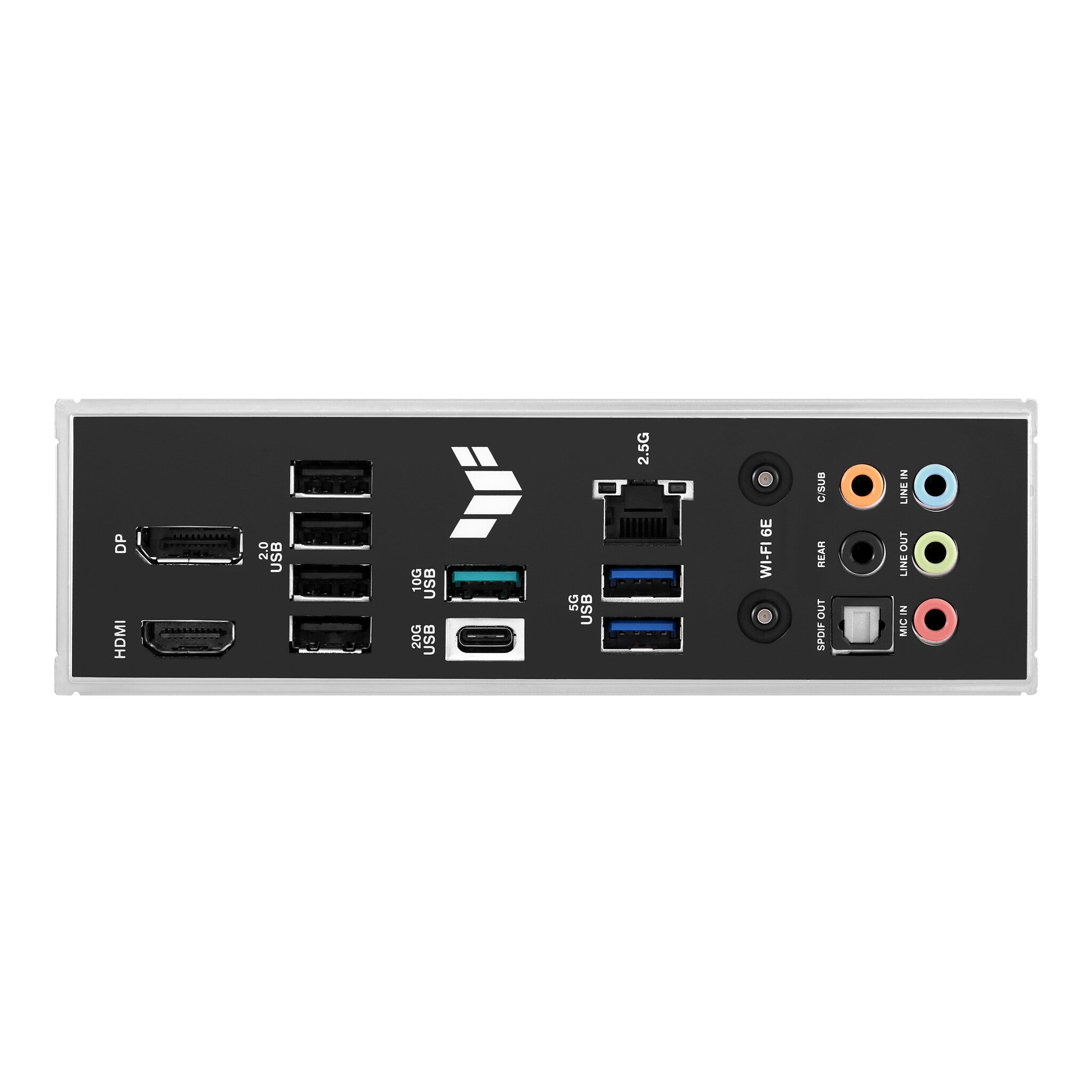

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.65 kg |
| Weight & dimensions | |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | SATA |
| Other features | |
|---|---|
| Weight | 982 g |
