ASUS TUF Gaming B760-Plus WIFI ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
KEY FEATURES
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
- PC ATX Intel B760 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
- HDD & SSD M.2, PCI Express 3.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 128 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
100% Safe & Secure Checkout
Reviews
Frequently Asked Questions
What processors are compatible with the ASUS TUF Gaming B760-Plus?
How much RAM can the ASUS TUF Gaming B760-Plus support?
Does this motherboard support Wi-Fi?
ASUS TUF Gaming B760-Plus WIFI ATX Motherboard | LGA1700 | 4x DDR5 Slots | Wi-Fi 6E
Description
The ASUS TUF Gaming B760-Plus WiFi is an ATX motherboard built around Intel's mainstream B760 chipset for LGA1700 processors. It supports 12th and 13th-gen Intel Core processors from Celeron to Core i7, making it a solid choice for mid-range gaming systems and productivity builds. The military-grade TUF components and reinforced construction provide enhanced durability without the premium pricing of high-end boards.
Memory support extends up to 128GB of DDR5 across four DIMM slots, with speeds reaching 5066MHz when using compatible modules and XMP profiles. Expansion options include two PCIe x16 slots - one PCIe 5.0 for the latest graphics cards and one PCIe 4.0 for additional cards or storage. Three PCIe 4.0 M.2 slots deliver fast NVMe storage options, while connectivity covers all the essentials with 2.5Gb Ethernet, built-in WiFi, USB 3.2 Gen 2x2 Type-C, and Thunderbolt support for versatile peripheral connections.

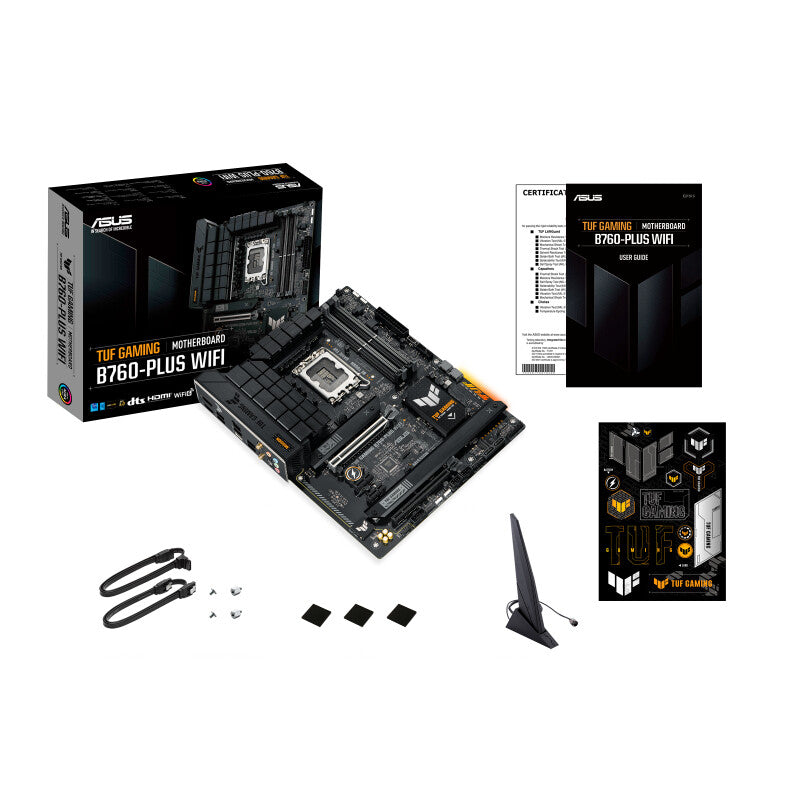

Display outputs include HDMI, DisplayPort, and VGA for integrated graphics users, plus multiple USB ports including front-panel Type-C connectivity. The board includes ASUS Aura Sync RGB lighting with header support for custom lighting setups. Standard accessories typically include the rear I/O shield, SATA cables, M.2 mounting hardware, and installation guide to get your system running quickly.
Feature
Easy 14 days Returns
Eligible for Next day Delivery
100% Money-back guarantee
Reliable Customer Support
Secure payment method
Shipping Information
- Next Business Day: £6.99
- 2 days Delivery: £4.99
- 3- 5 Days Shipping: £3.99
- Orders Over £99.00: Free Standard Delivery
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 5066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| RGB LED pin header | Yes |

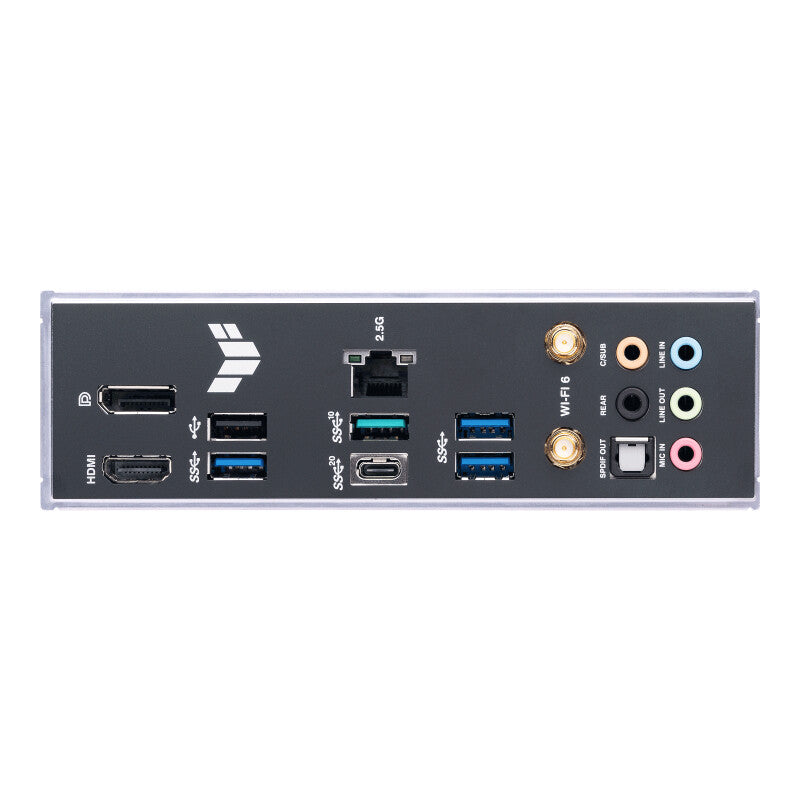

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.16 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
